Up to 15 kV Reversible Polarity – Desktop

2/4 Channel up to 15 kV Reversible polarity Family with USB, Ethernet & Touchscreen

Features

  • 2 or 4 independent HV channels in a fully Desktop form factor
  • Channel polarity independently selectable
  • SHV coaxial output connectors
  • Common floating return
  • Very Low Ripple
  • Under/overvoltage alert, overcurrent and max. voltage protection
  • 2.8’’ color touch screen display
  • Local and Remote control (USB 2.0/Ethernet)
  • Interlock logic for unit enable and individual channel kill

Overview

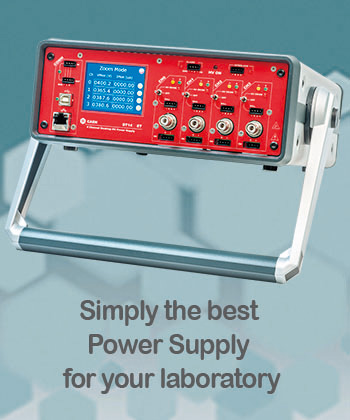

DT14xxET and DT1570 are CAEN Power Supplies providing 2 or 4 independent High Voltage channels in a Desktop form factor. Each channel features an independently selectable polarity and common foating return (common return insulated from the chassis ground). High Voltage outputs are delivered through SHV connectors on DT14xxET models and through LEMO HV on DT1570. All units can be controlled either locally thanks to a 2.8” touchscreen color LCD display with a complete user interface, or remotely, via USB or Ethernet, taking advantage of the new GECO2020 Control Software. EPICS and LabVIEW are supported.

Diferent versions are available spanning from 500 V to 15 kV and from 20 µA to 3 mA, meeting the needs of a wide range of applications. Each unit is provided  with Imon Zoom. This feature enhances the current monitoring, increasing the resolution of a x10 or x20 factor according to the specifc model.

The HV output Ramp-Up and Ramp-Down rates can be set independently for each channel in the range 1 ÷ 500 V/s in 1 V/s steps (1 ÷ 50 V/s for DT1419ET).

Software

Software Tools available (free download)

blankCAEN LabVIEW It is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules.
blankEPICS IOC Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol.
blankCAEN HV Wrapper Library It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products
blankGECO2020 CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.

Models

Model Image No. of Channels Max Output V Max Output I Iset/Imon Resolution Max. Ramp Up/Down Rate Ripple Typ. (>1kHz) Connectors Max Power per Channel Features Actions
DT1419ET DT1419ET 4 ±500 V 200 µA Iset: 5 nA
Imon: 5 / 0.5 nA
100 V/s <3 mVpp SHV 0.1 W Remote control via USB or Ethernet QUOTE
DT1470ET DT1470ET 4 ±8000 V 3 mA Iset: 50 nA
Imon: 50 / 5 nA
500 V/s <5-10 mVpp SHV 9 W (< 3 kV) 8 W (> 3 kV) Remote control via USB or Ethernet QUOTE
DT1471ET DT1471ET 4 ±5500 V 300 µA Iset: 5 nA
Imon: 5 / 0.5 nA
500 V/s <3 mVpp SHV 1.65 W Remote control via USB or Ethernet QUOTE
DT1471HET DT1471HET 4 ±5500 V 20 µA Iset: 1 nA
Imon: 1 / 0.05 nA
500 V/s <2 mVpp SHV 0.11 W Remote control via USB or Ethernet QUOTE
DT1570ET DT1570ET 2 ±15000 V 1 mA (@10 kV) Iset: 20 nA
Imon: 20 / 2 nA
500 V/s <4-20 mVpp LEMO HV 10 W Remote control via USB or Ethernet QUOTE
