R14xxET

8/4 Ch Reversible 19'' Rack-mount High Voltage Power Supply Family

Features
  • 4 or 8 independent HV channels in a 2U, 19" Rack-mount unit
  • Channel polarity independently selectable
  • SHV coaxial output connectors
  • Common floating return
  • Very Low Ripple
  • Under/overvoltage alert, overcurrent and max. voltage protection
  • 2.8" color touch screen display
  • Local and Remote control (USB 2.0/Ethernet)
  • Interlock logic for unit enable and individual channel kill
Overview
Overview

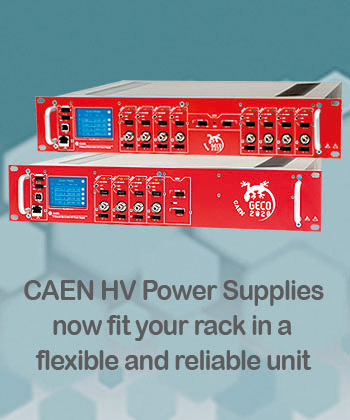

The RX14xxET is a new CAEN Power Supply Family providing 4or 8 independent High Voltage channels in a 2U, 19" Rack-mount unit. Each channel features an independently selectable polarity and common floating return (common return insulated from the chassis ground). High Voltage oitputs are delivered through SHV connectors. RX14xxET units can be controlled either locally, thanks to a 2.8" touchscreen color LCD display with a complete user interface, or remotely, via USB or Ethernet, taking advantage of the new GECO2020 Control Software. EPICS and LabVIEW are supported.

Different versions are available spanning from 500 V to 8 kV and from 20 A to 3 mA, meeting the needs of a wide range of applications.

Each unit is provided with Imon Zoom. This feature enhances the current monitoring, increasing the resolution of a x10 or x20 factor according to the specific model.

The HV output Ramp-Up and Ramp-Down rates can be set independently for each channel in the range 1500 V/s in 1 V/s steps (150 V/s for R1419ET / R1419ETD).
child1_1
Model Compare
Model
Maximum Voltage
Maximum Current
Iset/Imon Resolution
N. of Channels
500 V
200 A
5 nA
0.5 nA (Imon Zoom)
4
8 ( R1419ETD version)
5.5 kV
300 A
5 nA
0.5 nA (Imon Zoom)
4
8 ( R1471ETD version)
5.5 kV
20 A
1 nA
50 pA (Imon Zoom)
4
8 ( R1471HETD version)
8 kV
3 mA(*)
50 nA
5 nA (Imon Zoom)
4
8 ( R1470ETD version)

(*) Max output power:
9 W (<3 kV output),
8 W (>3 kV output)
child2 R14xxET
Safety features
arrow Overvoltage and Undervoltage warning when the output voltage differs from the programmed value.
arrow Programmable hardware VMAX protection limit
arrow Overcurrent detection: when a channel attempts to exceed the programmed current limit, it signaled to be in "overcurrent" and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to "INFINITE", the channel behaves like a current generator.
arrow Common Interlock logic for channels enable/disable and individual input signal for channel Kill function.
