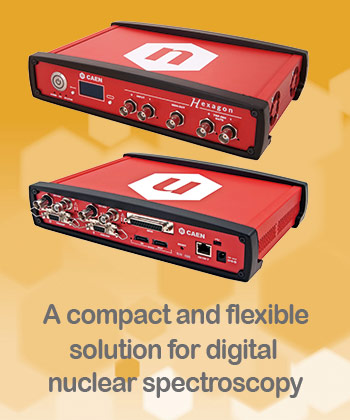

main hexagon
NEW

HEXAGON

Dual Independent 32k Digital MCA

Features
  • Dual 32k Digital MCA & Pulse Processor
  • Provides pulse height analysis (PHA), time-stamped list mode and multichannel scaler (MCS coming soon)
  • Suited for high resolution spectroscopy with HPGe, Silicon detectors and scintillation detectors as Nal and LaBr3
  • Operate with Resistive Feedback and Transistor Reset preamplifier
  • Open access to embedded CPU for custom developments
  • Two HV power supply channels (up to ±5 kV) with HV inhibit (BNC), programmable ramp and accurate parameter monitoring
  • Front panel OLED Display
  • Two DB9 connectors for preamplifier power supply (+-12 V,+-24 V), HV inhibit and temperature read
  • Two BNC inputs for TRP inhibit or ADC gate
  • Ethernet and USB readout interfaces
  • Easy synchronization for Multi-Board systems
  • 24 Programmable Digital I/O
  • Signal Inspector by both BNC Analog Output and Software visualization
child 2
Software
Acquisition settings and mathematical analysis are performed through the MC2Analyzer software, providing energy spectra with up to 32k channels, which can be exported and imported in ASCII or N42.42 compliant files.

CAEN further provides drivers for the supported communication interfaces; configuration software tools, C and LabVIEW libraries (CAENComm, CAENDigitzer, CAENDPP), demo applications and utilities.
SFW
MC² Analyzer (MC²A)
Digital MCA Data Acquisition and Analysis Software
MC²A is a software specifically designed to manage CAEN Digital MCA (DT5770, Gamma stream, Hexagon and 780/781 family) as well as CAEN digitizers running DPP-PHA (Digital Pulse Processing for the Pulse Height Analysis) firmware, like 724 or 730 family.

It allows the user to set the relevant parameters, to manage the HV channels configuration (x780 and Hexagon only), to collect the spectra and perform mathematical analysis on them, like energy calibration, peak search, background subtraction, peak fitting, etc.

It is designed with multi-channel, multi-board capabilities: it can handle several boards and manage the data acquisition from each of them at the same time.
MC² Analyzer (MC²A) video
