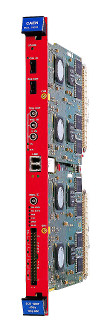

V1761

2 Channel 10 bit 4GS/s Digitizer

Features

  • 10-bit @ 4 GS/s
  • Analog inputs on MCX coaxial connectors (50 Ω, single-ended)
  • 2 channels, 1-unit wide 6U VME64 module
  • 1 Vpp input dynamic range with programmable DC offset adjustment
  • Time-stamped Waveform Recorder
  • Memory buffer: 7.2 MS/ch or 57.6 MS/ch size
  • Programmable event size and post-trigger adjustment
  • VME64 (VME64X compliant) and Optical Link communication interfaces
  • Multi-board synchronization features
  • 16 programmable LVDS I/Os
  • Daisy chain capability
  • Compliant with CAEN WaveDump, C and LabVIEW Libraries

Overview

The Mod. V1761 is the CAEN Waveform Digitizer with the highest sampling rate Flash ADC (10 bit @ 4GS/s).

It can record fast signals from fast organic, inorganic and liquid scintillators coupled to PMTs or Silicon Photomultipliers, Diamond detectors and others, and save them with high efficiency and precision for offline advanced timing analysis. The acquisition can be externally vetoed/gated. Multiple boards can be synchronized to build up complex systems.

The data stream is written in a circular memory buffer with independent read/write access, which reduces the dead-time of the acquisition process.

The acquisition is fully controlled by CAEN WaveDump software, which manages the settings, plots and saves the waveforms. Libraries and demo software in C and LabView are available for integration and customization of specific acquisition systems.

The V1761 comes in a VME form factor with 2 input channels. The communication to and from the board is provided through VMEBus and Optical Link interfaces.

Technical Specifications

GENERAL

Form Factor
1-unit wide, 6U VME64

ANALOG INPUT
Channels
2 channels single-ended

Impedance

50 Ω
Connector
MCX

Full Scale Range

1 Vpp
Bandwidth
1 GHz

Offset

Programmable DAC for DC offset adjustment in the full-scale range
DIGITAL CONVERSION
Resolution
10 bits
Sampling Rate
4 GS/s
Simultaneously on each channel
ADC CLOCK GENERATION
  • Clock source: internal/external
  • Onboard programmable PLL provides generation of the main board clocks from an internal (50 MHz local Oscillator) or external (front panel CLK-IN connector) reference
DIGITAL I/O
CLK-IN (AMP Modu II)
AC coupled differential input clock LVDS, ECL, PECL, LVPECL, CML (single ended NIM/TTL available by CAEN adapter)
Jitter<100 ppm requested

CLK-OUT (AMP Modu II)
DC coupled LVDS output clock for multi-board synchronization
TRG-OUT (LEMO)
Local trigger digital output
NIM/TTL, Rt = 50 Ω



TRG-IN (LEMO)

External trigger digital input
NIM/TTL, Zin = 50 Ω
S-IN (LEMO)
SYNC/START front panel digital input
NIM/TTL, Zin = 50 Ω
ACQUISITION MEMORY
  • 7.2 MS/ch (1.9 ms @ 4 GS/s) or 57.6 MS/ch (15 ms @ 4 GS/s) Multi-event Buffer divisible into 1 ÷ 1024 buffers
  • Independent read and write access
  • Programmable event size and pre/post-trigger
TRIGGER
Trigger Source
Self-trigger: channel over/under threshold for Common trigger generation
External-trigger: Common by TRG-IN connector
Software-trigger: Common by software command
Trigger Time Stamp
Waveform Recording: 31-bit counter, 16 ns resolution, 17 s range; 48-bit extension by firmware

Trigger Propagation

TRG-OUT digital output
SYNCHRONIZATION
Clock Propagation
Daisy chain: CLK-IN/CLK-OUT connectors
One-to-many: clock distribution from DT4700 on CLK-IN connector
Clock Cable delay compensation
Acquisition Synchronization
Sync Start/Stop through digital I/O (S-IN or TRG-IN input, TRG-OUT output)
Trigger Time Stamp Alignment
By S-IN input connector
ADC & MEMORY CONTROLLER FPGA

Four Altera Cyclone III EP3C16

ANALOG MONITOR

12-bit/125 MHz DAC FPGA controlled output with four operating modes:
Test pulses: 1 Vpp ramp generator
Majority signal: proportional to the no. of channels under/over the threshold (steps of 125 mV)
Memory Occupancy signal: proportional to the Multi-Event Buffer Occupancy (1 buffer ~ 1mV)
Voltage level: programmable output voltage level

LVDS I/O

16 general purpose LVDS I/Os controlled by FPGA
Busy, Data Ready, Memory Full, Individual Trg-Out and other functions can be programmed
An Input Pattern from the LVDS I/Os can be associated to each trigger as an event marker

COMMUNICATION INTERFACE
VME
VME 64X compliant
Data transfer mode: BLT32, MBLT64 (70 MB/s using CAEN Bridge), CBLT32/64, 2eVME, 2eSST (up to 200 MB/s)
Optical Link
CAEN CONET proprietary protocol, up to 80 MB/s transfer rate
Daisy chainable: it is possible to connect up to 8/32 ADC modules to a single Optical Link Controller (Mod.A2818/A3818)
FIRMWARE
Waveform Recording Firmware
Free firmware for waveform recording

Upgrades
Firmware can be upgraded via Optical Link or VMEBus
SOFTWARE
Libraries
General purpose C and LabVIEW Libraries

Readout Software

CAEN WaveDump
Configuration Tools
CAEN Upgrader for Firmware upgrade
Direct Register R/W
Example codes
POWER CONSUMPTIONS
  • 6.5 A @ +5 V
  • 200 mA @ +12 V
  • 300 mA @ -12 V
