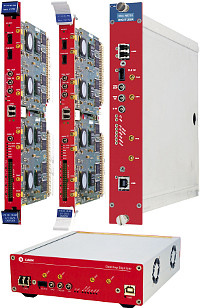

751 Digitizer Family

8-4 / 4-2 Channel 10-bit 1-2 GS/s Digitizer
The 751 is a family of 10-bit, 1 GS/s Flash ADC Waveform Digitizers available in three form factors: VME (8 input channels), NIM (4 input channels) and Desktop (4 input channels). Considering the sampling frequency and the bit number, it is well suited for fast signals as the ones coming from fast organic, inorganic and liquid scintillators coupled to PMTs or Silicon Photomultipliers, Diamond detectors and others.

x751 can work also as a 10-bit, 2 GS/s Flash ADC Waveform Digitizer when operating in Dual Edge Sampling (DES) mode, inteleaving pairs of input channels.

The acquisition capabilities of x751 take advantage of the multi-buffer organization of the memories. The data stream is continuously written in a circular memory buffer. When the trigger occurs, the digitizer writes further samples for the post trigger and freezes the buffer that can be read by one of the provided readout links. The acquisition can continue without any dead time in a new buffer.

Two memory sizes are available according to the different versions of the x751 model: 1.8 - 3.6 MS/ch or 14.4 - 28.8 MS/ch.

x751 digitizer is provided with FPGAs that can run Digital Pulse Processing (see the box below). In addition to the existing firmware, CAEN is available to collaborate with customers to develop custom solutions.

751 family supports multi-board synchronization allowing all ADCs to be synchronized to a common clock source and ensuring Trigger Time Tag alignment. Once synchronized, all data will be aligned and coherent across multiple x751 boards.

A common acquisition trigger signal can be provided externally, via front panel digital input connector, or via software. Alternatively, each channel can generate a trigger request when the input pulse goes under/over a programmable threshold; the trigger requests can be used either locally by the channel (independent triggering with DPP firmware) or processed by the board to generate a common trigger causing all the enable channels to acquire an event simultaneously (default firmware). The trigger from one board can be provided on a front panel digital output connector.

751 family supports multi-board synchronization making a multi-board system where all ADCs result to be synchronized to a common clock source, and ensuring Trigger Time Tag alignment. Once synchronized, all data will be aligned and coherent across multiple x751 boards.

Refer to the following links for specific information on the different form factors: V1751, VX1751, DT5751, N6751.


CAEN Digitizers can be operated as pure waveform recorders or can run special algorithms to process the digitized pulses and extract a set of significant information like energy, pulse shape and precise timing.Each acquisition mode makes use of a specific firmware and software to tailor the digitizer capabilities to the user's needs.
Digital Waveform Recording with Zero Suppression for trigger-less acquisition system
Logo Software DPP ZLE
Digital Pulse Processing for the Zero Length Encoding Firmware
Logo Software DPP ZLE CONTROL
Demo Software for DPP-ZLEplus Management
 (*) DPP-ZLEplus doesn't support DES mode (2 GS/s sampling frequency).
GENERAL Form Factor
1-unit wide, 6U VME64/VME64X
1-unit wide NIM
154x50x164 mm3 (WxHxD) Desktop
ANALOG INPUT


Channels
8-4 channels
single ended / differential (VME)
4-2 channels
single ended / differential (NIM, Desktop)

Impedance
50 Ohm single ended
100 Ohm differential
Connector
MCX single ended
AMP MODU II differential



Full Scale Range
1 Vpp (default)
0.2 Vpp (on request)
Bandwidth
500 MHz




Offset
Programmable DAC for DC offset adj.
Range: ± 0.5 V @ 1 Vpp, ± 0.1 V @ 0.2 Vpp
DIGITAL CONVERSION


Resolution
10 bits
Sampling Rate
250 to 1000 MS/s
symultaneously on each channel (double in DES mode)
ADC CLOCK GENERATION Clock source: internal/external
On-board PLL provides ADC sampling clock generation from an internal (50 MHz loc. oscillator) or external (front panel CLK-IN connector) reference
TRIGGER


Trigger Source
Self-trigger: channel over/under threshold for either Common or Individual (DPP only) trigger generation
External-trigger: Common by TRG-IN or individual by LVDS connectors (VME and DPP only)
Software-trigger: Common by software command
Trigger Propagation
TRG-OUT (VME) / GPO (NIM, Desktop) digital output

Trigger Time Stamp
Standard FW, DPP-ZLE: 31-bit counter, 16 ns resolution, 17 s range
DPP-PSD FW: 32-bit counter, 1 ns resolution, (4 s range), expandable to 64-bit
MEMORY 1.835 MS/ch (3.6 MS/ch in DES mode) or 14.4 MS/ch (28.8 MS/ch in DES mode)
Multi-Event Buffer with independent read and write access divisible into 1 ÷ 1024 buffers
Programmable event size and pre-post trigger
SYNCHRONIZATION


Clock Propagation
Daisy chain (VME only) through CLK-IN/CLK-OUT connectors
One-to-many clock distribution from
an external clock source
Clock Cable delay compensation
Acquisition Synchronization
Sync Start/Stop through digital I/O (S-IN, TRG-IN or GPI input, TRG-OUT or GPO output)
External Trigger Time Stamp reset
LVDS I/O (VME only) 16 general purpose LVDS I/Os controlled by FPGA
Busy, Data Ready, Memory Full, Individual Trg-Out and other functions can be programmed
An Input Pattern from the LVDS I/Os can be associated to each trigger as an event marker
ANALOG MONITOR
(VME only)
12-bit/100 MHz DAC FPGA controlled output with four operating modes:
Trigger Majority / Test Pulses / Memory Occupancy / Voltage Level
COMMUNICATION INTERFACE


Optical Link
CAEN CONET proprietary protocol,
up to 80 MB/s transfer rate
Daisy chainable: it is possible to
connect up to 8/32 ADC modules to a
single Optical Link Controller (Mod.A2818/A3818)
USB (NIM and Desktop direct, VME via V1718 bridge)
USB 2.0 compliant

VME
VME 64X compliant
Data transfer mode: BLT32, MBLT64 (70 MB/s using CAEN Bridge), CBLT32/64, 2eVME, 2eSST (up to 200 MB/s)
POWER CONSUMPTIONS
Desktop
1.8 A @ 12 V (Typ.)
NIM
3.9 A @ +6 V
120 mV @ -6 V
VME
6.5 A @ +5 V
200 mA @ +12 V
300 mA @ -12 V
Code Description
WV1751BXAAAA OBSOLETED | V1751B - 4/8 Ch. 10 bit 2/1 GS/s Digitizer: 3.6/1.8MS/ch, EP3C16, DIFF
WV1751CXAAAA V1751C - 4/8 Ch. 10 bit 2/1 GS/s Digitizer: 28.8/14.4MS/ch, EP3C16, SE
WV1751XAAAAA V1751 - 4/8 Ch. 10 bit 2/1 GS/s Digitizer: 3.6/1.8MS/ch, EP3C16, SE
WVX1751BXAAA OBSOLETED | VX1751B - 4/8 Ch. 10 bit 2/1 GS/s Digitizer: 3.6/1.8MS/ch, EP3C16, DIFF
WVX1751CXAAA VX1751C - 4/8 Ch. 10 bit 2/1 GS/s Digitizer: 28.8/14.4MS/ch, EP3C16, SE
WVX1751XAAAA VX1751 - 4/8 Ch. 10 bit 2/1 GS/s Digitizer: 3.6/1.8MS/ch, EP3C16, SE
WDT5751XAAAA DT5751 - 2/4 Ch. 10 bit 2/1 GS/s Digitizer: 3.6/1.8MS/ch, EP3C16, SE
WN6751XAAAAA N6751 - 2/4 Ch. 10 bit 2/1 GS/s Digitizer: 3.6/1.8MS/ch, EP3C16, SE
WN6751CXAAAA N6751C - 2/4 Ch. 10 bit 2/1 GS/s Digitizer: 28.8/14.4MS/ch, EP3C16, SE
WPERS0175102 x751 Customization - 200mVpp Input Range, SE
