New products selection
We are so excited and proud to introduce you our latest instruments and electronics! You can choose to read online the CAEN New products selection or download a copy. You can also share the document on twitter, linkedin and over email by clicking on the menu a the bottom of the viewer.
DownloadFilter new products by category
DT5771
1 Ch. Digital MCA with Open FPGA
The Mod. DT5771 is the latest MCA designed to meet your diverse needs and replace DT5770 MCA. This entry-level module boasts remarkable ...
DT4810
1 Channel Micro Digital Detector
The Mod. DT4810 is your entry-level gateway to the Detector Emulator range, strategically designed for compactness, ease of use, and single..
R8031
8-16 Ch. 100 V/10 mA 19'' PS
The Mod. R8031 provides 8 or 16 independent 100 V / 10 mA channels in a 19″ rack unit (110/220V AC Powered). Each channel can provide a 100V
RockyRad
Portable Geiger counter for nuclear
RockyRad is a portable Geiger counter for nuclear radiation detection with a mobile interface to manage the Geiger counter acquisition.
V5425
Quad VME Power Distributor
The Mod. V5425 is a 4-channel VME power distribution module; it converts the power supplies provided by a VME crate into ±6 V, ±12 V and ±24

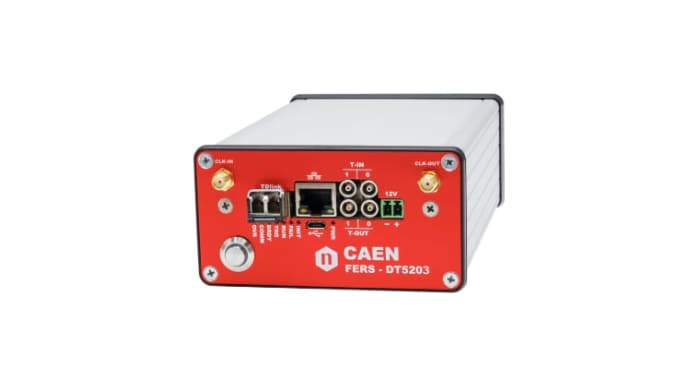

DT5203 / A5203
64/128 Ch TDC for detector arrays
DT5203/A5203 is a 64/128 channels readout Front-End unit for large detector arrays housing a CERN picoTDC ASIC.

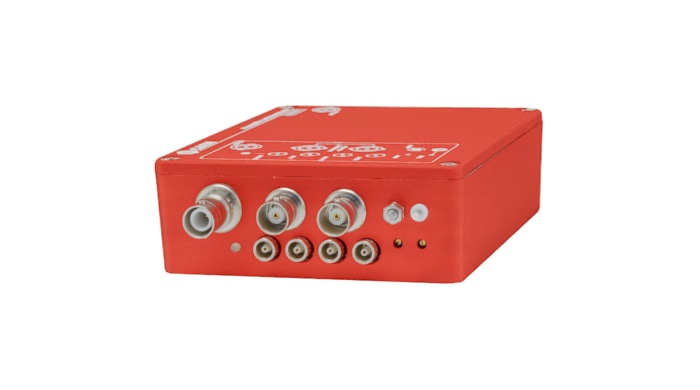

A1421
Preamplifier and Discriminator
Charge sensitive preamplifier, shaper and discriminator providing both analog and TTL output to be used with neutron detector tubes (3He, BF3).

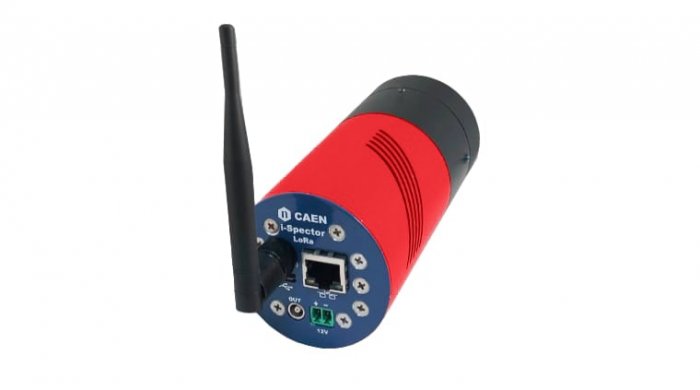

i-Spector family
Intelligent SiPM Tube
An innovative full-featured radiation detection systems for Gamma Spectroscopy and/or Neutron-Gamma Discrimination.

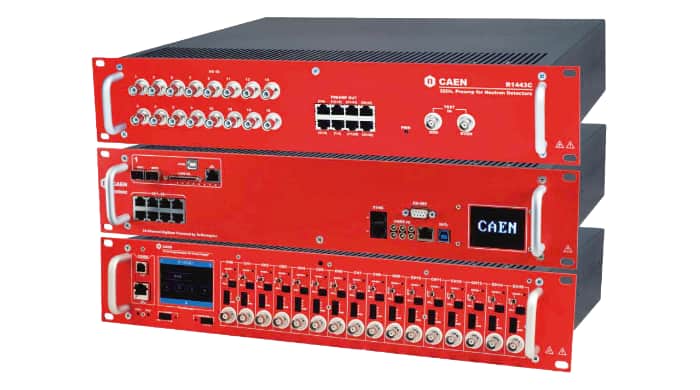

NBrick
32 Ch Neutron Position System
32 channel neutron position sensing system for neutron detection applications, allowing the readout of position-sensing 3He/BF3 tubes.

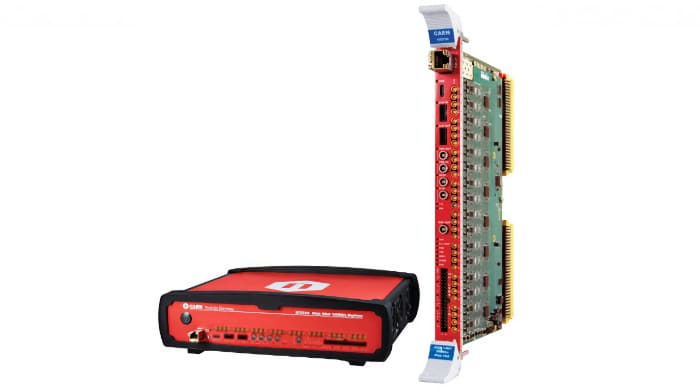

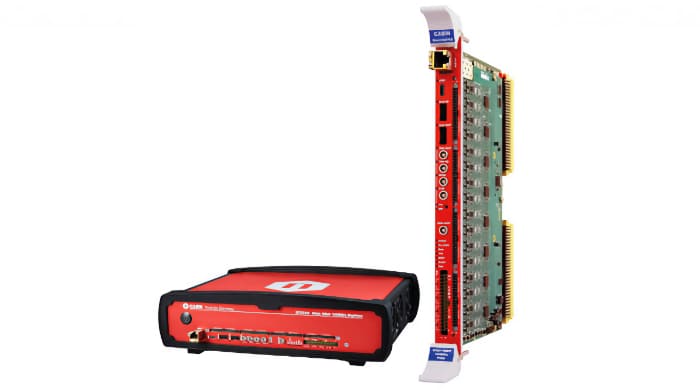

2730 Digitizer Family
32 Channel 14 bit 500 MS/s
X2730 Digitizer Family is a 32 channel digital signal processor for radiation detectors featuring waveform digitization & Multi-Channel Analysis.

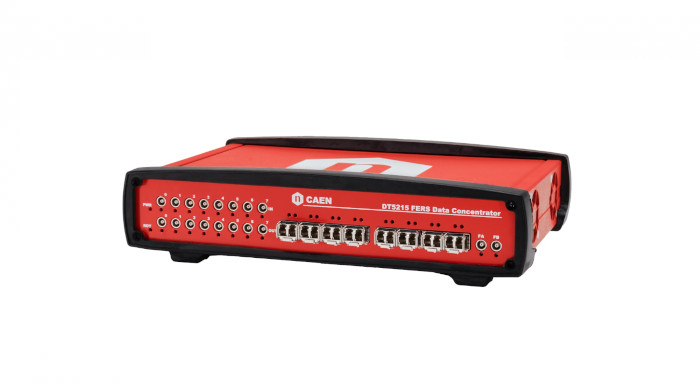

DT5215
Concentrator Board for FERS-5200
FERS-5200 is a Front-End Readout System designed for large detector arrays, such as SiPMs, multi-anode PMTs, etc.
2745 Digitizer Family
64 Channel 16 bit 125 MS/s
X2745 Digitizer Family is a 64 channel digital signal processor for radiation detectors featuring waveform digitization & Multi-Channel Analysis.
A7526
1Ch 2.6kV 500µA High Efficiency
The A7526 is a high efficiency, low noise single channel High Voltage DC/DC converters in a PCB mount form factor.
A7526DB
1Ch 2.6kV 500µA
The Mod. A7526DB is a compact digital controlled power supply to provide stable and noiseless power for several kinds of detectors.
DT7790
Unattended Dual Current Monitor
The Mod. DT7790 is a Desktop Dual Current Monitor for Nuclear Safeguards applications such as ion chamber gamma monitoring.

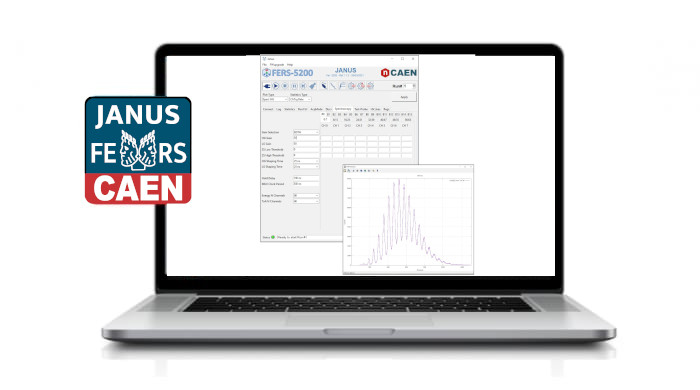

JANUS
FERS-5200 DAQ Software
Janus is an open source software for the control and readout of FERS‐5200 boards. Available in two versions (Ver. 5202, Ver. 5203).

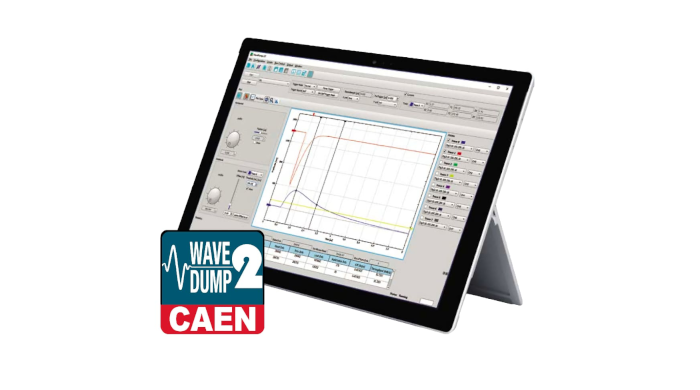

WaveDump2
Readout Open FPGA software
WaveDump2 is a C++ software developed upon Qt cross-platform application development, which supports the 27xx Open FPGA Digitizers.
R1443
Preamplifier Unit for He3 Tubes
The Mod. R1443 is a 32/64 channels Charge Sensitive Preamplifier designed for operating with neutron detectors as 3He or BF3 tubes.
DT5485P
1 Ch. +85 V/10 mA Digital Control
The Mod. DT5845 are high voltage regulators specifically designed for SiPM bias. Each has a built in temperature compensation controller.

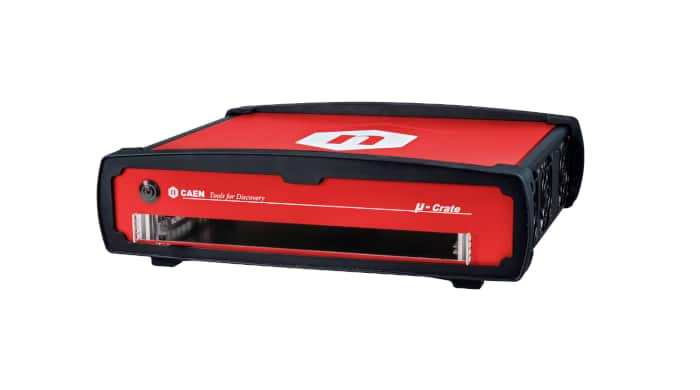

μ-crate
Desktop single-slot VME64X Crate
The μ-Crate is a mains-powered (100 – 240 V AC (130 W) @ 50 / 60 Hz) desktop device with low-noise cooling vents system.
R6060
Branch controller standalone
The Mod. R6060 EASY Branch Controller is a standalone module which allow to controls EASY6000 or EASY3000 boards.

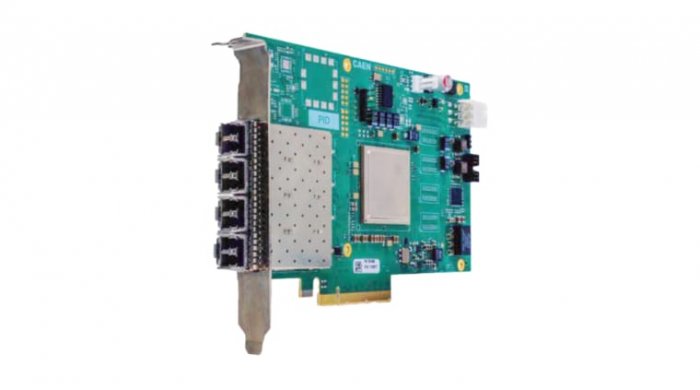

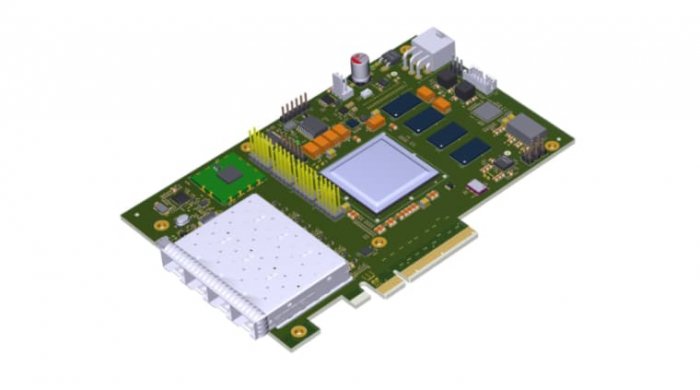

A5818
PCIe Gen 3 CONET2 Controller
The Mod. A5818 is a PCI Express Gen 3 x8 cards with 4 Optical Links able to control up to 32 CAEN VME Digitizers or Bridge.
A1619
16 Ch 250V 1mA/100µA
The Mod.A1619 is a single width board (5TE wide) that houses 16 individual floating HV channels, delivered through DB37 connector.
A1626
16 Channel 1 kV 10mA (10W)
The Mod.A1626 is a single width board (5TE wide) that houses 16 individual floating channels, delivered through DB37 connector.
A1625
8 Channel 1 kV 20mA (20W)
The Mod. A1625 is a single width board (5TE wide) that houses 8 Individual Floating Channels, delivered through DB37 connector.

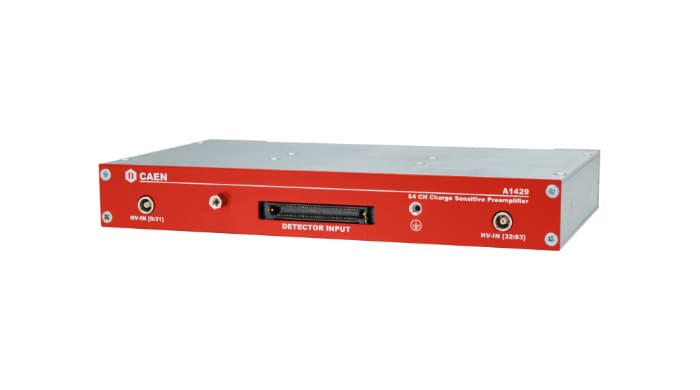

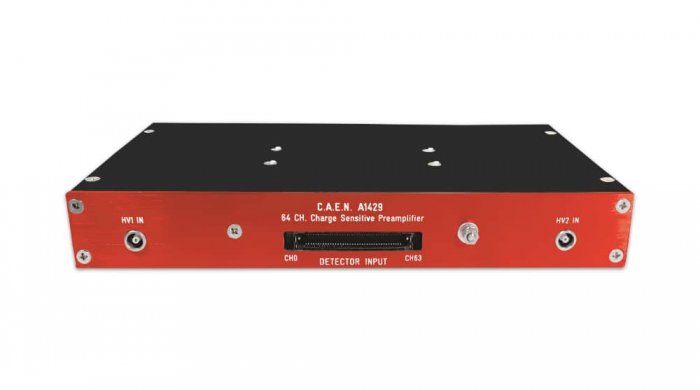

A1429
64 Ch Preamplifier
The Mod. A1429 is a 64 ch. highly integrated charge preamplifier, suitable for single or double sided multi-strip silicon detectors
A1612
16 Ch 500V 1mA/100µA
The Mod. A1612 is a single width board (5TE wide) that houses 16 individual floating channels, delivered through DB37 connector.
A1632H
8 Ch 6kV/100µA Individual Floating
The Mod. A1632H is a single width board (5TE wide) that houses 8 individual floating channels, delivered through SHV connectors

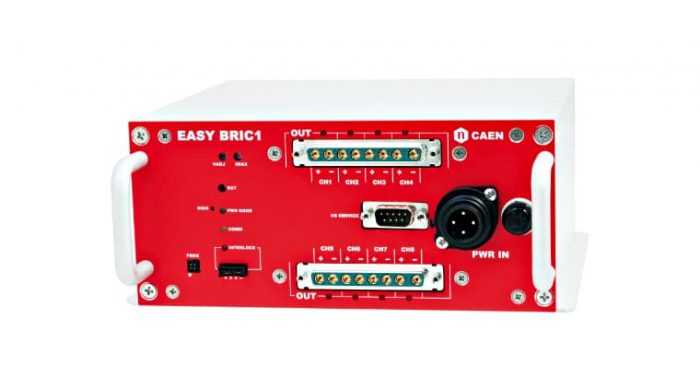

EASY BRIC1
8 Channel 12 V B and Rad tolerant
The B and Rad tolerant Intermediate Converter (BRIC) is built to endure the harsh condition of High Luminosity LHC at CERN.

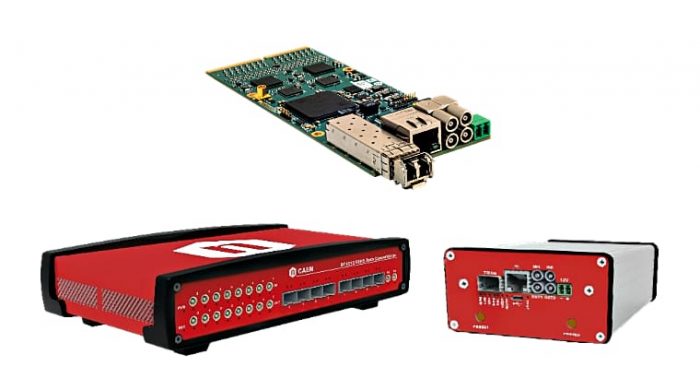

FERS-5200
Front-End Readout System
FERS-5200 is a Front-End Readout System designed for the readout of large detector arrays, such as SiPMs, multi-anode PMTs.

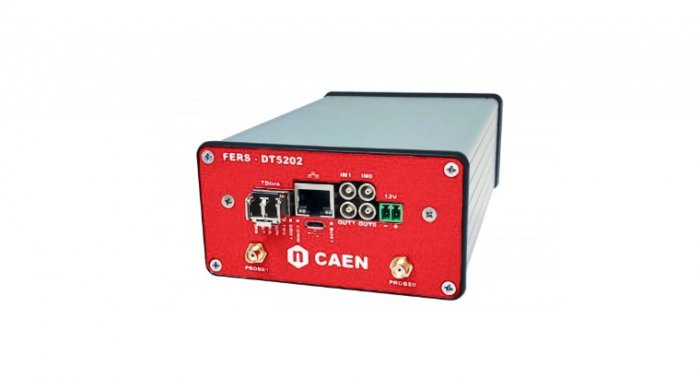

DT5202 / A5202
64 Ch Readout and Bias for SiPM
DT5202/A5202 is a 64 channels readout and bias Front-End unit for Silicon Photomultipliers housing 2 Weeroc Citiroc-1A chips.
R7780
Unattended Data Acquisition Module
The Mod. R7780 is a complete readout, acquisition and analysis module for up to 8 neutron detectors that can work in unattended mode.

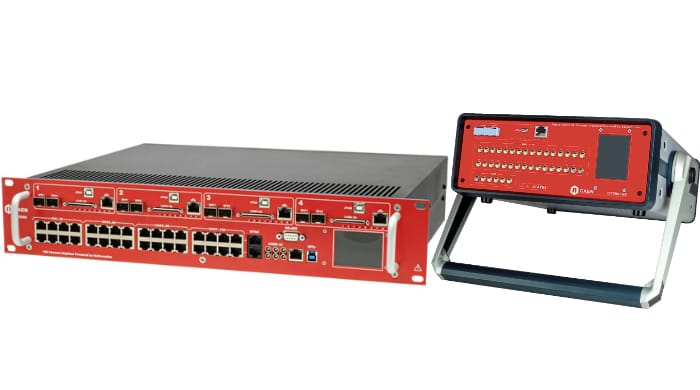

5560 Open FPGA Digitizer Family
14-bit 125 MS/s Open FPGA Family
x5560 is a 128/32 Channels 14-bit 125MS/s Open FPGA Digitizer Family, designed to attain programmable data processing capabilities.
Quantus
Quantitative Spectrometry Software
Quantus is CAEN high performance software to make Quantitative Spectrometry with Hexagon digital MCA supporting a wide range of detectors.
2740 Digitizer Family
64Ch 16 bit 125 MS/s Digitizer
X2740 Digitizer Family is a 64-channel digital signal processor for radiation detectors featuring waveform digitization & Multi-Channel Analysis.

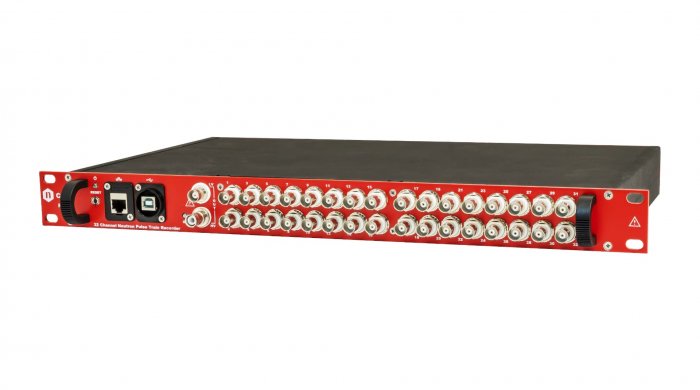

R7771
32 Ch Neutron Pulse Train Recorder
The Mod. R7771 is a Neutron Pulse Train Recorder (NPTR) for the acquisition of signals from 32 neutron detectors.

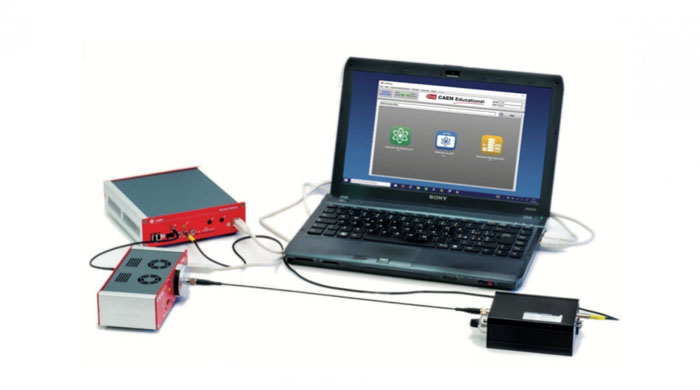

Hera
Handy EDU Radiation Application
HERA (Handy Educational Radiation Application) is a modern and flexible platform for teaching the fundamentals of Statistics, Particles Detection

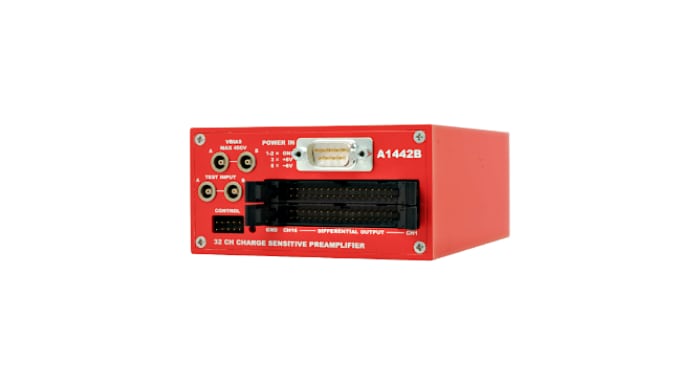

A1442
16/32 Ch Charge Sensitive Preamp
The A1442 is ideally suited for single or double sided multi-strip silicon detectors as well as for multi-channel detectors with common Bias.
A255x
A255x Low Voltage Boards
The A255x are single width boards housing 8 LV floating channels each; they provide 8V/12A, 16V/6A and 32V/3A (60W max.)

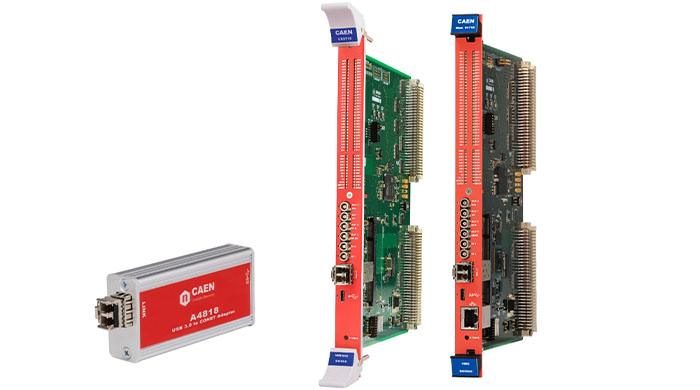

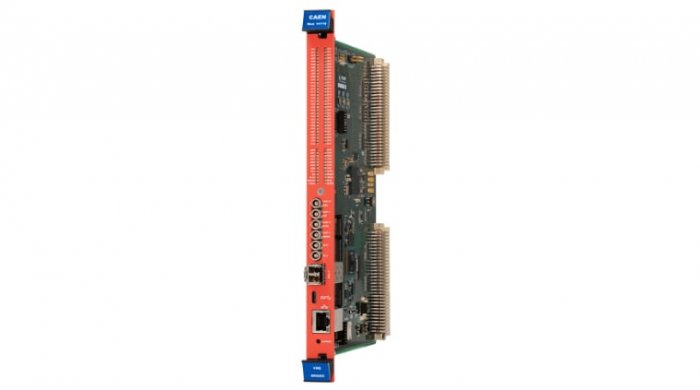

Controllers
VME / Opt Link / USB and Ethernet
CAEN Bridges are controllers with enhanced data rate and extended interfacing capabilities in VME, Desktop and PCIe form factors.
A7512DB
1 Ch 12 kV/20 µA Digital Controlled
The A7512DB is a compact solution providing 1 Ch 12 kV/20 µA Digital Controlled Power Supply Module for MRPC.

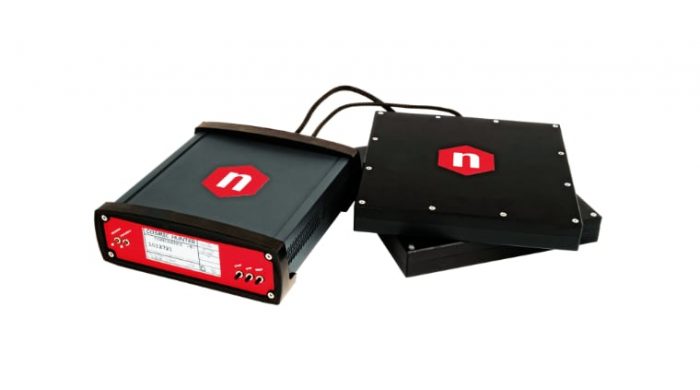

SP5620CH
Cosmic Hunter
Cosmic Hunter is a new educational tool for the analysis and comprehension of cosmic rays based on SiPM detectors and plastic scintillating tiles

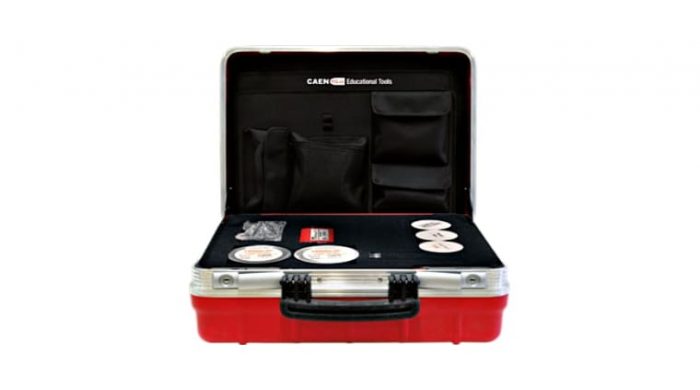

SP5630ENP
Environmental Kit Plus
CAEN designed a new Environmental educational kit for measurement techniques based on counting and on the analysis of the spectrum.

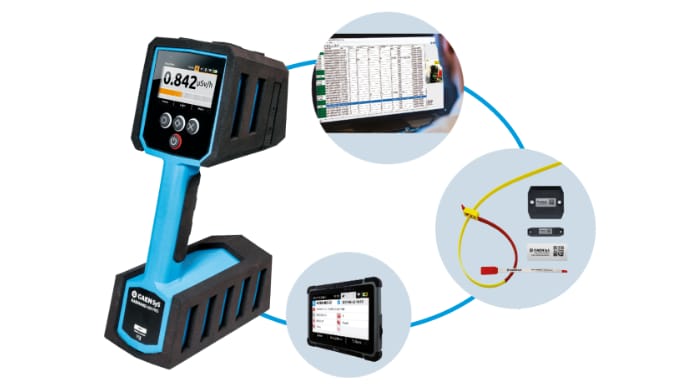

DigiWaste Platform
Nuclear Waste Management
Spectroscopic radiation measurement and UHF RFID tagging combined in a single instrument for easy tracking of any type of radioactive material.

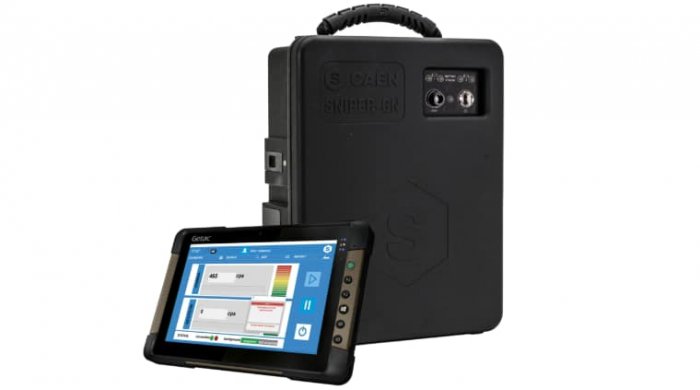

Sniper-GN
SNIPER-GN Special Nuclear Material
Special nuclear material portable identifier designed for radioactive threats searching in critical areas like access point, public access area.

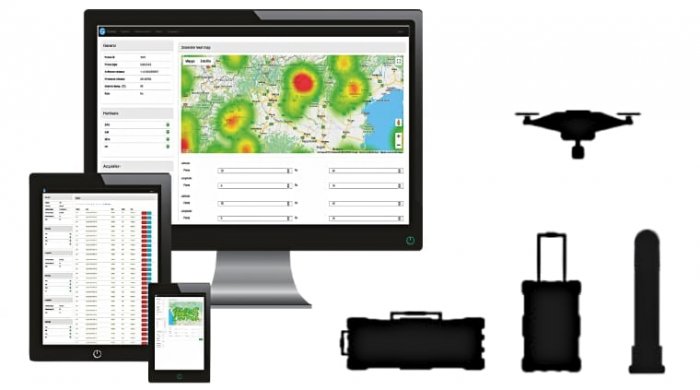

GAMON Platform
Spectroscopy deployable system
The Gamon Platform is a fast deployable gamma neutron detection system for Nuclear Safety and Security applications.

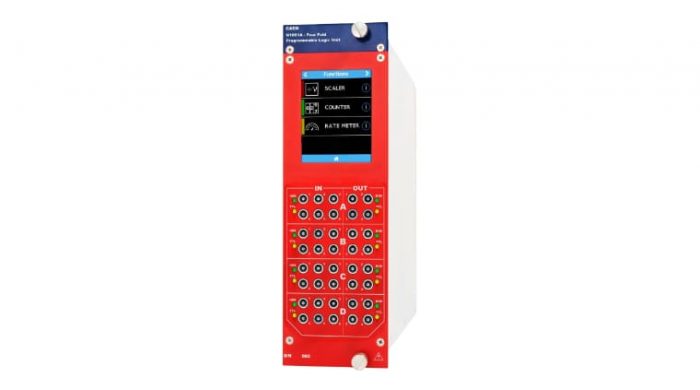

N1081B
NIM Four-Fold Prog. Logic Unit
NIM Four-Fold Programmable Logic Unit incorporates in a single NIM module with wide range of user-selectable functionalities.

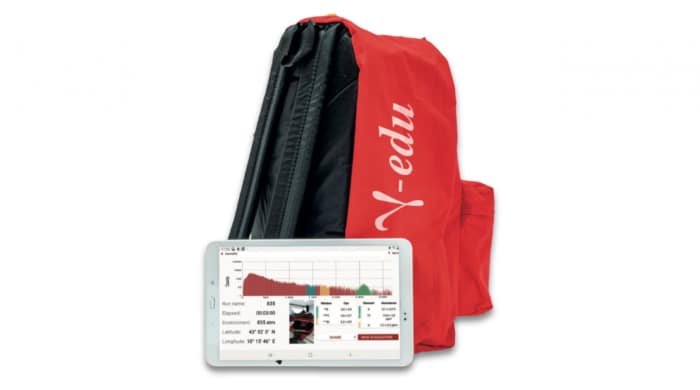

SP5640
Backpack Radiation Detector
A Portable Radiation Detection Backpack for revealing the presence of radioactive materials in the environment in static and dynamic acquisition.

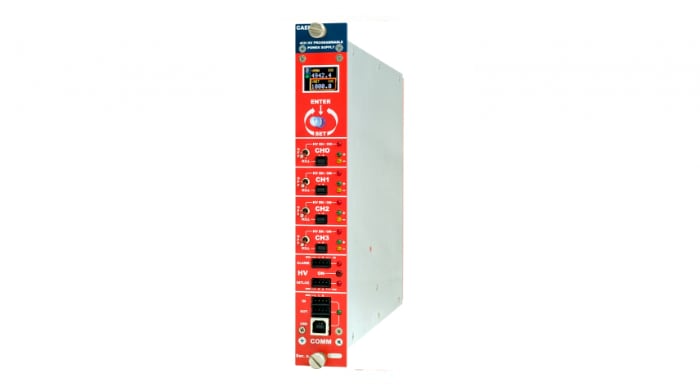

N1410
4 Ch Reversible 1 kV/200 µA NIM HV
The Mod. N1410 provides 4 independent High Voltage channels in a single width NIM mechanics. Each channel can provide a ±1kV / 200 μA max output.

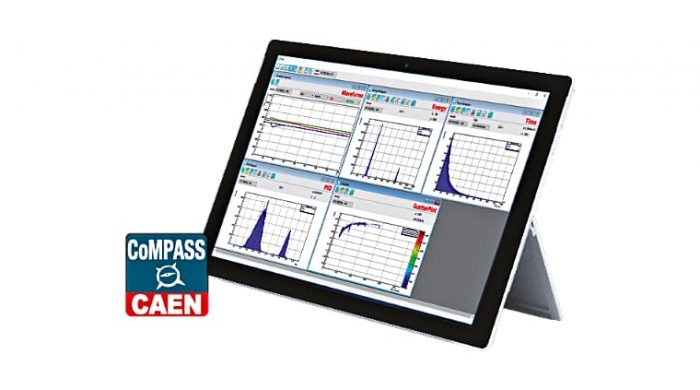

Compass
Multiparametric DAQ Software
Multi-PArameter Spectroscopy Software is a DAQ software from CAEN able to implement a Multiparametric Data Acquisition.
HEXAGON
Single/Dual 32k Digital MCA
Hexagon is a stand-alone, single or dual digital 32k MCA, integrating input stage for the signal conditioning, fast ADC, HV and preamplifier PSU.

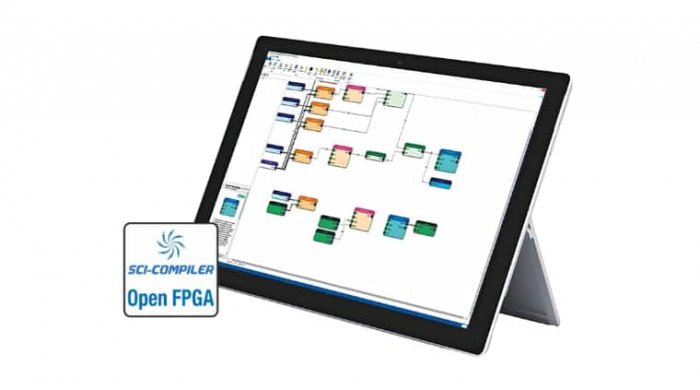

Sci-Compiler
Firmware Generator and Compiler
SCI-Compiler is Windows based software designed to accelerate the firmware implementation for signal processing in scientific instrumentation.
