A1560H
8/16 Channel 6 kV/20 µA Common Floating Return Boards
Features
- 8-16 independently controllable High Voltage channels
- 6 kV / 20 µA output range
- Available with either positive, negative or mixed polarity
- Radiall 52 pin or SHV coaxial connectors
- Common floating return shared by all channels
- Channels with individual enable
- Low ripple
- Under/over-voltage alert, overcurrent and max. voltage protection
- Interlock logic for unit enable
- Software Tool for easy channel management
Overview

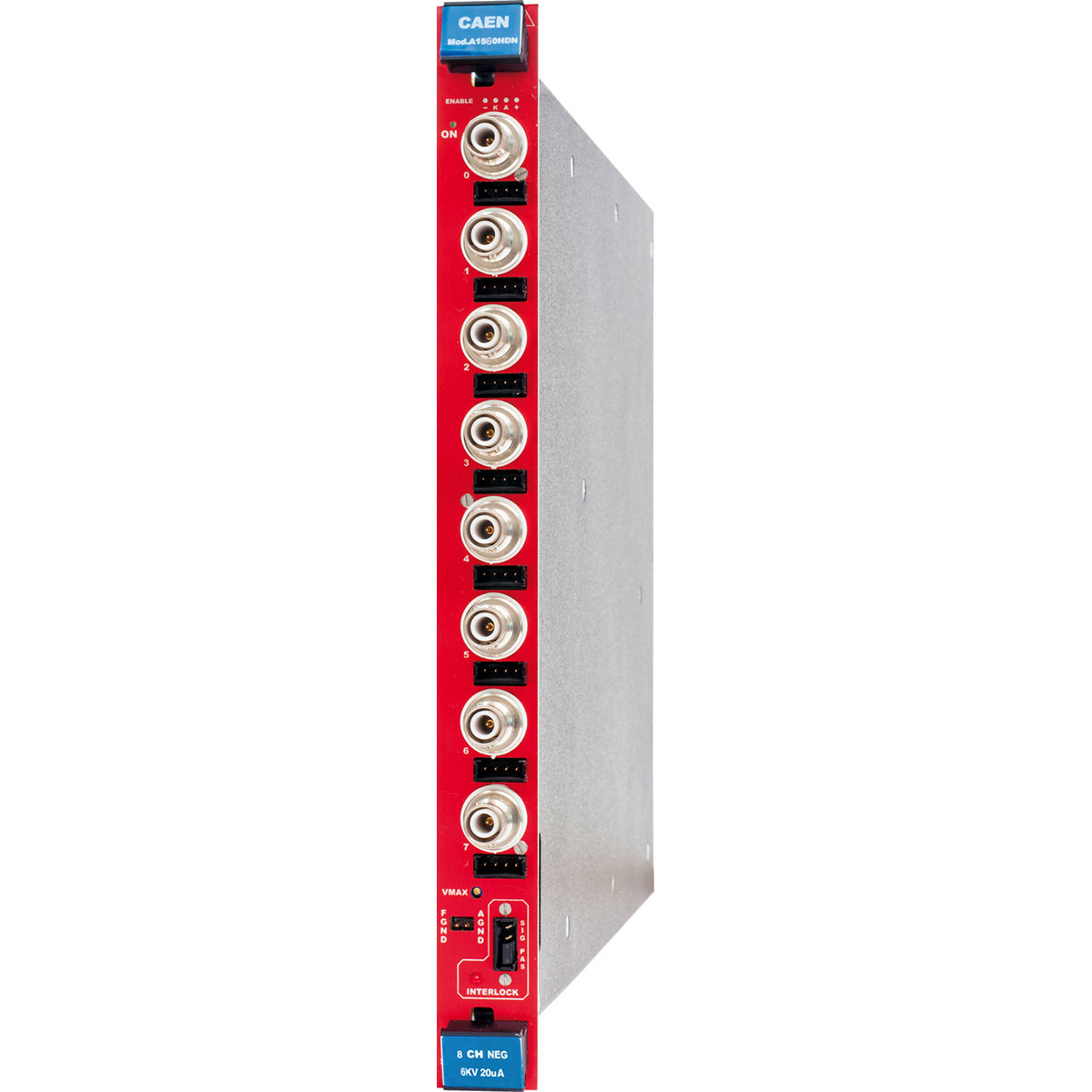

The CAEN Mod. A1560H is specifically designed for Germanium detector. It is a single width board (5 TE wide) that houses 8 or 16 independent high voltage channels equipped with individual hardware enable and with SHV or Radiall Multipin connector.
Radiall multipin connector
Single width (5 TE wide), 16 channel for Mod. A1560HNE, A1560HPE |
SHV connector
Single width (5 TE wide), 8 channels for Mod. A1560HDNE, A1560HDPE |
Consult our connectors reference page for technical information.
The HV channels share a common floating return, which allows on-detector grounding reducing the noise level; the floating return is insulated from the crate earth up to ±50 V (with 65 V hardware limit). The HV ramp-up and ramp-down rates may be selected, for each channel, in the 1 ÷ 500 V/s range (1 V/s step).
The board is available with either positive, negative or mixed output polarity. The Mixed version comes with 4 positive and 4 negative channels (only with SHV connectors).
The output voltage range is 0 ÷ 6 kV, with 10 mV monitor resolution. The maximum output current is 20 µA, with 50 pA monitor resolution.
Independently programmable for each channel:
Output voltage | 0 ÷ 6 kV | step: 100 mV |
Current limit | 0 ÷ 20 μA | step: 500 pA |
V Ramp up/down | 1 ÷ 500 V/sec | step: 1 V/sec |
TRIP parameter | 0 ÷ 999.9 s; 1000 s = Infinite | step: 0.1 s |
Safety features allows the module to perform as a current generator and includes:
Channels | can be enabled or disabled through the Global Interlock logic. |
Remote Enable/Disable | front panel independent contacts available for all channels. |
Overvoltage and Undervoltage warning | when the output voltage differs from the programmed value. |
Overcurrent detection | when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
Hardware VMAX | maximum output voltage can be set via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software. |
Safety Board Interlock | this protection disables the HV generation when the HV outputs are not connected to their loads (only for Multipin Connector versions). |
For boards with Radiall 52 pin connector are available the following accessories:
Technical Specifications
- No. of Channels
8 or 16 (Common Floating Return)
- Output Voltage
0÷6 kV
- Polarity
Positive, Negative or Mixed depending on purchased version
- Max. Output Current
20 µA
- Voltage Set Resolution
100 mV
- Voltage Monitor Resolution
10 mV
- Current Set Resolution
500 pA
- Current Monitor Resolution
50 pA
- VMAX hardware
0÷6 kV common for all the board channels
- VMAX hardware accuracy
± 2% of FSR
- VMAX software
0÷6 kV settable for each channel
- VMAX software resolution
1 V
- Ramp Up/Down
1÷500 Volt/sec, 1 Volt/sec step
- Voltage Ripple
- 20 ÷ 1000 Hz: Typ <5 mVpp; Max <10 mVpp
- 1 ÷ 20000 kHz: Typ <3 mVpp; Max <5 mVpp
- VMon vs. VOut Accuracy
± 0.02% ± 1.2 V
From 1% to 100% of Full Scale Range (A1560H; AG560H), From 10% to 90% of Full Scale Range (A1580H; AG580H)
- VSet vs. VOut Accuracy
± 0.02% ± 1.2 V
During operation in Overcurrent or when VMAX Hardware is reached (and/or exceeded), VMON values have to be assumed as “indication”; possible monitor drifts are caused by the different regulation mode.
- IMon vs. IOut Accuracy
± 0.2% ± 40 nA
During operation in Overcurrent or when VMAX Hardware is reached (and/or exceeded), VMON values have to be assumed as “indication”; possible monitor drifts are caused by the different regulation mode.
- ISet vs. IOut Accuracy
± 0.2% ± 40 nA
During operation in Overcurrent or when VMAX Hardware is reached (and/or exceeded), VMON values have to be assumed as “indication”; possible monitor drifts are caused by the different regulation mode.
- Documentation
- Software
- Firmware
Manuals
Name | File extension | File size | Revision | Last update |
---|---|---|---|---|
A1560H A1580H 8/16 Channel 6-8 kV/20 uA Common Floating Return Boards | 1.69 MB | 4 | February 10th, 2021 | |
Readme:
Download
Build: PUBLIC BETA VERSION Disclaimer TAKE AN ACTIVE PART AND HELP US TO IMPROVE OUR PRODUCTS! EULA – Software LicenseEnd User License Agreement for the CAEN Software and Firmware (the “EULA”)
The download, installation, use or copy of this software and/or firmware (hereinafter also the “CAEN Software”), or any work based on the CAEN Software, implies the acceptance of the terms and conditions set out in this EULA, that shall immediately enter into force. The CAEN Software has been copyrighted by CAEN S.p.A. with registered office in Via Vetraia, 11 – 55049 – Viareggio (LU) – ITALY (hereinafter also “CAEN”). CAEN hereby authorizes the end user (hereinafter also the “End User”) to use the CAEN Software within the context of the following licensing conditions, whereas this EULA represents a binding agreement between the End User and CAEN. The term “CAEN Software” is used to identify the program received by the End User from CAEN and/or CAEN’s independent distributors, downloaded from CAEN’s official website or anyhow provided to the End User by CAEN. Such term does not include any other program that is covered by a separate license and distributed as a different entity. The unauthorized reproduction and/or the unauthorized sale of the CAEN Software or of parts thereof by the End User, is liable to prosecution under the applicable criminal or civil law and will result in severe penalties and claims for damages.
Subject to the End User’s compliance with this EULA, CAEN hereby grants the End User with a personal, limited, non-exclusive, non-transferable, non-sublicensable, revocable, worldwide (except as limited below) license to download, install, access, and use the CAEN Software.
The CAEN Software and any accompanying documentation, local computer files installed or utilized by the installer application are in the property of CAEN and are protected by Italian and international laws. This EULA defines the legal use of the CAEN Software, together with all updates, revisions, substitutions, and any copies of the CAEN Software made by or for the End User. The End User further acknowledges and agrees that CAEN owns and shall continue to own all rights, titles, and interests in and to the CAEN Software, including associated intellectual property rights under copyright, trade secrets, patents, or trademark laws. This EULA does not grant the End User any ownership interest in or to the CAEN Software, but only a limited and strictly personal right of use that is revocable in accordance with the terms of this EULA. All rights not expressly granted to the End User are reserved to CAEN or to their respective owners. The structure, organization, and code of the CAEN Software are CAEN’s valuable trade secrets and constitutes CAEN’s confidential information, that cannot be disclosed by the End User without CAEN’s prior written consent.
With regards to the CAEN Software and/or to any of its parts, the End User undertakes not to:
The End User may reproduce the CAEN Software only if such reproduction is strictly necessary for the use of the CAEN Software. Necessary reproductions include the installation of the CAEN Software from the original system disk or from the downloaded installation archive on the mass memory of the hardware, as well as the loading of the CAEN Software into the main memory during CAEN Software operation. Moreover, the End User may reproduce the CAEN Software for backup purposes. However, only one backup copy of the original system disk or the downloaded installation archive may be created and/or stored. Said copy must be marked as a backup. Should a rotational backup of a system’s entire data set, including the CAEN Software programmers, be essential for a fast reactivation of the system following a complete breakdown, the End User may create backup copies in the required quantities. The pertinent system disks shall be marked accordingly. These backup copies may be used for archive purposes in connection with data backup only. The End User will not modify the user guides, operating manuals and release notes made available by CAEN, if any. Such documentation may:
The End User shall take the necessary steps to prohibit unauthorized access to the CAEN Software and its documentation by third parties. The original data media, as well as all backup copies, shall be stored in a secure place, safe from access by unauthorized third parties.
To the maximum extent permitted by applicable laws and regulations, the CAEN Software is provided on an “as is” and “as available” basis, “with all faults” and without warranty of any kind. CAEN, its licensors, and its and their affiliates disclaim all warranties, conditions, and representations (express, implied, oral, and written) with respect to the CAEN Software including without limitation all express, implied, and statutory warranties and conditions of any kind, such as title, non-interference with your enjoyment, authority, non-infringement, merchantability, fitness or suitability for any purpose (whether or not CAEN knows or has reason to know of any such purpose), system integration, accuracy or completeness, results, reasonable care, workmanlike effort, lack of negligence, and lack of viruses, whether alleged to arise under law, by reason of custom or usage in the trade, or by course of dealing. CAEN does not warrant that the CAEN Software will operate uninterrupted or be error free or that defects are correctable or will be corrected. Any service obtained using the CAEN Software is done at the End User’s own discretion and risk, and the End User will be solely responsible for any damage to his/her computer system or loss of data that results from the download and/or use of any such material or service. Without limiting the generality of the foregoing, CAEN, its licensors, and its and their affiliates make no warranty that:
The terms set forth herein will apply to the maximum extent permitted by applicable laws.
To the extent not prohibited by the applicable laws, in no event shall CAEN be liable for personal injury or any incidental, special, indirect, or consequential damages whatsoever, including, without limitation, damages for loss of profits, loss of data, business interruption, or any other commercial damages or losses, arising out of or related to the End User’s use of or inability to use the CAEN Software, however caused, regardless of the theory of liability (contract, tort, or otherwise) and even if CAEN has been advised of the possibility of such damages. As mentioned in article 6 above, CAEN Software is provided on an “as is” and “as available” basis, “with all faults” and without warranty of any kind, therefore the End User acknowledges that the use of the CAEN Software shall be at its own risk and the End User waves any right to compensation for any kind of damage or loss directly or indirectly consequential to the use of the CAEN Software. In no event shall CAEN’s total liability to the End User for all damages (other than as may be required by applicable law in cases involving personal injury) exceed the total amount of the fees paid for the CAEN Software license. Because some states or jurisdictions do not allow the exclusion or the limitation of liability for consequential or incidental damages, in such states or jurisdictions, the foregoing limitations of liability shall apply only to the full extent permitted by the applicable law.
The End User is solely responsible for compliance with agreements the End User has executed with third parties. The End User agrees to indemnify and hold CAEN harmless from any claim or demand, including reasonable legal fees, made by any third party in connection with or arising out of the End User’s use of the CAEN Software, the End User’s violation of any terms or conditions of the CAEN Software license and/or violation of applicable laws, or the violation of any rights of another person or entity.
CAEN undertakes to provide all the services and technical maintenance services, together with all the relevant additional services, if any, as indicated in the applicable CAEN and/or CAEN terms and conditions (“Terms & Conditions”).
If applicable due to the software provided to the End User, the End User acknowledges and agrees that CAEN may remotely extract and collect, at any time and without any obligation to notice the End User, technical and performance data concerning the CAEN Software’s usage by the End User and its performance, and all the necessary related information. Such technical and performance data will be collected, stored and used by CAEN and/or CAEN’s technical partners only for the purpose of monitoring and improving the performance of the CAEN Software, to prevent and/or fix technical failures and/or bugs as well as to facilitate the performance of any technical support activity. In addition to the above, CAEN and/or its technical partners might collect personal data of the End User for the sole purposes of the management of the license and the performance of technical additional services. The personal data collected by CAEN and/or its technical partners might consist in the following:
CAEN and/or its technical partners shall process the personal data collected in accordance with the applicable data protection laws, as specified in CAEN’s and/or its technical partners’ privacy notices provided to the End User during the registration process and/or immediately after such process.
During the term of this EULA, the End User will maintain electronic and other records sufficient for CAEN to confirm that the End User has complied with the terms and conditions of this EULA. CAEN may audit, and/or have third party to audit, the End User’s records and computer systems (including servers, databases, and all other applicable software and hardware) to ensure that the End User has fully complied with this EULA. The End User shall cooperate with CAEN’s audit team and promptly and accurately respond to database queries, location information, system reports, and other reports requested by CAEN. If the End User is not in compliance with the CAEN Software licenses, the End User shall fully compensate CAEN for all the loss and damages caused directly and/or indirectly by the relevant non- compliance, as liquidated by the competent court of law..
This EULA involves software, products and/or technical data that may be controlled under laws and regulations that might forbid and/or regulate the export of such software, products and/or technical data (“Export Laws“). The End User shall comply with all Export Laws to assure that the CAEN Software is not exported, directly or indirectly, in contravention of the applicable Export Laws.
The license granted to the End User is perpetual with reference to the version of the CAEN Software originally provided to the End User. Notwithstanding with the above, the Parties acknowledge that:
After a termination, the End User shall immediately:
CAEN has the right to demand a sworn statement from the End User regarding the fulfillment of its obligations under the present paragraph.
CAEN has the right, at any time, when necessary, to unilaterally amend and modify the EULA without the obligation to priorly inform the End User of such changes.
This CAEN Software License and the relationship between the End User and the Licensor is governed by the laws of Italy and shall be interpreted accordingly. Any dispute arising out of or in connection with this EULA shall be referred to and finally resolved by the Court of Florence, Italy. The United Nations Convention on the International Sale of Goods does not apply to the CAEN Software License.
This EULA constitutes the entire understanding between the parties regarding the use of the CAEN Software. In the event of any conflict between the EULA and the Terms & Conditions of the CAEN Software, the Terms & Conditions will prevail. | ||||
Safety Information and Product Support Service (ENG/ITA) | 1.85 MB | - | March 13th, 2024 | |
Changelog: Note: |
Brochures, Flyers
Name | File extension | File size | Revision | Last update |
---|---|---|---|---|
A15x0H – 8/16 Ch 6/8 kV - 20 µA HV Power Supply Family (Mar 2016) | 742.39 kB | 6 | June 28th, 2017 | |
Readme:
Download
Build: PUBLIC BETA VERSION Disclaimer TAKE AN ACTIVE PART AND HELP US TO IMPROVE OUR PRODUCTS! EULA – Software LicenseEnd User License Agreement for the CAEN Software and Firmware (the “EULA”)
The download, installation, use or copy of this software and/or firmware (hereinafter also the “CAEN Software”), or any work based on the CAEN Software, implies the acceptance of the terms and conditions set out in this EULA, that shall immediately enter into force. The CAEN Software has been copyrighted by CAEN S.p.A. with registered office in Via Vetraia, 11 – 55049 – Viareggio (LU) – ITALY (hereinafter also “CAEN”). CAEN hereby authorizes the end user (hereinafter also the “End User”) to use the CAEN Software within the context of the following licensing conditions, whereas this EULA represents a binding agreement between the End User and CAEN. The term “CAEN Software” is used to identify the program received by the End User from CAEN and/or CAEN’s independent distributors, downloaded from CAEN’s official website or anyhow provided to the End User by CAEN. Such term does not include any other program that is covered by a separate license and distributed as a different entity. The unauthorized reproduction and/or the unauthorized sale of the CAEN Software or of parts thereof by the End User, is liable to prosecution under the applicable criminal or civil law and will result in severe penalties and claims for damages.
Subject to the End User’s compliance with this EULA, CAEN hereby grants the End User with a personal, limited, non-exclusive, non-transferable, non-sublicensable, revocable, worldwide (except as limited below) license to download, install, access, and use the CAEN Software.
The CAEN Software and any accompanying documentation, local computer files installed or utilized by the installer application are in the property of CAEN and are protected by Italian and international laws. This EULA defines the legal use of the CAEN Software, together with all updates, revisions, substitutions, and any copies of the CAEN Software made by or for the End User. The End User further acknowledges and agrees that CAEN owns and shall continue to own all rights, titles, and interests in and to the CAEN Software, including associated intellectual property rights under copyright, trade secrets, patents, or trademark laws. This EULA does not grant the End User any ownership interest in or to the CAEN Software, but only a limited and strictly personal right of use that is revocable in accordance with the terms of this EULA. All rights not expressly granted to the End User are reserved to CAEN or to their respective owners. The structure, organization, and code of the CAEN Software are CAEN’s valuable trade secrets and constitutes CAEN’s confidential information, that cannot be disclosed by the End User without CAEN’s prior written consent.
With regards to the CAEN Software and/or to any of its parts, the End User undertakes not to:
The End User may reproduce the CAEN Software only if such reproduction is strictly necessary for the use of the CAEN Software. Necessary reproductions include the installation of the CAEN Software from the original system disk or from the downloaded installation archive on the mass memory of the hardware, as well as the loading of the CAEN Software into the main memory during CAEN Software operation. Moreover, the End User may reproduce the CAEN Software for backup purposes. However, only one backup copy of the original system disk or the downloaded installation archive may be created and/or stored. Said copy must be marked as a backup. Should a rotational backup of a system’s entire data set, including the CAEN Software programmers, be essential for a fast reactivation of the system following a complete breakdown, the End User may create backup copies in the required quantities. The pertinent system disks shall be marked accordingly. These backup copies may be used for archive purposes in connection with data backup only. The End User will not modify the user guides, operating manuals and release notes made available by CAEN, if any. Such documentation may:
The End User shall take the necessary steps to prohibit unauthorized access to the CAEN Software and its documentation by third parties. The original data media, as well as all backup copies, shall be stored in a secure place, safe from access by unauthorized third parties.
To the maximum extent permitted by applicable laws and regulations, the CAEN Software is provided on an “as is” and “as available” basis, “with all faults” and without warranty of any kind. CAEN, its licensors, and its and their affiliates disclaim all warranties, conditions, and representations (express, implied, oral, and written) with respect to the CAEN Software including without limitation all express, implied, and statutory warranties and conditions of any kind, such as title, non-interference with your enjoyment, authority, non-infringement, merchantability, fitness or suitability for any purpose (whether or not CAEN knows or has reason to know of any such purpose), system integration, accuracy or completeness, results, reasonable care, workmanlike effort, lack of negligence, and lack of viruses, whether alleged to arise under law, by reason of custom or usage in the trade, or by course of dealing. CAEN does not warrant that the CAEN Software will operate uninterrupted or be error free or that defects are correctable or will be corrected. Any service obtained using the CAEN Software is done at the End User’s own discretion and risk, and the End User will be solely responsible for any damage to his/her computer system or loss of data that results from the download and/or use of any such material or service. Without limiting the generality of the foregoing, CAEN, its licensors, and its and their affiliates make no warranty that:
The terms set forth herein will apply to the maximum extent permitted by applicable laws.
To the extent not prohibited by the applicable laws, in no event shall CAEN be liable for personal injury or any incidental, special, indirect, or consequential damages whatsoever, including, without limitation, damages for loss of profits, loss of data, business interruption, or any other commercial damages or losses, arising out of or related to the End User’s use of or inability to use the CAEN Software, however caused, regardless of the theory of liability (contract, tort, or otherwise) and even if CAEN has been advised of the possibility of such damages. As mentioned in article 6 above, CAEN Software is provided on an “as is” and “as available” basis, “with all faults” and without warranty of any kind, therefore the End User acknowledges that the use of the CAEN Software shall be at its own risk and the End User waves any right to compensation for any kind of damage or loss directly or indirectly consequential to the use of the CAEN Software. In no event shall CAEN’s total liability to the End User for all damages (other than as may be required by applicable law in cases involving personal injury) exceed the total amount of the fees paid for the CAEN Software license. Because some states or jurisdictions do not allow the exclusion or the limitation of liability for consequential or incidental damages, in such states or jurisdictions, the foregoing limitations of liability shall apply only to the full extent permitted by the applicable law.
The End User is solely responsible for compliance with agreements the End User has executed with third parties. The End User agrees to indemnify and hold CAEN harmless from any claim or demand, including reasonable legal fees, made by any third party in connection with or arising out of the End User’s use of the CAEN Software, the End User’s violation of any terms or conditions of the CAEN Software license and/or violation of applicable laws, or the violation of any rights of another person or entity.
CAEN undertakes to provide all the services and technical maintenance services, together with all the relevant additional services, if any, as indicated in the applicable CAEN and/or CAEN terms and conditions (“Terms & Conditions”).
If applicable due to the software provided to the End User, the End User acknowledges and agrees that CAEN may remotely extract and collect, at any time and without any obligation to notice the End User, technical and performance data concerning the CAEN Software’s usage by the End User and its performance, and all the necessary related information. Such technical and performance data will be collected, stored and used by CAEN and/or CAEN’s technical partners only for the purpose of monitoring and improving the performance of the CAEN Software, to prevent and/or fix technical failures and/or bugs as well as to facilitate the performance of any technical support activity. In addition to the above, CAEN and/or its technical partners might collect personal data of the End User for the sole purposes of the management of the license and the performance of technical additional services. The personal data collected by CAEN and/or its technical partners might consist in the following:
CAEN and/or its technical partners shall process the personal data collected in accordance with the applicable data protection laws, as specified in CAEN’s and/or its technical partners’ privacy notices provided to the End User during the registration process and/or immediately after such process.
During the term of this EULA, the End User will maintain electronic and other records sufficient for CAEN to confirm that the End User has complied with the terms and conditions of this EULA. CAEN may audit, and/or have third party to audit, the End User’s records and computer systems (including servers, databases, and all other applicable software and hardware) to ensure that the End User has fully complied with this EULA. The End User shall cooperate with CAEN’s audit team and promptly and accurately respond to database queries, location information, system reports, and other reports requested by CAEN. If the End User is not in compliance with the CAEN Software licenses, the End User shall fully compensate CAEN for all the loss and damages caused directly and/or indirectly by the relevant non- compliance, as liquidated by the competent court of law..
This EULA involves software, products and/or technical data that may be controlled under laws and regulations that might forbid and/or regulate the export of such software, products and/or technical data (“Export Laws“). The End User shall comply with all Export Laws to assure that the CAEN Software is not exported, directly or indirectly, in contravention of the applicable Export Laws.
The license granted to the End User is perpetual with reference to the version of the CAEN Software originally provided to the End User. Notwithstanding with the above, the Parties acknowledge that:
After a termination, the End User shall immediately:
CAEN has the right to demand a sworn statement from the End User regarding the fulfillment of its obligations under the present paragraph.
CAEN has the right, at any time, when necessary, to unilaterally amend and modify the EULA without the obligation to priorly inform the End User of such changes.
This CAEN Software License and the relationship between the End User and the Licensor is governed by the laws of Italy and shall be interpreted accordingly. Any dispute arising out of or in connection with this EULA shall be referred to and finally resolved by the Court of Florence, Italy. The United Nations Convention on the International Sale of Goods does not apply to the CAEN Software License.
This EULA constitutes the entire understanding between the parties regarding the use of the CAEN Software. In the event of any conflict between the EULA and the Terms & Conditions of the CAEN Software, the Terms & Conditions will prevail. |
Compare
Compare with High Voltage Power Supply.
Loading...
Accessories
- A995
- Insertion/extraction tool for A996
- A996
- 52 pin cable connector
- A647
- 24 Channel Multipin Radiall to SHV connector Adapter (Max: 8 kV - Desktop)
- R647
- 24 Channel Multipin Radiall to SHV connector Adapter (Max: 8 kV - 19'' Rack)
- HV Cables
- High Voltage Cable Assemblies
- A148x
- Inhibit - Kill Signal BNC Adapter for HV Power Supply Modules
Ordering Options
Code | Description | |||
---|---|---|---|---|
WA1560HDMEAA | A1560HDME - SYx527 H.V. (4ch +6KV 20µA, 4ch -6KV 20µA) (50pA res) Ind EN - SHV Conn. comm floating RoHS | |||
WA1560HDNEAA | A1560HDNE - SYx527 H.V. -6 KV 20 µA (50pA res) Individual Enable - SHV Conn. common floating (8 ch) RoHS | |||
WA1560HDPEAA | A1560HDPE - SYx527 H.V. +6 KV 20 µA (50pA res) Individual Enable - SHV Conn. common floating (8 ch) RoHS | |||
WA1560HNEAAA | A1560HNE - SYx527 H.V. -6 KV 20 µA (50pA res) Individual Enable - Multipin Conn. comm float (16 ch) (Obsolete) RoHS | |||
WA1560HPEAAA | A1560HPE - SYx527 H.V. +6 KV 20 µA (50pA res) Individual Enable - Multipin Conn. comm float (16 ch) (Obsolete) RoHS |
