A395B
Piggyback board for Vx495 and DT5495
Overview
The channel interface of V2495 (V1495) and DT5495 can be freely expanded by adding up to three independent piggyback boards (there are 3 expansion slots interfaced to the User FPGA), choosing between five available types A395A, A395B, A395C, A395D, A395E. Therefore, the V2495 and DT5495 can achieve a maximum number of 194 I/O channels.

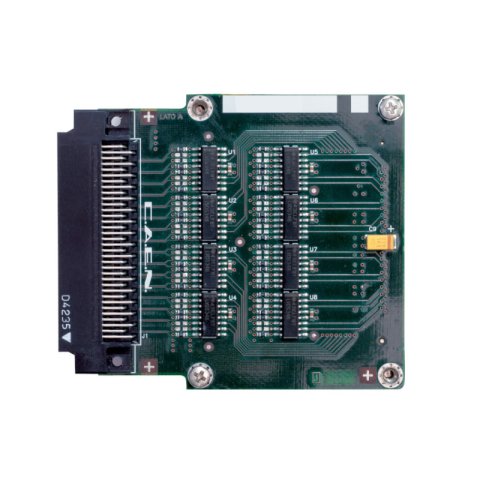

The A395B is a 32 LVDS output channels piggyback boards.
Technical Specifications
- Nr. of Channels / Channel type
32 / Digital Output
- Logic
Direct
- Signal
Differential LVDS
- Bandwidth
250 Mhz
- Front Panel Connector
3M P50E-068-P1-SR1type (34+34) pins
- Power Consumptions
0.1 A (max) @ +5V internal rail / +12V and -12V internal rails are not used
Compare
Compare with Piggyback boards.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WA395XBAAAAA | A395B - 32 LVDS output channels interface for V1495 and V2495 RoHS |
