A5261

SiPM remotization cable (0.7 m) for A5253

Datasheet
Photo of A5261

  • SiPM remotization cables for A5202/DT5202 and A5204/DT5204 boards

  • Low signal degradation and attenuation guaranteed

  • A5253 kit: A5253 adapter with 64 A5261 cables

The CAEN Mod. A5261 is a cable assembly allowing the remotization of SiPMs read out by A5202/DT5202 and A5204/DT5204 boards. The A5261 cables are terminated on both sides by AMPMODU type 102241-1 connectors, coupling to the AMPMODU type 3-102203-4 3-pin connectors installed on the A5253 FERS-5200 adapter. Each A5261 cable brings three lines (anode, cathode and ground), allowing to both read out and bias a single remotized SiPM.

Ordering Options

Code Description
WA5261XAAAAA

A5261 – SiPM remotization cable (0.7 m) for A5253

RoHS

Add to Wishlist

Request a Quote

Request a Quote

    Submit I’ve read and accept the privacy policy *

    Compare

    Close
    Name
    Description
    Related Modules
    Features
    A32x

    A32x

    A1421 power cords

    A1421, A325

    Power cords used to supply the CAEN Preamplifier and Discriminator models A1421 / 20cm, 1m

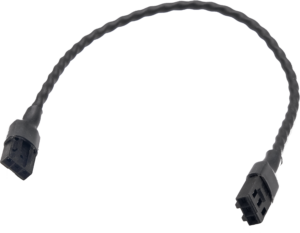

    A317

    A317

    Clock cable assembly

    CAEN Digitizer Series 1.0, V1741 Peak Sensing ADCs

    "CLK-OUT / CLK-IN daisy chain front panel / 18 cm

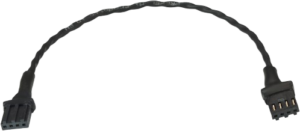

    A319A

    A319A

    Clock & Sync cable assembly

    CAEN Digitizer Series 2.0

    CLK-OUT / CLK-IN daisy chain front panel / 20 cm

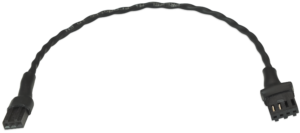

    A319B

    A319B

    Clock cable assembly Digitizer 1.0/2.0

    CAEN Digitizer Series 1.0, CAEN Digitizer Series 2.0

    CLK-OUT / CLK-IN daisy chain front panel between non homogenous digitizer series / 20 cm

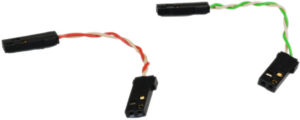

    A316

    A316

    LVDS I/Os Cable assembly

    CAEN Digitizer Series 1, V1741 Peak Sensing ADCs

    Cable assembly for the front panel LVDS I/Os interconnection / 5 cm

    A5260

    A5260

    Remotization cable for FERS-5200 boards

    A5250, A5251, A5253, A5254, A5202

    Detectors can be moved up to one meter (A5260B) away from the readout electronics without experiencing a significant signal degradation. / 50cm, 1m

    A5261

    A5261

    SiPM remotization cable

    A5202, DT5202, A5253

    Each A5261 cable allowing to both read out and bias a single remotized SiPM

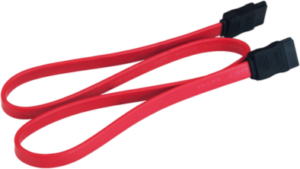

    A998

    A998

    SATA cable for Hexagon synchronization

    Hexagon

    "SYNC-OUT / SYNC-IN daisy chain back panel / 50 cm"

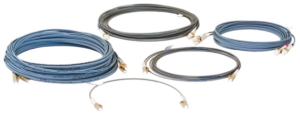

    AI2700
