VX1740D

64 Channel 12bit 62.5 MS/s Digitizer supporting DPP-QDC firmware

Features

12 bit 62.5 MS/s ADC
64 channels
Two ERNI SMC Dual Row 68pin connectors (32 + 32 channels)
2 Vpp single ended input range
16-bit programmable DC offset adjustment: ±1
Trigger Time stamps
Memory buffer: 192 kS/ch, up to 1024 events
FPGA for real-time data processing:
- Digital Charge to Digital Converter (DPP-QDC)
Programmable event size and pre-post trigger adjustment
Analog Sum/Majority and digital over/under threshold flags for Global Trigger logic
Front panel clock In/Out available for multiboard synchronisation (direct feed through or PLL based synthesis)
16 programmable LVDS I/Os
Optical Link interface (CAEN proprietary protocol)
VME64X compliant interface
A2818(PCI) / A3818 (PCIe) Controller available for handling up to 8/32 modules Daisy chained via Optical Link
Firmware upgradeable via VME/Optical Link
Libraries, Demos (C and LabView) and Software tools for Windows and Linux

Overview

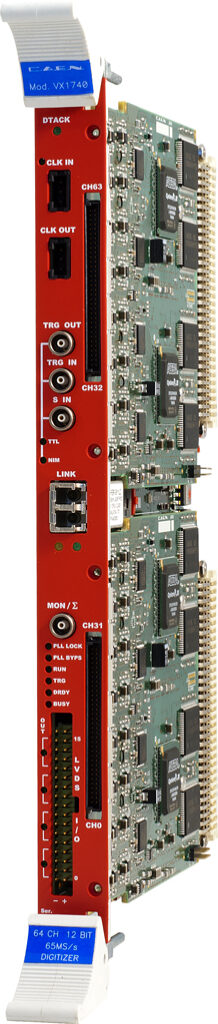

The VX1740D is a 1-unit wide VME64X 6U module housing a 64 Channel 12 bit 62.5 MS/s (65 MS/s using external clock) Flash ADC Waveform Digitizer and featuring 2 Vpp single ended input dynamics on two ERNI SMC connectors.
The DC offset adjustment (range ±1 V) by programmable 16bit DACs (one for each 8-channel group) allows a right sampling of a bipolar (Vin = ±1 V) up to a full positive (Vin = 0 ÷ +2 V) or negative (vin = 0 ÷ -2 V) analog input swing without losing dynamic resolution.
The module features front panel Clock Input and Output as well as a PLL for clock synthesis from internal/external references. The data stream is continuously written in a circular memory buffer. When the trigger occurs, the FPGA writes further N samples for the post trigger and freezes the buffer that can be read either by VMEbus or Optical Link. The acquisition can continue without dead time in a new buffer.
Each channel has a SRAM Multi-Event Buffer divisible into 1 ÷ 1024 buffers of programmable size. The readout (by VMEbus or Optical Link) of a frozen buffer is independent from the write operations in the active buffer (ADC data storage). Each channel has a SRAM Multi-Event Buffer divisible into 1 ÷ 1024 buffers of programmable size.

VX1740D supports multi-board synchronization allowing all ADCs to be synchronized to a common clock source and ensuring Trigger time stamps alignment. Once synchronized, all data will be aligned and coherent across multiple VX1740D boards.
The trigger signal can be provided externally via the front panel Trigger Input as well as via the software, but it can also be generated internally thanks to threshold self-trigger capability. The trigger from one board can be propagated to the other boards through the front panel Trigger Output.
An Analog Output is available with four operating modes supported:

Waveform Generator: 1 Vpp ramp generator
Majority: output signal is proportional to the number of channels groups under/over threshold (1 step = 125 mV)
Buffer Occupancy: output signal is proportional to the Multi Event Buffer Occupancy: 1 buffer ~ 1 mV
Voltage level: output signal is a programmable voltage level

VX1740D houses VME (VME64X compliant) and Optical Link interfaces. The VME interface allows data transfers of 60 MB/s (MBLT64), 100 MB/s (2eVME), 160 MB/s (2eSST). The Optical Link supports transfer rate of 80 MB/s and offers Daisy chain capability. Therefore, it possible to connect up to 8/32 ADC modules to a single Optical Link Controller (Mod. A2818/A3818).

Software available (Windows and Linux):

CAEN provides drivers for all the different types of physical communication channels, a set of C and LabView libraries (CAENComm and CAENDigitizer), demo applications and utilities:

CAENUpgrader: tool that allows the user to update the firmware of the digitizers, change the PLL settings, load, when requested, the license for the pay firmware and other utilities.

Standard Firmware compliant:

CAENScope: fully graphical program that implements a simple oscilloscope – COMING SOON
CAEN WaveDump: software console application that can be used to configure and readout event data from any model of the CAEN digitizer family and save the data into a memory buffer allocated for this purpose.

Supported third-party software:

FSUDAQ – Florida State University DAQ

Note: VX1740D can be operated with VME8004B / VME8004X / VME8008B / VME8008X / VME8010 / VME8011 / VME8100 / VME8200. Never use this digitizer with crates VME8001, VME8002, VME8004 and VME8004A. Overheat may damage the module.

Technical Specifications

GENERAL: Form Factor: 1-unit wide, 6U VME64
Weight: 535 g

ANALOG INPUT: Channels: 64 channels Single ended
Impedance: 50 Ω @2Vpp 1 kΩ @10Vpp
Connector: 64-pin Dual Row ERNI SMC
Full Scale Range: 2 Vpp or 10 Vpp
Bandwidth: 30 MHz
Offset: Programmable DAC for DC offset adjustment on each channel in the full range (÷1V@2Vpp ÷5V@10Vpp)
Abs Max Rating (@2Vpp): 6 Vpp (with Vrail max +6 V or –6 V) for any DAC offset value

DIGITAL CONVERSION: Resolution: 12 bits
Sampling Rate: 62.5 MS/s simultaneously on each channel

SYSTEM PERFORMANCE: ENOB: 11.20 (48 kS Buffer)
SFDR: 94.9 dB
THD: 87.10 dB
SIGMA: 0.50 LSB rms
SINAD: 69.20 dB (48 kS Buffer, open input)

ADC Sampling Clock generation: Clock source: internal/external
On-board programmable PLL provides generation of the main board clocks from an internal (50 MHz local Oscillator) or external (front panel CLK-IN connector) reference

DIGITAL I/O: CLK-IN (AMP Modu II)
AC coupled differential input clock LVDS, ECL, PECL, LVPECL, CML (single ended NIM/TTL available by custom cable)
Jitter<100ppm

CLK-OUT (AMP Modu II)
DC coupled differential
LVDS clock output locked
to ADC sampling clock,
Zdiff = 100 Ω
TRG-OUT (LEMO)
External trigger or veto
digital input: NIM/TTL
Zin = 50 Ω

TRG-IN (LEMO)
Multipurpose digital
output (e.g. trigger, busy):
NIM/TTL
Rt = 50 Ω
S-IN (LEMO)
SYNC/START
front panel digital input NIM/TTL
Zin = 50 Ω

MEMORY

192k sample/ch
Multi Event Buffer divisible into 1 ÷ 1024
Independent read and write access
Programmable event size and pre/post trigger

TRIGGER: Trigger Source
Self-trigger: channel over/under threshold for either Common or Individual (DPP only) trigger generation
External-trigger: common trigger by TRG IN connector or individual by LVDS connector (DPP firmware only)
Software-trigger: common trigger by software command

Trigger Propagation
TRG-OUT programmable digital output
Trigger Time Stamp
Waveform Recording: 31-bit counter – 16 ns resolution – 17 s range; 48 bit fw extension
DPP-QDC: 32-bit counter – 16 ns resolution – 68 s range; 48 bit fw extension; 64 bit sw extension

SYNCHRONIZATION

Clock Propagation
Daisy Chain: trough CLK-IN/CLK-OUT connectors
One-to-many: clock distribution from an external clock source on CLK-IN connector
Clock Cable delay compensation
Acquisition Synchronization
Sync, Start/Stop through digital I/O (S-IN or TRG-IN input / TRG-OUT output)
Trigger Time Stamp Alignment
By S-IN input connector

ADC & Memory Contr.: Altera Cyclone EP1C16 or EP1C40 (V1740D); one FPGA serves 16 channels

COMMUNICATION INTERFACES: CAEN CONET proprietary protocol Up to 80 MB/s transfer rate
Daisy‐chain: it is possible to connect up to 8 or 32 ADC modules to a single Optical Link Controller (respectively A2818/A4818 or A3818/A5818)
VME: VME 64X compliant. Data transfer mode: BLT32, MBLT64 (70 MB/s using CAEN Bridge), CBLT32/64, 2eVME, 2eSST (up to 200 MB/s)

LVDS I/O: 16 general purpose LVDS I/O controlled by the FPGA: Run, Busy, Veto, Trigger and other functions can be programmed
An Input Pattern from the LVDS I/O can be associated to each trigger as an event marker

DPP FW Supported: DPP-QDC for the Charge to Digital Conversion (V1740D and VX1740D only)

UPGRADE: Firmware can be upgraded via VMEbus or Optical Link

SOFTWARE: General purpose C libraries, configuration tools, readout software (Windows® and Linux® support), LabVIEW™ VIs and demos for Windows® only

POWER REQUIREMENTS: 5.6 A @ +5V; 250 mA @ +12V, -12V not used
