2/4 or 8 Channel up to 15 kV Reversible Polarity Family with USB, Ethernet & Touchscreen
Features

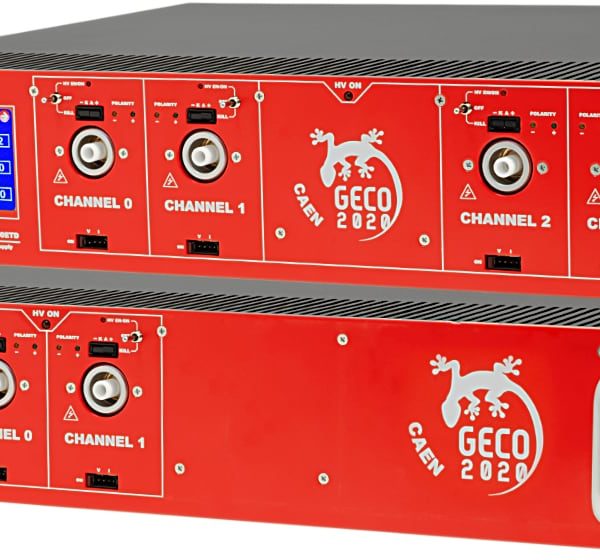

- 2/4 or 8 independent HV channels in a 2U, 19” Rackmount unit
- Channel polarity independently selectable
- SHV or LEMO HVcoaxial output connectors
- Common floating return
- Very Low Ripple
- Under/overvoltage alert, overcurrent and max. voltage protection

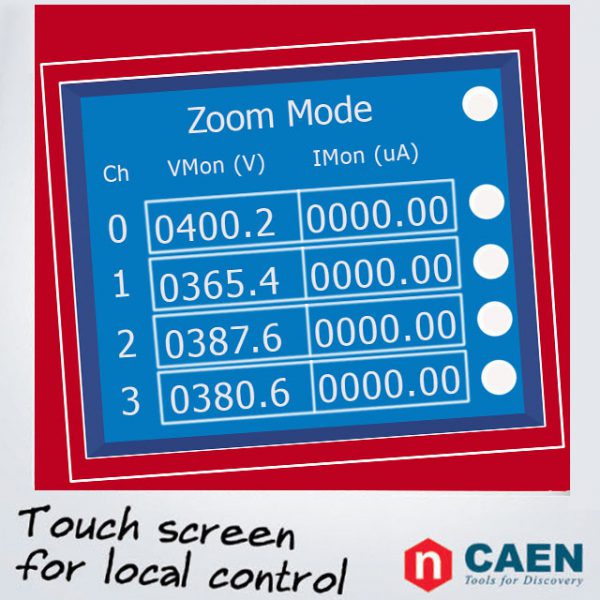

- 2.8” color touch screen display

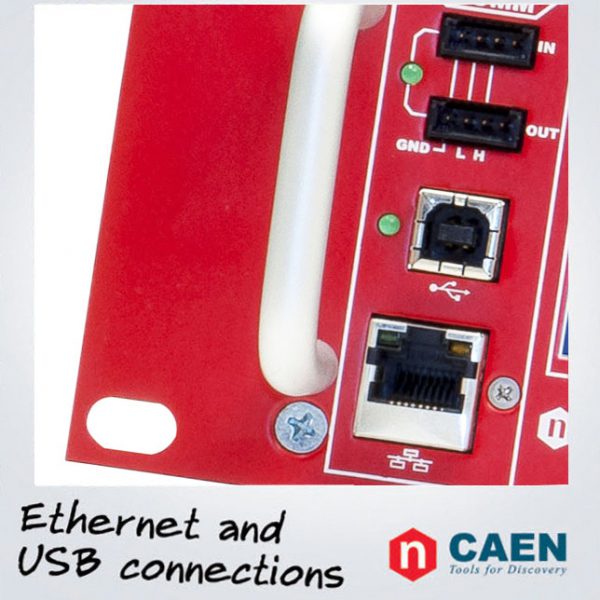

- Local and Remote control (USB 2.0/Ethernet)
- Interlock logic for unit enable and individual channel kill
Overview

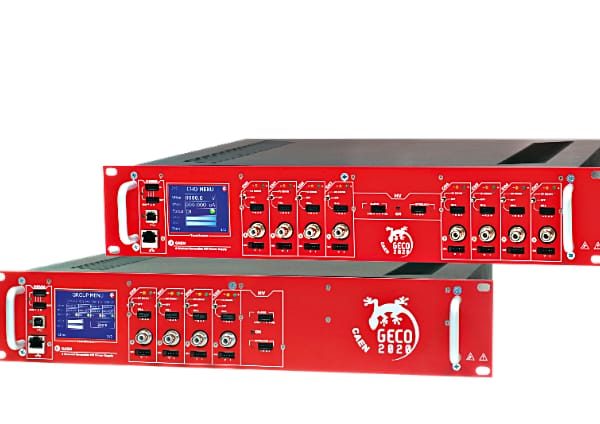

R14xxET and R1570 are CAEN Power Supplies providing 2/4 or 8 independent High Voltage channels in a 2U, 19” Rack-mount unit. Each channel features an independently selectable polarity and common floating return (common return insulated from the chassis ground). High Voltage outputs are delivered through SHV connectors on R14xxET models and through LEMO HV on R1570. All units can be controlled either locally, thanks to a 2.8” touchscreen color LCD display with a complete user interface, or remotely, via USB or Ethernet, taking advantage of the new GECO2020 Control Software. EPICS and LabVIEW are supported.
Different versions are available spanning from 500 V to 15 kV and from 20 µA to 3 mA, meeting the needs of a wide range of applications.
Each unit is provided with Imon Zoom. This feature enhances the current monitoring, increasing the resolution of a x10 or x20 factor according to the specific model.
The HV output Ramp-Up and Ramp-Down rates can be set independently for each channel in the range 1 ÷ 500 V/s in 1 V/s steps (1 ÷ 50 V/s for R1419ET / R1419ETD).
Software
Software Tools available (free download) to control the R14xxET:
| CAEN LabVIEW | It is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules. |
| EPICS IOC | Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol. |
| CAEN HV Wrapper Library | It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products |
| GECO2020 | CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device. |
Models
| Model | Image | No. of Channels | Max Output V | Max Output I | Vset/Vmon Resolution | Iset/Imon Resolution | Max. Ramp Up/Down Rate | Ripple Typ. (>1kHz) | Connectors | Max Power per Channel | Features | Actions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1419ET | | 4-8 | ±500 V | 200 µA | 10 mV | Iset: 5 nA Imon: 5 / 0.5 nA | 100 V/s | <5 mVpp | SHV | 0.1 W | Remote control via USB or Ethernet | QUOTE |
| R1470ET | | 4-8 | ±8000 V | 3 mA | 200 mV | Iset: 50 nA Imon: 50 / 5 nA | 500 V/s | <5-10 mVpp | SHV | 9 W (< 3 kV) 8 W (> 3 kV) | Remote control via USB or Ethernet | QUOTE |
| R1471ET | | 4-8 | ±5500 V | 300 µA | 100 mV | Iset: 5 nA Imon: 5 / 0.5 nA | 500 V/s | <3 mVpp | SHV | 1.65 W | Remote control via USB or Ethernet | QUOTE |
| R1471HET | | 4-8 | ±5500 V | 20 µA | 100 mV | Iset: 1 nA Imon: 1 / 0.05 nA | 500 V/s | <2 mVpp | SHV | 0.11 W | Remote control via USB or Ethernet | QUOTE |
| R1472ETS | | 1 | ± 3000 V | 2 mA | 100 mV | Iset: 50 nA, Imon: 5 nA | 1÷500 Volt/s, 1 Volt/s step | Typ: < 5mVpp; Max: <15mVpp | SHV | 6 W | Remote control via USB, Ethernet, T. Screen | QUOTE |
| R1570ET | | 2/4 | ±15000 V | 1 mA | 400 mV | Iset: 20 nA Imon: 20 / 2 nA | 500 V/s | <4-20 mVpp | LEMO HV | 10 W | Remote control via USB or Ethernet | QUOTE |
