Up to 8 kV Reversible Polarity – NDT14xx

4 Channel up to 8 kV Reversible polarity Family with USB, Ethernet & Touchscreen

Features

  • 4 independent HV channels in a fully Desktop form factor
  • Channel polarity independently selectable
  • SHV coaxial output connectors
  • Common floating return
  • Very Low Ripple
  • Under/overvoltage alert, overcurrent and max. voltage protection

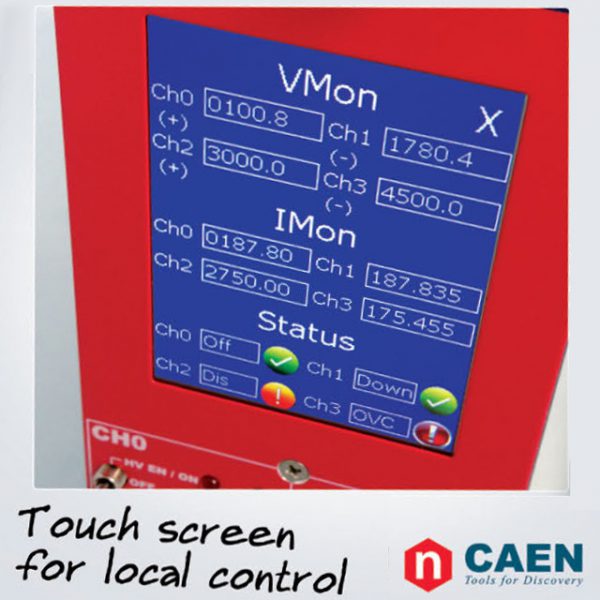

  • 2.8’’ color touch screen display

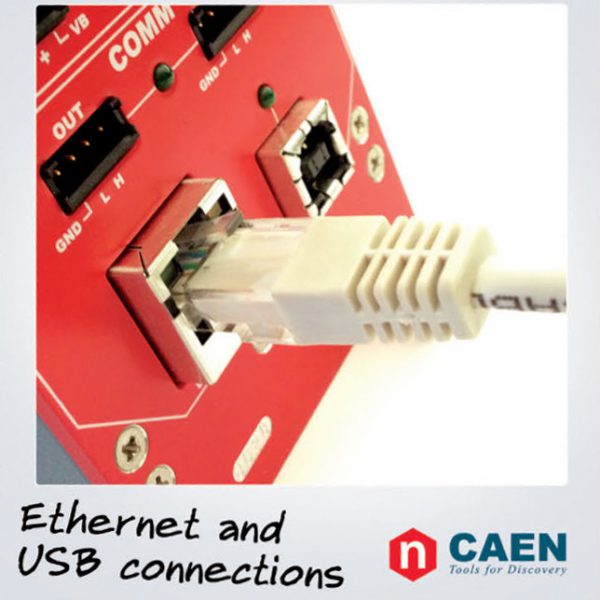

  • Local and Remote control (USB 2.0/Ethernet)
  • Interlock logic for unit enable and individual channel kill
  • LabVIEW Driver available
  • Software Tools for remote control
  • 2U/Desktop (with 110-220 Vac) version available

Overview

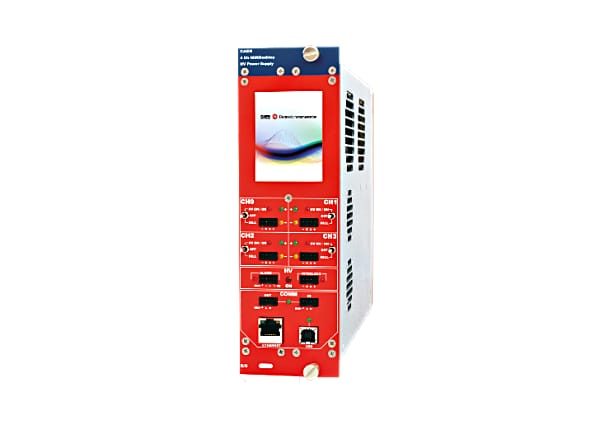

The NDT14xx CAEN Power Supply Family provides 4 independent High Voltage channels in a Desktop form factor. Each channel features an independently selectable polarity and common foating return (common return insulated from the chassis ground). High Voltage outputs are delivered through SHV connectors. NDT14xx units can be controlled either locally thanks to a 2.8” touchscreen color LCD display with a complete user interface, or remotely, via USB or Ethernet, taking advantage of the new GECO2020 Control Software. EPICS and LabVIEW are supported.

Diferent versions are available spanning from 500 V to 8 kV and from 20 µA to 3 mA, meeting the needs of a wide range of applications. Each unit is provided  with Imon Zoom. This feature enhances the current monitoring, increasing the resolution of a x10 or x20 factor according to the specifc model.

The HV output Ramp-Up and Ramp-Down rates can be set independently for each channel in the range 1 ÷ 500 V/s in 1 V/s steps (1 ÷ 50 V/s for NDT1419).

Software

Software Tools available (free download) to control the Up to 8 kV Reversible Polarity Family – NDT14xx:

blankCAEN LabVIEW It is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules.
blankEPICS IOC Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol.
blankCAEN HV Wrapper Library It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products
blankGECO2020 CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.

Models

Model Image No. of Channels Max Output V Max Output I Iset/Imon Resolution Ripple Typ. (>1kHz) Connectors Max Power per Channel Features Actions
NDT1419 NDT1419 4 ±500 V 20 μA Iset: 5 nA
Imon: 5 / 0.5 nA
< 3 mVpp SHV 0.1 W Common Floating Return
NIM/Desktop
QUOTE
NDT1470 NDT1470 4 ±8000 V 3 mA Iset: 50 nA
Imon: 50 / 5 nA
< 5-10 mVpp SHV 9 W (< 3 kV)
8 W (> 3 kV)
Common Floating Return NIM/Desktop QUOTE
NDT1471 NDT1471 4 ±5500 V 300 μA Iset: 5 nA
Imon: 5 / 0.5 nA
< 3 mVpp SHV 1.65 W Common Floating Return
NIM/Desktop
QUOTE
NDT1471H NDT1471H 4 ±5500 V 20 μA Iset: 1 nA
Imon: 1 / 0.05 nA
< 2 mVpp SHV 110 mW Common Floating Return
NIM/Desktop
QUOTE
