Fast, low noise inverting preamplifier
-
Gain 5 mV/MeV(Si)
-
Positive or negative input signals
-
8 input channels
-
Up to 200 pF detector capacitance supported
-
Up to 2000 V (positive or negative) detector bias voltage
-
Low noise input stage composed JFETs diode protected

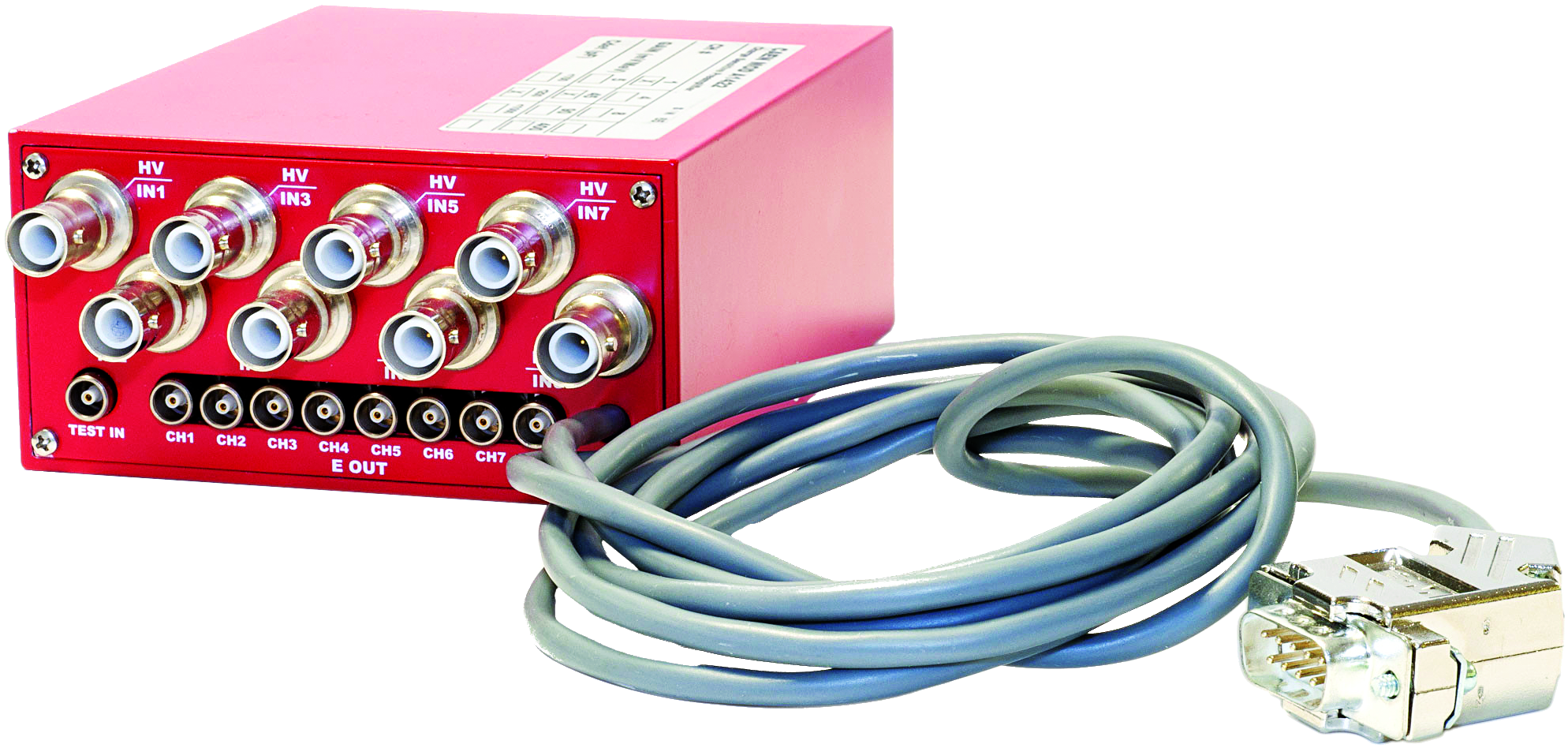

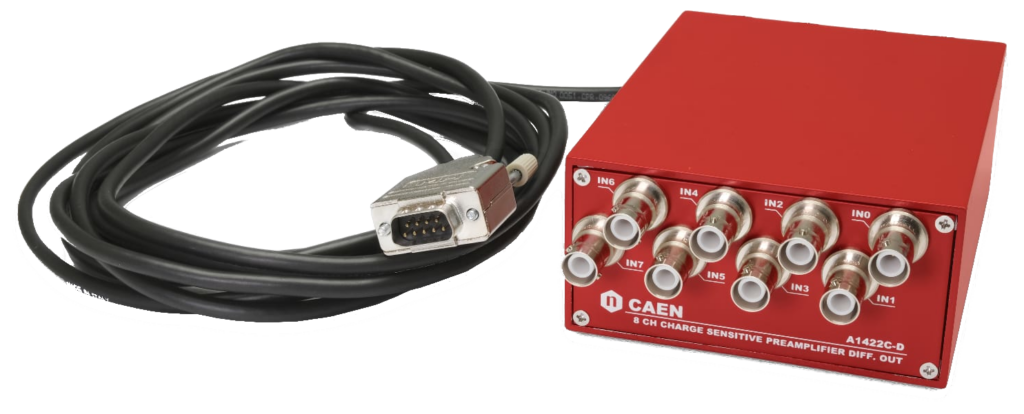

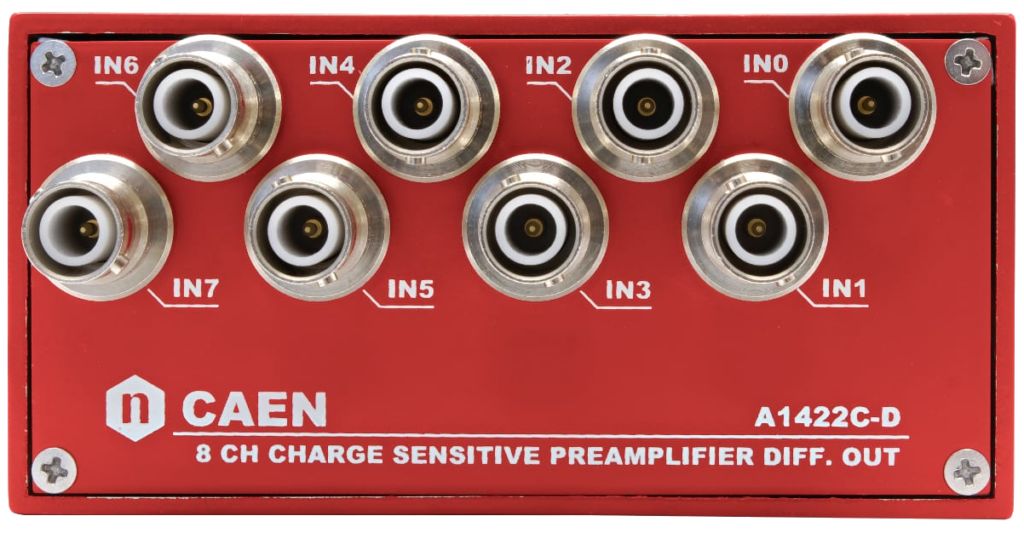

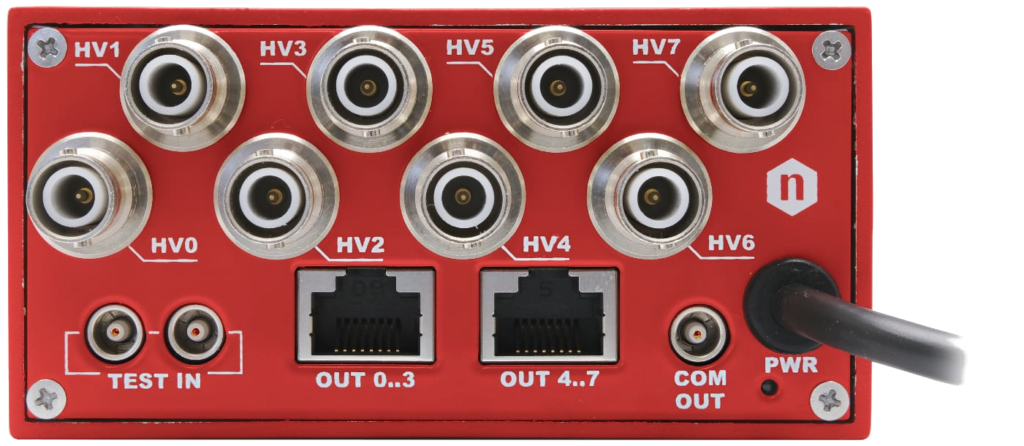

The CAEN Mod.A1422C/D is a 5 mV/MeV 8-channel preamplifier implemented into an alloy box and features SHV connectors for the DET/IN and HV/IN signals, 2 RJ45 for the differential outputs, LEMO connectors for the TEST IN and COM OUT and a cable with a D-type 9 pin male connector for the power supply. The module accepts both positive and negative input charge pulses and provide a differential output of ±5V max on 1 kΩ termination, and ±2.5V on 100 Ω back termination. A test input accepts positive and negative signals for calibration purposes. Moreover the sum of the 8 energy outputs, with 1 µs decay time, is available on the COM OUT output.
A customization is available to improve amplifier protection from transients at detector input connection.
You also may be interested in…

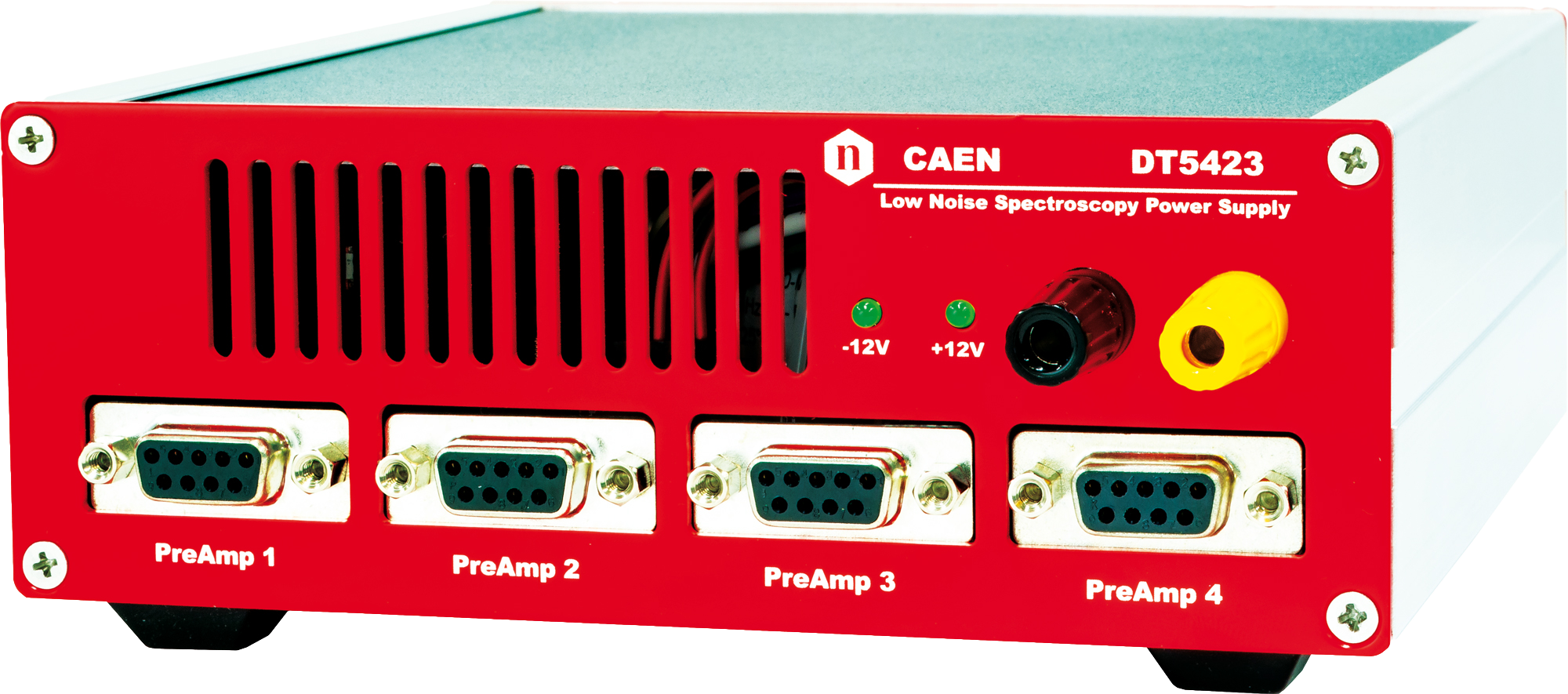

DT5423
V5425
A1422
N5424
N968
N1068
A1422E/F
A1422H
Request a Quote
Compare
|
|
Name
|
Package
|
Out Conn.
|
In Conn.
|
Test Capac. (pF)
|
Max Detector Bias Voltage (V)
|
Integral Non-linearity
|
Output Linear Range (V)
|
Output Rise Time (ns)
|
Noise FWHM keV (Si)
|
Sensitivity (mV/MeV) (Si)
|
No. Of Channels
|
|
|

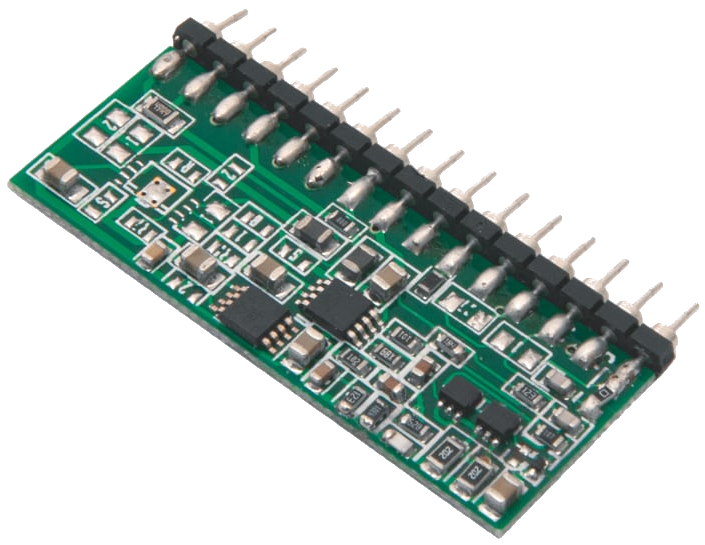

A1422H |
15 Pin SIP hybrid |
- |
- |
1 / 10 / 47 |
±800 |
< ± 0.05% (0 ÷ ±10 V 1 kΩ term.) |
±10 (1 kΩ term.) ±4.5 (50 Ω term.) |
< 5/10/70 @0pF <20/25/45 @390pF |
< 2.2/4.7 @0pF <5.8/10.5 @390pF |
1/5/45/90/<br>400/450 |
1 |
|
|
A1422C/D |
Shielded box |
RJ-45 |
SHV |
1 / 10 |
± 2000 |
<± 0.05%<br>(0 ÷ ±10V 1 kΩ term.) |
±5 (1 kΩ term.)<br>±2.5 (100Ω term.) |
< 5 @0pF<br><15 @200pF |
< 4.7 @0pF<br>< 7.6 @200pF |
5 |
8 |
|
|
A1422 |
Shielded box |
LEMO or BNC |
SHV |
1/10/47 |
±2000 |
< ± 0.05% <br>(0 ÷ ±10V 1kΩ term.) |
±10 (1kΩ term.)<br>±4.5 (50Ω term.) |
<5/10/70 @0pF<br><10/20/25/45 @390pF |
<2.2/4.7 @0pF<br><5.5/5.8/10.5/36 @390pF |
1/5/45/90/<br>400/450 |
1/4/8 |
|
|
A1429 |
Shielded box |
Header (17+17) |
Samtec 80-pin 0.8mm |
0.5 / 1 / 2.2 |
±400 V Max |
N.A. |
Differential ± 4.5 VDiff max on 100Ω Term |
<20ns @0 pF<br><60ns @200 pF |
<5 KeV @0 pF<br><35 eV/pF |
20/45/90/<br>200/400 |
64 |
|
|

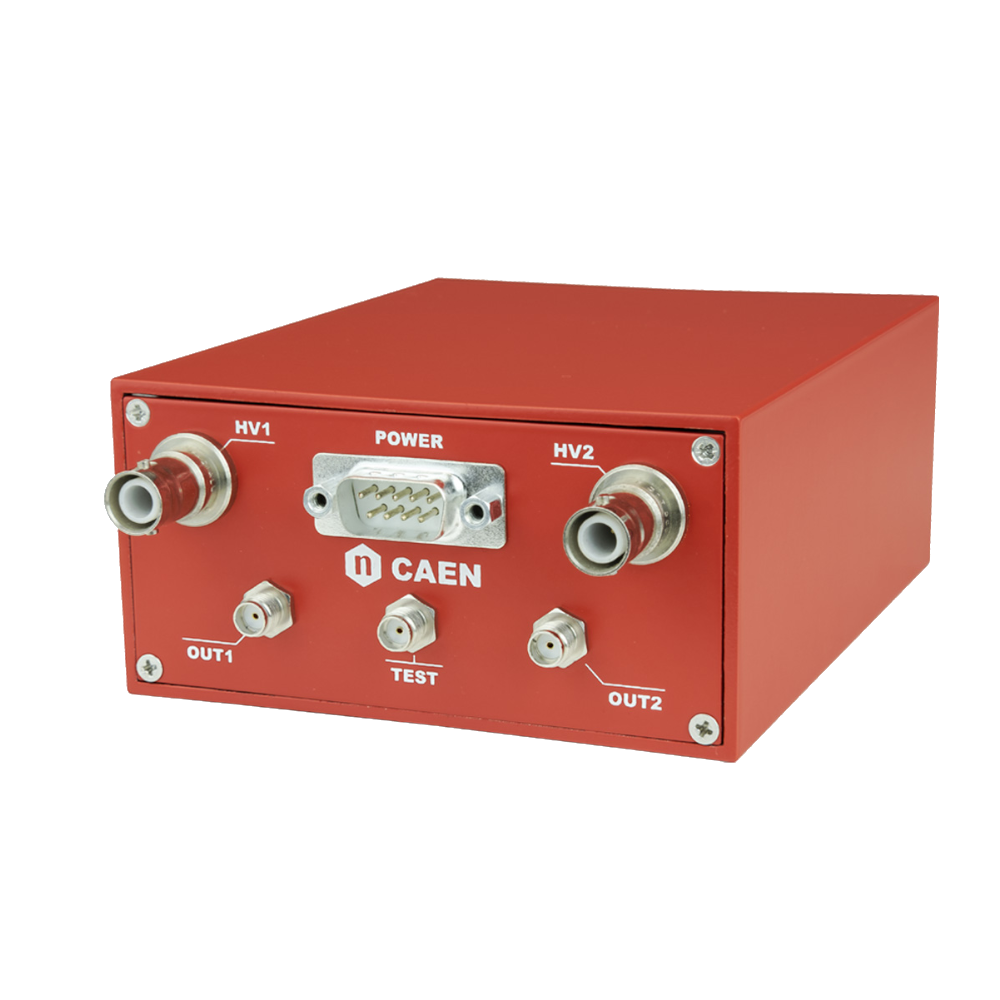

A1422E/F |
Shielded box |
SMA |
SMA |
1 |
±750 |
<±0.05%<br>(0 ÷ ±10V 1kΩ term.) |
±10 (1 kΩ term.)<br>±4.5 (50 Ω term.) |
<5.4 @0pF<br><60 @330pF |
<2.8 @0pF<br><6.8 @330pF |
200 |
2/4 |
|
|
A1442 |
Shielded box |
Header (17+17) |
D-SUB 25 |
N.A. |
±400 |
N.A. |
Differential ±4.5 Vdiff |
< 10 @0pF<br /><20 @200pF |
<5 @0pF<br><9.5 @200pF |
20 / 100 <br>Selectable |
16/32 |
|
|

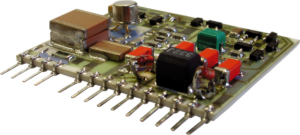

Discontinued A422 |
14 pin SIP hybrid |
- |
- |
10 |
±1000 |
<0.05% |
± 8 ± 4 |
<20 |
<9.8 @470pF |
1/45/90 |
1 |
|
|
A422A |
Shielded box |
BNC |
SHV |
10 |
±5000 |
< 0.045% |
± 8 ± 4 |
< 50 |
<17.5 @1nF |
5/30/60 |
1 |
Technical Specifications
|
No. of Channels |
A1422CDxxx: 8-channels |
|
Packaging |
Alloy Box;Dimensions WxHxD connector included: 100.0 x 50.0 x 162 mm3 |
|
Charge Sensitivity |
5 mV/MeV (Si) |
|
Recommended Range of Input Capacitance |
F2: up to 200 pF |
|
Output Linear Range |
±5 V 1 kΩ termination±2.5 V 100 Ω termination |
|
COM Output Linear Range |
±5 V 50 Ω termination |
|
Open Loop Gain |
5 mV/Mev (F2 ) >1*10 <sup>5</sup> |
|
E2CRP Maximum energy-squared count-rate product |
E<sup>2</sup>CRP: 1.57*10<sup>10</sup> MeV<sup>2</sup>/s |
|
Energy Sensitivity |
5 mV/MeV (Si) |
|
Decay Time |
5 mV/MeV(Si) 50µs |
|
Integral non Linearity |
<± 0.05% (0 ÷ ±10 V 1 kΩ termination) |
|
Temperature Instability |
< ±100 ppm/°C (0 to 50°C ) |
|
Noise FWHM keV (Si) |
Model Detector 0 pF Capacitance 200 pF F2 – 5 mV/MeV < 4.7 < 7.6
|
|
Rise Time |
Model Detector 0pF Capacitance 200pF F2 – 5 mV/MeV < 5 ns <15 |
|
Detector Bias Voltage |
±2000 V max |
