CAEN HV Wrapper Library

Library for CAEN Power Supply Control

Datasheet
Photo of CAEN HV Wrapper Library

  • Software library for all CAEN CAEN Power Supply Products

  • Available for C/C++ enviroment (Windows, Linux) and LabView enviroment (Windows)

  • Python binding available at pypi.org/project/caen-libs (Open Source project and examples available at github.com/caenspa/py-caen-libs)

  • Supports all Power Supplies Communication interfaces

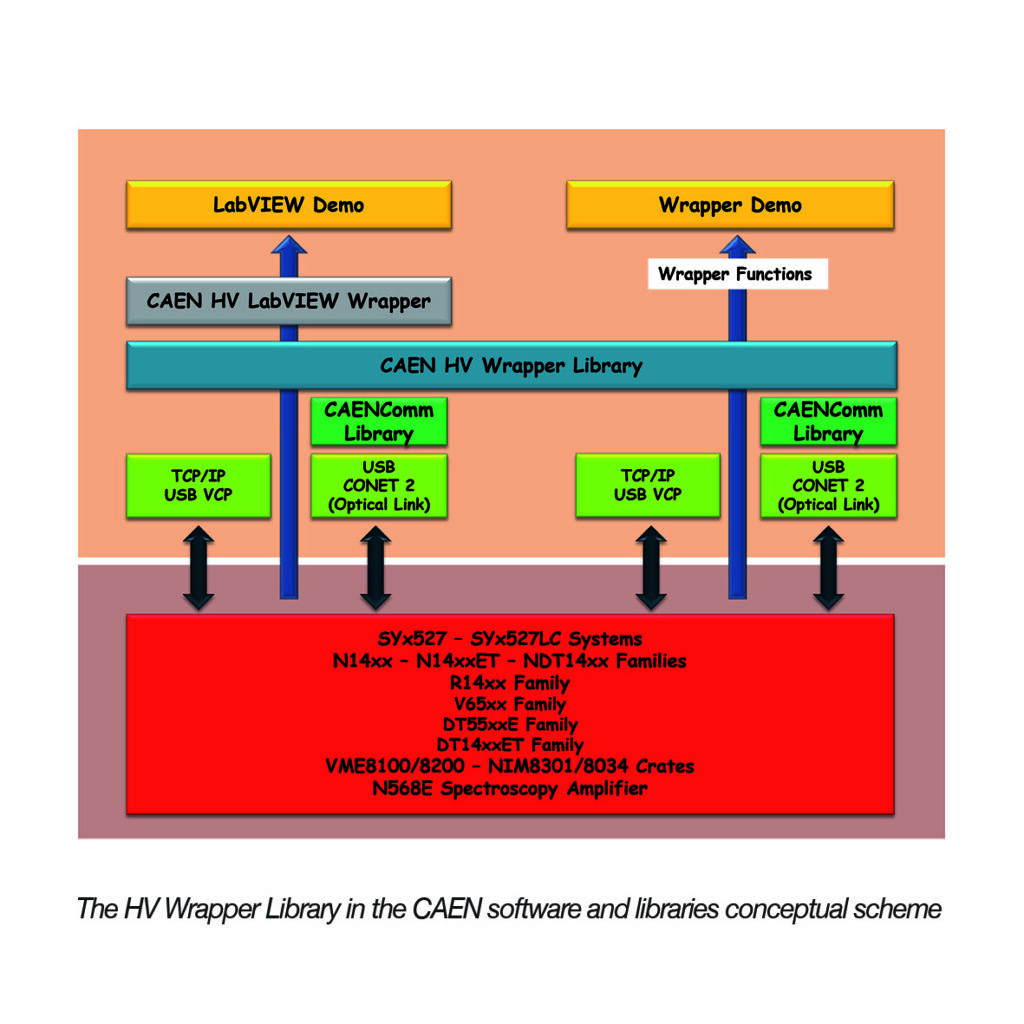

The CAEN HV Wrapper is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products. This is a low level application in which the writing of the Control SW is assigned to the user. CAEN HV Wrapper is logically located between an higher level application like GECO2020 or OPC Server and the lower layer software libraries. It contains a generic software interface independent by the Power Supply models and by the communication path used to exchange data with them.

Supported Operating Systems

Win (32-64 bit), Linux (32-64 bit)

Language

C, Labview also available (Windows only)

Supported Products

Universal Multichannel Systems, NIM/NDT/VME/Rack/Desktop Power Supplies, VME8100/8200 crates, NIM8301/8304 crates, N568E, N1068

Supported Comm. Interface

Ethernet, USB, Optical Link

VME

Access via CONET link or USB using CAEN bridges (require additional CAENCOMM library)
