Single Desktop HV channel powered and controlled by USB
-
5 kV / 200 µA output range
-
Available with positive or negative polarity
-
SHV output connector
-
Low Ripple
-
Under/over-voltage alert, overcurrent and max. voltage protection
-
Interlock logic for board enable and Individual channel kill
-
4 nA Current monitor resolution (with x10 Imon Zoom: 400 pA)
-
Software Tools for easy channel management

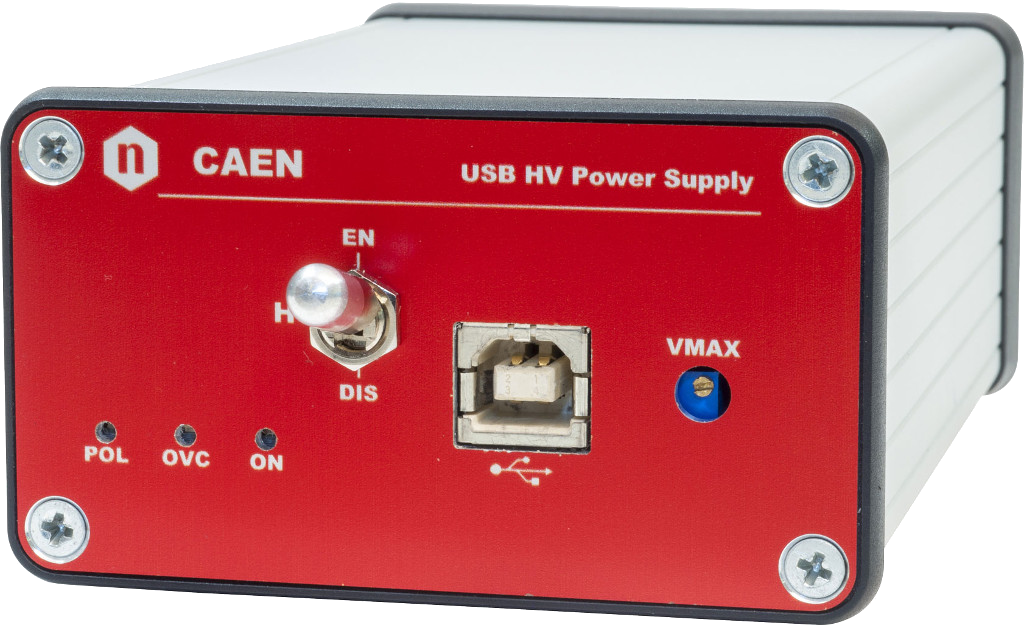

The CAEN Mod. DT5470 is a desktop module housing one High Voltage Power Supply Channels 5 kV / 200 µA. The unit is available with either positive or negative output polarity; it is supplied via USB link. HV output is delivered through SHV connector.
|
SHV connector Radiall R317580 HV coaxial connector for CAEN Mod.DT5470 |
Consult our connectors reference page for technical information.
The HV output Ramp-up and Ramp-down rates may be selected independently for each channel in the 1 ÷ 500 V/s range with 1 V/s steps. The module features 4 nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 400pA. Functional parameters can be programmed and monitored via USB.
Safety features allows the module to perform as a current generator and includes:
|
Channel |
can be enabled or disabled through the front panel manual switch or via Interlock logic. |
|
Overvoltage and Undervoltage warning |
warning when the output voltage differs from the programmed value. |
|
Overcurrent detection |
when a channel attempts to exceed the programmed current limit, it signaled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
|
Hardware VMAX |
maximum output voltage can be set via front panel potentiometer. VMAX value can be read out via software. |
Software available (Windows):
-

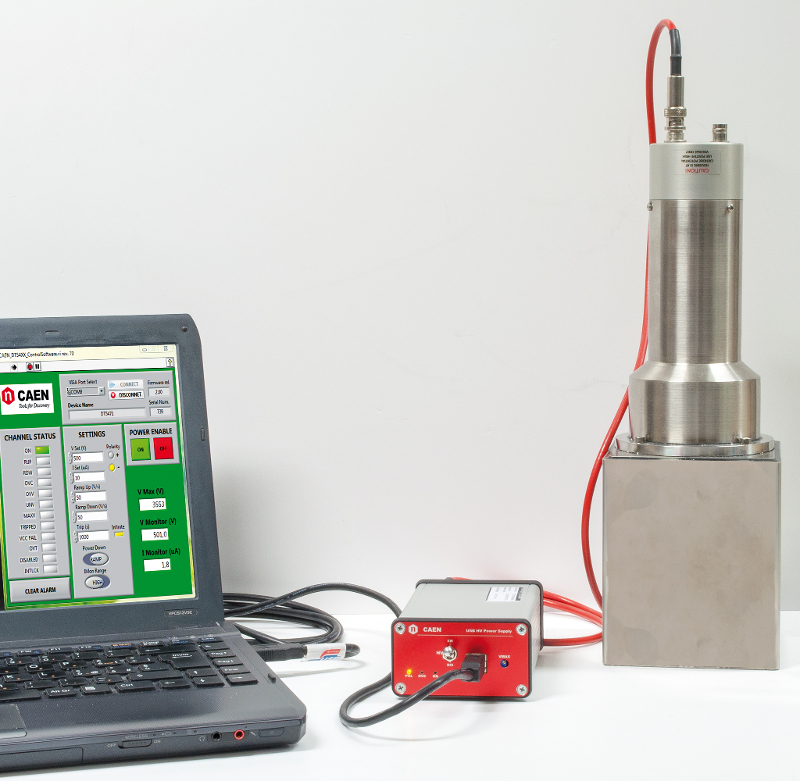

DT547x Control software: LabVIEW Control software with Logging Capability. DT547x Control software allows to set and monitor, through a Graphical User Interface, all the unit’s functional parameters. When DT547x Control Software runs, it creates a data-log file that records the changes of the monitoring parameters.
Accessories
Request a Quote
Compare
|
|
Name
|
No. of Channels
|
Max Output V
|
Max Output I
|
Vset/Vmon Resolution
|
Iset/Imon Resolution
|
Max. Ramp Up/Down Rate
|
Ripple Typ. (>1kHz)
|
Connectors
|
Max Power per Channel
|
Features
|
|
|
DT5470 |
1 |
5000 V |
200 µA |
1 V |
Iset: 40 nA <br>Imon: 4 / 0.4 nA |
500 V/s |
<20mV |
SHV |
1 W |
Powered and controlled by USB |
|
|
DT5471 |
1 |
3000 V |
500 µA |
500 mV |
Iset: 100 nA <br>Imon: 10 / 1 nA |
500 V/s |
<20mV |
SHV |
1 W |
Powered and controlled by USB |
|
|
|
DT5472 |
1 |
500 V |
1 mA |
100 mV |
Iset: 200 nA <br>Imon: 20 / 2 nA |
100 V/s |
<10mV |
SHV |
0.5 W |
Powered and controlled by USB |
Technical Specifications
|
Package |
|
|
Output Voltage |
0 ÷ 5 kV |
|
Polarity |
Positive / Negative depending on purchased version |
|
Max. Output Current |
200 µA |
|
Maximum Output Power |
1 W |
|
Voltage Set Resolution |
1 V |
|
Voltage Monitor Resolution |
0.1V |
|
Current Set Resolution |
40 nA |
|
Current Monitor Resolution |
400pA (low range) / 4 nA (high range) |
|
Current Set Maximun Value |
210 µA |
|
VMAX hardware |
0 ÷ 5100 V |
|
VMAX hardware resolution |
1 V |
|
VMAX hardware accuracy |
± 0.3% of full scale ±5 V |
|
Ramp Up/Down |
1 ÷ 500 Volt/sec, 1 Volt/sec step |
|
Temperature Resolution |
1°C |
|
TRIP |
0-999s; 1000 = Infinite (current generator) |
|
Interlock input |
LOW: <1 V; current~5mA; HIGH: 4÷6 V |
|
Voltage Ripple |
<20mVpp Typical |
|
Temp resolution |
1°C |
|
Vmon vs. Vout accuracy |
± 0.05% of full scale ±1V |
|
Vset Vs. Vout accuracy |
± 0.05% of full scale ±1V |
|
Imon vs. Iout accuracy |
±1% of read ±100 nA |
|
Iset vs. Iout Accuracy |
±1% of read ±100 nA |
|
Humidity range |
0 ÷ 80% |
|
Operating temperature |
0 ÷ 45°C |
|
Storage temperature |
-10 ÷ +70°C |
|
Vout / Temperature coefficient |
100 ppm |
|
Imon / Temperature coefficient |
100 ppm |
|
Long term stability Vout vs. Vset |
0,05% (after one week @ constant temperature) |
