RADHAND 600 PRO

Spectroscopic Radiation Measurement and UHF RFID Tagging Handheld

Home AccessoriesRadhand-600 & Gamon AccessoriesRadhand-600 Accessories RADHAND 600 PRO

State-of-the-art algorithms allow top performance on nuclide identification and dose-rate measurements
Fully wireless connectivity for hands-free operation
8hr operation on battery
Multiple Units may be linked to develop a network of sensors
Integrated GPS for geo-localization and timing information (customizable in-door applications)
Locally encrypted data may be saved on-board or transmitted to a secure remote database
Supports integration of external application-specific probes such as alpha/beta contaminameters, neutron detectors, and high resolution CdZnTe gamma spectrometers

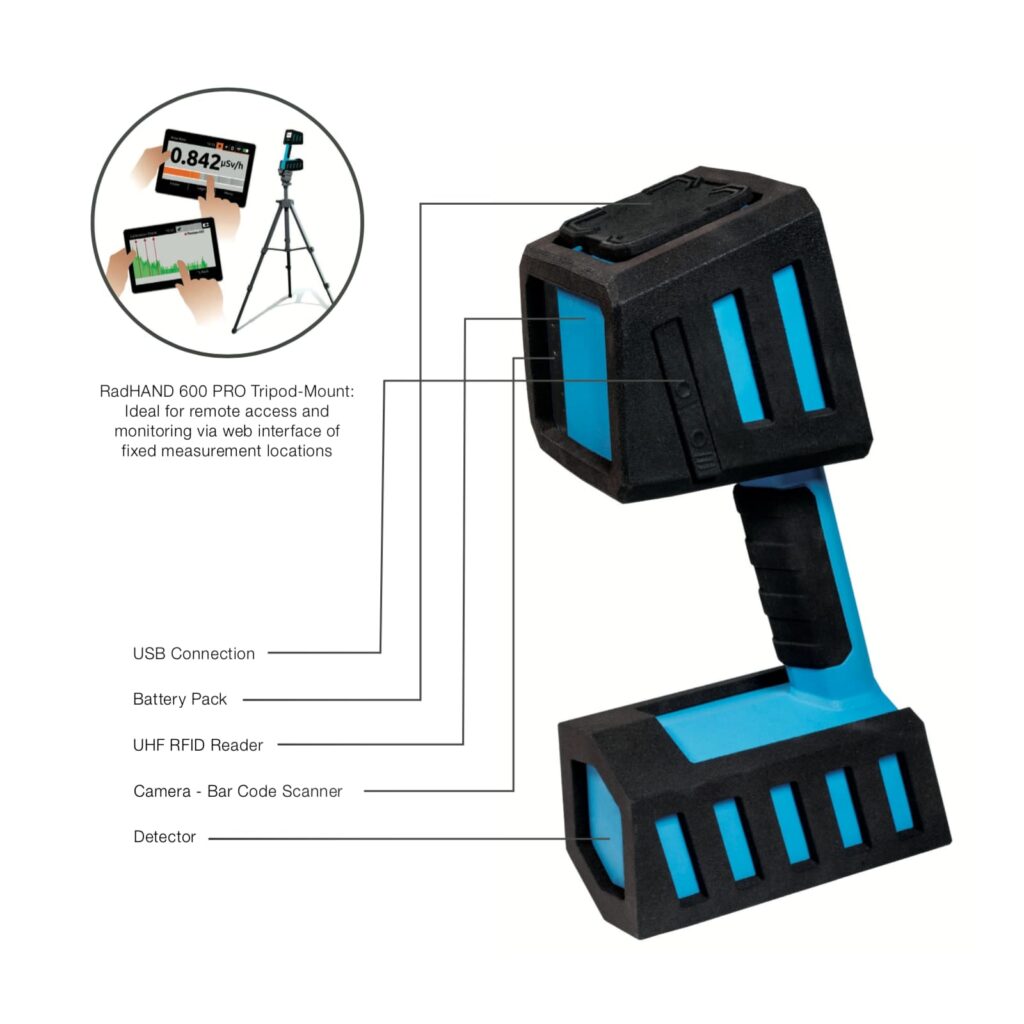

RadHAND 600 PRO is the world’s first hand-held instrument designed to perform both spectroscopic radiation measurement and UHF RFID tagging of nuclear waste material and objects.

RadHAND is a novel handheld instrument able to combine, for the first time, state-of-the-art spectroscopic radiation measurements with scintillation detectors and UHF RFID technology for easy tracking of the measured items. RadHAND 600 PRO helps the operator to fully characterize and track objects, surfaces, radioactive waste and any type of item that could be produced and measured in Decommissioning & Dismantling activities or in a Nuclear Power Plants environment.

Being part of the CAENSYS DigiWaste platform, the device inserts measured data and sample information into a central database and, simultaneously, writes the main information in the memory of selected rad-tolerant RFID tags that are part of the CAENSYS RadRFID family. Operators can access the central management database both locally with CAENSYS RadREAD devices and remotely via dedicated web service at any time.

A suite of additional external probes able to be controlled by RadHAND 600 PRO via USB will also be available.

Ordering Options

Code	Description
WRAD102-00AA	T10102 Rev0 RadHAND PCB STEPUP CONVERTER	RoHS
WRAD20-00AAA	T10020A Rev4 RadHAND PCB KEYBOARD	RoHS
WRAD38-10AAA	T10038-10 Rev1 RadHAND PCB CONTATTI VANO PORTABATTERIA	RoHS
WRAD40-00AAA	T10040 Rev1 RadHAND PCB ANTENNA GPS/WLAN	RoHS
WRAD41-01AAA	T10041-1 Rev1 Var1 RadHAND PCB DISPLAY	RoHS
WRAD42-03AAA	T10042-3 Rev2 RadHAND PCB BATTERIA CON MICRO	RoHS
WRAD43-00AAA	T10043 Rev3 RadHAND PCB ANTENNA RF	RoHS
WRAD45-04AAA	T10045-4 Rev1 RadHAND PCB CONNESSIONE A PRESA DA PANNELLO USB	RoHS
WRAD48-02AAA	T10048-2 Rev0 RadHAND PCB BATTERIA CONTATTI CONNESSIONE	RoHS
WRAD48-05AAA	T10048-5 Rev1 RadHAND PCB BATTERIA LED E PULSANTE	RoHS
WRADVIBASS01	PROTO 3 VIBRATOR ASSEMBLY Cod TecService EL934-01	RoHS
WSRAD600PROA	RadHand 600 PRO ETSI VERSION	RoHS
WSRAD600PROB	RadHand 600 PRO FCC VERSION	RoHS
WSRADSHPBAAA	SHIELDING KIT – LEAD – RADHAND 600 PRO
WSRADSHWAAAA	SHIELDING KIT – TUNGSTEN – RADHAND 600 PRO	RoHS

Add to Wishlist

Request a Quote


Detectors	Gamma: 51 x 51 mm (2“x2“) NaI(Tl) Gamma and neutron: 51 x 51 mm (2“x2“) NaIL (NaI:Tl, Li)
Radiation Measurement Performance	Energy range (Gamma): 10 keV – 10 MeV (2”x2” NaI(Tl)) Linearization: Real-time linearization of gamma energy Dose rate range (Cs-137): 10 nSv/h – 5 mSv/h (1 μrem/h – 0.5 rem/h) ± 30% Dose rate range ID Mode (Cs-137): 10 nSv/h – 180 μSv/h (1 μrem/h – 18 mrem/h) ⁽¹⁾ Dose rate overload range (Cs-137): 5 mSv/h – 50 mSv/h (0.5 – 5 rem/h) Maximum exposure rate: 50 mSv/h (5 rem/h) Stabilization: Sourceless gain stabilization (patent pending) Nuclide library: per customer requirements Library categories: SNM, IND, MED, NORM Typical resolution: 6.5 % FWHM at 662 keV with 2”x2” NaI(Tl) detector at 20 °C Maximum input count rate in identification mode (Cs-137): 300 kcps Gamma sensitivity (Cs-137): 1,850 cps/μSv/h ⁽¹⁾ For higher dose rates, CAEN recommends the use of the Collimation kit to keep the dose rate in the ID mode range.
Physical	Dimensions (W x L x H): 310 x 168 x 108 mm³ (2”x2” NaI(Tl)) 335 x 175 x 117 mm³ (2”x2” NaIL(Tl)) Weight: <2 kg (2”x2” NaI(Tl)) Housing material: plastic
UHF RFID Reader	Multi-Regional Support ETSI or FCC compliant versions EPC C1 G2, ISO 18000-6C Compliant Output power up to 500mW (27dBm) Read Range 1.5m (typical)
Barcode Scanner	1D-2D imager
Color Camera Environmental	Operating temperature: -10 °C to 45 °C (14°F to 113°F) Relative humidity 85% at 20°C and non-condensing conditions Protection rating: at least IP65 Tests according IEC 62706: Drop, vibration, mechanical shock, electrostatic discharge, radio frequency immunity, RFID ETSI EN 302 208 v. 1.4.1. (EU) FCC part 15.247 (US)
Battery	Type: Secure Li-Ion battery pack Operation time: 8h in dose rate mode with dimmed back light and GPS switched off at 20°C
Display	Type: Blanview TFT-LCD Size: 69 mm x 41 mm (2.72“ x 1.61“) Resolution: 800 pixels x 480 pixels
Input/Output	USB 2.0; micro-AB socket Bluetooth Class 4.0 WLAN WiFi 802.11 g/n

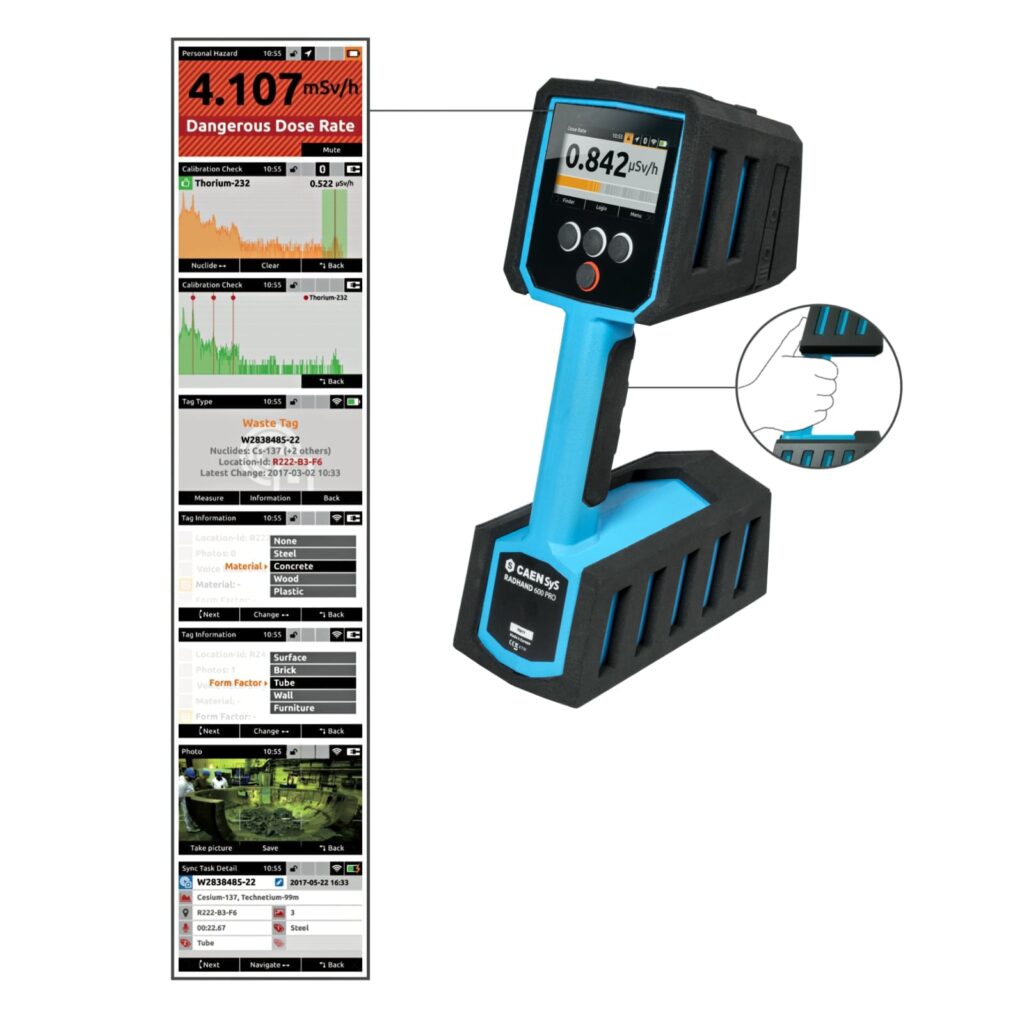

Software	Functions: dose rate, identification, RFID read/write, barcode read, record audio description, take color pictures Remote operation via web-interface File Formats: ANSI N42.42 compatible with thirdparty analysis software applications such as GADRAS, Cambio, or PeakEasy Internal Data Storage: 32 GB Data sharing: Synchronization with external database
Position	GPS for outdoor positioning
RFID Tags	CAENSYS RadRFID: Up 100 Gy rad tolerant UHF RFID tag family
Accessories	Rugged carrying case Lanyard carrying strap USB charger Micro-B socket USB cable Battery adapter Tripod for fixed measurements
External Probes	USB connectable external probes: CZT for high resolution gamma spectroscopy, Neutron detectors, ZnS for alpha/beta
