V419

4 Channel Peak Sensing ADC

Datasheet

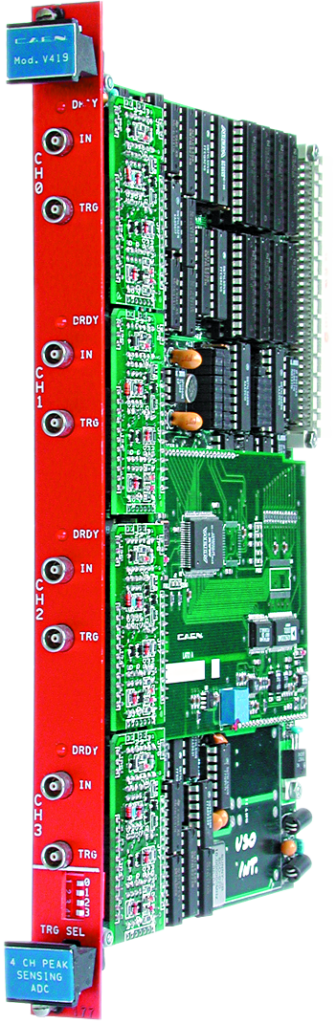

Photo of V419

  • 0 ÷ 4 V input range

  • Full 12 bit resolution

  • 1 mV LSB

  • 1.2 µs / ch. conversion time

  • ±0.5 counts integral non linearity

  • ±1% differential non linearity

  • Gate width (Rise Time Protection) programmable from 2 to 32 µs

The Mod. V419 is a 1-unit wide VME 6U module which houses 4 channels of linear gate and stretcher with a multiplexed 12 bit ADC.
The input signals can be square waves, or semi-gaussian positive pulses with a rise time greater than 0.5 µs; it can also convert constant or very slow signals working in sampling mode. A sliding scale technique is featured to improve the differential non linearity. The unit has an A24, D16 VME interface.
(INFN Milano-LNL design)

Add to Wishlist

Request a Quote

Request a Quote

    Submit I’ve read and accept the privacy policy *

    Technical Specifications

    Close

    Packaging

    6U-high, 1U-wide VME module

    Inputs

    4 channels, DC coupling, positive polarity, 1 kOhm impedance

    Input signal shape

    square wave or semigaussian pulses with rise time >500 ns

    Full scale

    4 V

    Resolution

    12 bit

    RTP

    selectable from 2 µs to 32 µs

    Conversion time

    1. 2 µs/ch.

    Trigger inputs

    TTL level

    Dead time

    RTP + 500 ns

    Integral non linearity

    0.5 LSB

    Differential non linearity

    ± 1%

    VME interface

    A24, D16
