ZEUS

Control Software for DT5485Px and A7585Px Power Supply

Control multiple A7585 and A7585DU modules
RS232 or USB connection
User-friendly GUI
HV out vs. time plot

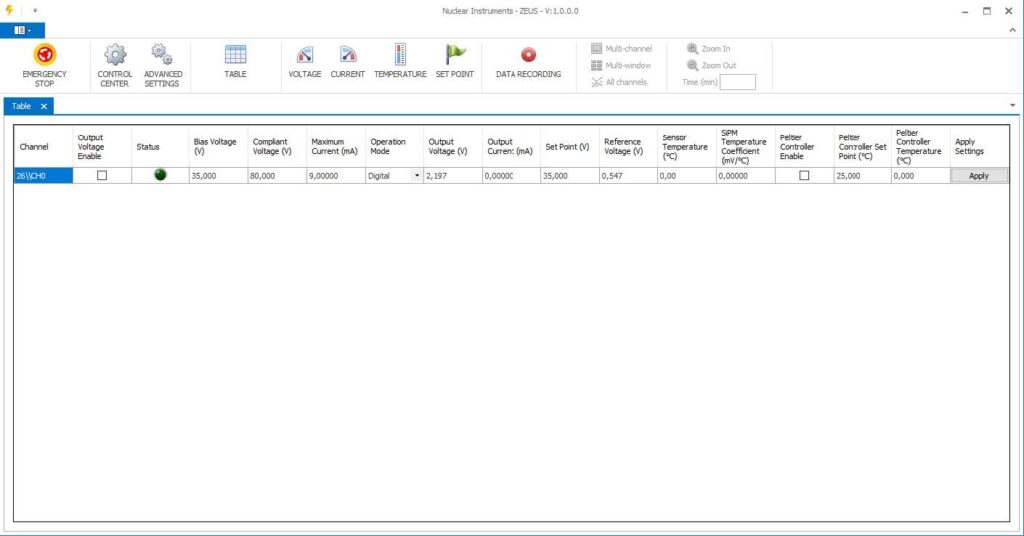

ZEUS is a user-friendly Windows-compatible software designed to control multiple A7585D, A7585DU, DT5485P and DT5485PB modules via USB or RS232 (A7585Dx only) connections. It supports Serial, Ethernet, and I2C connections. The software’s intuitive GUI allows easy parameter configuration and data logging. Real-time plot features enable monitoring of voltage, current, and temperature, with the option to overlay measurements from multiple modules. ZEUS simplifies temperature LUT compensation programming.

The software’s “Tool Bar” offers the following options:

Quickly turn off the HV output
Live-time control of voltage, current, and temperature
Configure operation modes, temperature sensor, calibration, low pass, and peltier filters
Plot HV output, output current, monitored temperature, and voltage set point vs. time
Write functional parameter values into a log file
