8 Channel up to 6 kV Family with USB, Ethernet & Touchscreen

Up to 6 kV - DT803x

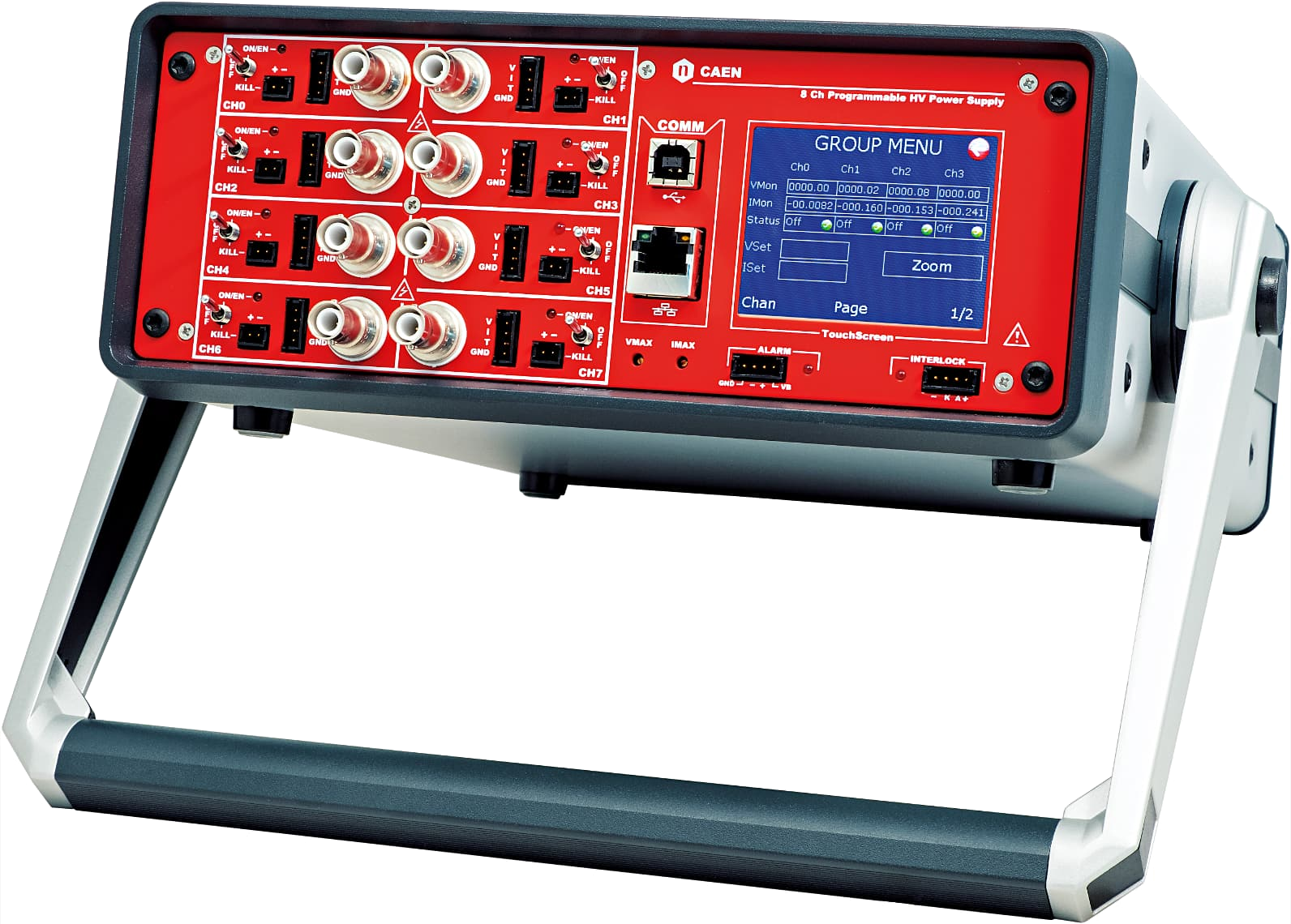

Photo of 8 Channel up to 6 kV Family with USB, Ethernet & Touchscreen

The DT803x is a CAEN Power Supply Family providing 8 Independent High Voltage channels in a Desktop form factor. The channels share a Common Ground and four output ranges are available: 100 V/10 mA, 500 V/10 mA, 4 kV/3 mA (6W max), 6 kV/ 1 mA. The module is available with either positive or negative output polarity. Mixed versions with 4 positive and 4 negative channels are also available. DT803x units can be controlled either locally, thanks to a 2.8” touchscreen color LCD display with a complete user interface, or remotely, via USB or Ethernet, taking advantage of GECO2020 Control Software. 100 V channels are delivered through BNC connectors, other versions feature SHV’s. The three high current models feature high Imon resolution of 50 nA, while the 6 kV/ 1mA has a resolution of 5 nA. Each unit is provided with Imon Zoom which increases Imon resolution by a factor 10. The HV output Ramp-up and Ramp-down rates may be selected independently for each channel.

  • 8 independently controllable HV channels with very low ripple

  • Versions from 100 V to 6 kV, up to 10 mA

  • Local touchscreen control and remote control via Ethernet/USB

  • Multiple polarity options with interlock and protection features

  • 100 V version with SiPM temperature compensation and fast recovery output

8 Channel up to 6 kV Family with USB, Ethernet & Touchscreen Models

Grid Compare
DT8033

DT8033

8 Channel 4 kV/ 3 mA (6W) Desktop Power Supply Module (USB/Ethernet/Touchscreen)
DT8034H

DT8034H

8 Channel 6 kV/ 20 µA Desktop Power Supply Module (USB/Ethernet/Touchscreen)
DT8032

DT8032

8 Channel 500 V/ 10 mA Desktop Power Supply Module (USB/Ethernet/Touchscreen)
DT8031

DT8031

8 Channel 100 V/ 10 mA Desktop Power Supply Module (USB/Ethernet/Touchscreen)
DT8034

DT8034

8 Channel 6 kV/ 1 mA Desktop Power Supply Module (USB/Ethernet/Touchscreen)
Name
No. of Channels
Max Output V
Max Output I
Vset/Vmon Resolution
Iset/Imon Resolution
Max. Ramp Up/Down Rate
Ripple Typ. (>1kHz)
Connectors
Max Power per Channel
Features
DT8033

DT8033

8

4000 V

3 mA

10 mV

Iset: 10 nA
Imon: 10 / 1 nA

500 V/s

<2 mVpp

SHV

6 W

Remote control via USB or Ethernet
DT8034H

DT8034H

8

6000 V

20 µA

20 mV

Iset: 100 pA
Imon: 100 / 10 pA

500 V/s

<2 mVpp

SHV

120 mW

Remote control via USB or Ethernet
DT8032

DT8032

8

500 V

10 mA

2 mV

Iset: 50 nA
Imon: 50 / 5 nA

100 V/s

<2 mVpp

SHV

5 W

Remote control via USB or Ethernet
DT8031

DT8031

8

100 V

10 mA

0.5 mV

Iset: 50 nA
Imon: 50 / 5 nA

50 V/s

<1 mVpp

BNC

1 W

Remote control via USB or Ethernet
DT8034

DT8034

8

6000 V

1 mA

20 mV

Iset: 5 nA
Imon: 5 / 0.5 nA

500 V/s

<2 mVpp

SHV

6 W

Remote control via USB or Ethernet

Software

Software Tools available (free download) to control the Up to 6 kV Family DT803x:

  • CAEN LabVIEW: It is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules.

  • CAEN HV Wrapper Library: it is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products.

  • GECO2020: CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.
