EASY3000 DAC Boards

EASY - Radiation & Magnetic Field Tolerant

Photo of EASY3000 DAC Boards

Overview

CAEN EASY DAC boards provide high-density analog voltage outputs for slow control of detector systems operating in hostile environments. Based on CAENโ€™s patented EASY (Embedded Assembly SYstem) technology, originally developed for the main LHC experiments, they are designed to work reliably in magnetic fields and moderate radiation, and can be installed directly in the experimental area, close to detectors and front-end electronics.

The A5802 is a 128-channel DAC board delivering 0 รท -4 V / 4 mA outputs with 12-bit resolution on both voltage setting and monitoring, and ripple below 5 mVpp. It is ideal for discriminator threshold generation, bias adjustment and other front-end control tasks where large numbers of channels must be individually configured. The board is remotely controlled from the control room through the R6060C Branch Controller.

The A5802 supersedes the previous A3802 model.

Highlights

  • 128 independent DAC output channels per board, 0 รท -4 V / 4 mA, with ripple below 5 mVpp

  • 12-bit Voltage Set/Monitor resolution

  • High slot density: up to 10 boards per crate for large-scale multichannel control

  • Seamlessly integrated into the EASY modular ecosystem alongside HV, LV and ADC boards


EASY3000 DAC Boards Models

Grid Compare
Name
No. of Channels
Connectors
No. max of boards per crate
Width (slots)
Max Power per Channel
Vset/Vmon Resolution
Current Full Scale (A)
Voltage Full Scale (V)
Max Ripple (mVpp)
A5802
New

A5802

128

Std.Flat

10

2

16 mW

12 bit

0.004

-4

<5 mVpp

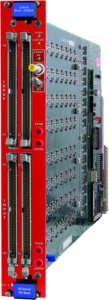

A3802

A3802

128

Std.Flat

10

2

16 mW

12 bit

0.004

-4

<5 mVpp
