Low Power Low Voltage

Low Voltage Power supplies

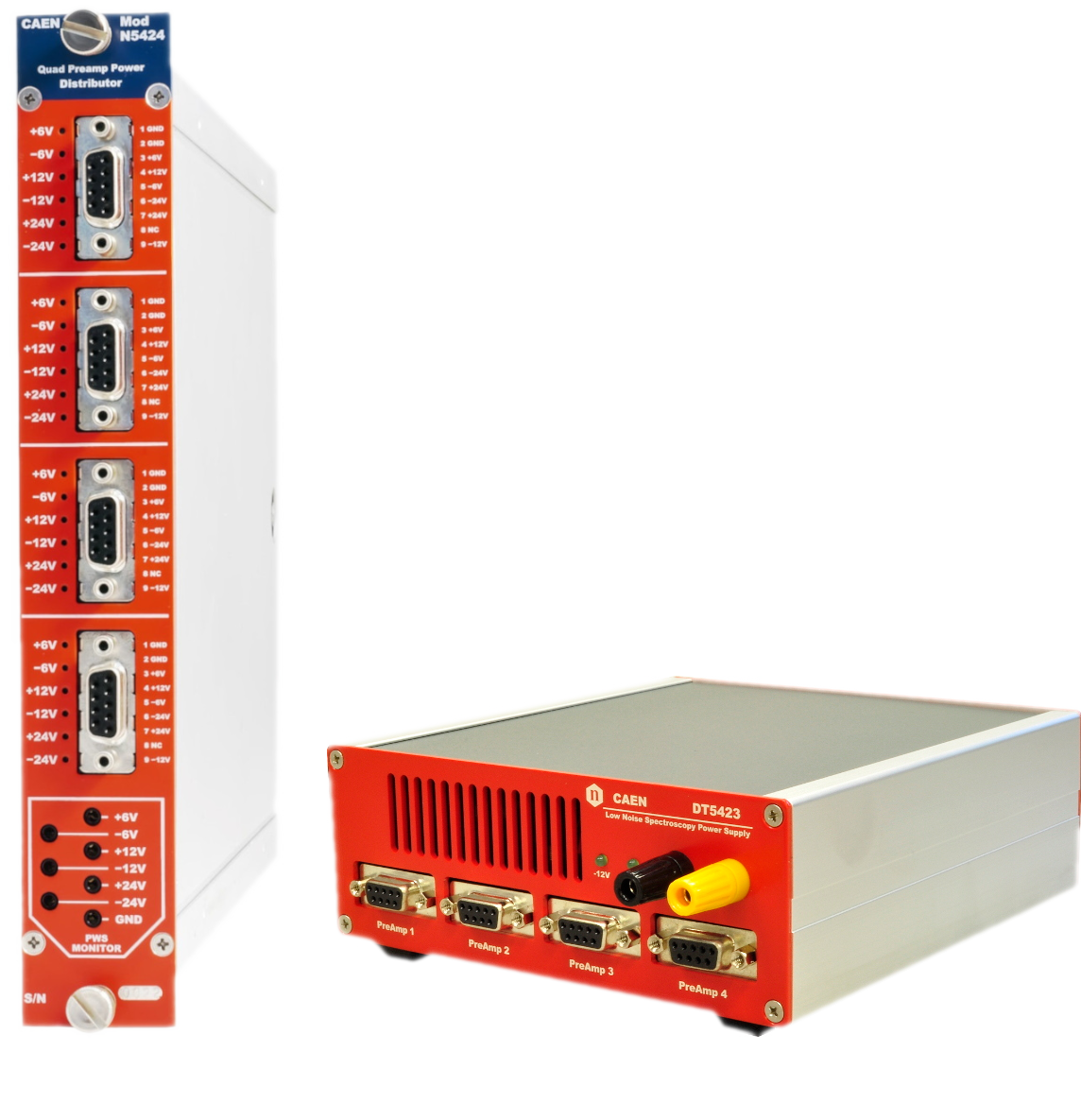

Photo of Low Power Low Voltage

The Low Power Low Voltage family includes the DT5423 (desktop), N5424 (NIM), and V5425 (VME) modules, providing clean and reliable multi-voltage distribution for preamplifiers, digitizers, and front-end electronics. Designed for low-noise laboratory and detector environments, these units deliver filtered ±6 V, ±12 V, and ±24 V outputs (or dedicated ±12 V/+12 V lines for desktop setups), ensuring stable operation of sensitive electronics. With comprehensive monitoring, automatic protections, and compatibility across different form factors, the family offers a flexible solution for both standalone and crate-based systems.

  • Desktop, NIM, and VME modules for low-noise LV power distribution

  • Filtered multi-voltage outputs for preamplifiers and digitizers

  • Continuous voltage monitoring with LED status indicators

  • Self-recovering electronic fuse protection for safe operation

Low Power Low Voltage Models

Grid Compare
V5425

V5425

Quad VME Power Distributor
DT5423

DT5423

Quad Linear Desktop Power distributor for A1422 Preamplifiers and DT57xx Digitizers
N5424

N5424

Quad NIM Power Distributor for A1422 Preamplifiers
Name
Package
No. of Channels
Pre-Amp Supply
Digitizer Supply
Connectors
Noise
V5425

V5425

VME

Pre-Amp: 4

+6 V / 2 A
-6 V / 1.5 A
±12 V / 500 mA
±24 V / 250 mA

N.A.

Pre-Amp: 4 Sub D9 female

±6 V < 1 mVpp
±12 V ±24 V < 2 mVpp
DT5423

DT5423

Desktop

Pre-Amp: 4
Digitizer: 1

+12 V / 400 mA
-12 V / 200 mA

+12 V / 2.1 A

Pre-Amp: 4 Sub D9 female
Digitizer: Mini DIN 6 pos Shielded

±12 V < 5 mVpp (Pre-Amp)
+12 V < 10 mVpp (Digitizer)
N5424

N5424

NIM

Pre-Amp: 4

±6 V / 1 A
±12 V / 1 A
±24 V / 100 mA

N.A.

Pre-Amp: 4 Sub D9 female

±6 V < 2 mVpp
±12 V ±24 V < 3 mVpp
