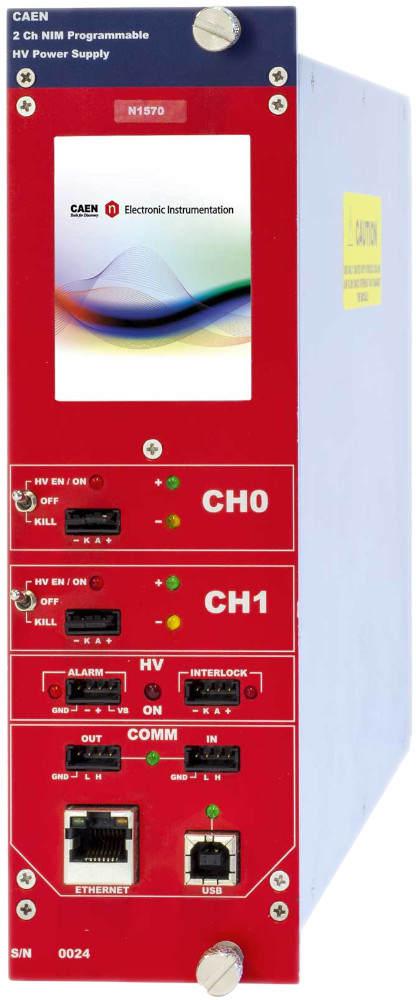

Photo of NIM / Up to 15 kV Reversible Polarity – N1570

Up to 15 kV available with full local and remote control.

Features

  • 2 independent channels in 2U NIM module
  • 0 ÷ 15 kV output voltage
  • 1 mA maximum output current (10 W max)
  • Channel polarity independently selectable
  • LEMO HV coaxial output connectors
  • Common foating return
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Daisy-chain capability
  • 2.8” color touch screen display
  • Local and Remote control (USB 2.0/Ethernet)
  • Interlock logic for board enable and Individual channel kill
  • LabVIEW Driver available
  • Software Tools for remote control
  • Desktop and Rack versions available (Coming Soon)



NIM / Up to 15 kV Reversible Polarity – N1570 Models

Grid Compare
N1570

N1570

  • 2 independent channels in 2U NIM module

  • 15 kV / 1mA output range

  • Max channel power: 10W (< 10kV) or 7W (> 10kV)
Name
No. of Channels
Max Output V
Max Output I
Vset/Vmon Resolution
Iset/Imon Resolution
Max. Ramp Up/Down Rate
Ripple Typ (>1kHz)
Connectors
Max Power per Channel
Features
N1570

N1570

2

±15000 V

1 mA

0.5 V

Iset: 20 nA
Imon: 20 / 2 nA

500 V/s

< 4-20 mVpp

HV LEMO

10 mW

Common Floating Return
