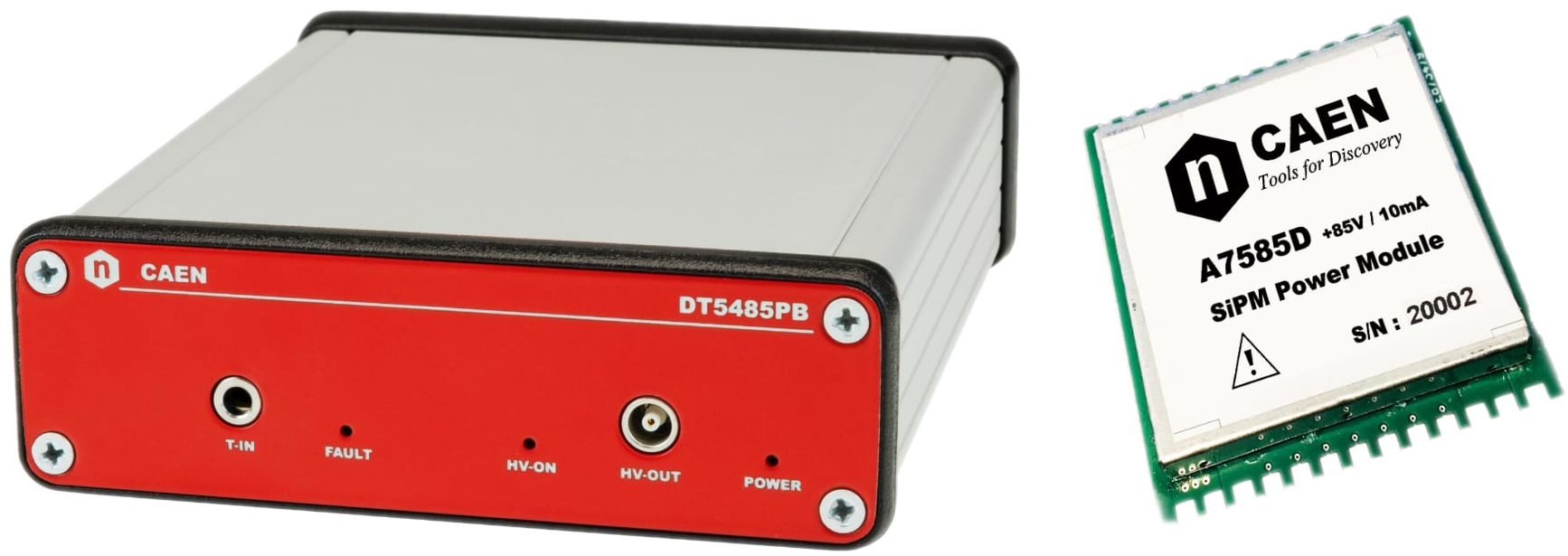

Single Channel 85 V/10 mA Power Supply Module for SiPM with UART, I2C & USB
Up to 85 V Power Supply Module for SiPM
Overview
The modules A7585D/A7585DU and DT5485P are a compact desktop solution to provide stable and noiseless power supply for single and array/matrix SiPM detectors. A7585D/A7585DU are high voltage regulators specifically designed for SiPM bias. Each of them, provides a built in temperature compensation controller with programmable coefficient.
Highlights
-
20–85 V output up to 10 mA with 1 mV setting resolution
-
Ultra-low noise (< 300 µV rms) with temperature-stabilized output
-
High-resolution monitoring of voltage, current, and temperature
-
Digital (UART/I2C) and analog control with onboard memory
-
Extremely compact module with ZEUS software support
Single Channel 85 V/10 mA Power Supply Module for SiPM with UART, I2C & USB Models

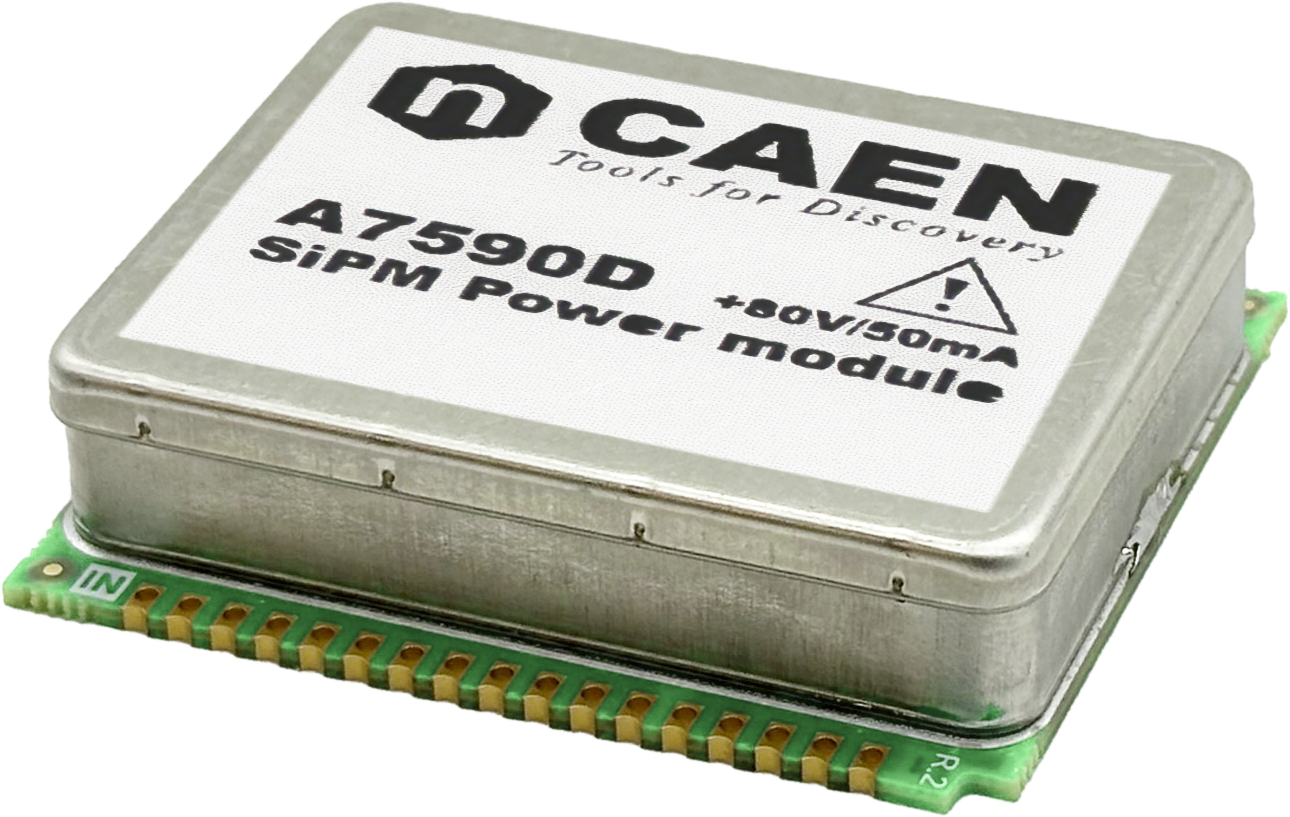

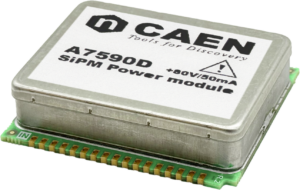

A7590D
1 Ch. 75 V/50 mA Floating Digital Controlled SiPM Power Supply - PCB Mount

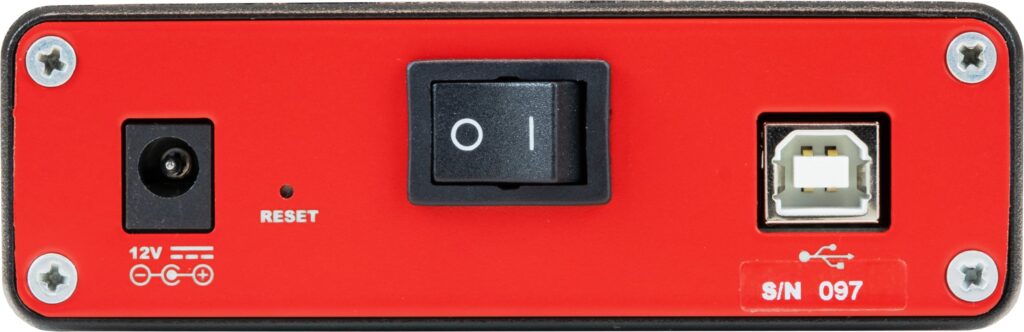

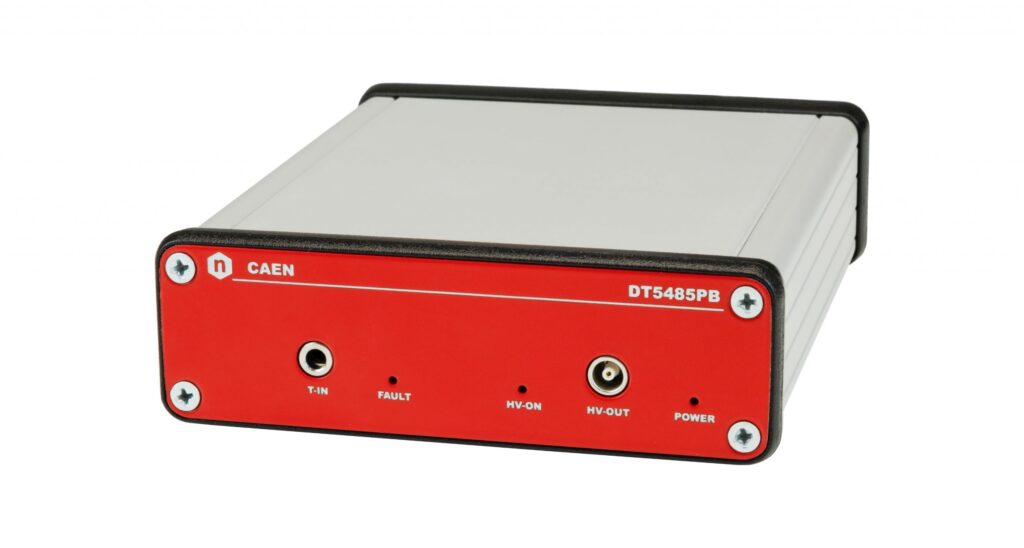

DT5485P/PB
Desktop +85 V/10 mA Digital Controlled SiPM Power Supply with USB
A7585D/DU
1 Ch. 85 V/10 mA Digital Controlled SiPM Power Supply (with USB) - PCB Mount
DT5490
Desktop +75 V/50 mA Floating Digital Controlled SiPM Power Supply
Image |
Name
|
No. of Channels |
Max Output V |
Max Output I |
Vset Input (V) |
Vmon Output (V) |
Imon Output (V) |
Ripple Typ. |
Power requirement (mW) |
Operating temperature |
Voltage Supply (Vin) | |
 |
A7590D |
1 |
75 |
50 mA |
Digital control Vset: 1mV |
Digital control Vmon: 10 µV |
Digital control Imon: 10 nA |
< 1.5 mVpp |
tbd |
tbd |
+10 ÷ +15V | |
 |
DT5485P/PB |
1 |
85 V |
10 mA |
Digital control Vset: 1mV |
0 ÷ +5 |
0 ÷ +5 |
< 0.2 mVpp |
< 5000 |
-10° C ÷ +60° C |
USB powered | |
 |
A7585D/DU |
1 |
85 V |
10 mA |
Digital control Vset: 1mV |
0 ÷ +5 |
0 ÷ +5 |
< 0.2 mVpp |
< 5000 |
-10° C ÷ +60° C |
+6V ÷ +28V or USB powered (A7585DU only) | |
 |
DT5490 |
1 |
75 V |
50 mA |
Digital control Vset: 1mV |
Digital control Vmon: 10 µV |
Digital control Imon: 10 nA |
< 1.5 mVpp |
tbd |
tbd |
+10V ÷ +15V |
Smart control
The module can be digitally controlled by UART and I2C. A7585DU moreover integrates a USB to UART bridge and it could be powered from USB. Output voltage could be also controlled proportionally to an analog input.
A7585D/A7585DU can provide up to 10 mA and the output voltage could be regulated between 20V and 85V with a resolution of 1mV. Moreover, the ZEUS control software is provided for free; ZEUS allows to monitor and control multiple modules at same time.
Applications
-
SiPM (single and matrix) bias
-
PIN diodes bias
-
SiPM characterization
-
High resolution spectroscopy systems
-
Medical Imaging systems
-
LIDARs
Plug and Play
The A7585DU model comes with Micro-USB Connection for an easy plug ‘n play functionality providing power and data transfer in one cable. Simple to setup and control, just install the software ZEUS.

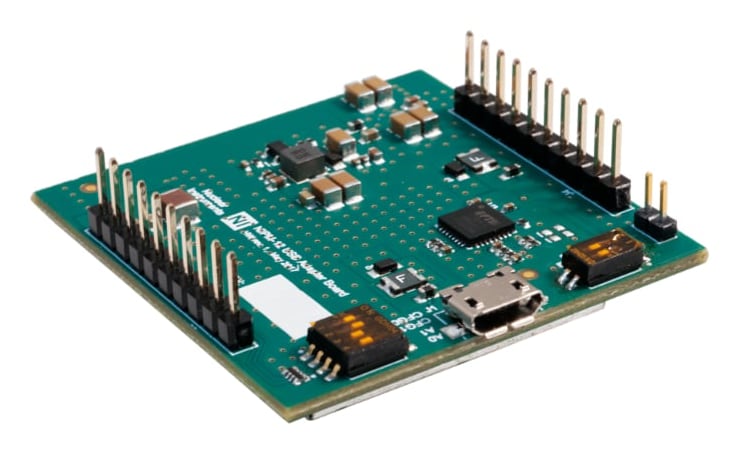

The module also has a 2.54 mm connector to integrate it in the user circuit and operate in self-power mode.

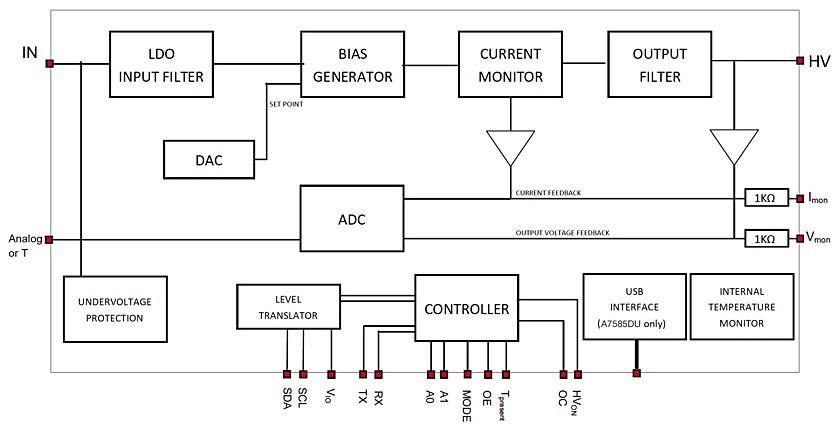

A7585 Functional Diagram
Software

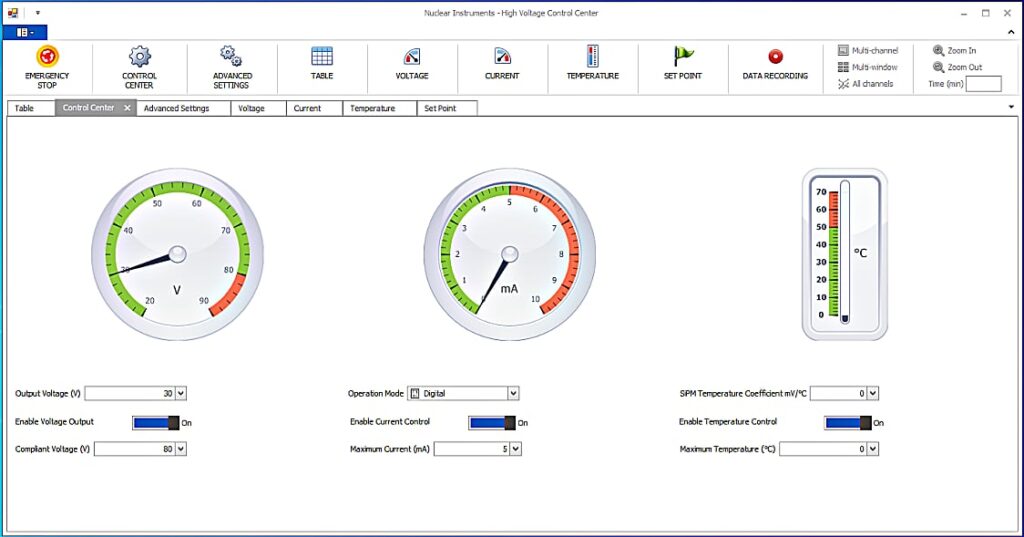

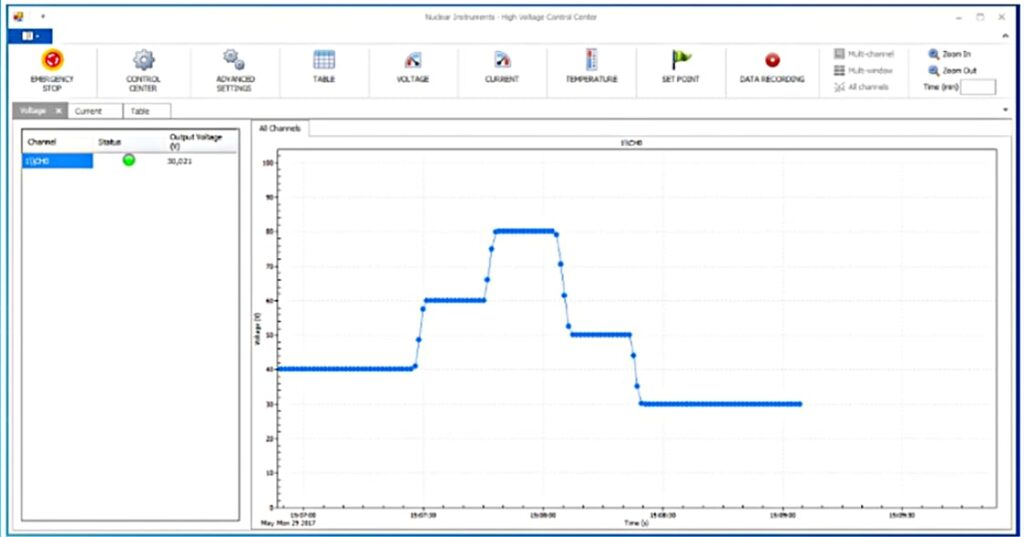

ZEUS Control Software is a Windows compatible software that allows to control multiple A7585D and A7585DU modules using RS232 or USB connection. The software is based on a user-friendly GUI that allows the parameters configuration and the data logging on file. It integrates real-time plot capabilities (voltage, current and temperature) with the possibility to superimpose measurements from several modules.
ZEUS software is the simplest way to program temperature LUT compensation.
