Magnetic field and radiation tolerant
128 input channels
-45 ÷ +125 °C range
0.1 °C LSB
2s conversion rate
Flat cable input connectors

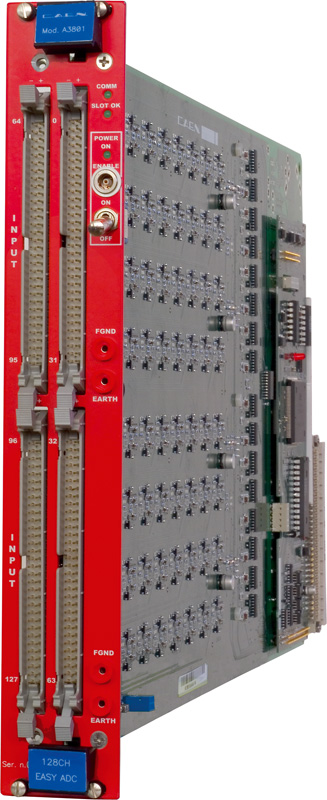

The CAEN Mod. A3801A is a 128-channel temperature ADC board belonging to the EASY (Embedded Assembly SYstem) family, designed to operate in magnetic fields and radiation environments. Housed in a double-width EASY module, it can be installed directly in the experimental area, close to detectors and front-end electronics.
The board digitizes the temperature values sensed by Analog Devices AD592 sensors, and also provides their power supply, so no external source is needed to bias the sensors.
The input range is -45 ÷ +125 °C with a 0.1 °C LSB, and all 128 channels are converted in 2 s. Inputs are available on standard flat cable connectors.
|
Input Range |
-45 ÷ +125 °C |
|
LSB |
0.1 °C |
|
Integral non linearity |
0.1% of FSR |
|
Interchannel isolation |
60 dB |
|
Conversion rate |
2 s (for all channels) |
|
Temperature stability |
0.5 LSB/°C |
|
Weight |
1kg |
