All versions:
-
Communication interfaces
-
RESET control
-
INTERLOCK control
-
Status LEDs
-
-
Advanced & Full versions:
-
Beam handshake management connectors (CH-ON, GEN, VSEL, ISEL)
-
-
Full version only
-

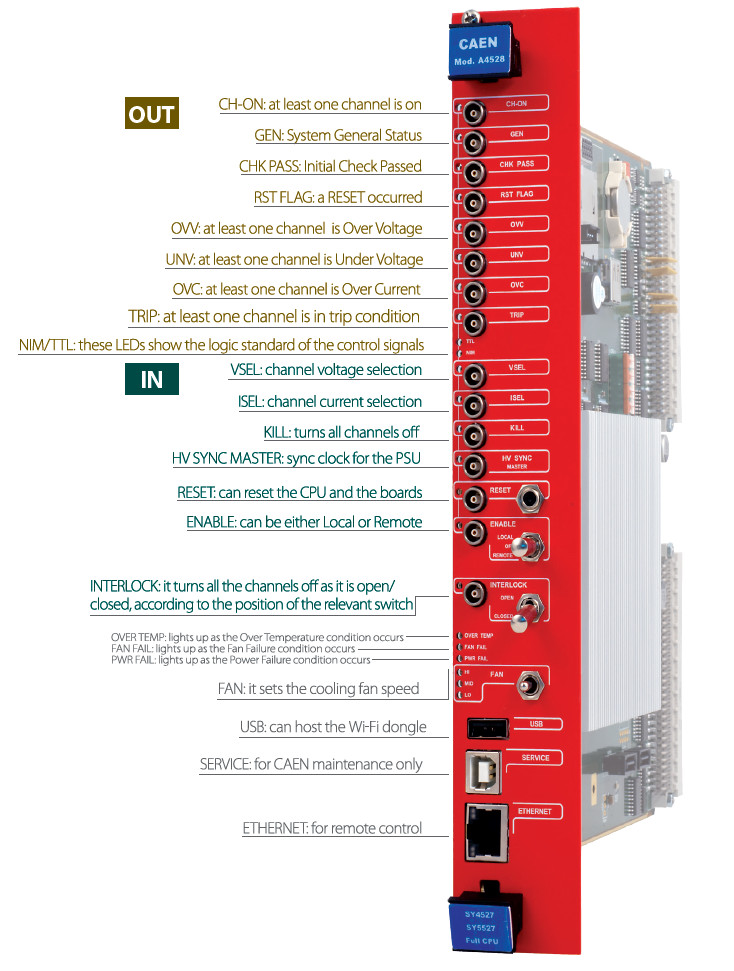

CHK PASS, RST FLAG, OVV, UNV, OVC, TRIP, KILL and HV SYNC connectors
-
ENABLE control section
-
Front panel Fan speed control
-

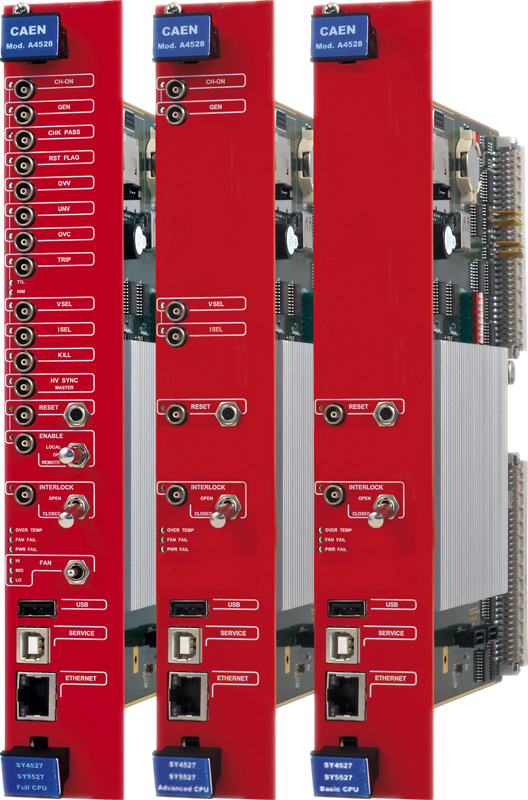

The A4528 SY4527/SY5527 CPU Front Panel Section includes all interface facilities; it is available in 3 different versions: BASIC, ADVANCED and FULL: the BASIC version provides all the communication interfaces, the RESET control, the INTERLOCK control and status LEDs; the ADVANCED version also provides the beam handshake management connectors (CH-ON, GEN, VSEL, ISEL); the FULL version provides the complete set of panel connectors, the ENABLE control section, and the fan speed control. The CPU version installed on the SY4527LC shares the same features with the BASIC issue.
|
Model |
Reset In |
Interlock In |
Fan Speed |
Vsel/Isel |
Status Out |
Kill In |
Remote Enable |
|---|---|---|---|---|---|---|---|
|
A4528 Full |
✔️ |
✔️ |
✔️ |
✔️ |
✔️ |
✔️ |
✔️ |
|
A4528 Advanced |
✔️ |
✔️ |
✔️ |
✔️ |
|||
|
A4528 Basic |
✔️ |
✔️ |
|||||
BASIC, ADVANCED and FULL.
-
The BASIC version provides all the communication interfaces, the RESET control, the INTERLOCK control and status LEDs.
-
The ADVANCED version also provides the beam handshake management connectors (CH-ON, GEN, VSEL, ISEL).
-
The FULL version provides the complete set of panel connectors, the ENABLE control section, and the fan speed control.
|

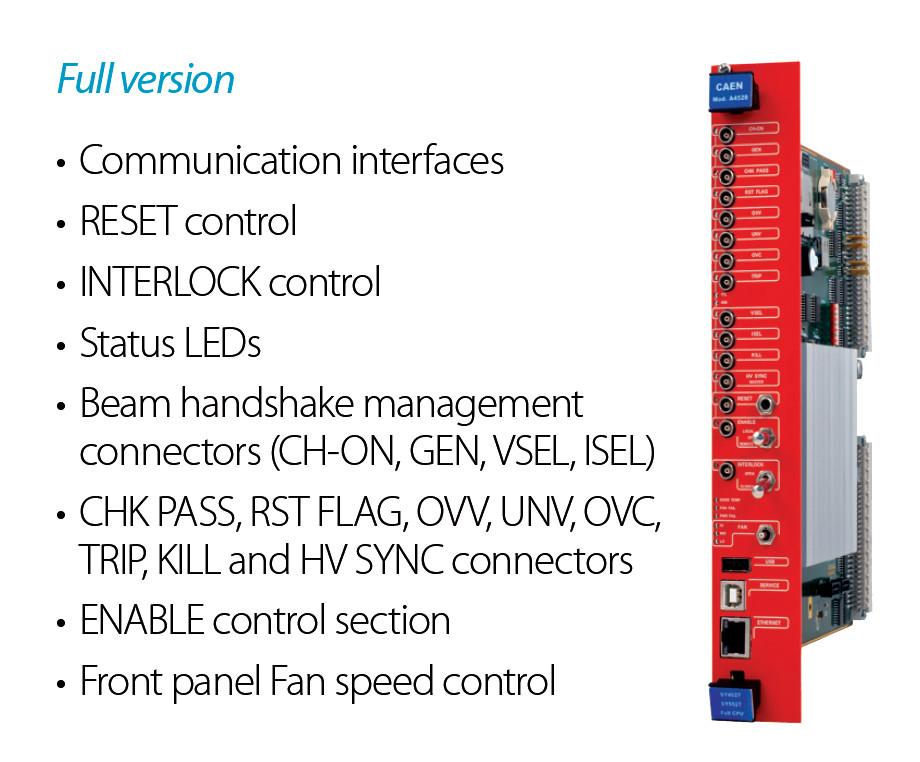

Full Version |

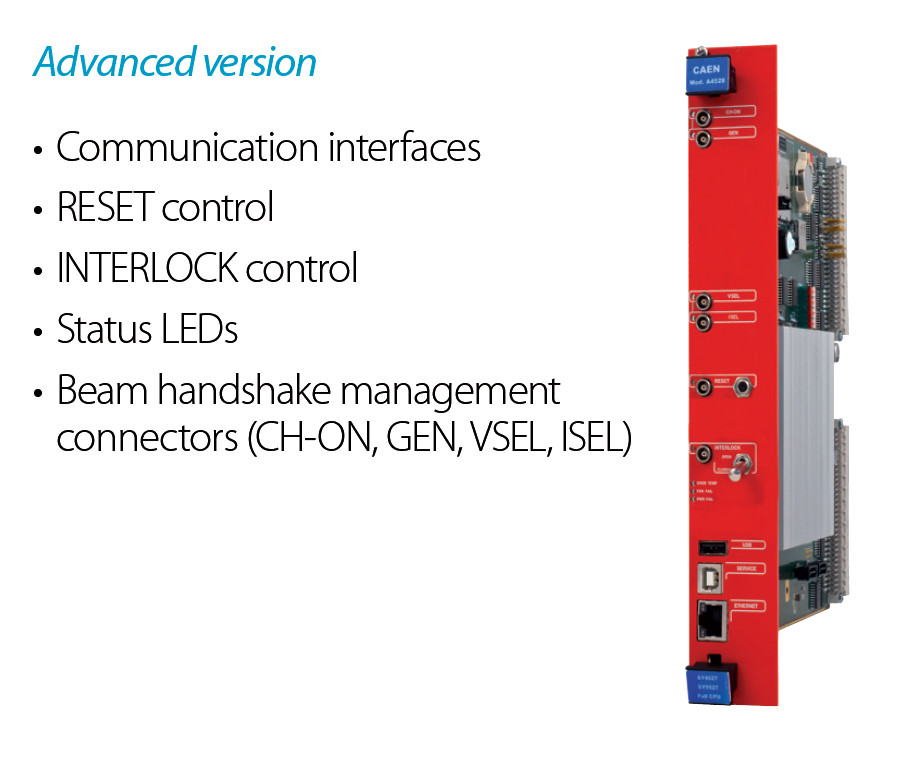

Advanced Version |

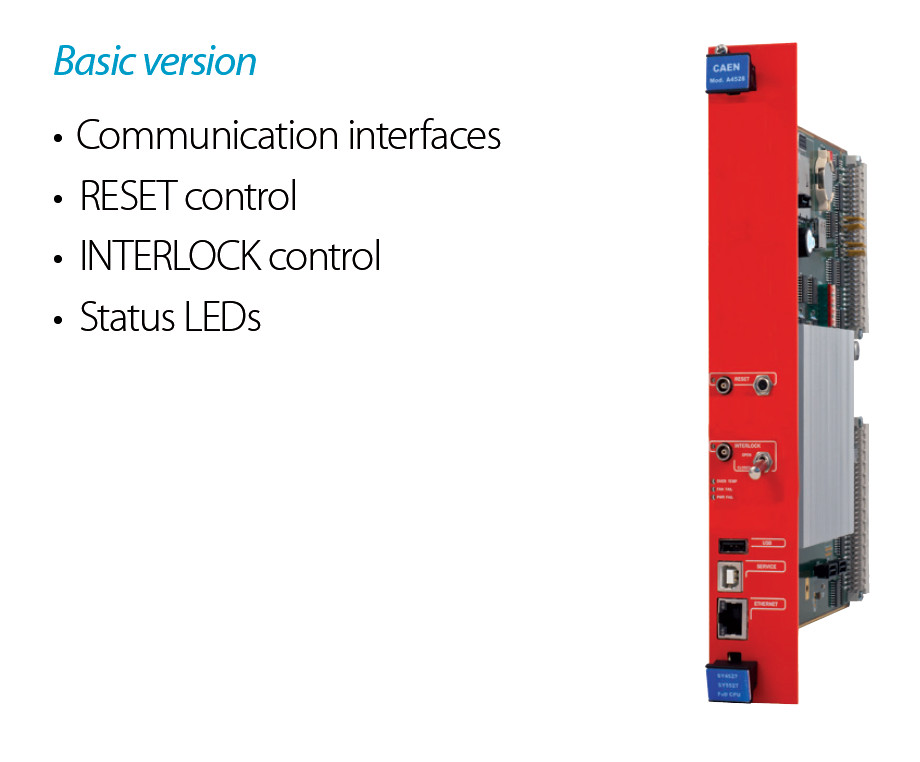

Basic Version |
|
|---|---|---|---|
|
Communication Interfaces |
✔️ |
✔️ |
✔️ |
|
Reset Control |
✔️ |
✔️ |
✔️ |
|
INTERLOCK control |
✔️ |
✔️ |
✔️ |
|
Beam handshake management connectors (CH-ON, GEN, VSEL, ISEL) |
✔️ |
✔️ |
|
|
Status LEDs |
✔️ |
✔️ |
✔️ |
|
CHK PASS, RST FLAG, OVV, UNV, OVC, TRIP, KILL and HV SYNC connectors |
✔️ |
||
|
ENABLE control section |
✔️ |
||
|
Front Panel Fan speed control |
✔️ |
||
