CAEN Universal Multichannel Power Supply Systems are 100% internally developed and designed to install into a standard 19” relay rack. The mainframes and dedicated HV/LV boards were purposefully designed to provide peak performance in a broad spectrum of operational scenarios and for a vast number of detector types. CAEN mainframe systems are modular, making upgrade and maintenance a breeze.A single mainframe may house and provide control for up to 768 independent channels. Each mainframe may be configured with a mixture of both High Voltage boards for detector bias and Low Voltage boards to drive peripheral electronics.This exceptional combination of power, flexibility, modularity, and reliability enable CAEN to customize the perfect HV/LV Mainframe System for any experimental conditions, from the smallest test-bench applications up to the largest international High Energy Physics experiments, and to do so in the most cost effective manner possible.
-
Fully modular 19” rack mainframe systems with HV and LV boards, entirely designed by CAEN
-
Up to 768 independently controllable channels per mainframe
-
Flexible configuration for mixed HV/LV setups across many detector types and applications
-
Scalable from small test benches to large HEP experiments with cost-effective customization
-
Wide portfolio covering bipolar and unipolar supplies from low voltage up to 15 kV
Universal Multichannel System Families
Mainframes

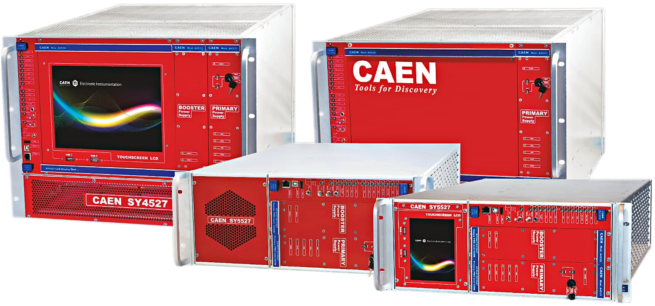

Modular HV/LV mainframe systems SYx527/SYx527LC. Up to 16 boards, up to 4200 W. Scalable from small test benches to large experiments.
A4528x CPU Modules

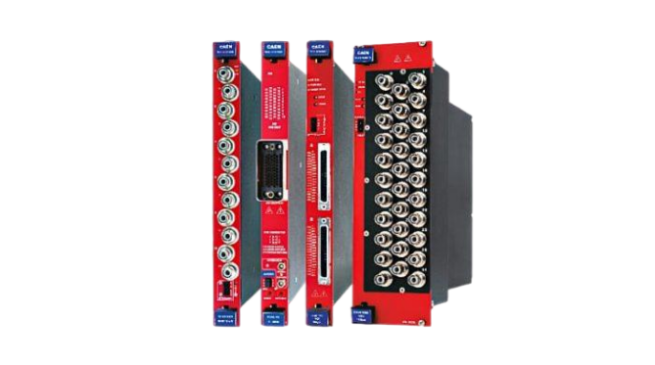

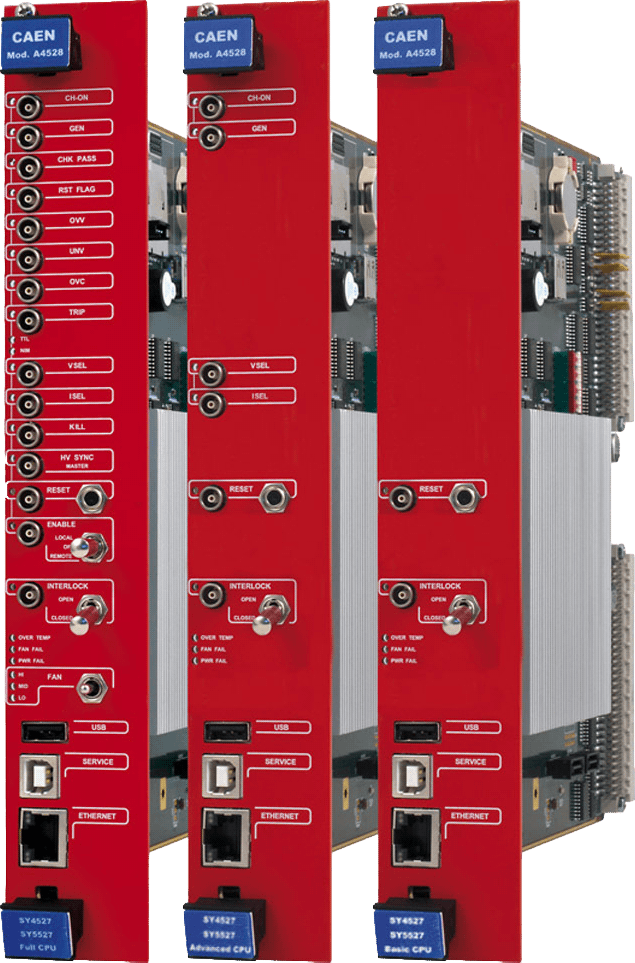

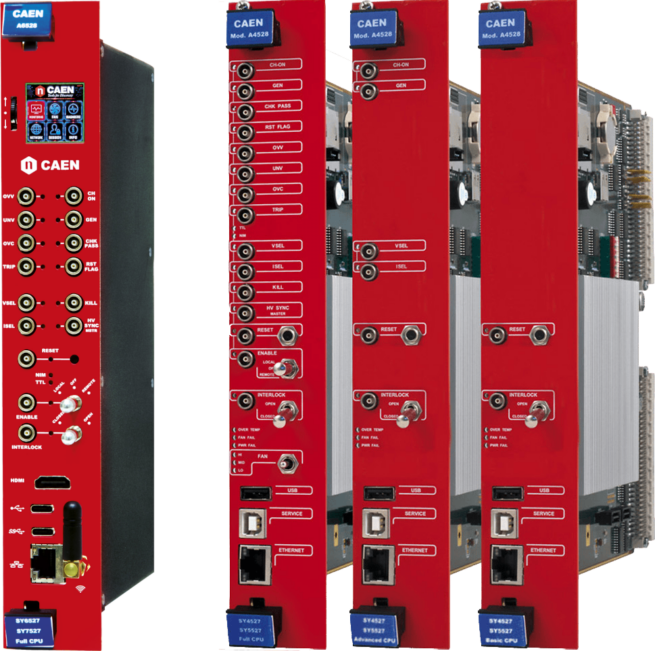

The CPU controller is offered in three versions: BASIC, ADVANCED and FULL; Each board allows to control and manage the LV/HV boards installed in the crate.
A453x Power Supply Units

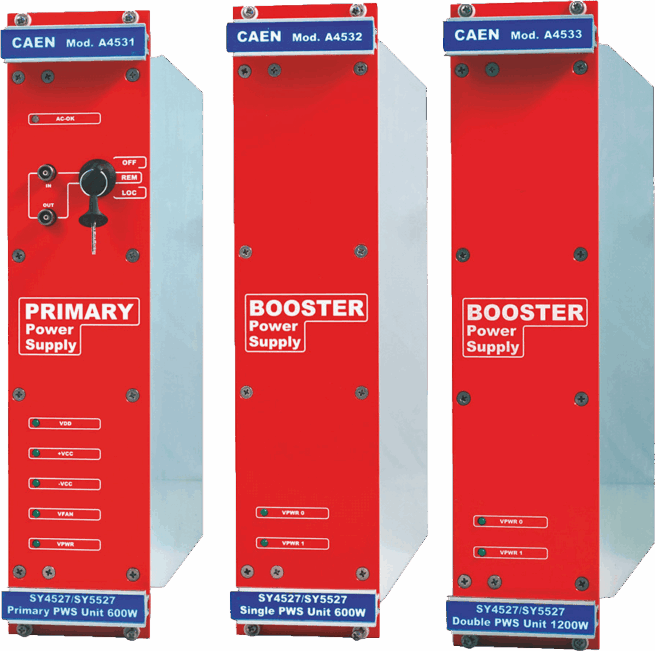

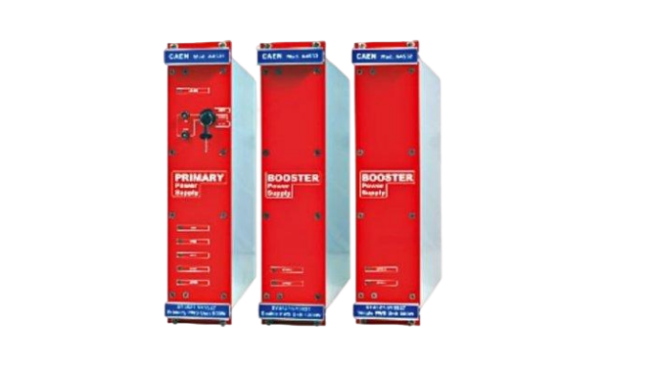

PSU modules for SY4527/SY5527 mainframes. Primary (600 W), Optional Single (600 W), Optional Double (1200 W) versions. Up to 4 PSUs per SY4527; up to 2 per SY5527.
Up to 64 V

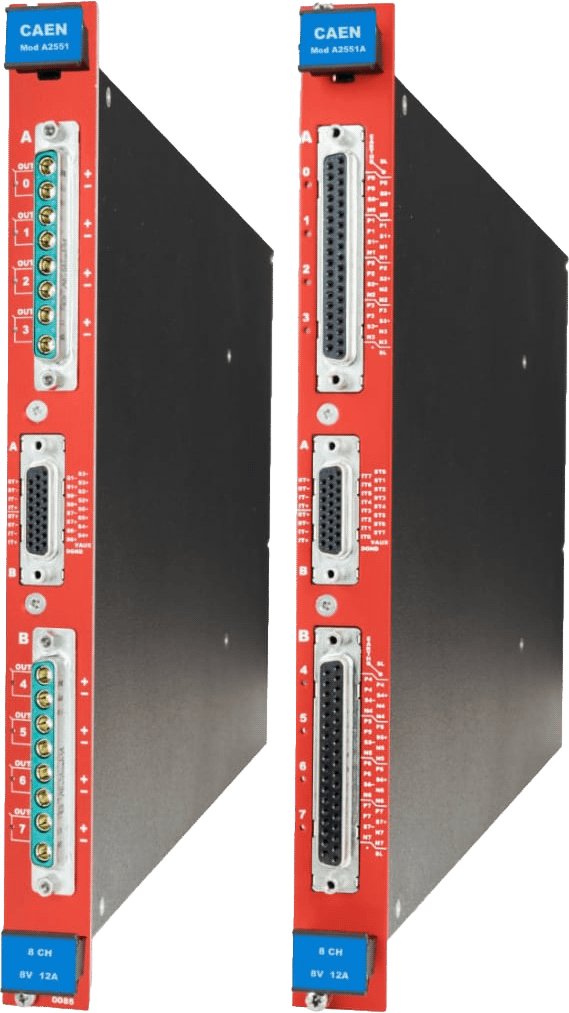

8 independently controllable Individual Full Floating channels, Up to 64 V, Up to 60 W Max channel output power.
Up to 100 V

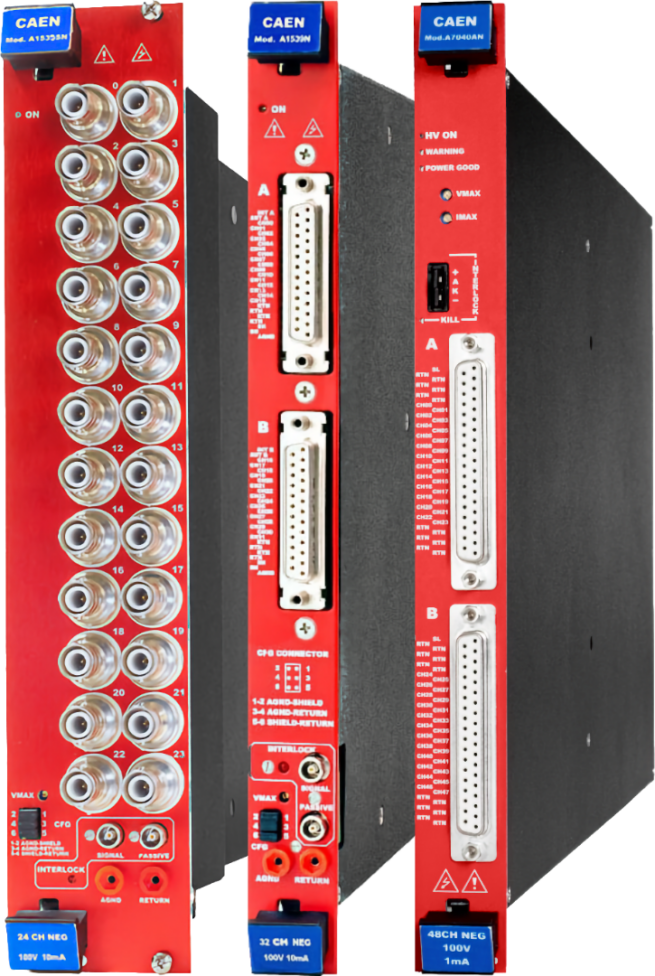

From 12 to 48 independently controllable HV channels, Up to 20 mA , DB37, DB25 or SHV connectors
Up to 500 V

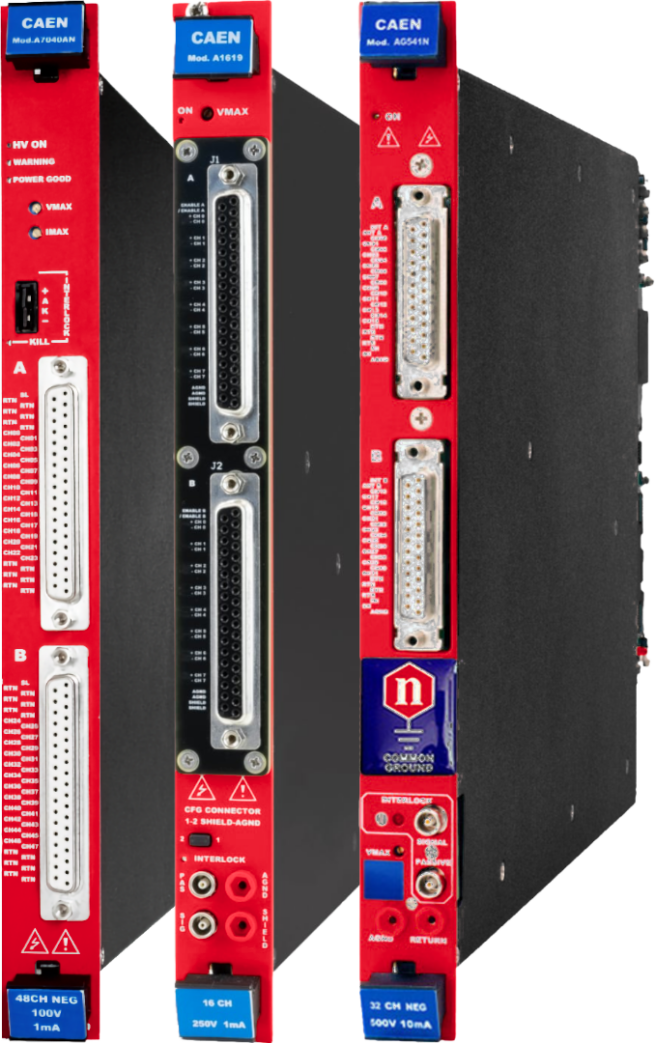

From 12 to 48 independently controllable High Voltage channels, up to 10 mA, DB37, DB25, or SHV connectors, 3 different channel grounding
Up to 1.5 kV

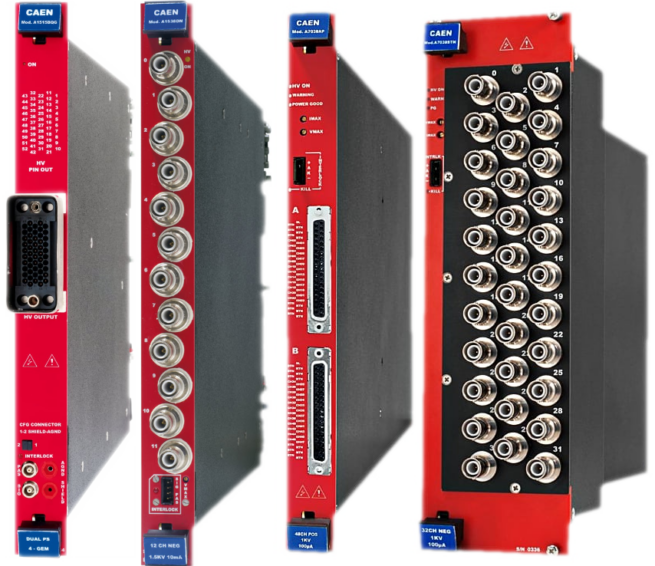

From 8 to 48 HV channels, up to 20 mA, DB37, SHV, Radial and REDEL connectors, 3 different channel grounding, Versions for GEM and Vertex detectors
Up to 3.5 kV

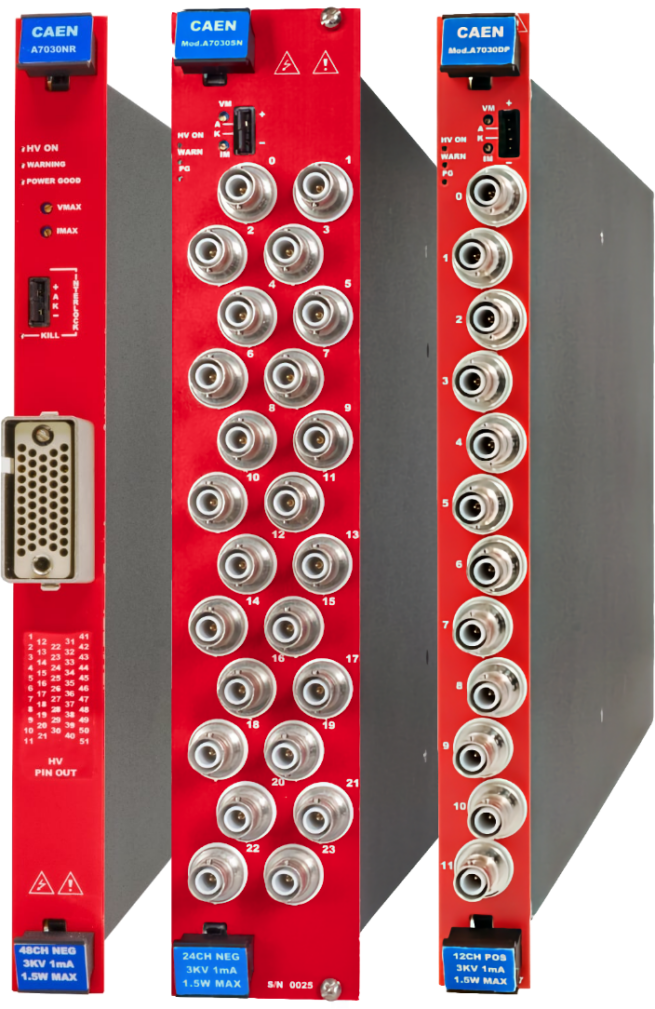

From 12 to 48 independently controllable HV channels, up to 3.5 mA, SHV, Radial or REDEL connectors.
Up to 8 kV

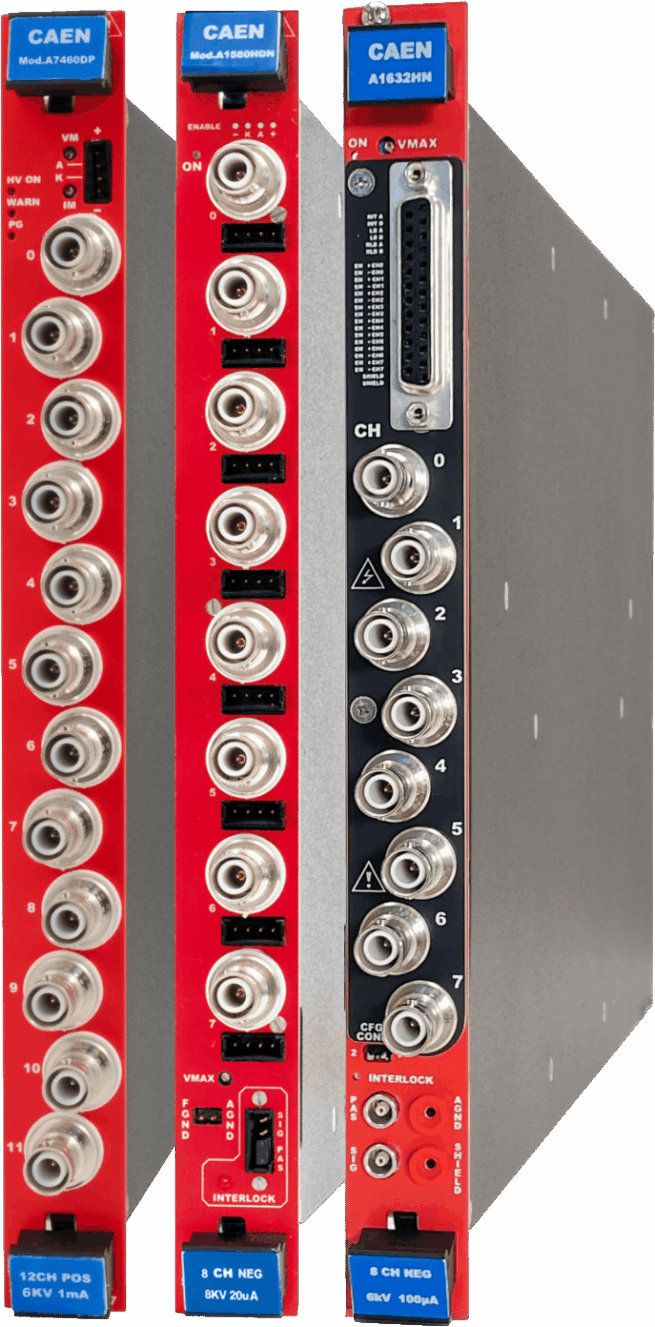

From 8 to 12 independently controllable HV channels, up to 1 mA, SHV, connectors, 3 different channel grounding, dedicated versions from germanium detector.
Up to 15 kV

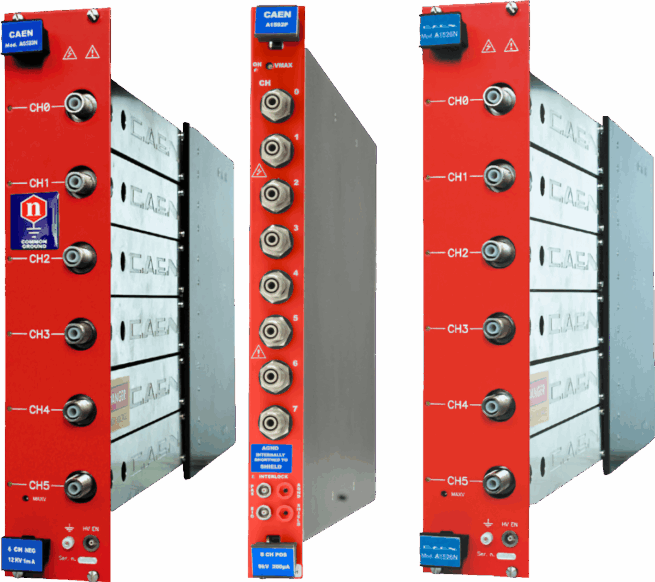

6 or 8 independently controllage HV channels, up to 1 mA, 3 different channel grounding, CPE connector
Up to 2.5 kV Bipolar

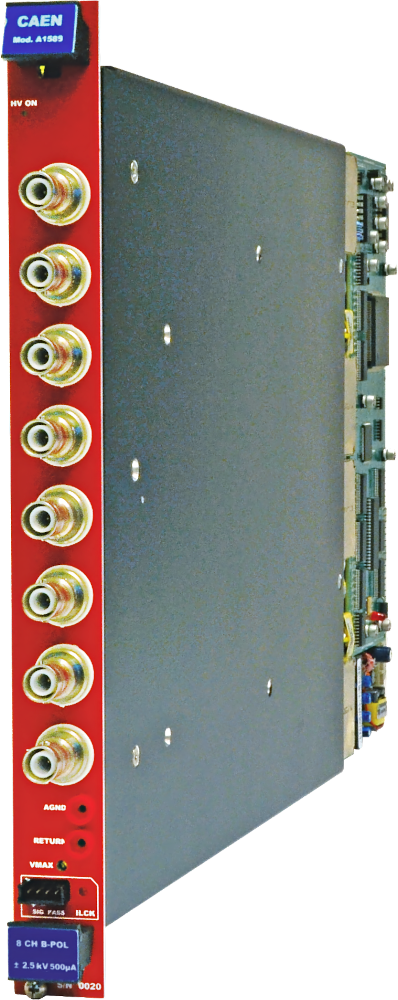

4-Quadrant power supply for industrial and accelerator applications, excellent long term stability, max. voltage of ±2.5 kV and a max. current of ±500 µA.
