GAMON-Mobile

Vehicle Mountable Gamma Spectrometric Mapping System

Home Digital SpectroscopyRadiation Monitoring SystemsSecurity Mobile Mapping Systems GAMON-Mobile

Discrete housing for outdoor monitoring in public areas
Spectroscopic and dosimetry probes for the identification of radionuclide gamma emitters
Neutron probe for detection of neutron emitters
Extended operation with rechargeable and hot swap battery for more than 8-hour continuous acquisition
Wide data storage with the capability of saving more than 1-month continuous data acquisition
Web interface for fast and easy system and isotope-based alarm configurations
Georeferenced measurement map for real time data visualization

GAMON Mobile is a high-efficiency detection system designed to perform radionuclide identification from a moving vehicle such as e.g., a car, helicopter or boat. The system is very well suited to be operated on-field to assess rapid threats and to monitor large areas via mobile mounting/deployment. It can identify radionuclides and differentiate them by category, e.g., NORM, Medical, Industrial. GAMON Mobile is ideal for scanning sensitive areas, entry points and strategic areas such as embassies, EXPO events, critical infrastructure, airports, railway stations. GAMON Mobile is composed of spectrometric and dosimetric units.
The GAMON Mobile spectrometer performs automatic isotope identification and the isotope related dose rate evaluation. Real-time data processing and defined isotope-based alarm allow GAMON Mobile to detect the presence of artificial nuclides more effectively and in a shorter amount of time than traditional dose meters.
The system can be used in multiple scenarios for gamma radionuclide identification in case of incident mitigation, for access point security or environmental monitoring including both Gamma and Neutron Alarms.

Operative Applications:

Wide Area radiological threat search by ground, air vehicles and water vessels
Emergency and first-response applications for an easy area assessment
Sensitive area (e.g., airports and railway stations) survey and control
Georeferenced measurements for radioactive mapping

Ordering Options

Code	Description
WSGMOBNA1AAD	GAMON-MOBILE NaI 1 l, GM Dosimeter and Li-6 Neutron Detector	RoHS
WSGMOBNA2X2D	2xGAMON-MOBILE Combo NaI 2 l, GM Dosimeter and Li-6 Neutron Detector	RoHS
WSGMOBNA2X4D	4xGAMON-MOBILE Combo NaI 2 l, GM Dosimeter and Li-6 Neutron Detector	RoHS
WSGMOBNA4AAA	GAMON-MOBILE NaI 4L	RoHS
WSGMOBNA4AAD	GAMON-MOBILE NaI 4 l, GM Dosimeter and Li-6 Neutron Detector	RoHS

Add to Wishlist

Request a Quote

Image	Name	Event Protection	First Responder	Environmental Monitoring	Nuclear Industrial Facilities	Critical Infrastructure	Access Point
	GAMON-Drone		✓			✓

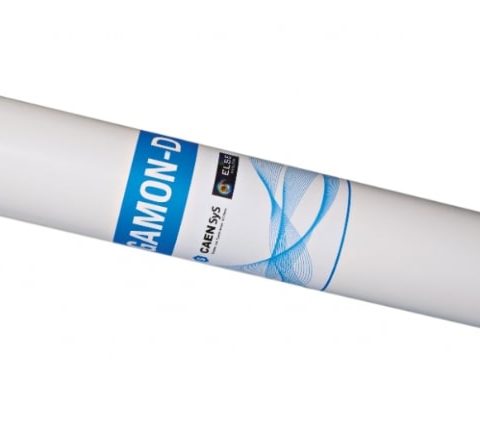

	Discontinued GAMON-D			✓	✓	✓	✓
	GAMON-Diver			✓	✓	✓
	New GAMON-Mobile	✓	✓


Scintillation Detector	Standard Version 4”x4”x16” NaI(Tl) or NaIL (Lithium doped) crystal Energy range: 30 ÷ 3000 keV Energy resolution: FWHM @ 662 keV (137Cs): 7% Rate Accuracy: <10%
Geiger-Mueller	Energy range: 50 keV ÷ 3 MeV Dose rate range: 40 µSv/h ÷ 1 Sv/h Optional extended range 100 nSv/h ÷ 10 Sv/h
Sensors	Internal temperature sensor GPS
Wired Communication interfaces	Ethernet RJ45 USB 2.0 port Communication protocol TCP/IP Connector protection level IP68
Wireless communication interfaces	LoRa™ 3G/4G LTE WiFi Radio communication (military frequencies based on custom request)
Data acquisition	MCA depth: 2048 channels (8192 on request) ADC depth: 12 bits ADC sampling frequency: 62.5 MHz Digital signal processing
Embedded PC	Low power ARM based CPU Linux based operative system 32GB internal data storage
Software	Integrated web interface Local database and data repository on 8 GB non volatile memory Hourly and daily automatically generated reports Spectrum standard ANSI 42.42 (XML-based) Nuclide analysis Adjustable integration time: 5, 10, 20, 30 min Spectrum stabilization with natural background Configurable isotope library Adjustable isotope related alarms Unattended operation for more than 1 year
Power supply	Power consumption: < 5 W Voltage: 5 ÷ 12 VDC Internal chargeable battery with 8 hours autonomy
Physical dimensions and weight	Length 100 cm Height 43 cm Depth 15 cm Weight 28 kg
Environmental	Temperature range -40 ÷ 60 °C Humidity 0 ÷ 95 %
Protection grade	IP65
Military Tablet specifications	IP65 Temperature range -15 ÷ 50 °C drop test resistance up to 1.2 m MIL-STD-810G compliant ATEX compliant Hot swap batteries
Scintillation Detector	Standard Version 4”x4”x16” NaI(Tl) Optional NaI(Tl) or NAIL™ detectors of 4”x4”x4”, 4”x4”x8” size Energy range: 30 ÷ 3000 keV Energy resolution: o FWHM @ 662 keV (¹³⁷Cs): 7.5% o Rate Accuracy: < 10% Dose rate from scintillator: 1 nSv/h ÷ 10 μSv/h
Optional Neutron Detector	Solid-state detection module for thermal neutrons Volume: 36.8 x 16.5 x 5.7 cm Sensitivity: 40 cps/nv
Geiger-Mueller	Two energy compensated GM tubes Energy range: 40 ÷ 3000 keV Dose rate 10 nSv/h ÷ 10 Sv/h
Sensors	Internal temperature sensor GPS
Wired Communication interfaces	Ethernet RJ45 Communication protocol TCP/IP
Wireless communication interfaces	3G/4G LTE through the tablet WiFi
Data acquisition	MCA depth: 2048 channels ADC depth: 12 bits ADC sampling frequency: 62.5 MHz Digital signal processing
Embedded PC	Low power ARM based CPU Linux based operative system 8GB internal data storage
Software	Integrated web interface Local database and data repository on 8 GB non volatile memory Automatic nuclide identification Total and nuclide related H*(10) rates Spectrum stabilization with natural background Configurable isotope library Adjustable isotope related alarms Configurable data saving decimation Data acquisition in aggregated mode Maps with georeferenced data, displayed with colour codes
Power supply	Power consumption: < 10 W Voltage: 5 ÷ 12 VDC Internal chargeable battery with 8 hours autonomy
Physical dimensions and weight	Basic Version • Voltage: 5 ÷ 12 VDC • Internal chargeable battery with 8 hours autonomy Extended dosimeter + neutron detector • LxHxW 101 x 42 x 36 cm • Weight 39 kg
Environmental	Temperature range -20 ÷ 50 °C Humidity 0 ÷ 95 % Protection rating: IP67
Case certifications	STANAG 4280
Standard Military Tablet	10.1” touchscreen sunlight readable Intel® Core™ i5-7200U IP65 Temperature range -15 ÷ 50 °C MIL-STD-810G compliant Optional Tablets or Laptops under request
