SP5600EMU

Emulation Kit

Request a Quote Add to WishlistView Wishlist

Home CAEN SyS productsRadiation Monitoring SystemsGamma Spectroscopy SP5600EMU

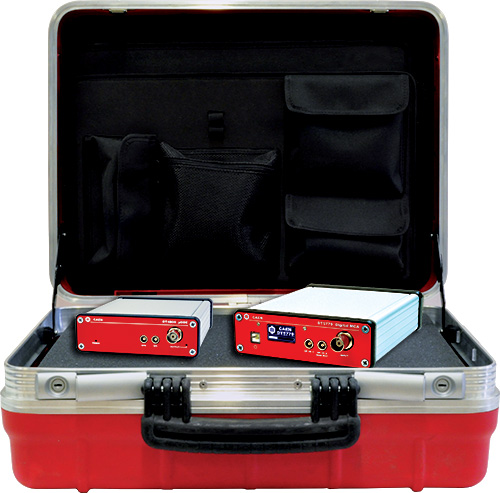

Photo of SP5600EMU
Photo of SP5600EMU
DatasheetDownloadCompareTech. Spec.

Highlights

  • Educational kit for nuclear spectroscopy experiments with no radioactive source and no detector

  • DT4800 Micro Digital Detector Emulator: realistic energy spectra, noise and Poissonian time distribution

  • DT5770 Digital MCA (14 bit, 150 MS/s) with digital pulse processing

  • Experiments on gamma and alpha spectroscopy, system linearity, statistics and pulse processing

  • Emulation Control Software: a single interface to drive both the emulator and the MCA

Overview

A spectroscopy lab usually needs a detector and a radioactive source. The SP5600EMU Emulation Kit needs neither. It reproduces the signals that particles generate when they interact with a detector, so students can carry out a full series of experiments in any classroom, with no safety constraints, no licensing and no source handling. Because every parameter of the signal is under their control, they can also isolate one effect at a time and see exactly how it changes the measurement.

The signals are generated by the DT4800 Micro Digital Detector Emulator, the most compact model of the CAEN Detector Emulator family, designed for educational use. Its single analog output produces exponential pulses with programmable rise and fall times, at rates up to 1 Mcps. The rate can be constant or follow a Poisson distribution, as in a real radioactive decay. The emulator can reproduce a single energy line or a complete energy spectrum, add white and random-walk noise, and emulate the continuous output of a preamplifier.

These signals are acquired by the DT5770, a compact Digital Multi-Channel Analyzer for gamma spectroscopy. It integrates an analog front end with programmable gain and a 14-bit, 150 MS/s digitizer, and processes signals digitally with pole-zero cancellation, pile-up rejection, live time correction and baseline restoration. Designed for high-resolution semiconductor detectors such as HPGe and Silicon Drift Detectors, it can also work with scintillators coupled to photomultipliers.

Both instruments are controlled through the Emulation Control Software, a single graphical interface for quick setup. On the emulator side, students set the rate, amplitude, rise and fall times of the pulses and the noise contributions. On the MCA side, they choose between threshold and trapezoidal triggering, select charge integration or a trapezoidal filter for energy measurement, and control baseline calculation and pile-up rejection. With this setup, students explore gamma and alpha spectroscopy, system linearity and counting statistics, and learn how each stage of digital pulse processing shapes the final spectrum.

Experiments

The SP5600EMU is supported by a series of guided experiments on the CAEN Educational website. In each one, the DT4800 emulator generates realistic detector signals that the DT5770 MCA acquires and analyzes, so students can explore γ-spectroscopy and counting statistics with a fully controllable signal. Each guide explains the physics, the setup and the expected results, and can be downloaded as a printable version.

  • SG6112B – Poisson and Gaussian Distributions

  • SG6114B – System Calibration: Linearity and Resolution

  • SG6117B – Photonuclear Cross-Section / Compton Scattering Cross-Section

  • SG6118B – Study of the ¹³⁷Cs Spectrum: the Backscatter Peak and X Rays

  • SG6119B – Activity of the ⁶⁰Co

Browse all γ-spectroscopy experiments on edu.caen.it.

Supported Software

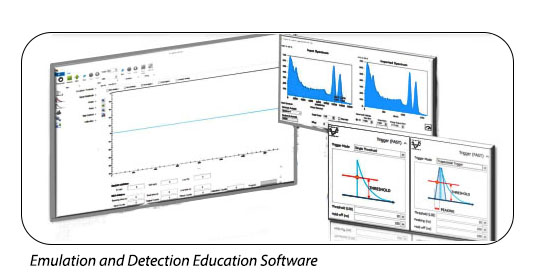

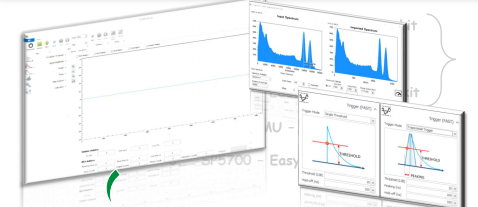

  • Emulation Control Software — A Unified GUI for Detector Signal Emulation and Instrument Control

Ordering Options

Code Description
WK5600XEMUAA

SP5600EMU – Emulation Kit

RoHS

You also may be interested in…

SP5600C

SP5600C

Educational Gamma Kit
SP5600AN

SP5600AN

Educational Kit - Premium Version
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist

Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    Statistics
    SiPM Characterization
    Photons
    Cosmic Rays
    Gamma Spectroscopy
    Beta Spectroscopy
    Nuclear Imaging
    Environmental Radioactivity Indoor
    Environmental Radioactivity Outdoor
    Pulse Processing
    SP5700

    SP5700

    ⚫

    -

    -

    -

    -

    -

    ⚫

    -

    ⚫

    -

    SP5660 – RockyRad

    SP5660 – RockyRad

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    SP5640

    SP5640

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    -

    SP5630EN

    SP5630EN

    ⚫

    -

    -

    -

    -

    -

    -

    ⚫

    -

    -

    SP5600EMU

    SP5600EMU

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    -

    ⚫

    SP5630ENP

    SP5630ENP

    ⚫

    -

    -

    -

    ⚫

    -

    -

    ⚫

    -

    SP5701

    SP5701

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    -

    SP5600E

    SP5600E

    ⚫

    ⚫

    ⚫

    -

    -

    -

    -

    -

    -

    -

    SP5650

    SP5650

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    -

    -

    SP5620CH

    SP5620CH

    ⚫

    -

    -

    ⚫

    -

    -

    -

    -

    -

    -

    SP5600D

    SP5600D

    ⚫

    -

    -

    ⚫

    -

    ⚫

    -

    -

    -

    -

    SP5600C

    SP5600C

    ⚫

    -

    -

    -

    ⚫

    -

    -

    ⚫

    -

    -

    Technical Specifications

    Close

    DT4800 Micro Digital Detector Emulator

    Energy emulation features:

    Single line (16384 selectable levels)- Spectrum emulation

    (16384 bins with 14 bit resolution)

    • ± 2.8 V (50 Ohm); ± 5.6 V (hi-Z)

    • 14 bit D/A converter

    Signal shape:

    Arbitrarily programmable shapes

    Shape duration from 50 ns to 1ms

    Separated rising and falling edge interpolation

    Time emulation features:

    • Costant rate emulation

    • Poisson distribution

    • Up to 1 MCPS, both in costant and statistical emulation

    • Integrator circuit emulation without pile-up limitation

    • 20 ns to 1 ms exponential decay time

    Noise emulation:

    White noise (Gaussian) Random Walk

    DT5770 Digital Multi Channel Analyzer - Desktop

    Analog Input:

    • Impedance: 50 Ohm / 1 kOhm (sw selectable)

    • Positive and negative signals accepted

    • Single-ended, DC/AC coupled

    • Programmable 4-step analog coarse gain corresponding to 1.25 Vpp, 2.5 Vpp, 5 Vpp, 10 Vpp ranges

    • Bandwidth: DC to 30 MHz

    • Single ended, DC/AC coupled

    Digital conversion:

    • Resolution: 14 bit

    • Sampling rate: 150 MS/s

    Digital Signal Processing:

    • Manual and automated trigger threshold adjustment

    • Manual and automated Pole-Zero cancellation; decay time up to 0.65 ms

    • Pile-up rejection and Live Time correction

    • Baseline restorer with programmable averaging
