SP5600C

Educational Gamma Kit

Request a Quote Add to WishlistView Wishlist

Home EducationalEducational KitsTeaching & Learning Kits SP5600C

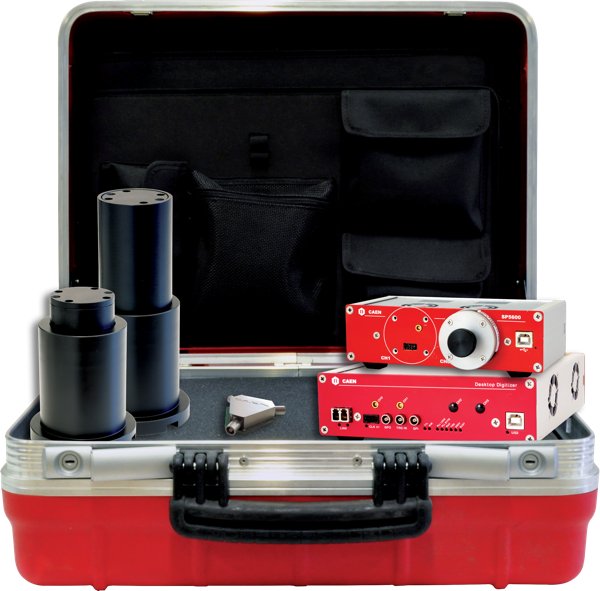

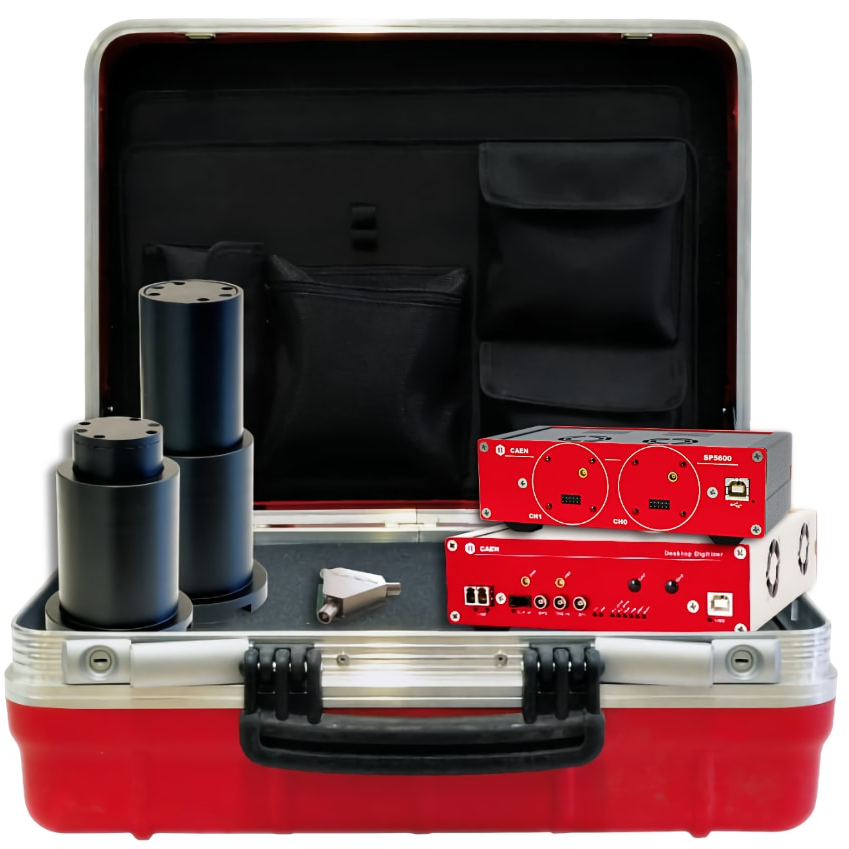

Photo of SP5600C
Photo of SP5600C
Photo of SP5600C
Photo of SP5600C
Photo of SP5600C
Photo of SP5600C
Photo of SP5600C
DatasheetDownloadCompareTech. Spec.

Highlights

  • Educational kit for gamma spectroscopy based on Silicon Photomultipliers (SiPM)

  • SP5606 mini-spectrometer with three interchangeable scintillating crystals: CsI, LYSO and BGO

  • SP5600 Power Supply and Amplification Unit with gain stabilization and two independent channels

  • DT5720A desktop digitizer (2 channels, 12 bit, 250 MS/s) with charge integration firmware

  • SP5607 Absorption Tool with aluminium and PMMA absorbers for gamma attenuation measurements

  • HERA software for system control and data analysis

Overview

The SP5600C Educational Gamma Kit introduces students to gamma spectroscopy through a complete, modular setup based on Silicon Photomultipliers (SiPM). These state-of-the-art light sensors combine single-photon sensitivity with an unprecedented photon-number resolving capability. The kit guides students through a series of experiments that start from the statistical nature of radioactive decay and lead to the study of radiation–matter interaction, using the same technologies and methods found in research laboratories.

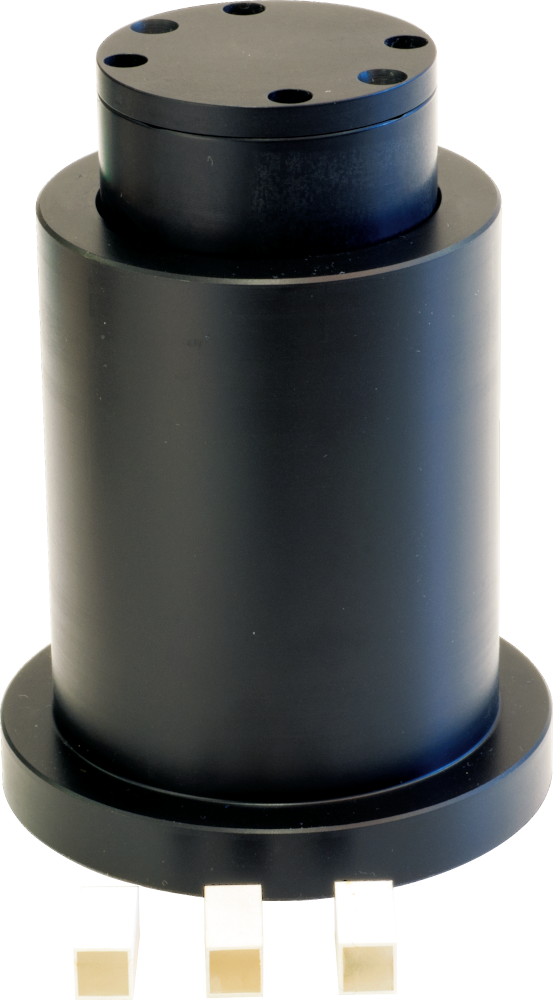

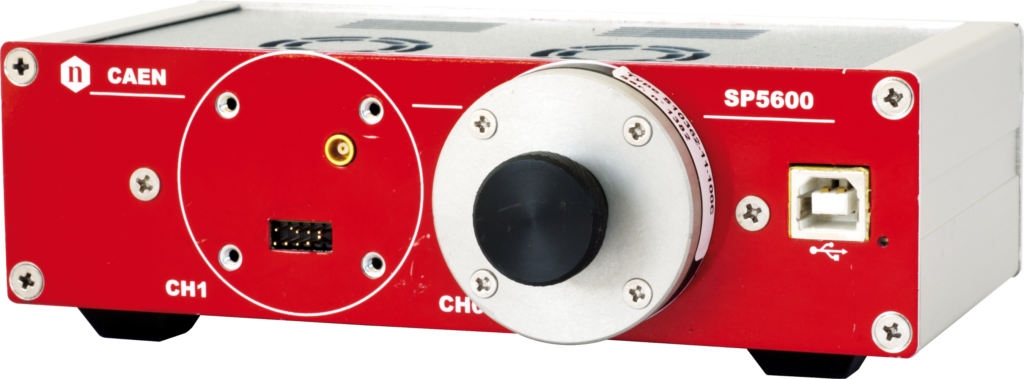

The gamma detector is the SP5606 mini-spectrometer, a mechanical structure that houses a 3×3×15 mm scintillating crystal coupled to a dedicated 6×6 mm SiPM, with an embedded temperature sensor. Three crystals are provided, CsI, LYSO and BGO, so students can swap them and compare how different scintillators respond to the same radiation. The mini-spectrometer is connected to the SP5600 Power Supply and Amplification Unit through the A315 splitter, a passive device that halves the signal amplitude to prevent saturation. The SP5600 hosts up to two SiPMs in a mother-and-daughter architecture that makes sensors easy to mount and replace. It supplies their bias voltage with gain stabilization and amplifies the signals on two channels, each with independent gain control up to 50 dB. Each channel also provides a digital output from a fast leading-edge discriminator, and a timing coincidence between the two channels is available.

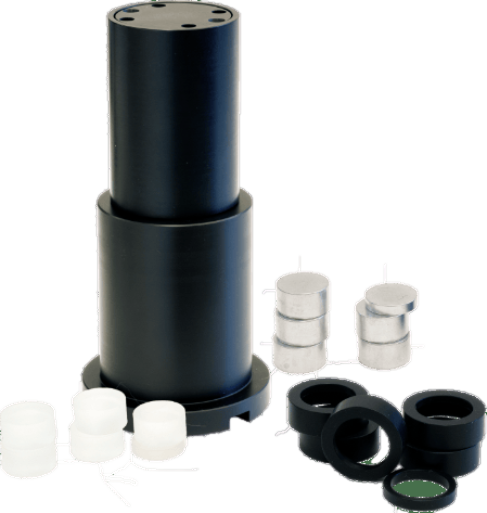

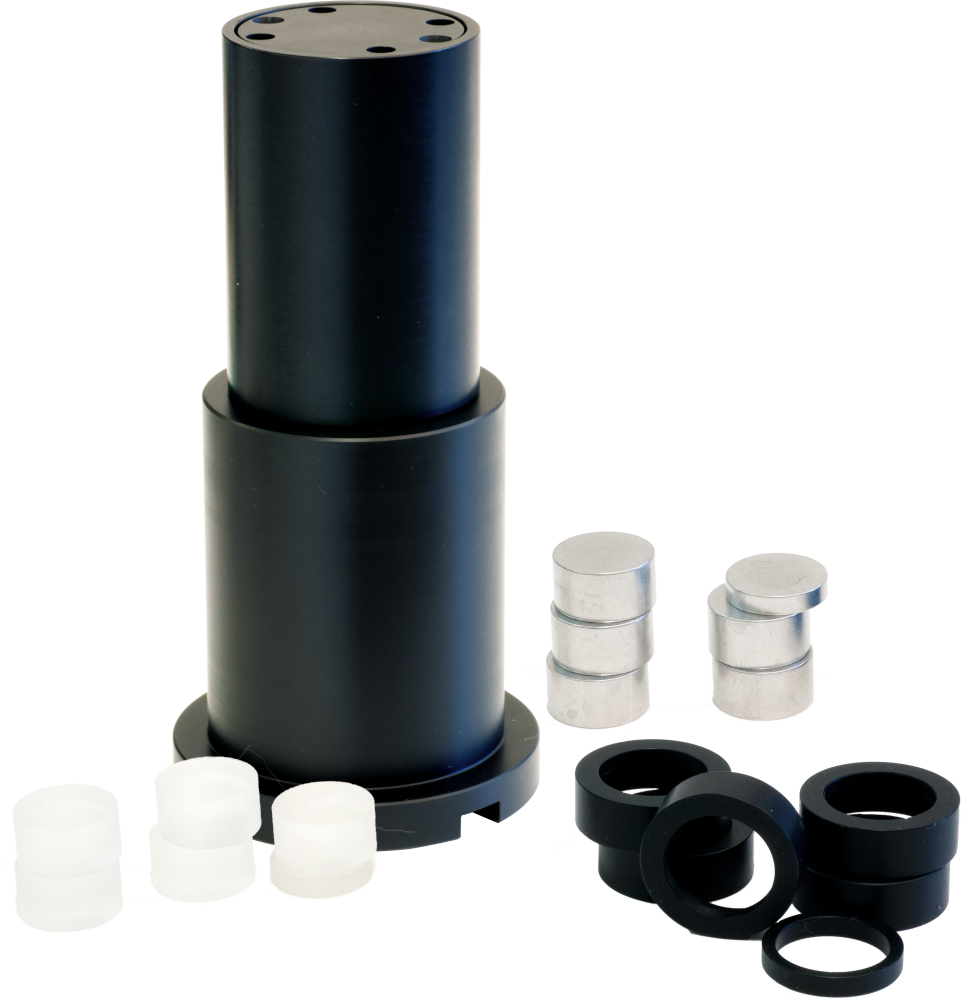

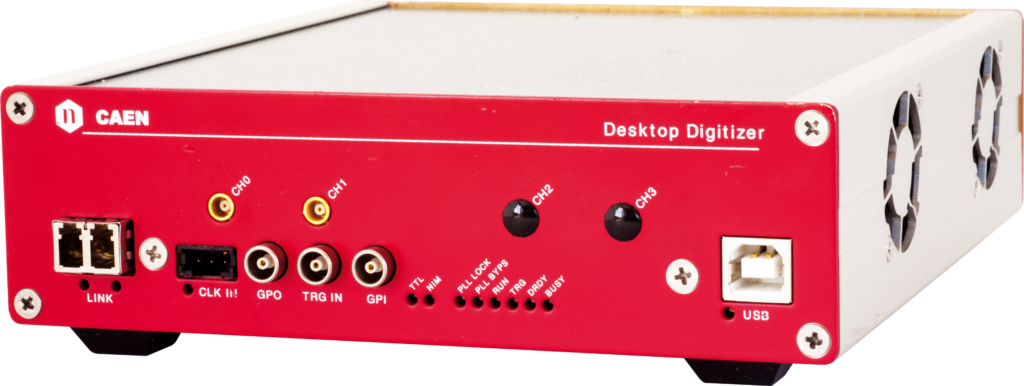

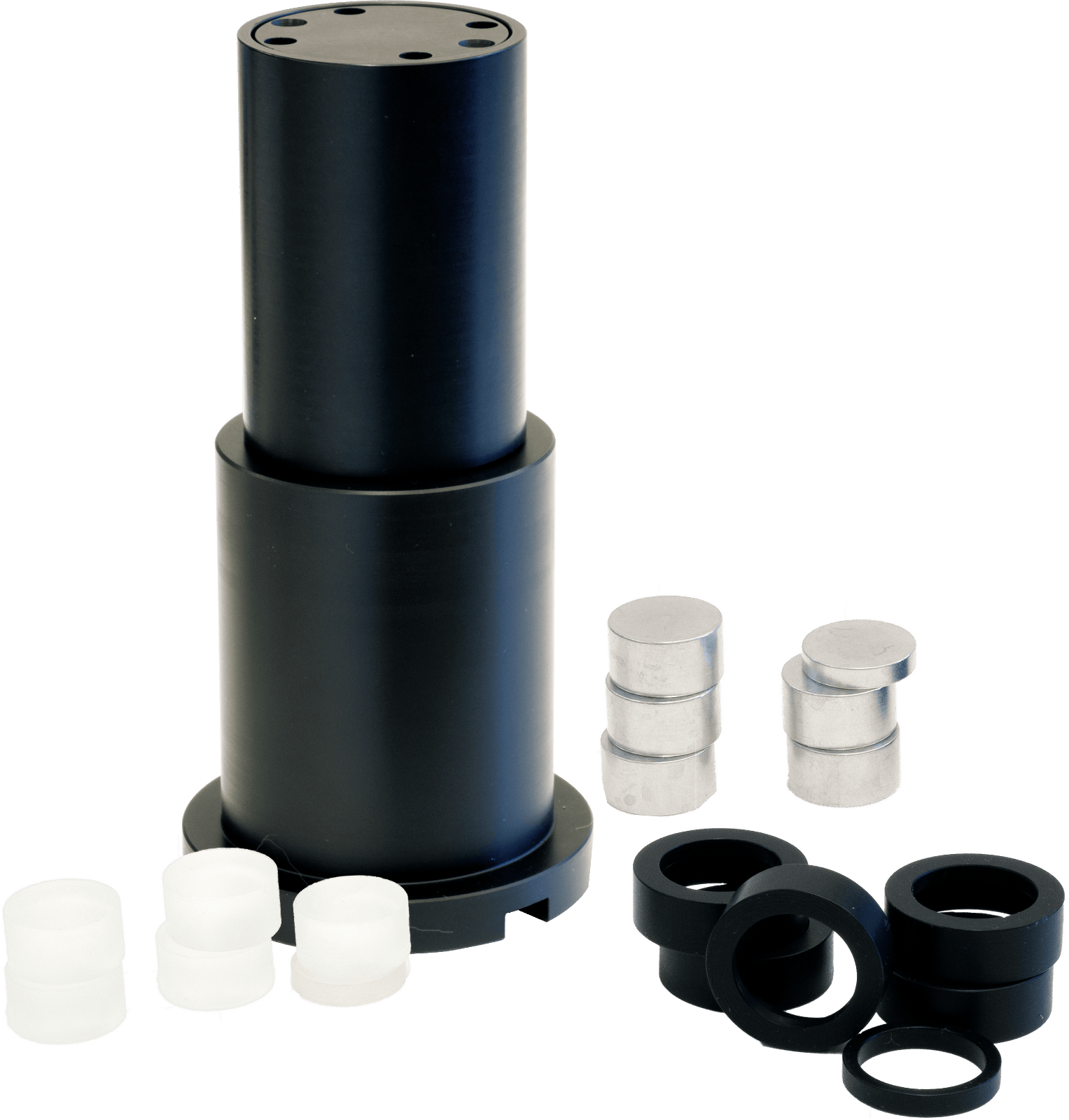

The signals are then acquired by the DT5720A, a desktop waveform digitizer with two 12-bit, 250 MS/s channels and dedicated firmware for real-time charge integration. For attenuation measurements, the SP5607 Absorption Tool connects directly to the bottom support of the mini-spectrometer. Its modular design lets students stack aluminium and PMMA absorbers of different thicknesses between source and detector.

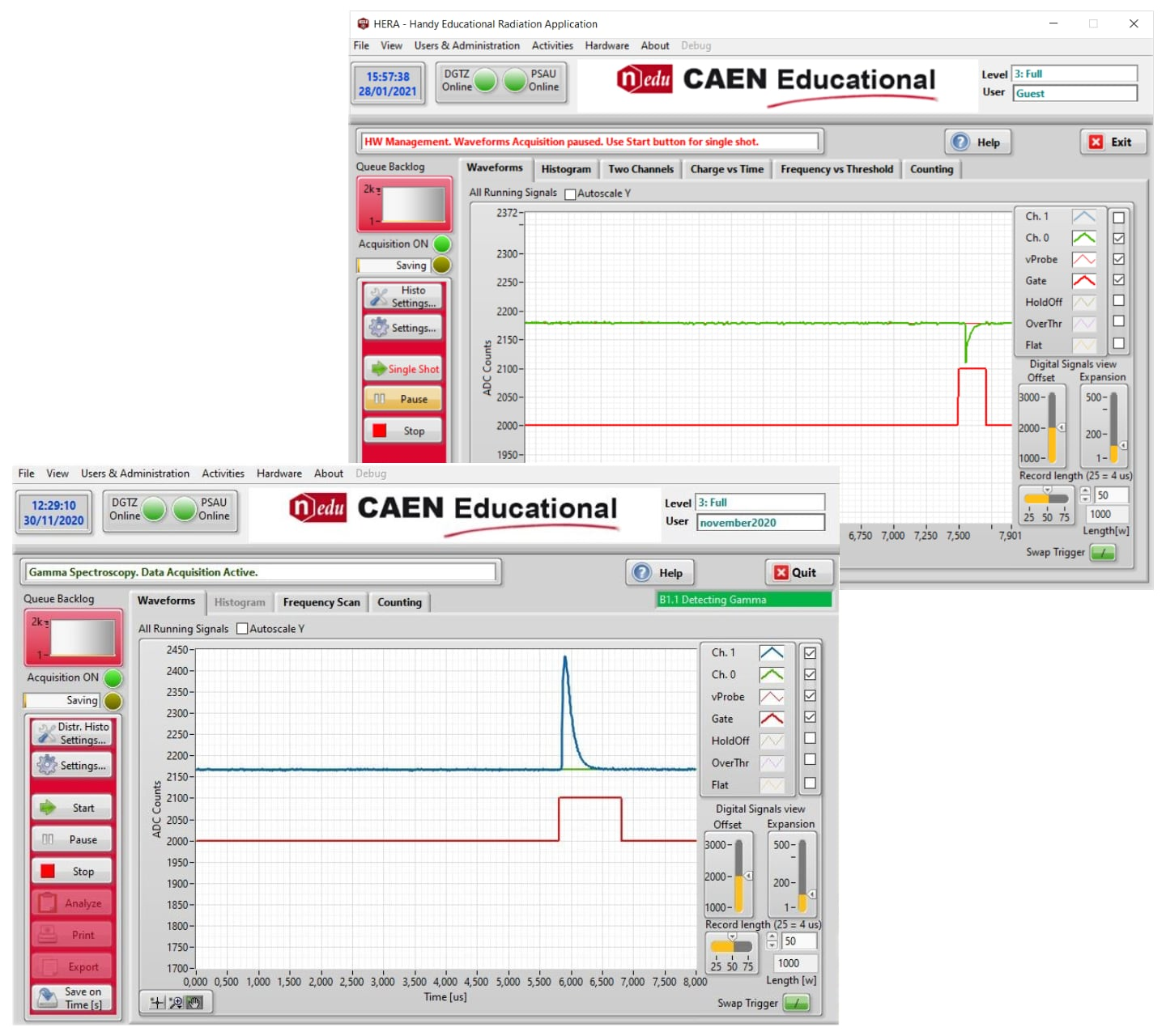

The whole system is controlled through HERA, the CAEN educational software for all SiPM-based kits, which also handles data analysis. With it, students explore Poisson and Gaussian statistics, acquire gamma spectra, verify system linearity and measure energy resolution. They then compare the relative light yield of the three scintillators, study how crystal volume and gamma energy affect the peak-to-total ratio, and carry out absorption measurements.

Experiments

The SP5600C is supported by a series of guided experiments on the CAEN Educational website. Each guide explains the physics, the setup and the expected results, and can be downloaded as a printable version.

  • SG6111A – Detecting γ-Radiation

  • SG6112A – Poisson and Gaussian Distributions

  • SG6113A – γ-Spectrum and Energy Resolution

  • SG6114A – System Calibration: Linearity and Resolution

  • SG6115A – A Comparison of Different Scintillating Crystals: Light Yield, Decay Time and Resolution

  • SG6116A – γ-Radiation Absorption

  • SG6117A – Photonuclear Cross-Section / Compton Scattering Cross-Section

  • SG6118B – Study of the ¹³⁷Cs Spectrum: the Backscatter Peak and X Rays

  • SG6119B – Activity of the ⁶⁰Co

For advanced data analysis, see also the application note Background Removal Procedure Based on the SNIP Algorithm for γ-Ray Spectroscopy. Browse all γ-spectroscopy experiments on edu.caen.it.

Supported Software

  • HERA — Handy Educational Radiation Application

Accessories

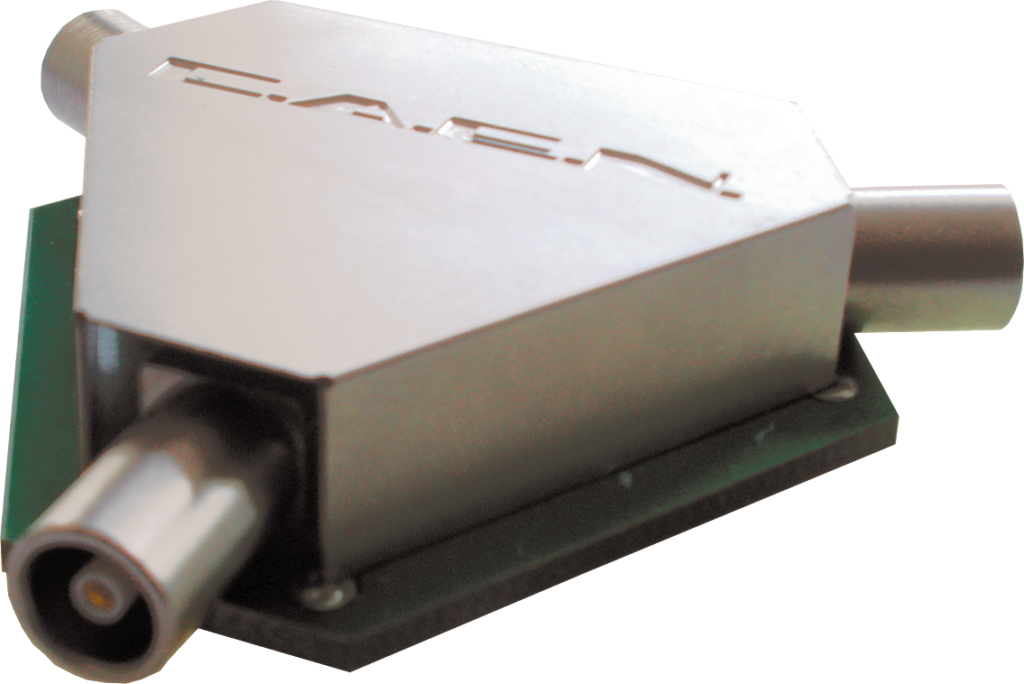

A315

A315

Splitter
SP5606

SP5606

Mini-Spectrometer
SP5607

SP5607

Absorption Tool

Ordering Options

Code Description
WK5600XCAAAA

SP5600C – Educational Gamma Kit

RoHS

You also may be interested in…

SP5600AN

SP5600AN

Educational Kit - Premium Version

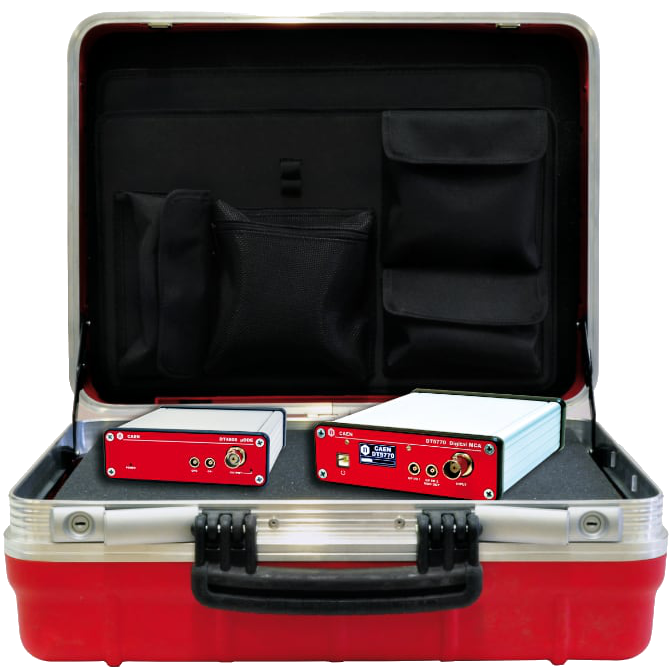

SP5600EMU

SP5600EMU

Emulation Kit
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist

Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    Statistics
    SiPM Characterization
    Photons
    Cosmic Rays
    Gamma Spectroscopy
    Beta Spectroscopy
    Nuclear Imaging
    Environmental Radioactivity Indoor
    Environmental Radioactivity Outdoor
    Pulse Processing
    SP5700

    SP5700

    ⚫

    -

    -

    -

    -

    -

    ⚫

    -

    ⚫

    -

    SP5660 – RockyRad

    SP5660 – RockyRad

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    SP5640

    SP5640

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    -

    SP5630EN

    SP5630EN

    ⚫

    -

    -

    -

    -

    -

    -

    ⚫

    -

    -

    SP5600EMU

    SP5600EMU

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    -

    ⚫

    SP5630ENP

    SP5630ENP

    ⚫

    -

    -

    -

    ⚫

    -

    -

    ⚫

    -

    SP5701

    SP5701

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    -

    SP5600E

    SP5600E

    ⚫

    ⚫

    ⚫

    -

    -

    -

    -

    -

    -

    -

    SP5650

    SP5650

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    -

    -

    SP5620CH

    SP5620CH

    ⚫

    -

    -

    ⚫

    -

    -

    -

    -

    -

    -

    SP5600D

    SP5600D

    ⚫

    -

    -

    ⚫

    -

    ⚫

    -

    -

    -

    -

    SP5600C

    SP5600C

    ⚫

    -

    -

    -

    ⚫

    -

    -

    ⚫

    -

    -

    Technical Specifications

    Close

    SP5600 General Purpose Power Supply and Amplification Unit

    Packaging

    Power Supply

    Wideband amplifier

    154 x 71 x 43 mm3
    2 SIPM Heads

    • Vbias: 0 ÷ 120 V

    • Max Current: 100 µA

    • Temp. Feedback Res.: 0.1 °C

    • Gain: 0 ÷ 50 dB (step: 1 dB)

    • Bandwidth (-3dB): 100 kHz ÷ 500 MHz

    • Output dynamic range: ±2V

    • Discriminator threshold: ±800mV (step: 25μV)

    DT5720A Desktop Digitizer

    Packaging

    Analog Input

    Digital conversion

    1154x50x164 mm3 (WxHxD)

    • 2 channels (MCX 50 Ohm)

    • Single-ended

    • Input range: 2 Vpp

    • Bandwidth: 125 MHz

    • DAC Offset: ± FSR/2

    • Resolution: 12 bit

    • Sampling rate: 250 MS/s

    Interfaces USB and Optical Link

    Digital Pulse Processing for charge Integration

    A315 Splitter

    • Connectors: LEMO

    • Adapted for 50 Ohm lines

    • Completely passive

    SP5606 Mini Spectrometer

    • Directly coupled to a SiPM 6 x 6 mm2

    • Crystals (3x3x15 mm3): LYSO, BGO, CsI

    • Temperature feedback sensor embedded

    SP5607 Absorbtion Tool

    Spacers

    Aluminium Absorbers

    IPMMA Absorbers

    • 4 mm thick (nr.1)

    • 10 mm thick (nr. 5)

    • 4 mm thick (nr.1)

    • 10 mm thick (nr. 5)

    • 4 mm thick (nr.1)

    • 10 mm thick (nr. 5)
