Highlights

HERA, the innovative Software Suite for CAEN Educational Kits, is a user-friendly platform to drive the digital revolution in Educational Labs for teaching the fundamentals of Statistics, Particles Detection, and Nuclear Imaging.

Overview

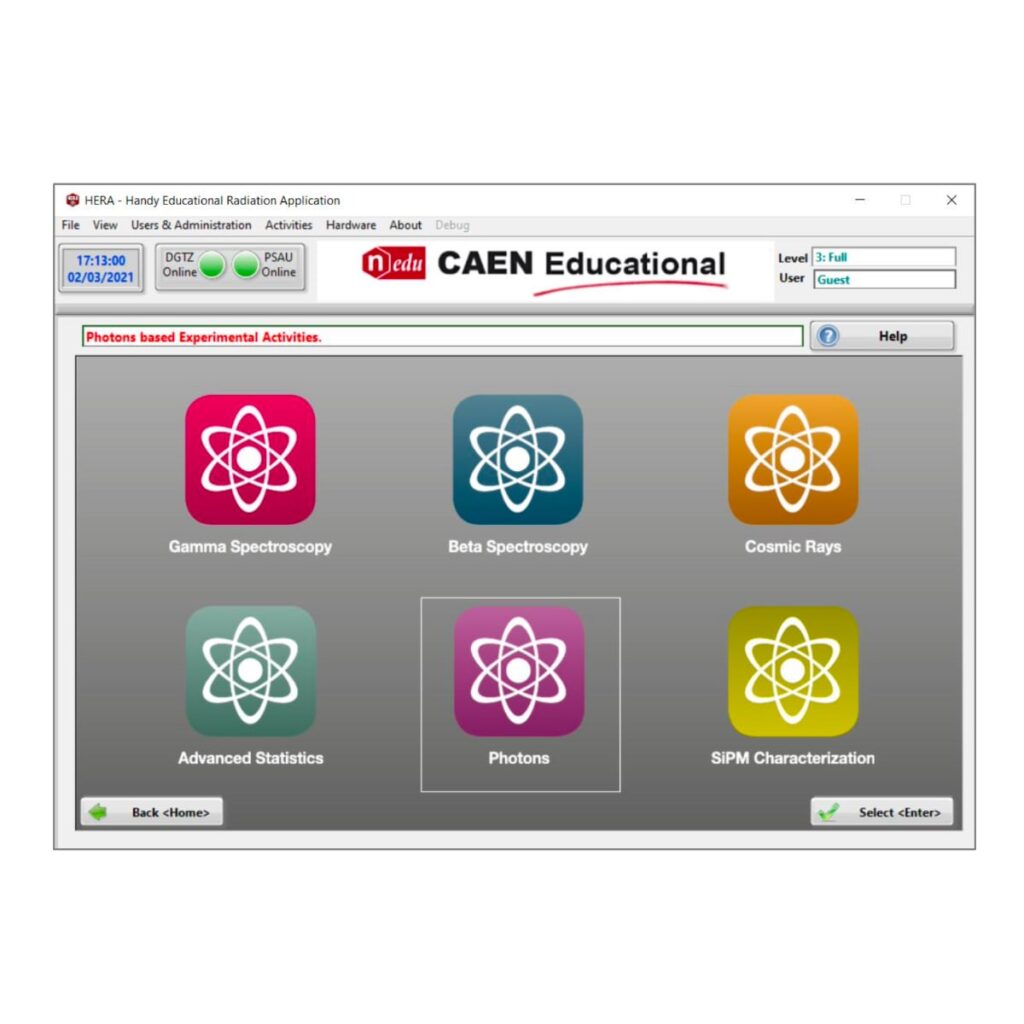

HERA (Handy Educational Radiation Application) is a modern and flexible platform for teaching the fundamentals of Statistics, Particles Detection, and Nuclear Imaging thanks to the simple graphical interfaces and the embedded documentation.
The initial access multiplicity makes the software very flexible and suitable both for expert users as well as for beginner ones. With a simple selection, the user can decide how to execute the activity by choosing the direct access to the suggested experiments or access to devices management.

HERA guides users through the experiments of the CAEN Educational kits with embedded step-by-step instructions and a preset for each activity. Complete descriptions of these experiments, including the physics background, the setup and the expected results, are available on the CAEN Educational website. They cover the main topics of the SP5600 kits: the characterization of Silicon Photomultipliers with a pulsed LED, the hands-on study of photon counting statistics and the quantum nature of light, and the analysis of the γ spectrum and energy resolution of a scintillation detector. Browse the SiPM and γ-spectroscopy experiment sections on edu.caen.it to find the ones that best fit your course.

Beginner Users

Intermediate Users

Expert Users

  • A wide range of experiments covering Nuclear and Particle Physics fields: From the radioactive decays (β and γ) to the cosmic rays, from the light quanta to the advanced statistics

  • Frame and Presetting for Each Experiment

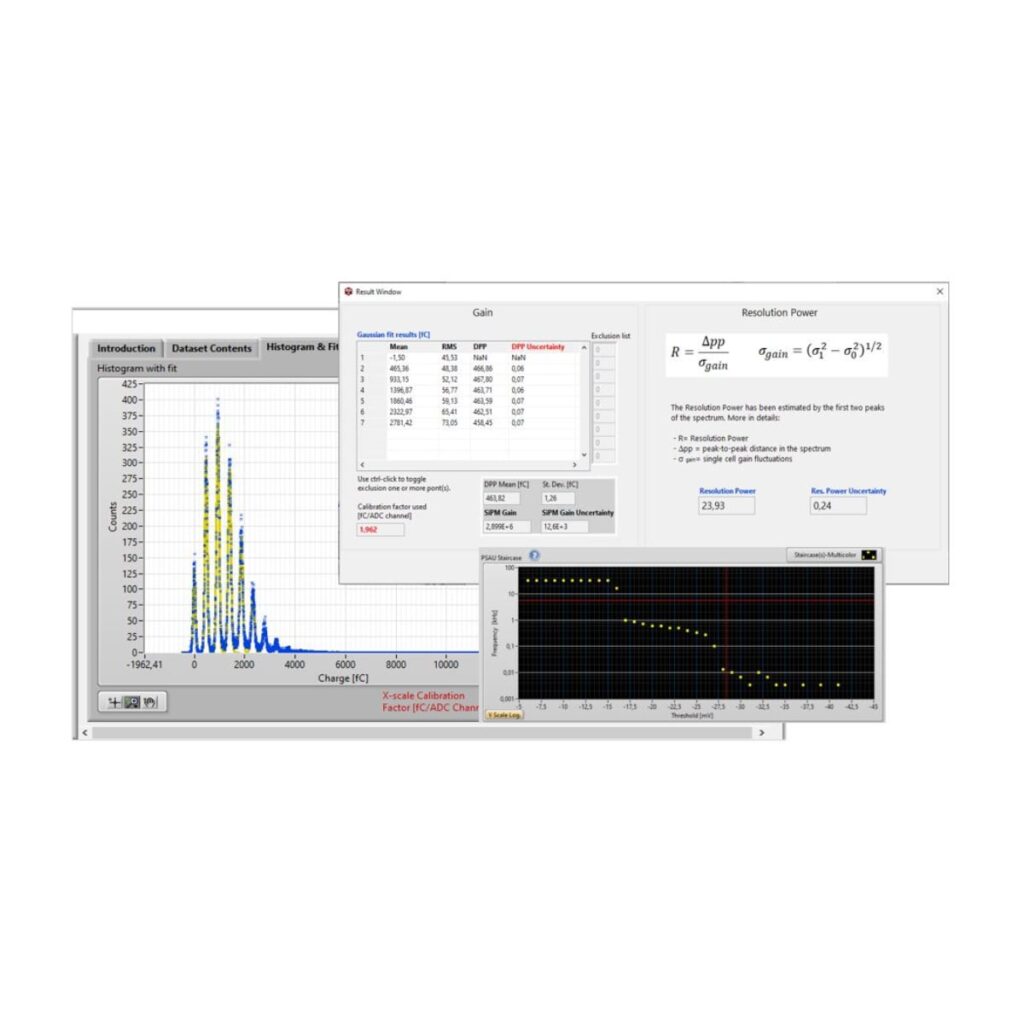

  • Data Saving & Analysis Tools

  • Data can be retrieved offline for additional analysis

  • Embedded Step-by-step guides

  • Full access to hardware management

  • Access to Experiments Frame covering Nuclear and Particle Physics fields

  • Presetting for Each Experiment

  • Data Saving

  • Embedded Help

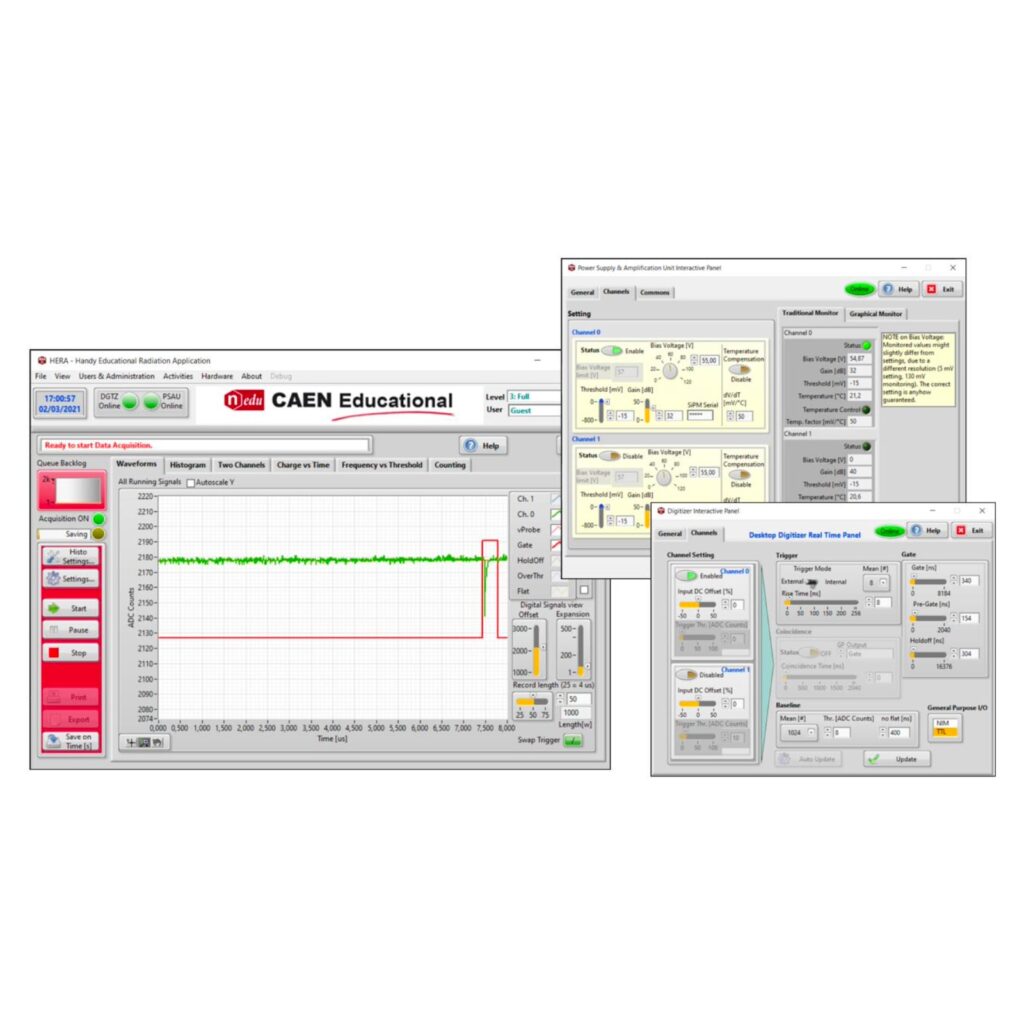

  • Full control of the Power Supply & Amplification Unit: Bias Voltage and active feedback in temperature, Gain, Thresholds, Digital Output Width, two channels coincidence

  • Full control of the Digitizer settings: Gate, Baseline, Trigger

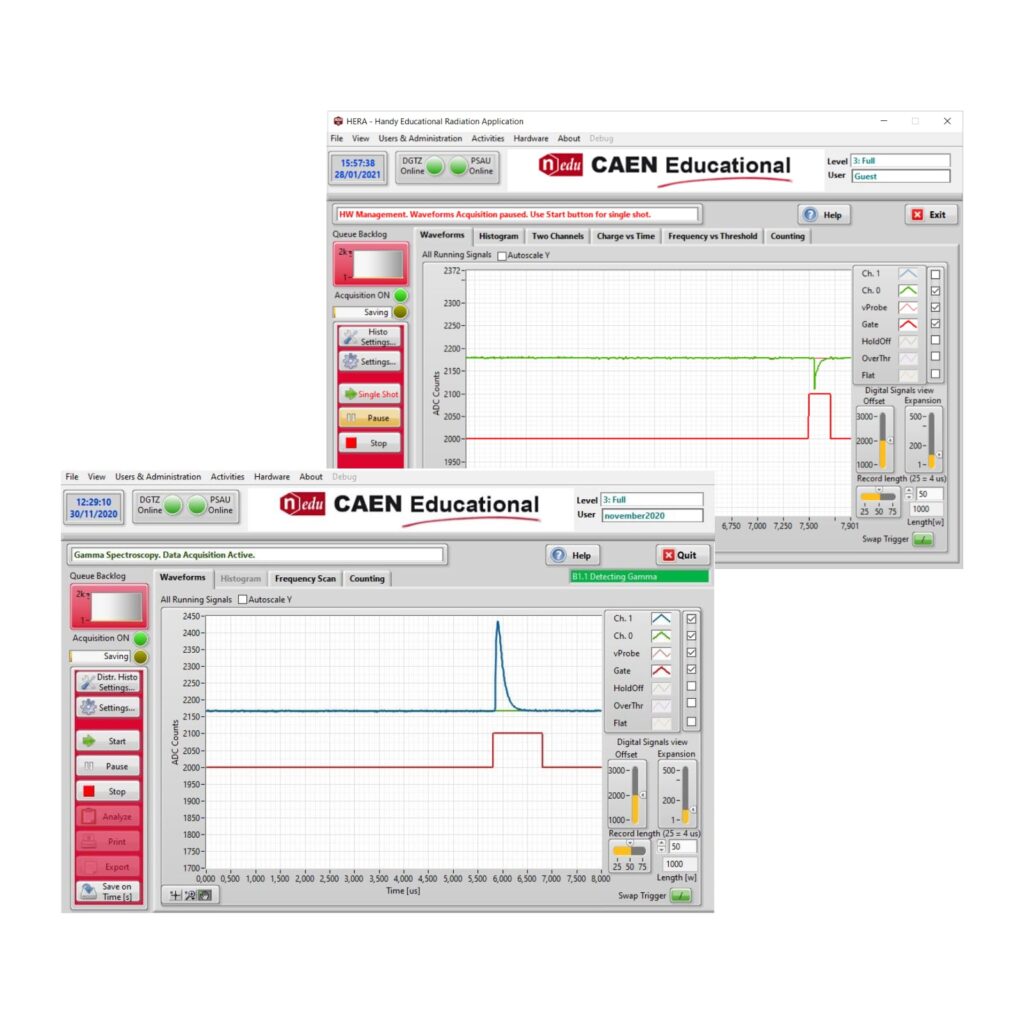

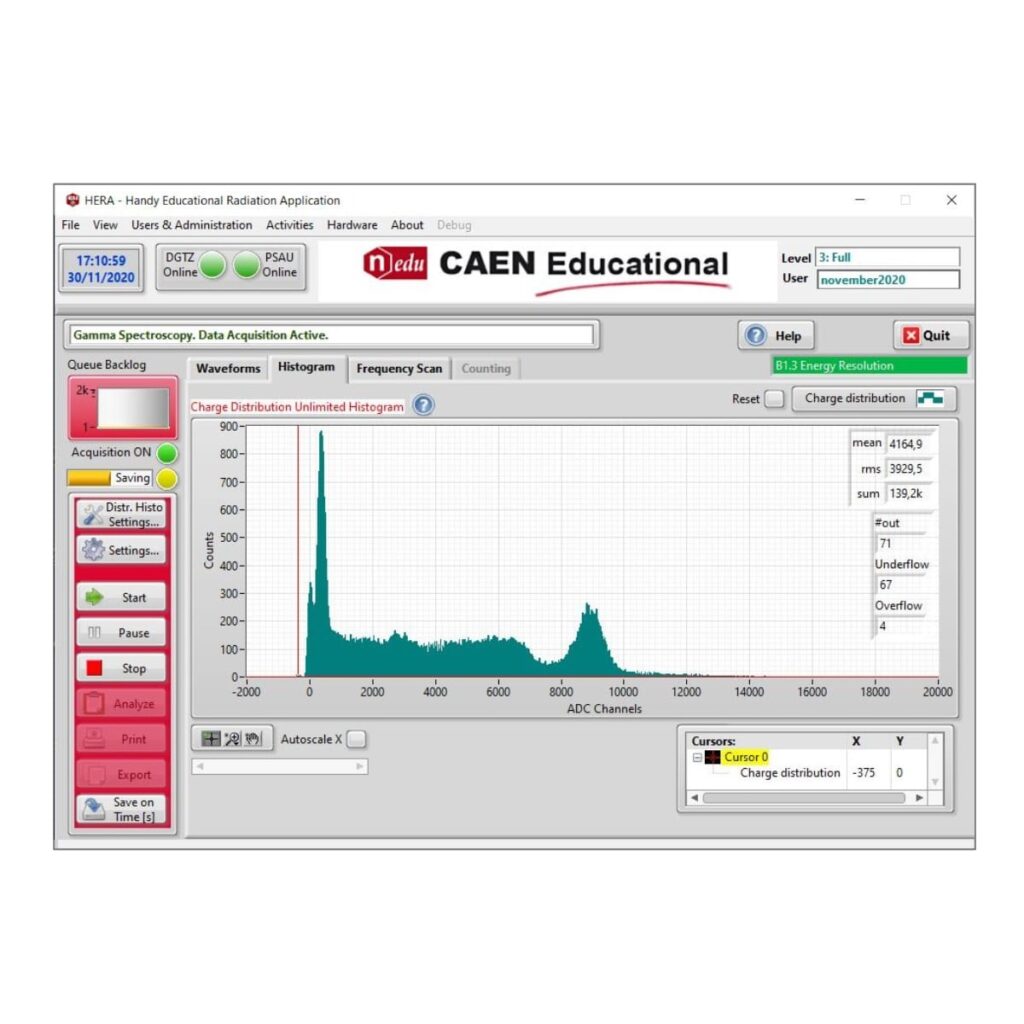

  • 6 plot tabs available: Waveform, Histogram, Charge Vs. Time, Two Channels Histogram, Frequency Scan and Counting

  • Data saving in two formats: ASCII, Binary

  • Embedded Help


Request a Quote

    Submit

    Compare

    Close
    Name
    Type
    Platform
    Supported Kits
    Notes
    DT4800 Digital Detector Emulator Software

    DT4800 Digital Detector Emulator Software

    Software

    Desktop, Windows

    SP5650

    Control and configuration of the DT4800 unit. USB connection.

    Cosmic Hunter Software

    Cosmic Hunter Software

    Software

    Windows

    SP5620CH

    The kit can also run stand-alone: on-module controls, data saved to SD card. USB connection.

    RockyRAD APP

    RockyRAD APP

    App (Google Play)

    Android 11+

    SP5660

    Rocks and minerals, CPM / dose display. Bluetooth connection.

    GammaEDU APP

    GammaEDU APP

    App (Google Play)

    Android 11+ (tablet included)

    SP5640

    Field spectra with GPS tagging and maps, .kmz export for Google Earth. Bluetooth connection.

    EasyPET Control Software

    EasyPET Control Software

    Software

    Windows (Visual Basic GUI)

    SP5700, SP5701

    Real-time PET image reconstruction. Spectrum acquisition and analysis. USB connection.

    i-Spector Web Interface

    i-Spector Web Interface

    Web Interface

    Windows/Linux

    SP5630EN, SP5630ENP

    Live spectrum, peak fitting, data download. Ethernet connection.

    Emulation Control Software

    Emulation Control Software

    Software

    Windows

    SP5600EMU

    Instrumentation managements, source emulation and pulse processing.

    HERA
    New

    HERA

    Software

    Windows (LabVIEW-based)

    SP5600E, SP5600C, SP5600D, SP5600AN

    Statistics, SiPM, γ and β spectroscopy, cosmic rays. Instrumentantion management, data analysis and data download. USB connection.
