SP5600E

Educational Photon Kit

Request a Quote Add to WishlistView Wishlist

Home CAEN SyS productsRadiation Monitoring SystemsGamma Spectroscopy SP5600E

Photo of SP5600E
Photo of SP5600E
Photo of SP5600E
Photo of SP5600E
Photo of SP5600E
DatasheetDownloadCompareTech. Spec.

Highlights

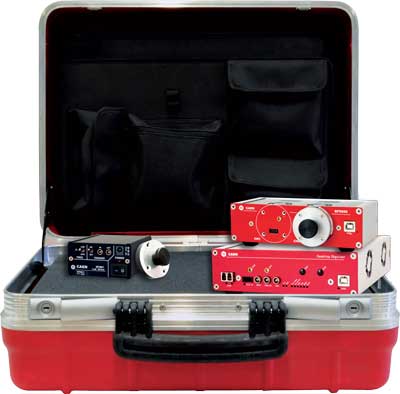

  • Educational kit to explore the quantum nature of light with Silicon Photomultipliers (SiPM)

  • Single photon detection and photon number resolving capability

  • SiPM characterization and advanced statistics on light distribution

  • SP5601 ultra-fast LED driver (405 nm, 8 ns pulse width) with tunable intensity and repetition rate

  • SP5600 Power Supply and Amplification Unit with gain stabilization, two independent channels and timing coincidence

  • DT5720A desktop digitizer (2 channels, 12 bit, 250 MS/s) with charge integration firmware

  • HERA software for system control and data analysis

Overview

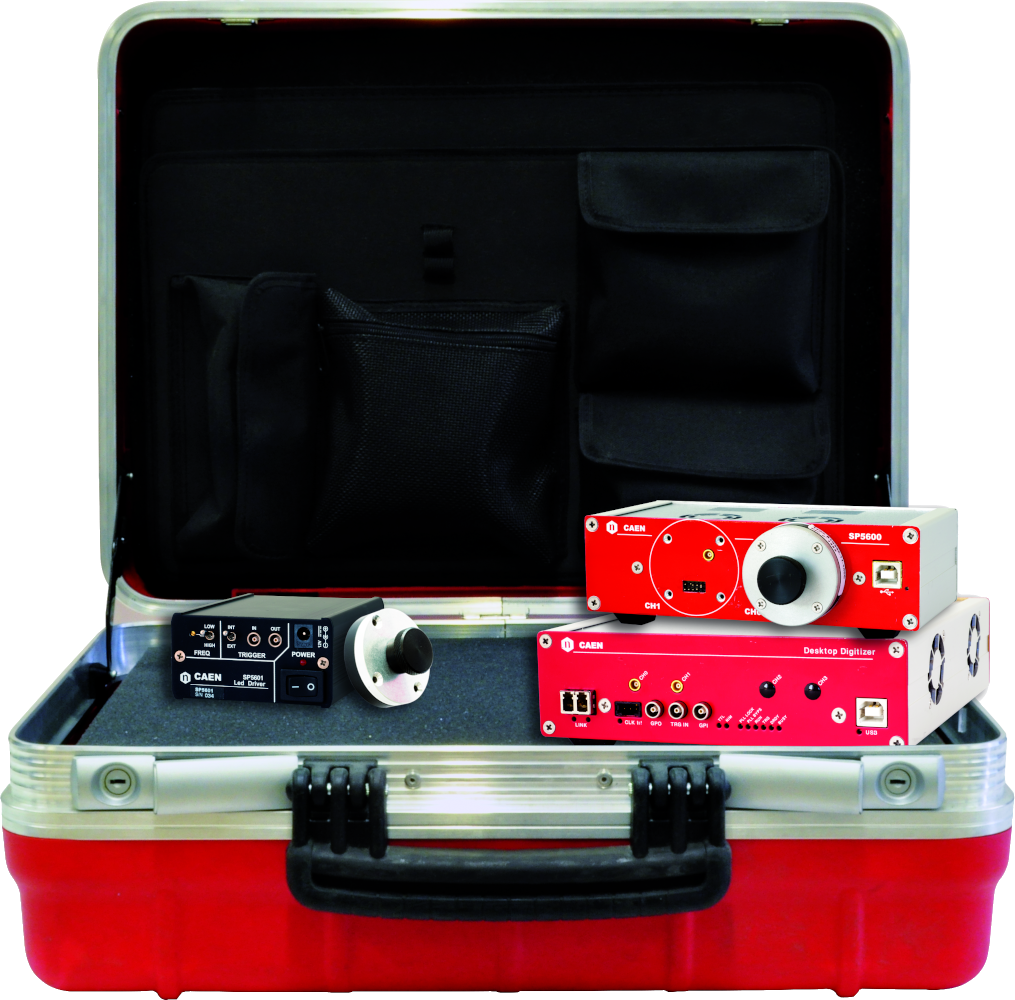

Observing the quantum nature of light is one of the most exciting experiences a physics student can have. The SP5600E Educational Photon Kit makes it possible in the teaching lab. It is built around Silicon Photomultipliers (SiPM), state-of-the-art light sensors that combine single-photon sensitivity with an unprecedented photon-number resolving capability. Using the same technologies and methods found in research laboratories, students detect individual photons, study the statistics of light and learn how a modern photodetector works.

The light source is the SP5601, an ultra-fast LED driver that emits violet light at 405 nm in pulses about 8 ns wide. Its intensity and repetition rate are tunable, from 500 Hz up to 5 MHz, and pulses can be triggered by the internal generator or by an external source. The light reaches the sensor through the optical fiber included with the driver. The sensor sits in the SP5650C holder, which hosts a Hamamatsu SiPM with a 1.3×1.3 mm active area and an FC fiber connector. A built-in temperature probe lets users compensate for gain variations.

The SiPM is powered and read out by the SP5600 Power Supply and Amplification Unit, which hosts up to two SiPMs in a mother-and-daughter architecture that makes sensors easy to mount and replace. It supplies their bias voltage with gain stabilization and amplifies the signals on two channels, each with independent gain control up to 50 dB. Each channel also provides a digital output from a fast leading-edge discriminator, and a timing coincidence between the two channels is available. The signals are then acquired by the DT5720A, a desktop waveform digitizer with two 12-bit, 250 MS/s channels and dedicated firmware for real-time charge integration.

The whole system is controlled through HERA, the CAEN educational software for all SiPM-based kits, which also handles data analysis. With it, students observe single-photon signals, count photons pulse by pulse and study the statistical distribution of light. Along the way, they characterize the SiPM itself.

Experiments

The SP5600E is supported by a series of guided experiments on the CAEN Educational website. They take students from the characterization of a Silicon Photomultiplier to the study of the quantum nature of light and the statistics of photon counting. Each guide explains the physics, the setup and the expected results, and can be downloaded as a printable version.

SiPM characterization

  • SG6011A – SiPM Characterization

  • SG6012A – Dependence of the SiPM Properties on the Bias Voltage

  • SG6013A – Temperature Effects on SiPM Properties

Photons

  • SG6221A – Quantum Nature of Light

  • SG6222A – Hands-on Photon Counting Statistics

Browse all Silicon Photomultiplier experiments and Photons experiments on edu.caen.it.

Supported Software

  • HERA — Handy Educational Radiation Application

Accessories

SP5601

SP5601

LED Driver
SP5650

SP5650

Open FPGA Kit

Ordering Options

Code Description
WK5600XEAAAA

SP5600E – Educational Photon Kit

RoHS

You also may be interested in…

DT993

DT993

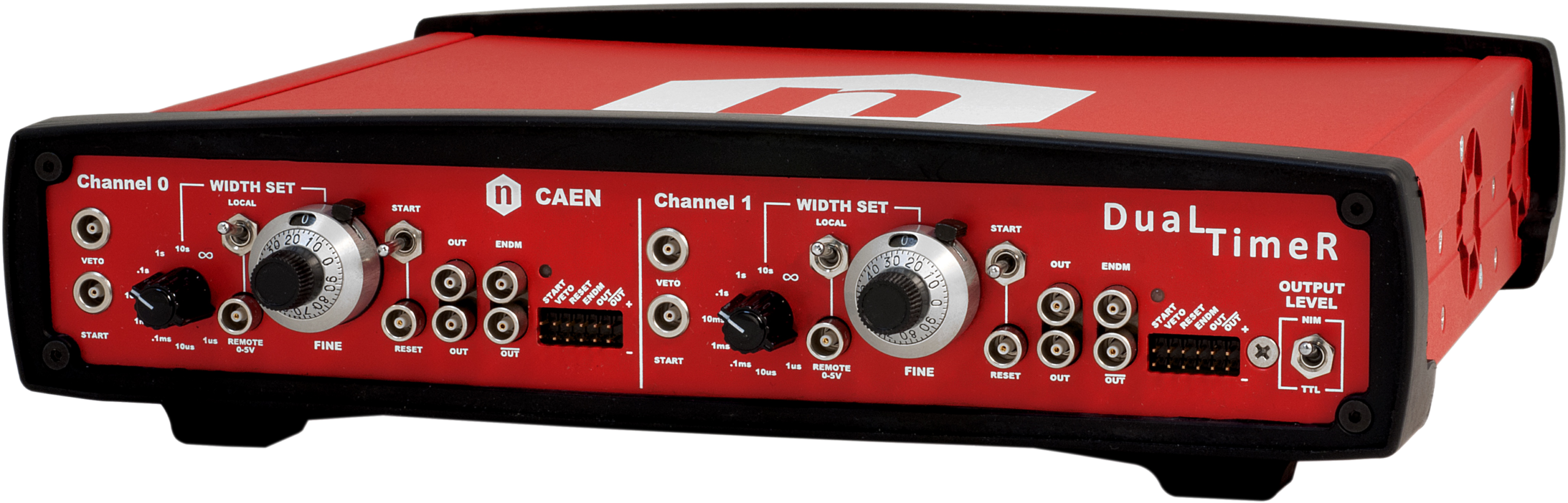

Desktop Dual Timer
SP5600AN

SP5600AN

Educational Kit - Premium Version
SP5601

SP5601

LED Driver
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist
Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    Statistics
    SiPM Characterization
    Photons
    Cosmic Rays
    Gamma Spectroscopy
    Beta Spectroscopy
    Nuclear Imaging
    Environmental Radioactivity Indoor
    Environmental Radioactivity Outdoor
    Pulse Processing
    SP5700

    SP5700

    ⚫

    -

    -

    -

    -

    -

    ⚫

    -

    ⚫

    -

    SP5660 – RockyRad

    SP5660 – RockyRad

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    SP5640

    SP5640

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    -

    SP5630EN

    SP5630EN

    ⚫

    -

    -

    -

    -

    -

    -

    ⚫

    -

    -

    SP5600EMU

    SP5600EMU

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    -

    ⚫

    SP5630ENP

    SP5630ENP

    ⚫

    -

    -

    -

    ⚫

    -

    -

    ⚫

    -

    SP5701

    SP5701

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    -

    SP5600E

    SP5600E

    ⚫

    ⚫

    ⚫

    -

    -

    -

    -

    -

    -

    -

    SP5650

    SP5650

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    -

    -

    SP5620CH

    SP5620CH

    ⚫

    -

    -

    ⚫

    -

    -

    -

    -

    -

    -

    SP5600D

    SP5600D

    ⚫

    -

    -

    ⚫

    -

    ⚫

    -

    -

    -

    -

    SP5600C

    SP5600C

    ⚫

    -

    -

    -

    ⚫

    -

    -

    ⚫

    -

    -

    Technical Specifications

    Close

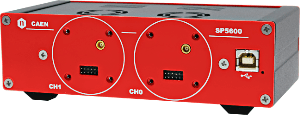

    SP5600 General Purpose Power Supply and Amplification Unit

    Packaging

    Power Supply

    Wideband amplifier

    – 154 x 71 x 43 mm3
    – 2 SIPM Heads

    – Vbias: 0 ÷ 120 V
    – Max Current: 100 µA
    – Temp. Feedback Res.: 0.1 °C

    – Gain: 0 ÷ 50 dB (step: 1 dB)
    – Bandwidth (-3dB): 100 kHz ÷ 500 MHz
    – Output dynamic range: ±2V
    – Discriminator threshold: ±800mV (step: 25µV)

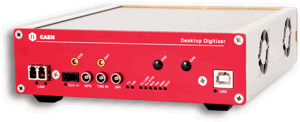

    DT5720A Desktop Digitizer

    Packaging

    Analog Input

    Digital conversion

    1154x50x164 mm3 (WxHxD)

    – 2 channels (MCX 50 Ohm)
    – Single-ended
    – Input range: 2 Vpp
    – Bandwidth: 125 MHz
    – DAC Offset: ± FSR/2

    – Resolution: 12 bit
    – Sampling rate: 250 MS/s

    Interfaces via USB or Optical Link

    Digital Pulse Processing for charge Integration

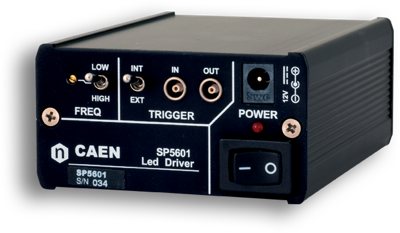

    SP5601 LED driver

    Packaging

    LED specification

    Operating Modes

    79 x 42 x 102 mm3 (WxHxD)

    – Wavelength: 405 nm (Violet)
    – Pulse Width: 8 ns (Typ.)

    – Tunable intensity and repetition rate
    – Output frequency: From 500 Hz to 5 MHz
    – Triggered via internal pulse generator, or via external source
    Terminated optical fiber included

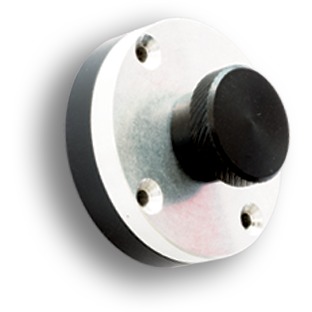

    SP5650C

    Embedded SiPM: Hamamatsu MPPC S13360-1350CS 1.3×1.3 mm2 Active Area, Temperature feedback sensor embedded
