SP5600D

Educational Beta Kit

Request a Quote Add to WishlistView Wishlist

Home EducationalEducational KitsTeaching & Learning Kits SP5600D

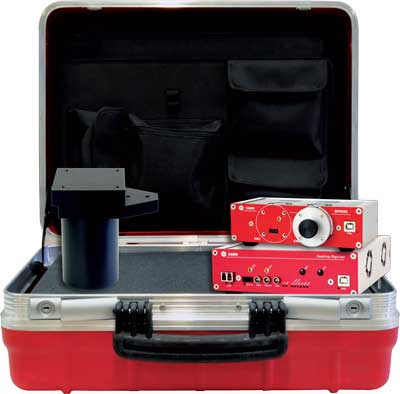

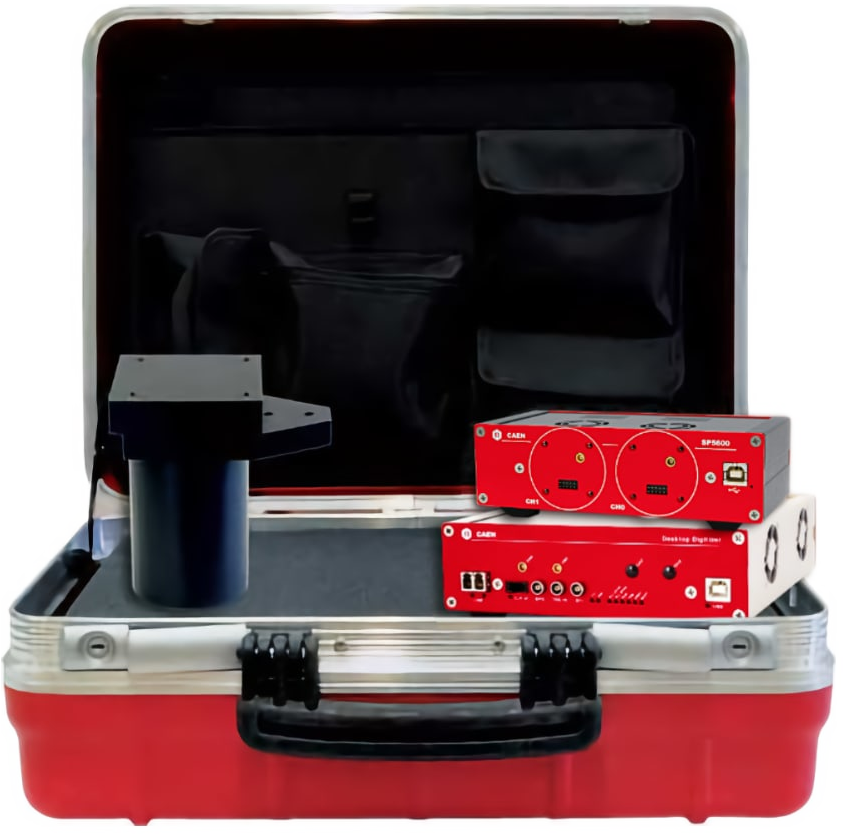

Photo of SP5600D
Photo of SP5600D
Photo of SP5600D
Photo of SP5600D
Photo of SP5600D
DatasheetDownloadCompareTech. Spec.

Highlights

  • Educational kit for beta spectroscopy and cosmic ray detection based on Silicon Photomultipliers (SiPM)

  • SP5608 plastic scintillating tile (47×47×10 mm) directly coupled to a SiPM

  • Paper and aluminium sheets for absorption and thickness measurements

  • SP5600 Power Supply and Amplification Unit with gain stabilization, two independent channels and timing coincidence

  • DT5720A desktop digitizer (2 channels, 12 bit, 250 MS/s) with charge integration firmware

  • HERA software for system control and data analysis

Overview

The SP5600D Educational Beta Kit introduces students to beta spectroscopy and cosmic ray physics through a modular setup based on Silicon Photomultipliers (SiPM). These state-of-the-art light sensors combine single-photon sensitivity with an unprecedented photon-number resolving capability. Using the same technologies and methods found in research laboratories, students study how charged particles interact with matter, from the radiation emitted by beta sources to the particles that reach us from space.

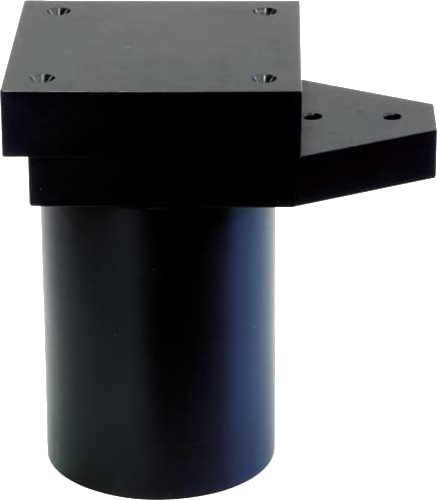

The detector is the SP5608 scintillating tile: a polystyrene plastic scintillator with a sensitive volume of 47×47×10 mm, directly coupled to a 6×6 mm SiPM, with an embedded temperature sensor. It is an ideal tool for measurements with beta-emitting isotopes and cosmic rays. Its support structure lets the tile work stand-alone, or be paired with a second tile module to build a cosmic ray telescope. The kit also includes 20 paper and aluminium sheets, which students place between source and detector for absorption measurements.

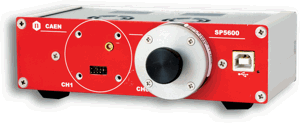

The tile is connected to the SP5600 Power Supply and Amplification Unit, which hosts up to two SiPMs in a mother-and-daughter architecture that makes sensors easy to mount and replace. It supplies their bias voltage with gain stabilization and amplifies the signals on two channels, each with independent gain control up to 50 dB. Each channel also provides a digital output from a fast leading-edge discriminator, and a timing coincidence between the two channels is available. The signals are then acquired by the DT5720A, a desktop waveform digitizer with two 12-bit, 250 MS/s channels and dedicated firmware for real-time charge integration.

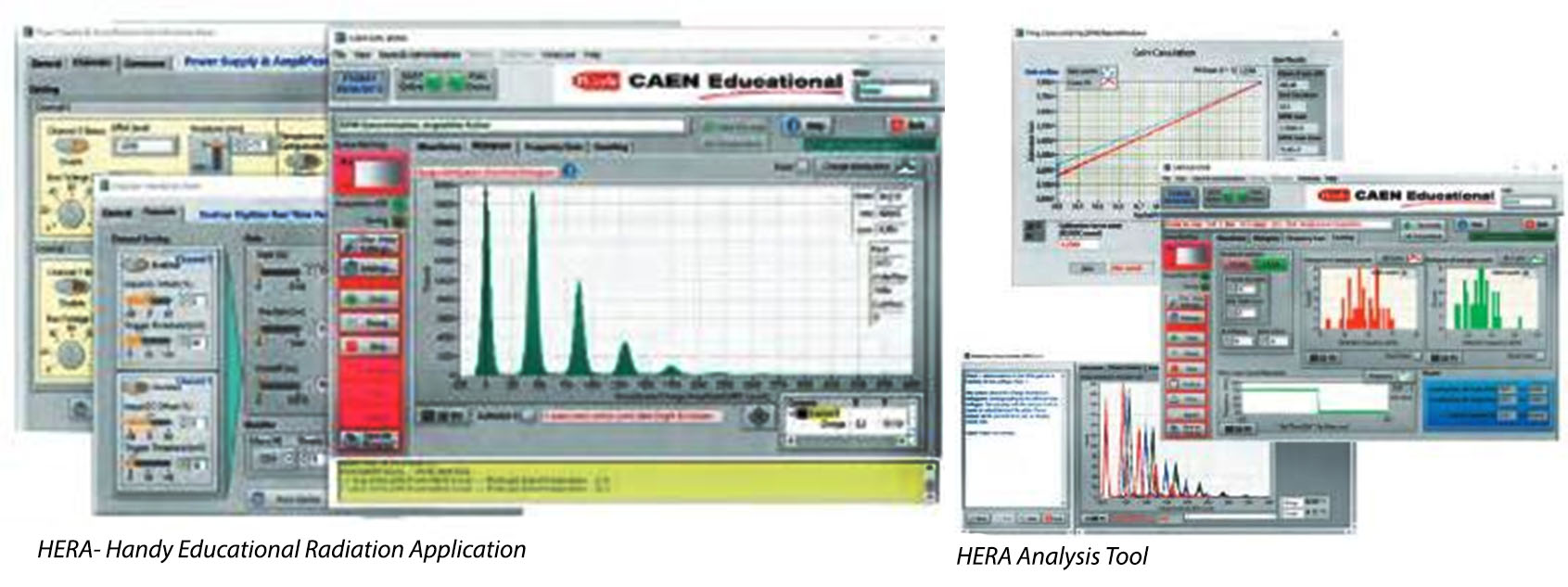

The whole system is controlled through HERA, the CAEN educational software for all SiPM-based kits, which also handles data analysis. With it, students acquire beta energy spectra and measure absorption coefficients and material thicknesses. They also detect cosmic rays and work up to measuring the vertical flux of cosmic muons.

Experiments

The SP5600D is supported by a series of guided experiments on the CAEN Educational website. Each guide explains the physics, the setup and the expected results, and can be downloaded as a printable version.

β-Spectroscopy

  • SG6121A – Response of a Plastic Scintillating Tile

  • SG6122A – β-Spectroscopy

  • SG6123A – β-Radiation: Transmission through Matter

  • SG6124A – β-Radiation as a Method to Measure Paper Sheet Grammage and Thin Layer Thickness

  • SG6125A – Coating Effect on the Light Collection

Cosmic rays

  • SG6211A – Muons Detection

  • SG6212A – Muons Vertical Flux on Horizontal Detector

  • SG6213A – Random Coincidence

Browse all β-spectroscopy experiments and cosmic rays experiments on edu.caen.it.

Supported Software

  • HERA — Handy Educational Radiation Application

Accessories

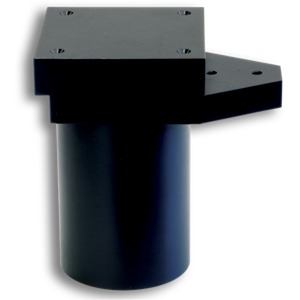

SP5608

SP5608

Scintillating Tile

Ordering Options

Code Description
WK5600XDAAAA

SP5600D – Educational Beta Kit

RoHS

You also may be interested in…

SP5600AN

SP5600AN

Educational Kit - Premium Version
SP5608

SP5608

Scintillating Tile

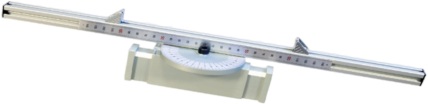

SP5609

SP5609

Telescope Mechanics
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist

Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    Statistics
    SiPM Characterization
    Photons
    Cosmic Rays
    Gamma Spectroscopy
    Beta Spectroscopy
    Nuclear Imaging
    Environmental Radioactivity Indoor
    Environmental Radioactivity Outdoor
    Pulse Processing
    SP5700

    SP5700

    ⚫

    -

    -

    -

    -

    -

    ⚫

    -

    ⚫

    -

    SP5660 – RockyRad

    SP5660 – RockyRad

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    SP5640

    SP5640

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    -

    SP5630EN

    SP5630EN

    ⚫

    -

    -

    -

    -

    -

    -

    ⚫

    -

    -

    SP5600EMU

    SP5600EMU

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    -

    ⚫

    SP5630ENP

    SP5630ENP

    ⚫

    -

    -

    -

    ⚫

    -

    -

    ⚫

    -

    SP5701

    SP5701

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    -

    SP5600E

    SP5600E

    ⚫

    ⚫

    ⚫

    -

    -

    -

    -

    -

    -

    -

    SP5650

    SP5650

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    -

    -

    SP5620CH

    SP5620CH

    ⚫

    -

    -

    ⚫

    -

    -

    -

    -

    -

    -

    SP5600D

    SP5600D

    ⚫

    -

    -

    ⚫

    -

    ⚫

    -

    -

    -

    -

    SP5600C

    SP5600C

    ⚫

    -

    -

    -

    ⚫

    -

    -

    ⚫

    -

    -

    Technical Specifications

    Close

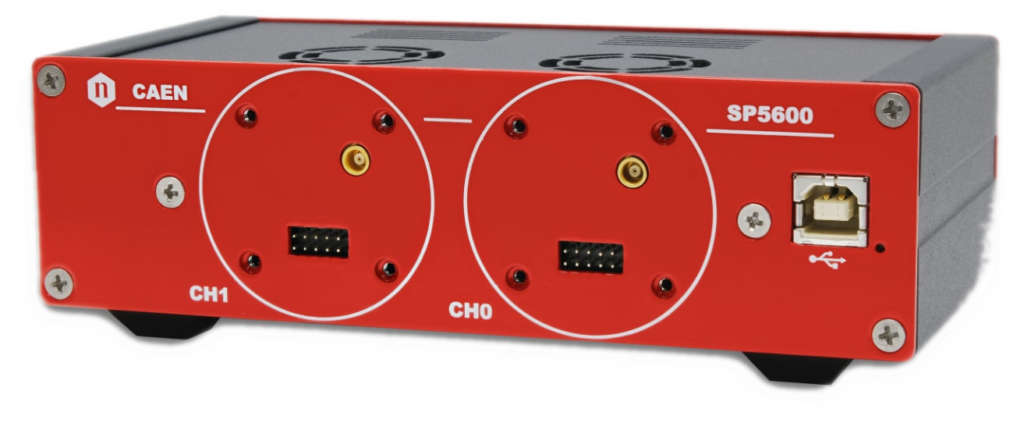

    SP5600 General Purpose Power Supply and Amplification Unit

    Packaging

    Power Supply

    Wideband amplifier

    • 154 x 71 x 43 mm3

    • 2 SIPM Heads

    • Vbias: 0 ÷ 120 V

    • Max Current: 100 µA

    • Temp. Feedback Res.: 0.1 °C

    • Gain: 0 ÷ 50 dB (step: 1 dB)

    • Bandwidth (-3dB): 100 kHz ÷ 500 MHz

    • Output dynamic range: ±2V

    • Discriminator threshold: ±800mV (step: 25µV)

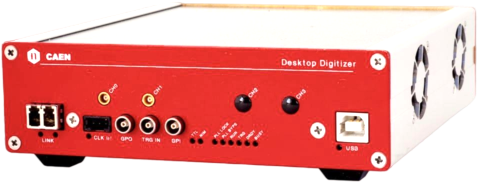

    DT5720A Desktop Digitizer

    Packaging

    Analog Input

    Digital conversion

    1154x50x164 mm3 (WxHxD)

    • 2 channels (MCX 50 Ohm)

    • Single-ended

    • Input range: 2 Vpp

    • Bandwidth: 125 MHz

    • DAC Offset: ± FSR/2

    • Resolution: 12 bit

    • Sampling rate: 250 MS/s

    Interfaces via USB or Optical Link

    Digital Pulse Processing for charge Integration

    SP5608 Scintillating Tile

    • Scintillating Material: Polystyrene

    • Sensitive Volume: 47x47x10 mm3

    • Directly coupled to a SiPM 6 x 6 mm2

    • 20 Paper and Aluminum sheets are included

    • Temperature feedback sensor embedded
