Educational kit for gamma spectroscopy and environmental radioactivity measurements
i-Spector Digital detector: SiPM matrix coupled to a CsI scintillator, with digital MCA on board
Embedded web interface for live spectrum, peak fitting and data download, with nothing to install
Set of samples and accessories for energy calibration, environmental background, passive radon and sample measurements
Ethernet connection
Environmental radioactivity is all around us, yet it is often perceived as something distant or threatening. The SP5630EN Environmental Kit lets students explore it with real measurements. They learn to calibrate a gamma spectrometer, acquire spectra from different samples and recognize where natural radioactivity comes from.

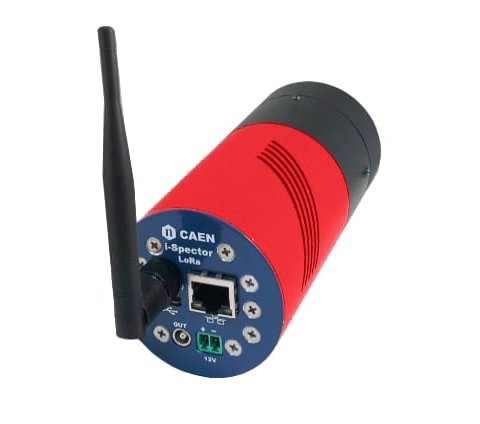

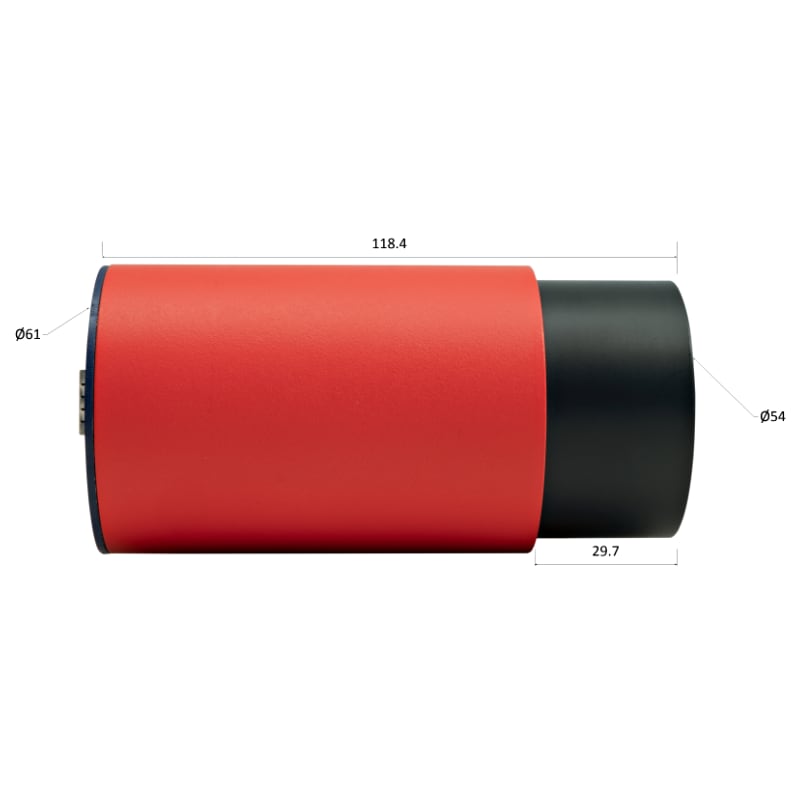

The kit is built around the i-Spector Digital (S2570B), a complete radiation detector for gamma spectroscopy. It couples an 18×18 mm Silicon Photomultiplier (SiPM) matrix to a CsI scintillation crystal and integrates everything needed for the measurement in a single unit: a preamplifier, the SiPM bias supply with temperature feedback, a pulse shaper and a Multi-Channel Analyzer. The MCA is based on an 80 MS/s, 12-bit ADC with digital charge integration. The detector calculates a 4k-channel energy spectrum on board and also provides an amplified analog output.
The i-Spector Digital is controlled via Ethernet through the i-Spector Web Interface, which is embedded in the device and opens in any browser. From there, students view the spectrum live, run peak fitting and download their data, with no software to install.
The kit also includes everything needed for the experiments. An LYSO scintillating crystal serves for energy calibration. Two charcoal canisters are used for passive radon measurements. A test sample, a fertilizer sample and a rock sample are provided for spectrum acquisition and photopeak identification. An empty beaker, a mechanical support, a portable digital pocket scale and adhesive tape let students prepare and measure their own environmental samples. The activities start with the energy calibration of the system. Students then measure the environmental background and the different samples, studying their emissions and composition.
The SP5630EN is supported by a series of guided experiments on the CAEN Educational website. Each guide explains the physics, the setup and the expected results, and can be downloaded as a printable version.
γ-Spectroscopy, with the i-Spector and its embedded web interface:
SG6117C – Photonuclear Cross-Section / Compton Scattering Cross-Section
SG6118C – Study of the ¹³⁷Cs Spectrum: the Backscatter Peak and X Rays
Environmental radioactivity indoor
With the SP5630ENP Environmental Kit Plus, students can also compare the shielding properties of different materials in SG6110C – Comparison of Different Shielding Materials: Aluminium and Lead.
Browse all γ-spectroscopy experiments and environmental radioactivity indoor experiments on edu.caen.it.
|
|
