Advanced lab kit for gamma spectroscopy, radiation shielding and environmental radioactivity
i-Spector Digital detector: 18×18 mm SiPM matrix coupled to an 18×18×30 mm CsI crystal, with digital MCA on board
Energy resolution below 6% FWHM at 662 keV, over an energy range from 30 keV to 3 MeV
BGO scintillating crystal to compare the properties of two different scintillators
Shielding kit with aluminium and lead absorbers and a graduated mechanical support
Samples and accessories for environmental background, passive radon and sample measurements
Embedded web interface for live spectrum, peak fitting and data download, with nothing to install

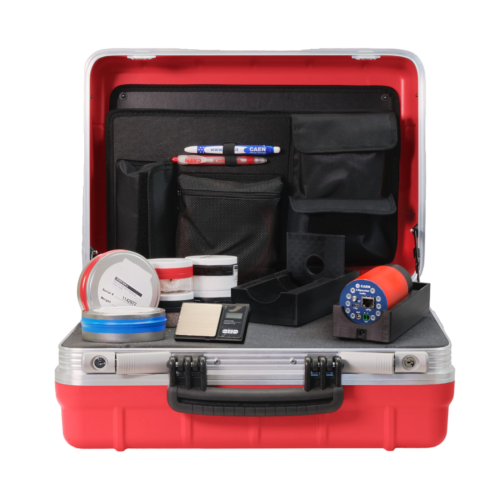

Radioactivity is all around us, and exploring it experimentally is an essential part of a physics education. Gamma spectroscopy, in particular, is key to understanding how radiation interacts with matter, how it is detected and what nuclear physics lies behind it. The SP5630ENP Environmental Kit Plus is designed for Advanced Labs. It guides students through complementary measurement techniques, based both on counting and on spectrum analysis, with a main focus on how gamma rays are absorbed as they pass through different materials and thicknesses.

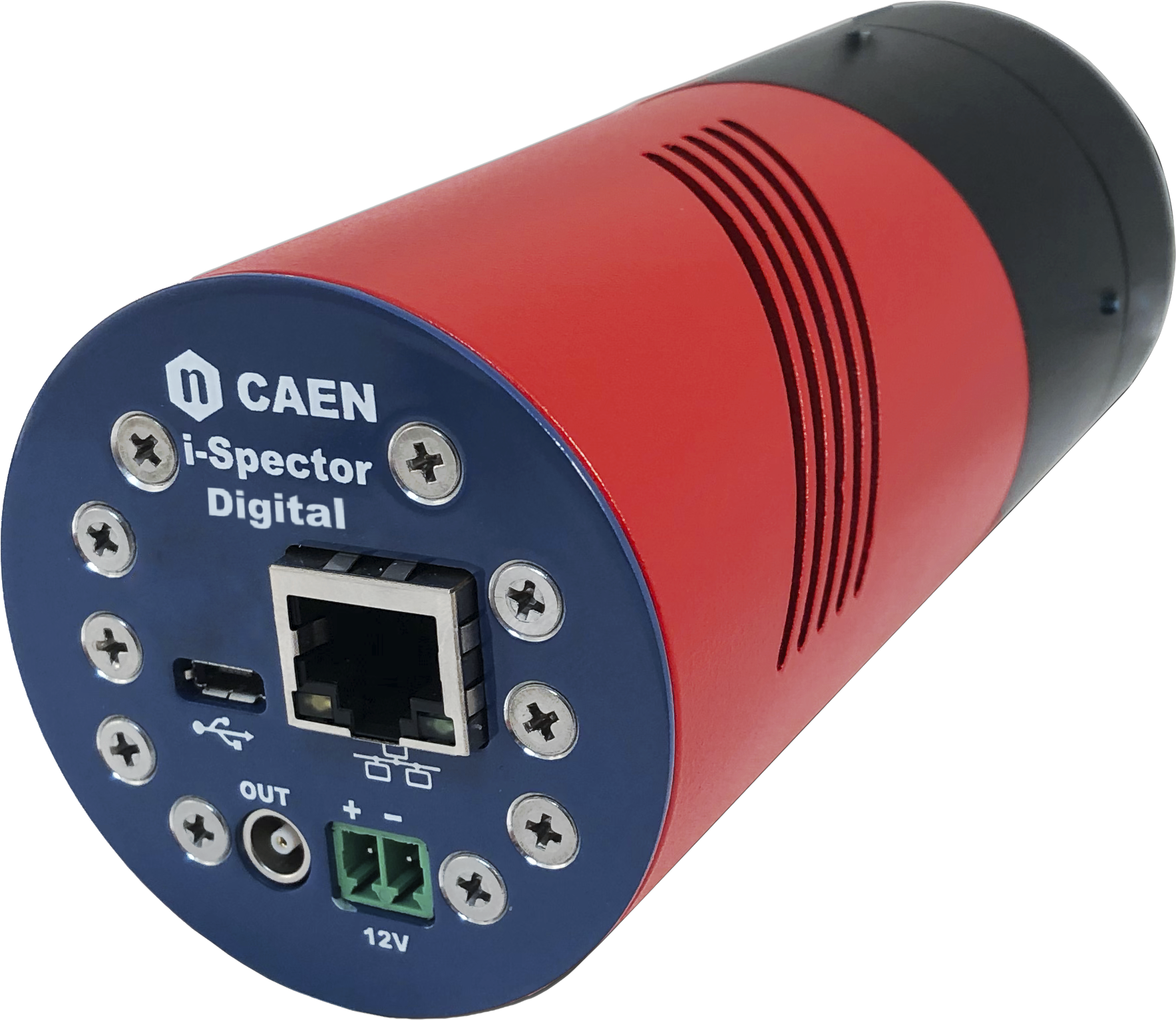

The kit is built around the i-Spector Digital (S2570B), a complete radiation detector for gamma spectroscopy. It couples an 18×18 mm Hamamatsu Silicon Photomultiplier matrix to an 18×18×30 mm CsI scintillation crystal and integrates everything needed for the measurement in a single compact unit: a preamplifier, the SiPM bias supply with temperature feedback, a pulse shaper and a 4096-channel Multi-Channel Analyzer. The MCA is based on an 80 MS/s, 12-bit ADC with digital charge integration. The detector covers an energy range from 30 keV to 3 MeV, with an energy resolution below 6% FWHM at 662 keV. It is controlled via Ethernet through the i-Spector Web Interface, embedded in the device and accessible from any browser, where students view the spectrum live, run peak fitting and download their data.
The experimental path starts with the characterization of the system. Students calibrate the detector, check its linearity and measure its energy resolution. Alongside the CsI crystal of the i-Spector, the kit provides a BGO scintillating crystal, so the basic properties of two different scintillators can be studied and compared. BGO is a hard, high-density, non-hygroscopic crystal with good gamma-ray absorption, widely used in PET imaging and, in high energy physics, as a Compton shield.

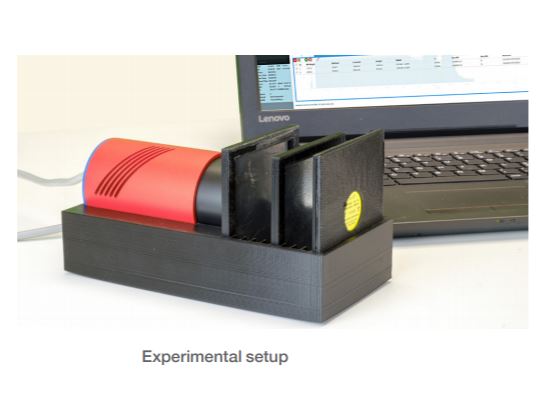

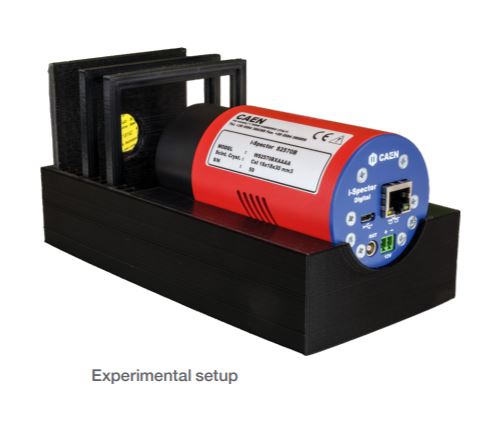

The shielding kit turns the system into a radiation shielding laboratory. It includes a mechanical support with a graduated scale in centimeters and inches, aluminium and lead absorbers, plastic holders for the absorbers and a support for the radioactive source. By placing absorbers of different materials and thicknesses between the source and the detector, students measure how gamma radiation is attenuated, compare the shielding effectiveness of aluminium and lead, and derive the cross-sections of the photoelectric effect and Compton scattering.

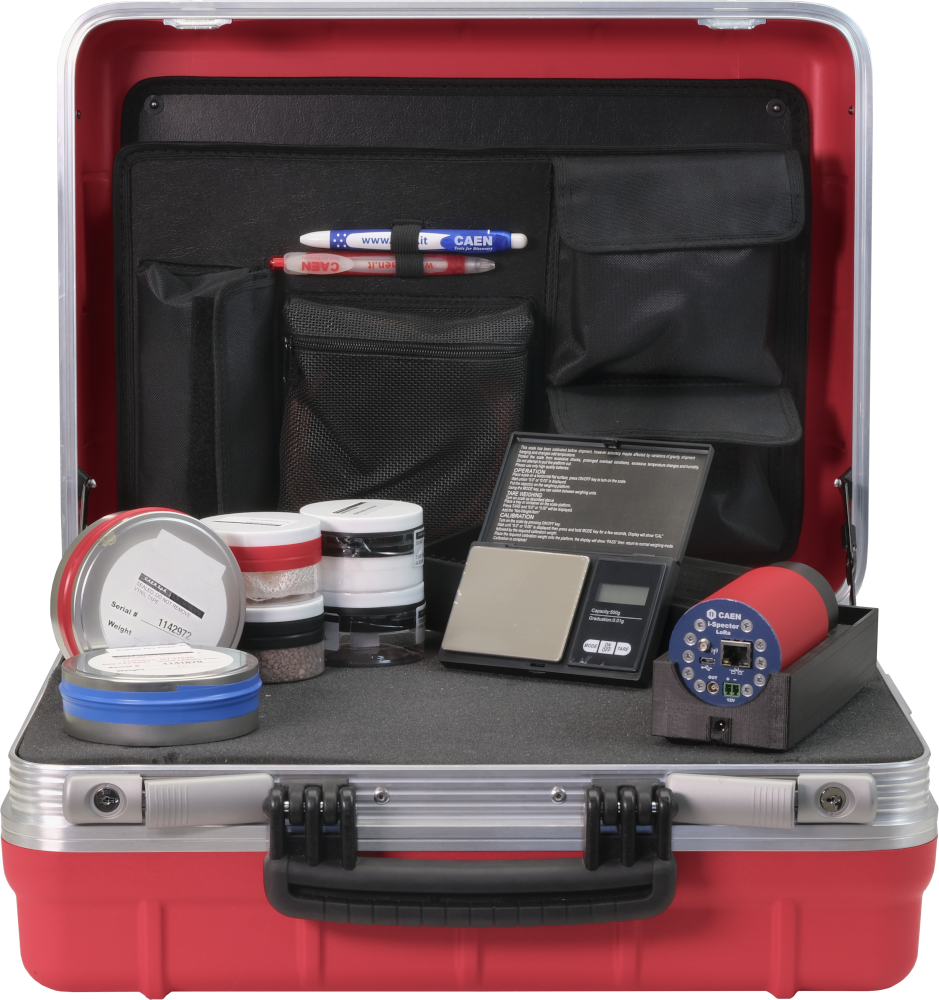

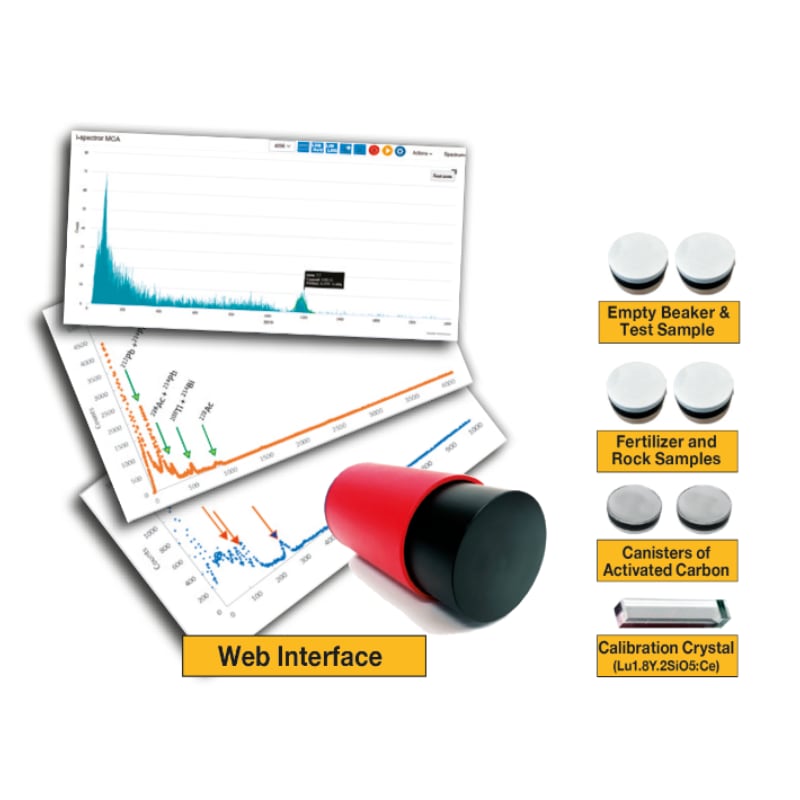

The kit also covers environmental radioactivity. It includes an LYSO scintillating crystal and two charcoal canisters for passive radon measurements. A test sample, a fertilizer sample and a rock sample are provided for spectrum acquisition and photopeak identification. An empty beaker, a mechanical support, a portable digital pocket scale and adhesive tape let students prepare and measure their own environmental samples, and measure the natural background.
|
|
Name
|
Statistics
|
SiPM Characterization
|
Photons
|
Cosmic Rays
|
Gamma Spectroscopy
|
Beta Spectroscopy
|
Nuclear Imaging
|
Environmental Radioactivity Indoor
|
Environmental Radioactivity Outdoor
|
Pulse Processing
|
|
|
SP5700 |
⚫ |
- |
- |
- |
- |
- |
⚫ |
- |
⚫ |
- |
|
|
SP5660 – RockyRad |
⚫ |
- |
- |
- |
⚫ |
- |
- |
- |
⚫ |
|
|
|
SP5640 |
⚫ |
- |
- |
- |
⚫ |
- |
- |
- |
⚫ |
- |
|
|
SP5630EN |
⚫ |
- |
- |
- |
- |
- |
- |
⚫ |
- |
- |
|
|
SP5600EMU |
⚫ |
- |
- |
- |
⚫ |
- |
- |
- |
- |
⚫ |
|
|
SP5630ENP |
⚫ |
- |
- |
- |
⚫ |
- |
- |
⚫ |
- |
|
|
|
SP5701 |
⚫ |
- |
- |
- |
⚫ |
- |
- |
- |
⚫ |
- |
|
|
SP5600E |
⚫ |
⚫ |
⚫ |
- |
- |
- |
- |
- |
- |
- |
|
|
SP5650 |
⚫ |
- |
- |
- |
⚫ |
- |
- |
- |
- |
- |
|
|
SP5620CH |
⚫ |
- |
- |
⚫ |
- |
- |
- |
- |
- |
- |
|
|
SP5600D |
⚫ |
- |
- |
⚫ |
- |
⚫ |
- |
- |
- |
- |
|
|
SP5600C |
⚫ |
- |
- |
- |
⚫ |
- |
- |
⚫ |
- |
- |
|
Supply Voltage |
8-13V (12 V typ.) |
|
Power consumption |
3W max. |
|
Preamplifier bandwidth |
>1GHz |
|
Preamplifier gain |
x5 |
|
Shaping time |
180 ns |
|
Output signal |
-4 … +4 V , 170 mA |
|
SiPM area |
18×18 mm2 |
|
SiPM Manufacturer |
Hamamatsu |
|
SiPM Model |
S14160-60520HS |
|
HV Power supply |
20-80 V (10mA) |
|
HV Accuracy |
1mV |
|
Thermal feedback accuracy |
0.01°C – 1mV |
|
MCA nr. of channels |
4096 |
|
Connectivity |
Ethernet |
|
Working Temperature |
-20 … +50°C |
|
Assembly Size |
Ø 60 mm (2.40 in.) |
|
Weight |
500g (17.6 oz.) |
|
Energy Range |
30 keV to 3 MeV |
|
Energy Resolution (FWHM) |
<6 % @ 662 keV |
|
Max input rate |
100 kpcs |
|
MCA res. @ 100 kpcs |
<0.2% |
|
Non-linerarity |
<0.1% |
