SP5640

Backpack Radiation Detector

Request a Quote Add to WishlistView Wishlist

Home EducationalEducational KitsTeaching & Learning Kits SP5640

Photo of SP5640
Photo of SP5640
Photo of SP5640
DatasheetDownloadCompareTech. Spec.

Highlights

  • Portable backpack system for gamma spectrometry in the field

  • 0.3-liter NaI(Tl) scintillation detector for high-sensitivity radionuclide identification and quantification

  • CAEN Gamma stream tube base with integrated high voltage supply, preamplifier and digital Multi-Channel Analyzer

  • Automatic GPS tagging for radionuclide search, detection and localization

  • 10″ Android tablet with the GammaEDU App included

  • Fully stand-alone operation with embedded CPU, SSD storage and up to 8 hours of battery life

  • USB, Ethernet, Wi-Fi and Bluetooth connectivity

Overview

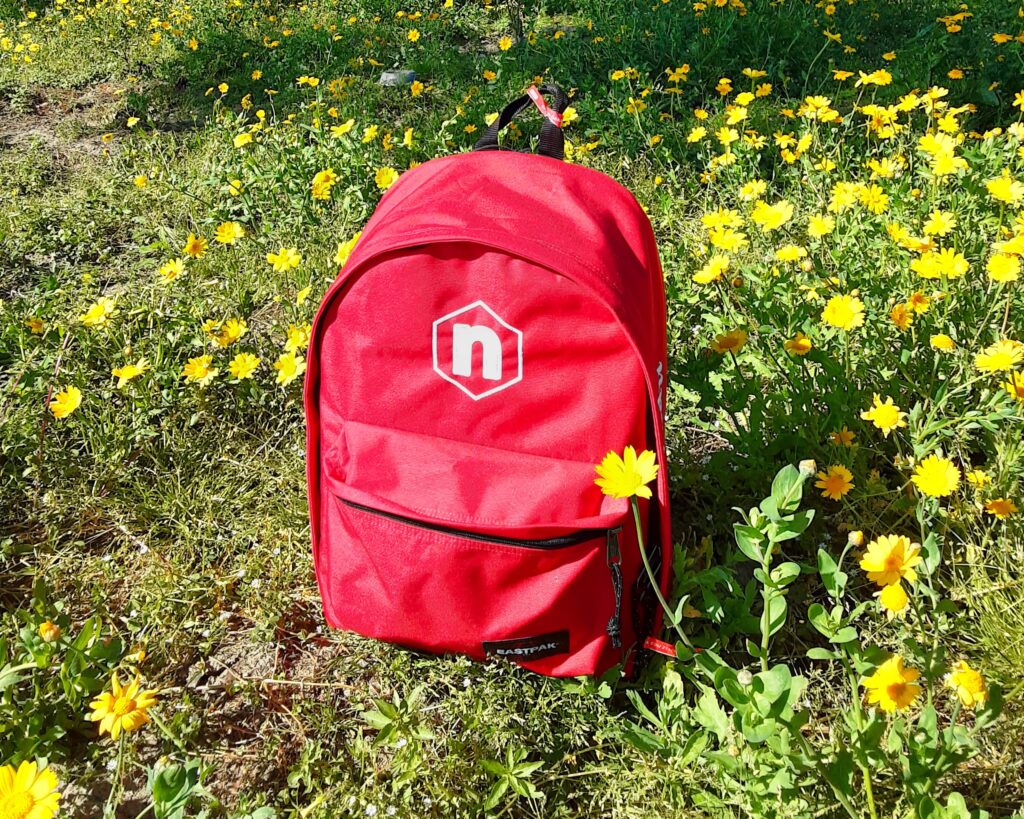

The SP5640 is a portable gamma spectrometry system built into a backpack, designed to detect and measure radioactivity in the environment directly in the field. It weighs 8.3 kg and runs fully stand-alone, with an embedded CPU, SSD data storage and a power supply for up to 8 hours of operation. Students can therefore carry out complete outdoor surveys without any external equipment.

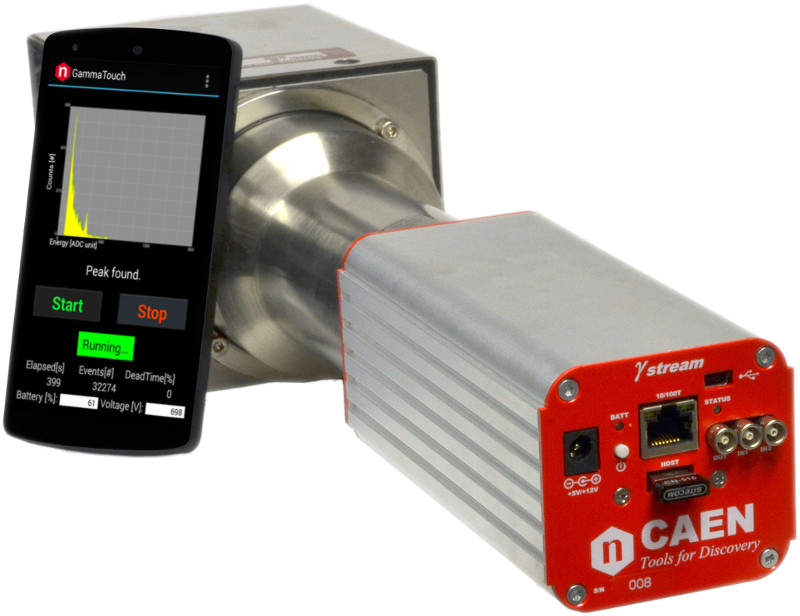

The detector is a 0.3-liter NaI(Tl) scintillation crystal coupled with the CAEN Gamma stream. This compact unit integrates into a 14-pin photomultiplier tube base the high voltage supply for the PMT, the preamplifier and a digital Multi-Channel Analyzer, so the full pulse height analysis takes place on board with no additional cables. Thanks to the high efficiency of the crystal, a measurement takes just a few minutes. The system can identify naturally occurring, industrial and medical radioisotopes, both in static acquisition and while the operator is moving.

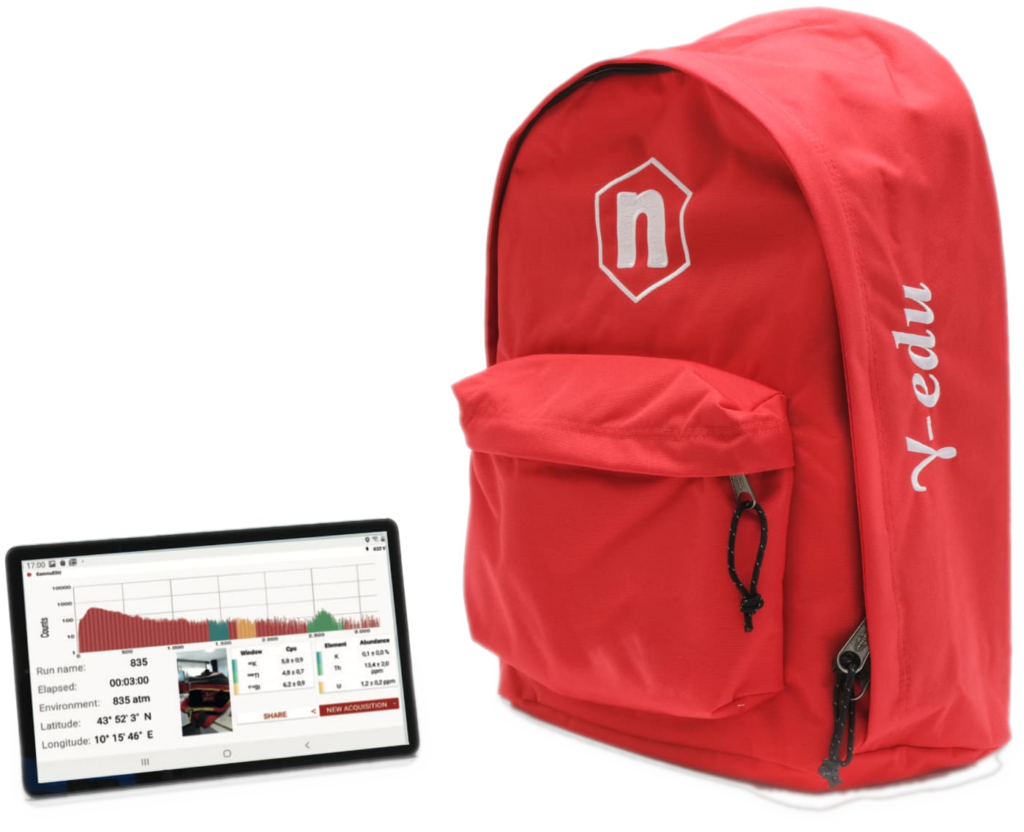

Measurements are run from the 10″ Android tablet included in the kit, through the GammaEDU App. In the app, students acquire and analyze gamma-ray spectra in real time to obtain Potassium, Uranium and Thorium abundances. Each measurement is automatically tagged with GPS coordinates, and notes on the surrounding environment and photos can be added. Data is saved in KMZ format, ready to be opened in Google Earth and shared via Google Drive to build a radioactivity map of the surveyed area.

The system connects via USB, Ethernet, Wi-Fi and Bluetooth. Through Ethernet, spectra can also be acquired and analyzed on a computer with MC²Analyzer, which gives control of the high voltage, live and dead time, and peak analysis within regions of interest.

Supported Software

  • MC²Analyzer — Graphical software tool for digitizers running DPP-PHA firmware

Ordering Options

Code Description
WK5640XAAAAA

SP5640 – GammaEDU

RoHS

You also may be interested in…

Gamma stream

Gamma stream

Digital MCA Tube Base for Gamma-Ray Spectroscopy
SP5630EN

SP5630EN

Environmental KIT - Gamma Radiation Measurements
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist

Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    Statistics
    SiPM Characterization
    Photons
    Cosmic Rays
    Gamma Spectroscopy
    Beta Spectroscopy
    Nuclear Imaging
    Environmental Radioactivity Indoor
    Environmental Radioactivity Outdoor
    Pulse Processing
    SP5700

    SP5700

    ⚫

    -

    -

    -

    -

    -

    ⚫

    -

    ⚫

    -

    SP5660 – RockyRad

    SP5660 – RockyRad

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    SP5640

    SP5640

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    -

    SP5630EN

    SP5630EN

    ⚫

    -

    -

    -

    -

    -

    -

    ⚫

    -

    -

    SP5600EMU

    SP5600EMU

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    -

    ⚫

    SP5630ENP

    SP5630ENP

    ⚫

    -

    -

    -

    ⚫

    -

    -

    ⚫

    -

    SP5701

    SP5701

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    -

    SP5600E

    SP5600E

    ⚫

    ⚫

    ⚫

    -

    -

    -

    -

    -

    -

    -

    SP5650

    SP5650

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    -

    -

    SP5620CH

    SP5620CH

    ⚫

    -

    -

    ⚫

    -

    -

    -

    -

    -

    -

    SP5600D

    SP5600D

    ⚫

    -

    -

    ⚫

    -

    ⚫

    -

    -

    -

    -

    SP5600C

    SP5600C

    ⚫

    -

    -

    -

    ⚫

    -

    -

    ⚫

    -

    -

    Technical Specifications

    Close

    Package

    Portable

    Weight

    8.3 kg

    Dimension

    22 x 30 x 45 cm

    Operating temperature range

    -10° C to 50° C, Humidity <95% non-condensing

    Naturally occurring isotopes

    40K, 208Tl, 214Bi, 226Ra, 228Ra, 238U, 232Th

    Dose rate upper limit

    40 mSv/h
