Geiger-Müller Counter
Battery-powered with USB type C to USB cable included
Set of Rocks and Minerals included
Mobile App available for measurement sessions with interface with bluetooth connection

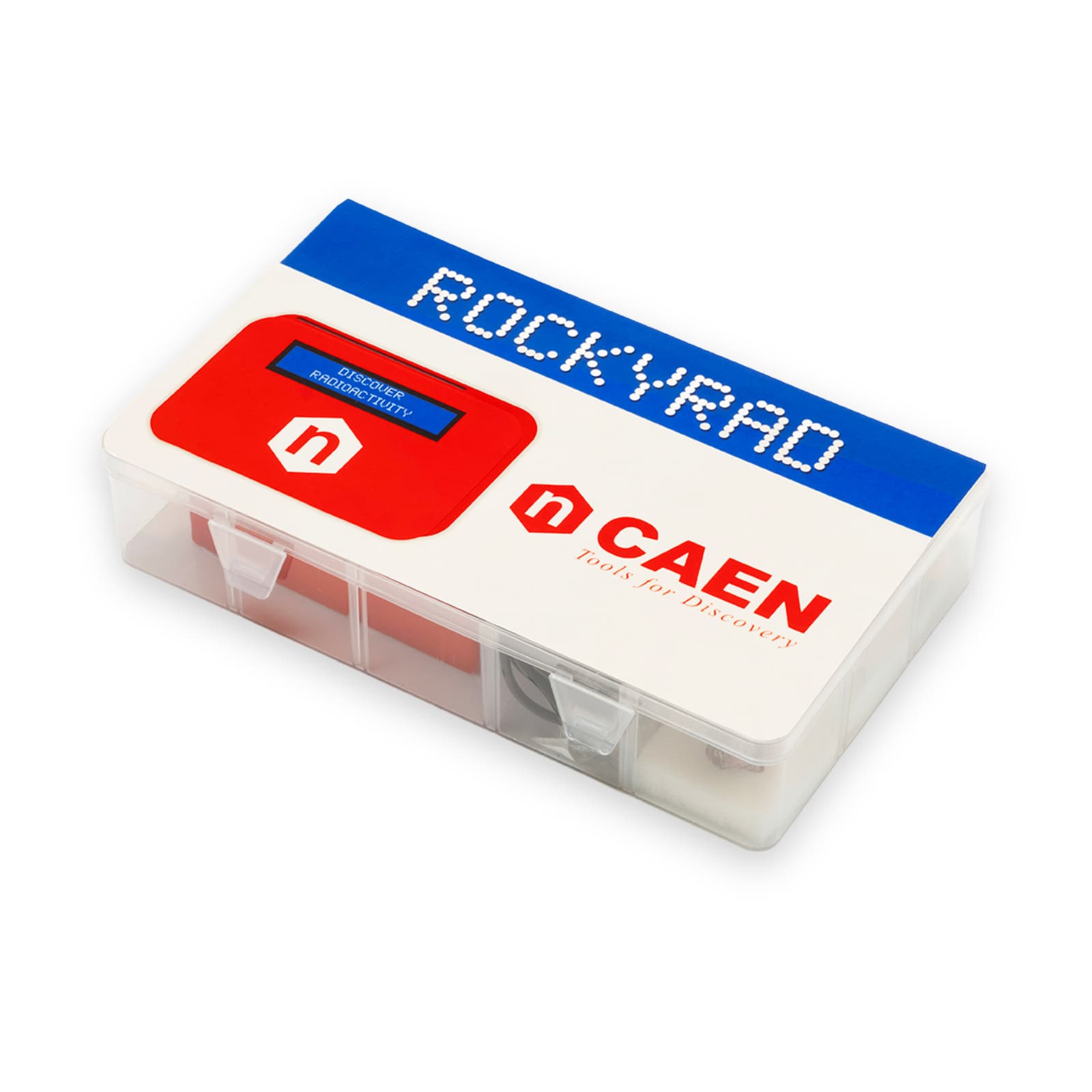

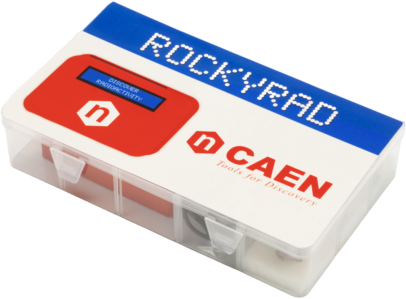

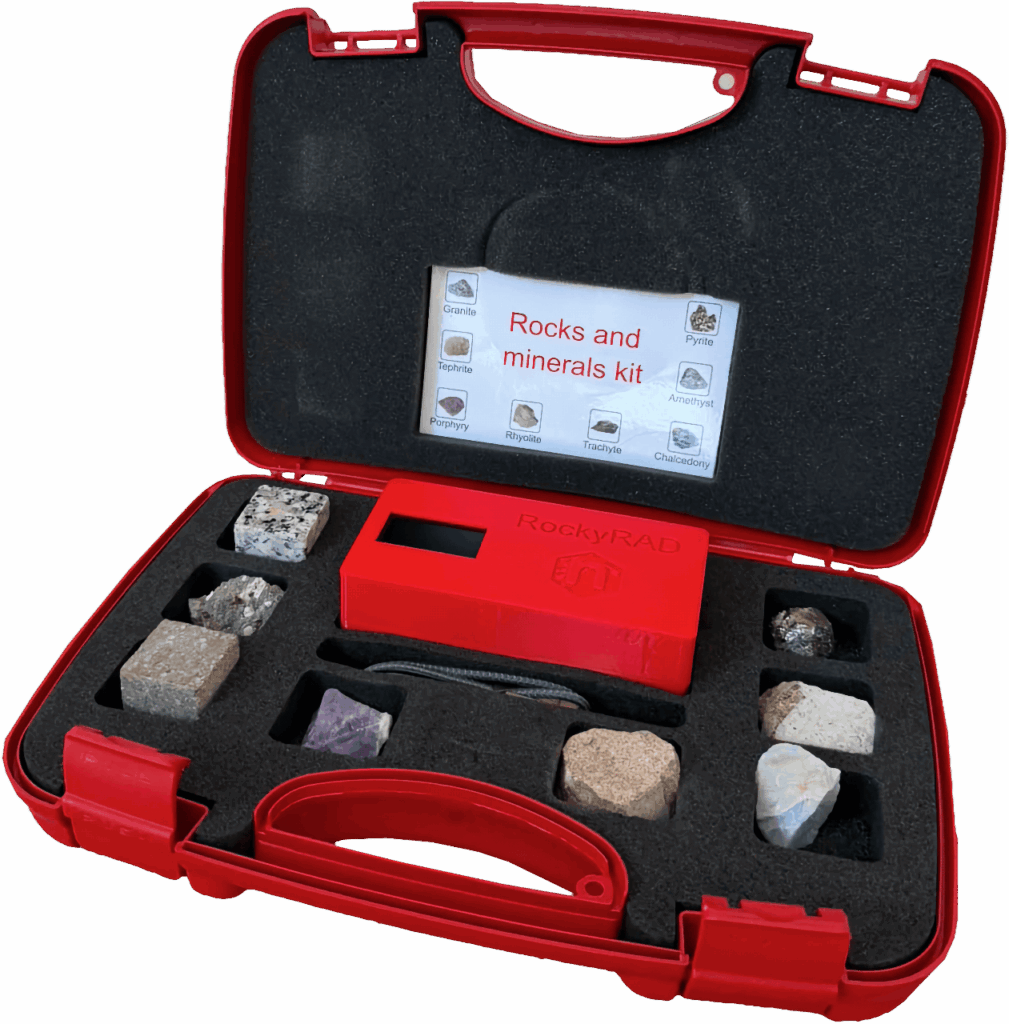

The SP5660 RockyRAD is an educational kit for exploring natural radioactivity through hands-on measurements on rocks and minerals. It comes in a compact box that contains a portable Geiger-Müller counter, a USB Type-C to USB cable, and a set of eight rock samples: Chalcedony, Tephrite, Pyrite, Porphyry, Amethyst, Trachyte, Granite and Rhyolite.

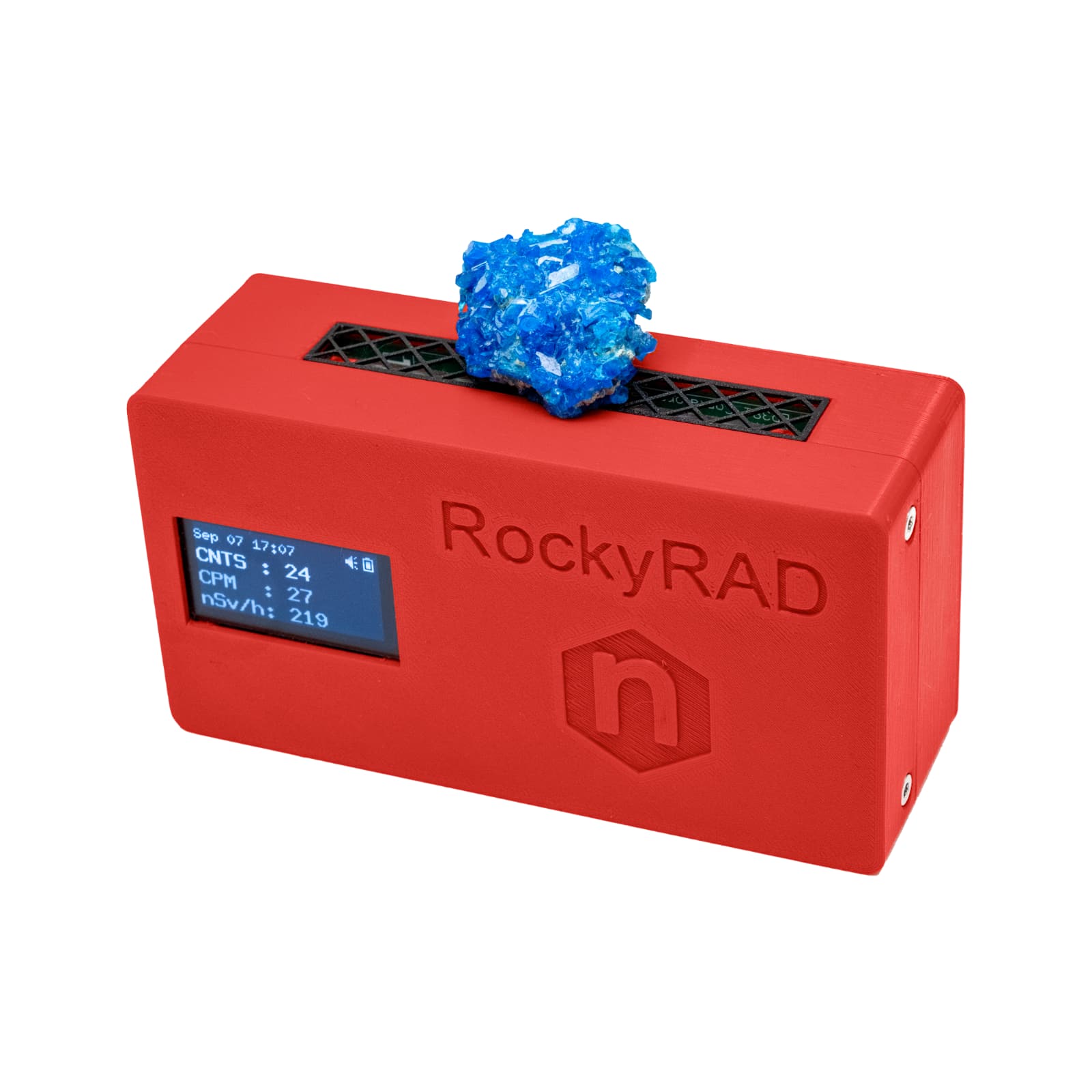

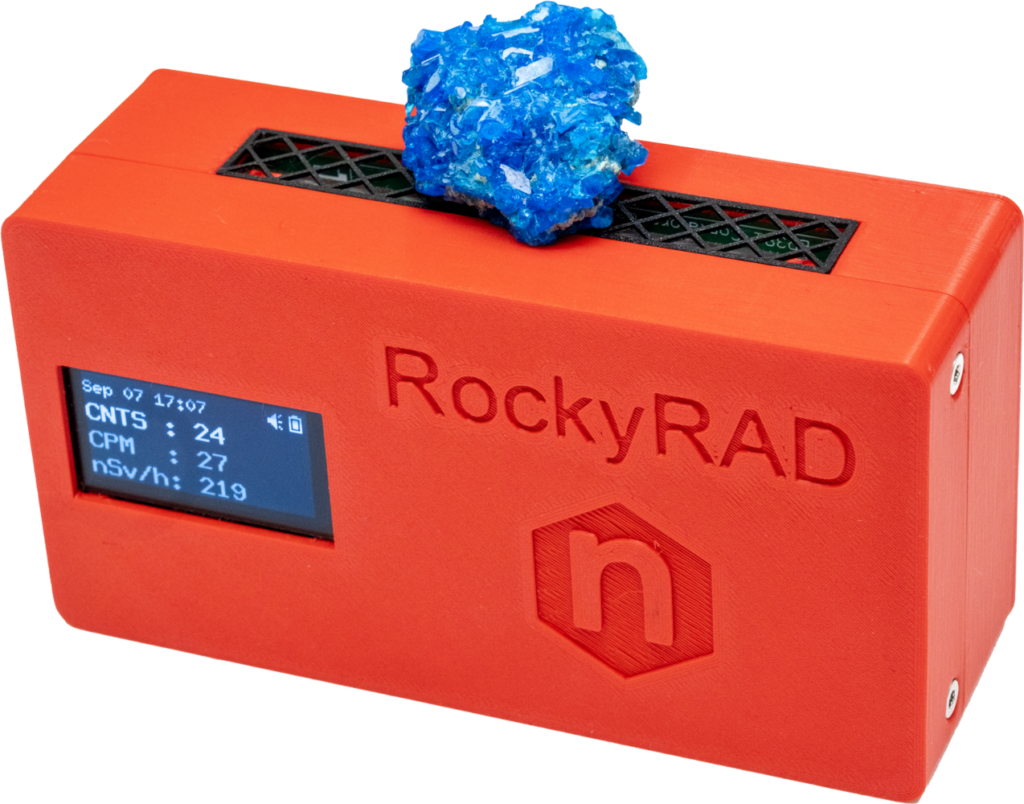

At the heart of the kit is the RockyRAD counter. It is built around a GM J305 Geiger-Müller module, with an OLED display that shows readings directly on the device. A rechargeable battery powers it, so it needs no external supply during measurements and can be used both in the classroom and outdoors. It recharges via USB-C.
The counter can also be paired via Bluetooth with the RockyRAD App, available on Google Play for Android 11+ devices. In the app, students start a measurement session and set the measurement interval. They then follow Total Counts, Counts per Minute and Equivalent Dose Rate in real time. Each reading can be linked to a photo of the sample, and all sessions are saved, so results can be reviewed and compared later.

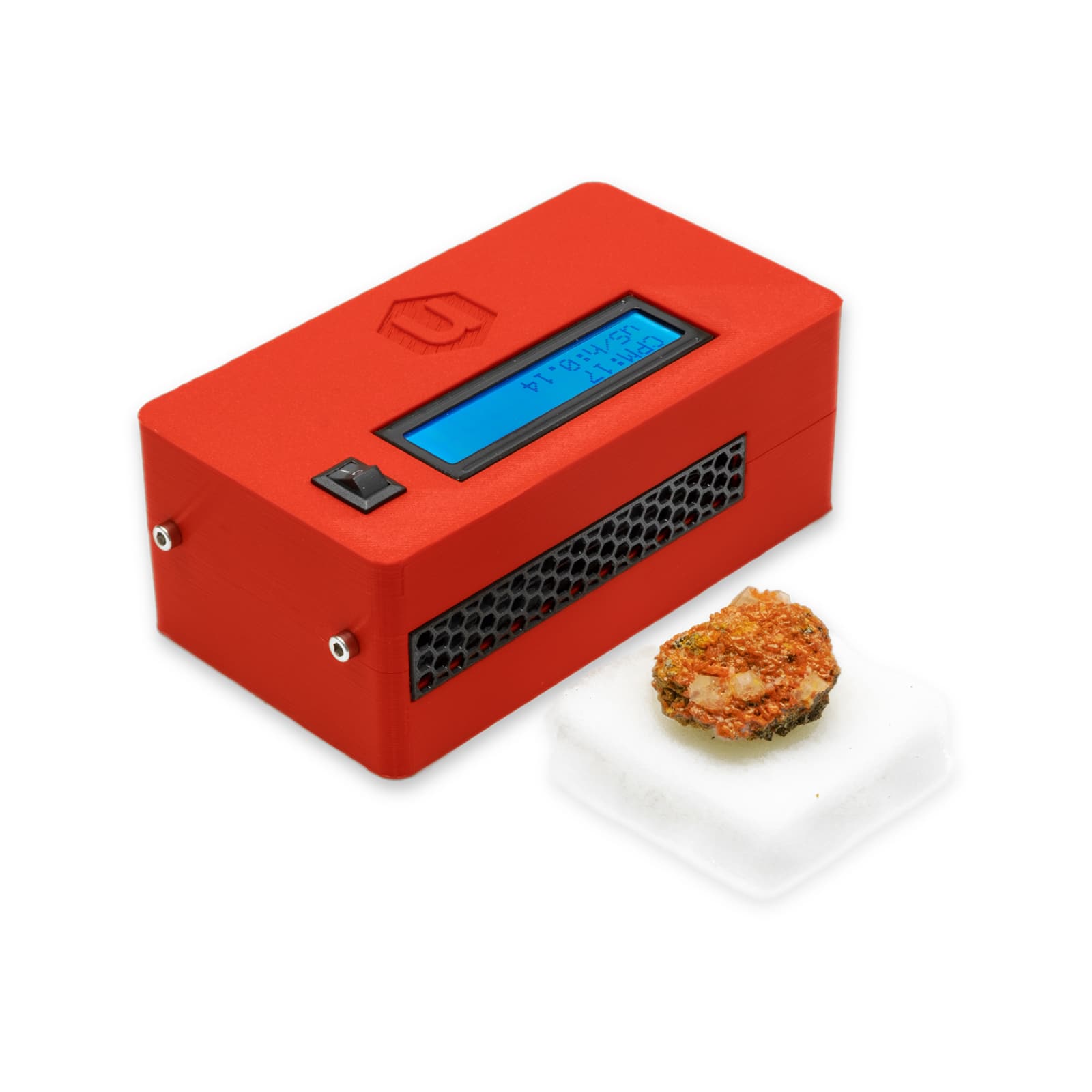

By measuring different samples one after the other, students see for themselves that radioactivity varies from one rock to another, and that radiation is a natural part of the environment around them. For a wider range of experiments, the kit can be extended with the RockyBOX (SPROCKS), which adds eight more samples, including Pitchblende.
The SP5660 is supported by a series of guided experiments on the CAEN Educational website. They explore the operating principles of Geiger-Müller counters and their use in everyday radiation measurements, from the lab bench to a commercial flight. Each guide explains the physics, the setup and the expected results, and can be downloaded as a printable version.
SG6160H – Statistics: Uncertainty as a Function of Live Time
SG6162H – Lead Shielding Effect on Environmental Radioactive Background (lead blocks required)
Browse all Geiger-Müller (GM) Detectors experiments on edu.caen.it.
|
|
Name
|
Statistics
|
SiPM Characterization
|
Photons
|
Cosmic Rays
|
Gamma Spectroscopy
|
Beta Spectroscopy
|
Nuclear Imaging
|
Environmental Radioactivity Indoor
|
Environmental Radioactivity Outdoor
|
Pulse Processing
|
|
|
SP5700 |
⚫ |
- |
- |
- |
- |
- |
⚫ |
- |
⚫ |
- |
|
|
SP5660 – RockyRad |
⚫ |
- |
- |
- |
⚫ |
- |
- |
- |
⚫ |
|
|
|
SP5640 |
⚫ |
- |
- |
- |
⚫ |
- |
- |
- |
⚫ |
- |
|
|
SP5630EN |
⚫ |
- |
- |
- |
- |
- |
- |
⚫ |
- |
- |
|
|
SP5600EMU |
⚫ |
- |
- |
- |
⚫ |
- |
- |
- |
- |
⚫ |
|
|
SP5630ENP |
⚫ |
- |
- |
- |
⚫ |
- |
- |
⚫ |
- |
|
|
|
SP5701 |
⚫ |
- |
- |
- |
⚫ |
- |
- |
- |
⚫ |
- |
|
|
SP5600E |
⚫ |
⚫ |
⚫ |
- |
- |
- |
- |
- |
- |
- |
|
|
SP5650 |
⚫ |
- |
- |
- |
⚫ |
- |
- |
- |
- |
- |
|
|
SP5620CH |
⚫ |
- |
- |
⚫ |
- |
- |
- |
- |
- |
- |
|
|
SP5600D |
⚫ |
- |
- |
⚫ |
- |
⚫ |
- |
- |
- |
- |
|
|
SP5600C |
⚫ |
- |
- |
- |
⚫ |
- |
- |
⚫ |
- |
- |
|
DETECTOR |
Geiger Module GM J305 |
|
DISPLAY |
OLED 128×64 pixels 1.54” |
|
MEASURING RANGE |
10 nSv/h – 50 µSv/h |
|
SENSITIVITY |
44 CPS/10 µSv/h (relative to 60Co) |
|
BATTERY |
|
|
INPUT/OUTPUT |
|
|
ACCESSORIES |
|
