MC²Analyzer

Graphical software tool for digitizers running DPP-PHA firmware

Home MC²Analyzer

Designed for Hexagon, DT5770 and Gamma Stream
Trapezoidal filter replacing shaping amplifier and peak sensing ADC
Online baseline restoration and ballistic effect correction
Online pile-up correction for live-time measurement
PHA and time-stamped list mode available
Full setting of all the relevant DPP-PHA parameters and power supplies for Hexagon and Gamma stream
Complete simultaneous control of multiple boards
Basic mathematical analysis on collected spectra (peak search, background subtraction, peak fitting, etc.)
Provides Energy, Time Stamp lists and histograms in ASCII and ANSI N42.42 format (energy spectra for D5770 only)

MC²Analyzer is a software specifically designed to manage Hexagon, DT5770 and Gamma Stream.
The DPP-PHA firmware implements a digital trapezoidal filter on the input pulse, which replaces the traditional analog chain of shaping amplifier and peak sensing ADC. The MCA is therefore directly connected to the charge sensitive preamplifier, with no need of additional devices. The PHA algorithm is able to perform online baseline restoration, ballistic effect corrections, and to manage the pile-up for the live time information. PHA and time-stamped list acquisition modes are available.

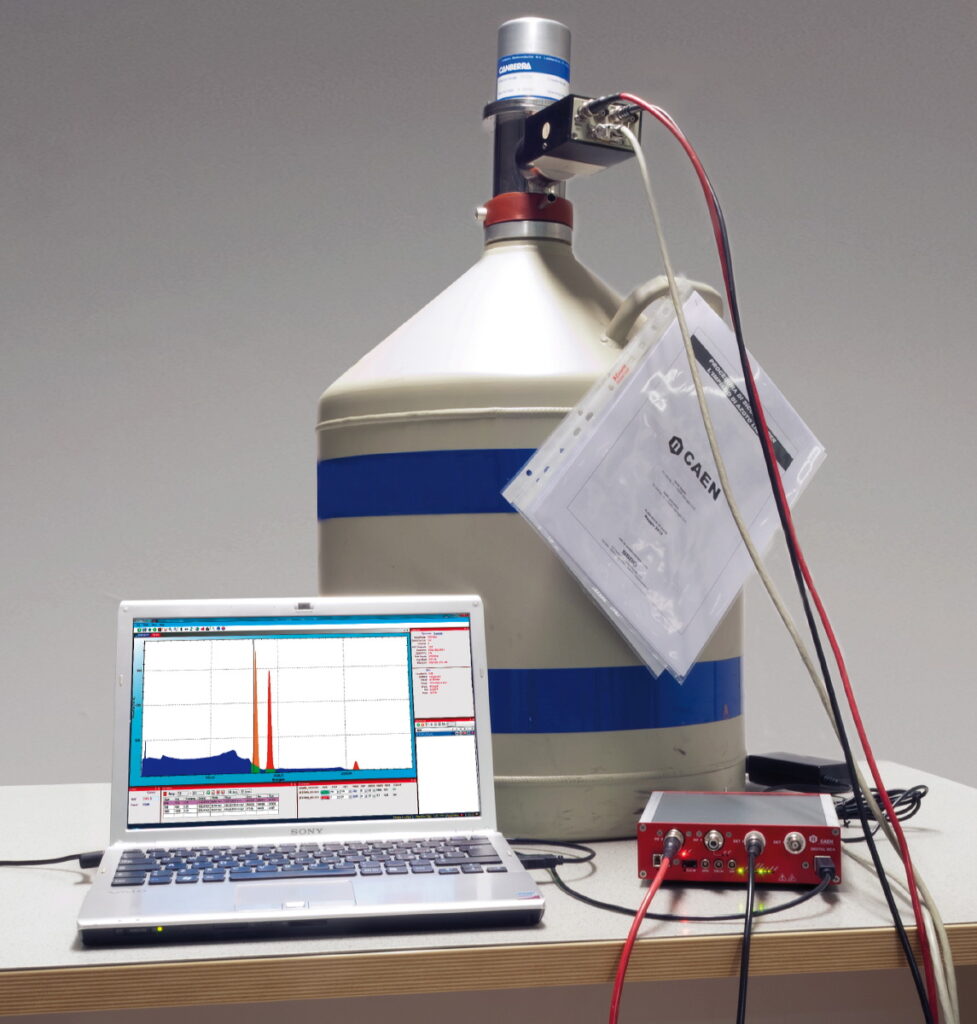

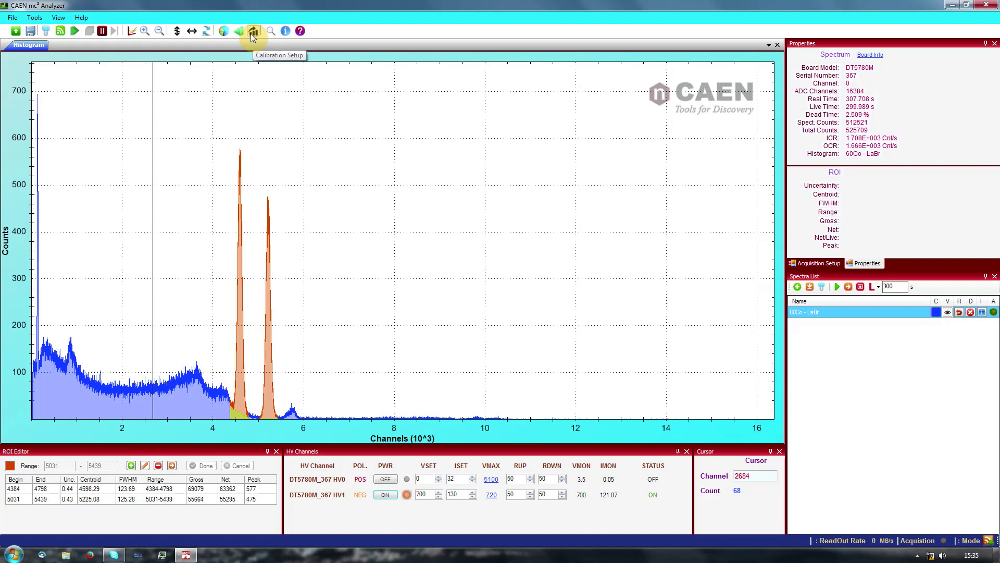

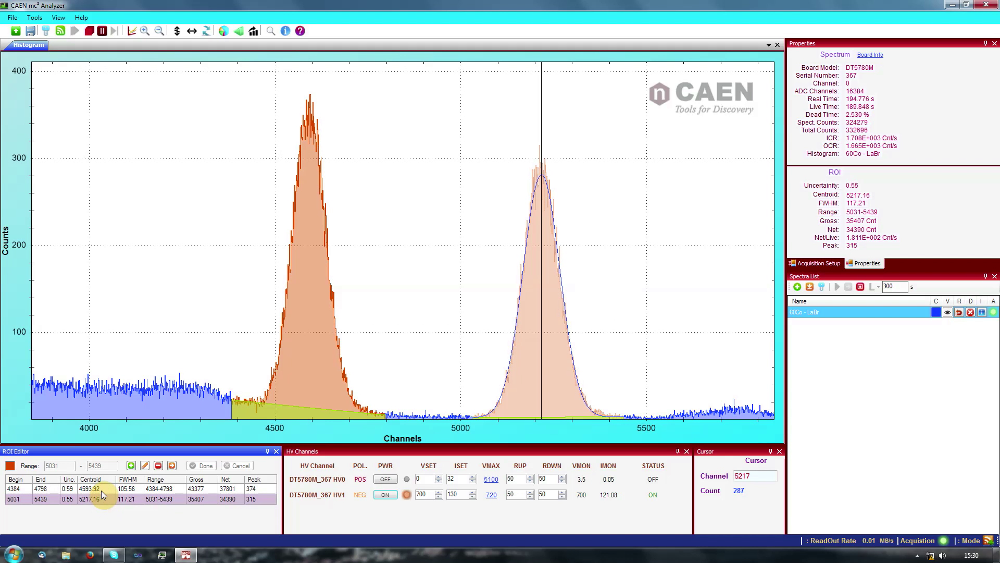

MC²Analyzer software allows the user to program the relevant DPP-PHA parameters, to manage the HV channels configuration to collect the spectra and perform basic mathematical analysis, like energy calibration, peak search, background subtraction, peak fitting, etc.

The software is designed with multi-channel and multi-board capabilities: it can handle several boards and manage the data acquisition from each of them at the same time.

Supported Operating Systems:	Windows
Language:	C#
Supported Products:	Hexagon, Gamma Stream and DT5770
Supported Comm. Interface:	USB and Ethernet
