SP5701

Easypet Kit

Request a Quote Add to WishlistView Wishlist

Home EducationalEducational KitsTeaching & Learning Kits SP5701

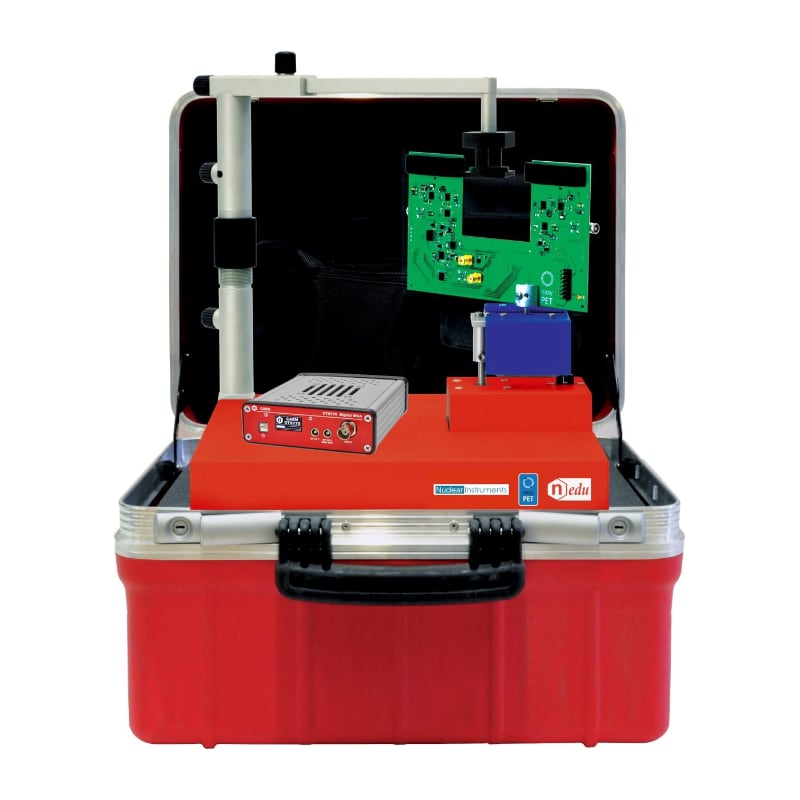

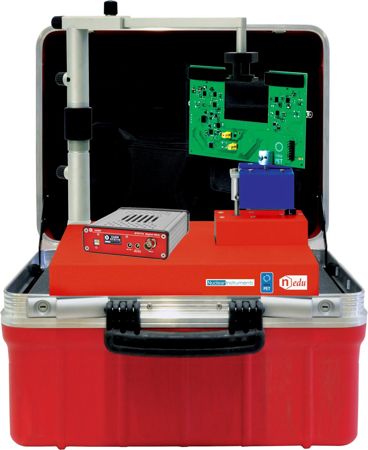

Photo of SP5701
Photo of SP5701
DatasheetDownloadCompareTech. Spec.

Highlights

  • Complete educational kit combining the EasyPET scanner with the DT5770 portable Digital MCA

  • Detection of the two back-to-back 511 keV photons from positron annihilation

  • Two-dimensional image reconstruction of a radioactive source, in real time during acquisition

  • DT5770 Digital MCA (14 bit, 150 MS/s) for gamma spectroscopy measurements

  • Experiments on gamma spectroscopy, system linearity, spatial resolution and efficiency

  • EasyPET Control Software with graphical user interface

Overview

Positron Emission Tomography (PET) is one of the most advanced medical imaging techniques. It provides detailed functional information on physiological processes inside the human body, and it plays a major role in cancer diagnosis, therapy monitoring and drug development. The SP5701 EasyPET Kit brings this technology into the teaching lab. It combines the EasyPET educational scanner with a portable Digital Multi-Channel Analyzer, so students can study both PET imaging and gamma spectroscopy with a single setup.

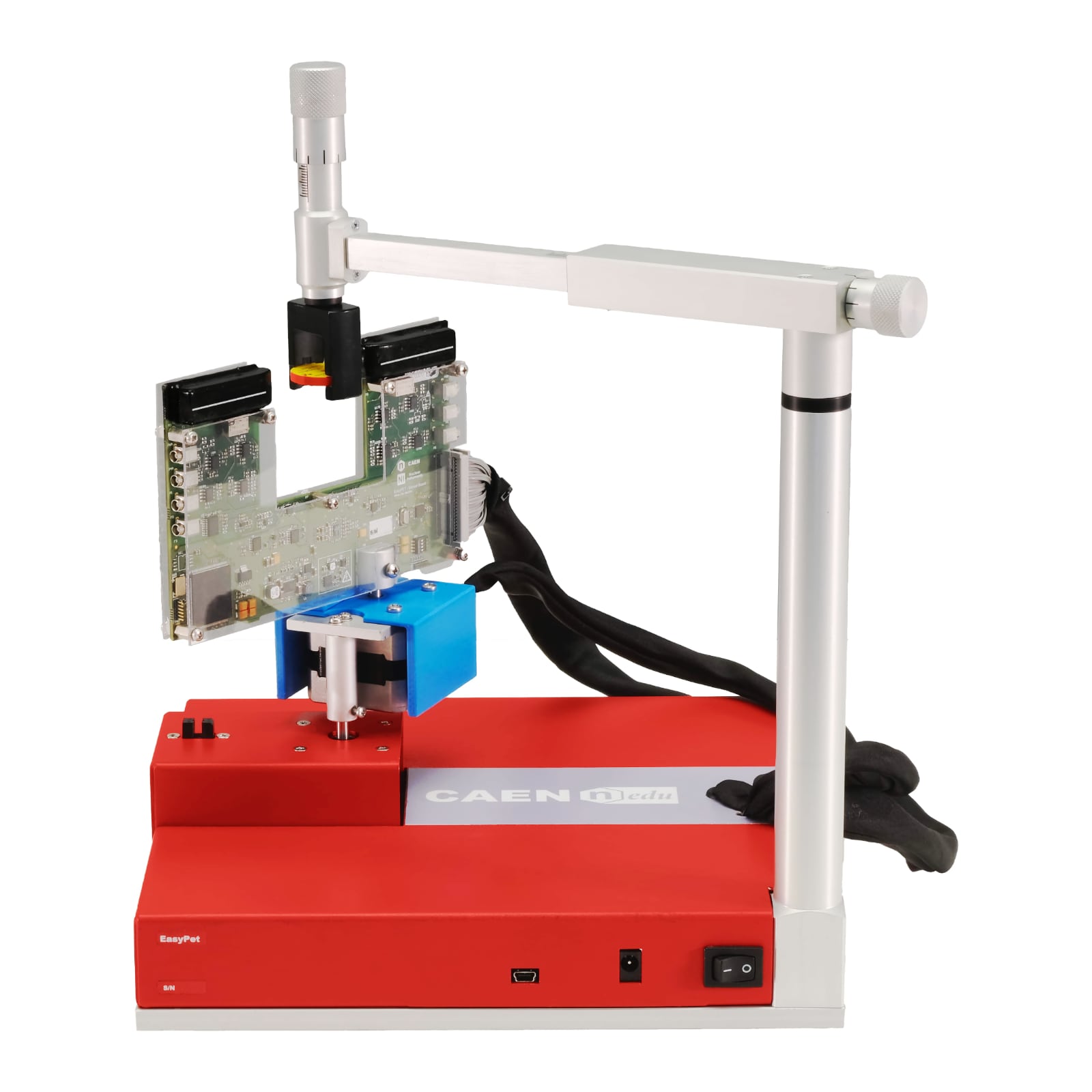

EasyPET is a simple, portable PET system designed for higher education. It lets students explore the physical and technological principles of clinical PET scanners, using the same basic detectors as state-of-the-art systems. PET is based on a chemical marker labelled with a positron-emitting radioisotope. Each emitted positron annihilates with an atomic electron, producing two 511 keV photons that travel in opposite directions. In a clinical scanner, a ring of detectors records these photon pairs in coincidence, and the image is reconstructed from the lines that connect each pair of detection points. With EasyPET, students reproduce this process on a radioactive source and see how a PET image takes shape from individual coincidence events. The scanner is operated through the EasyPET Control Software, where students configure acquisitions, calibrate the detectors and follow the image reconstruction in real time.

The kit also includes the DT5770, a compact Digital MCA for gamma spectroscopy. It integrates an analog front end with programmable gain and a 14-bit, 150 MS/s digitizer, and processes signals digitally with automatic pole-zero cancellation, pile-up rejection, live time correction and baseline restoration. Designed for high-resolution semiconductor detectors such as HPGe and Silicon Drift Detectors, it can also work directly with scintillators coupled to photomultipliers.

The experimental path starts with gamma spectroscopy and the verification of system linearity. It continues with the detection of positron annihilation and the two-dimensional reconstruction of a radioactive source. Students then characterize the system, measuring its spatial resolution and detection efficiency.

Experiments

The SP5701 is supported by a series of guided experiments on the CAEN Educational website. They introduce students to the principles of PET imaging, from gamma spectroscopy and coincidence detection to image reconstruction and spatial resolution. Thanks to the DT5770 Digital MCA included in the kit, the full series can be performed with no additional instrumentation. Each guide explains the physics, the setup and the expected results, and can be downloaded as a printable version.

  • SG6131 – Basic Measurements: γ Spectroscopy and System Linearity

  • SG6132G – Positron Annihilation Detection

  • SG6133G – Two-dimensional Reconstruction of a Radioactive Source

  • SG6134G – Spatial Resolution

Browse all Nuclear Imaging – PET experiments on edu.caen.it.

Supported Software

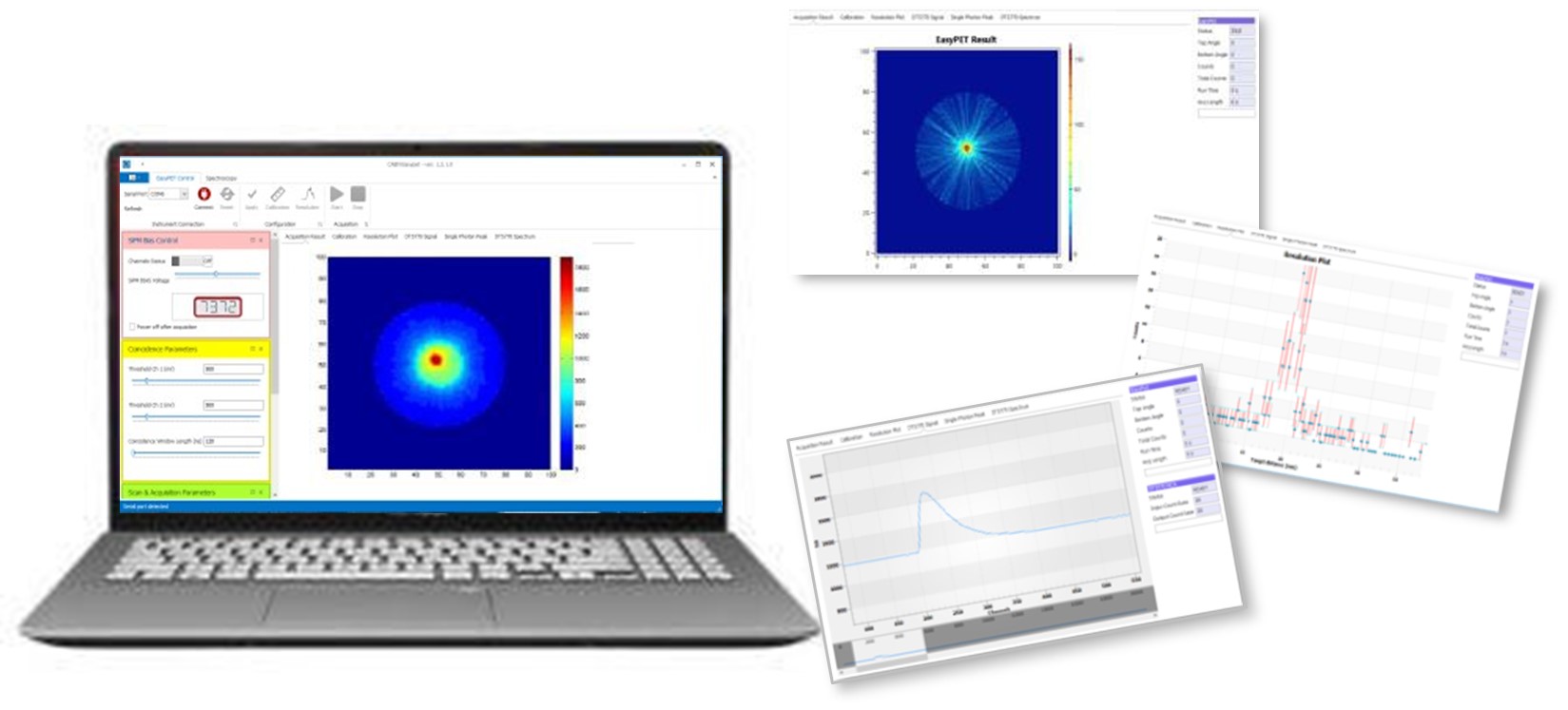

  • EasyPET Control Software — Control, Acquisition and Reconstruction Software for the EasyPET Educational PET Scanner

Video

Play video: CAEN Educational Tutorial - EasyPET SP5700

This video is hosted on YouTube. To play it here, accept the Experience cookies.

Watch on YouTube

CAEN Educational Tutorial - EasyPET SP5700


Ordering Options

Code Description
WK5701XAAAAA

SP5701 EasyPET Kit

RoHS
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist
Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    Statistics
    SiPM Characterization
    Photons
    Cosmic Rays
    Gamma Spectroscopy
    Beta Spectroscopy
    Nuclear Imaging
    Environmental Radioactivity Indoor
    Environmental Radioactivity Outdoor
    Pulse Processing
    SP5700

    SP5700

    ⚫

    -

    -

    -

    -

    -

    ⚫

    -

    ⚫

    -

    SP5660 – RockyRad

    SP5660 – RockyRad

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    SP5640

    SP5640

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    -

    SP5630EN

    SP5630EN

    ⚫

    -

    -

    -

    -

    -

    -

    ⚫

    -

    -

    SP5600EMU

    SP5600EMU

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    -

    ⚫

    SP5630ENP

    SP5630ENP

    ⚫

    -

    -

    -

    ⚫

    -

    -

    ⚫

    -

    SP5701

    SP5701

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    ⚫

    -

    SP5600E

    SP5600E

    ⚫

    ⚫

    ⚫

    -

    -

    -

    -

    -

    -

    -

    SP5650

    SP5650

    ⚫

    -

    -

    -

    ⚫

    -

    -

    -

    -

    -

    SP5620CH

    SP5620CH

    ⚫

    -

    -

    ⚫

    -

    -

    -

    -

    -

    -

    SP5600D

    SP5600D

    ⚫

    -

    -

    ⚫

    -

    ⚫

    -

    -

    -

    -

    SP5600C

    SP5600C

    ⚫

    -

    -

    -

    ⚫

    -

    -

    ⚫

    -

    -

    Technical Specifications

    Close

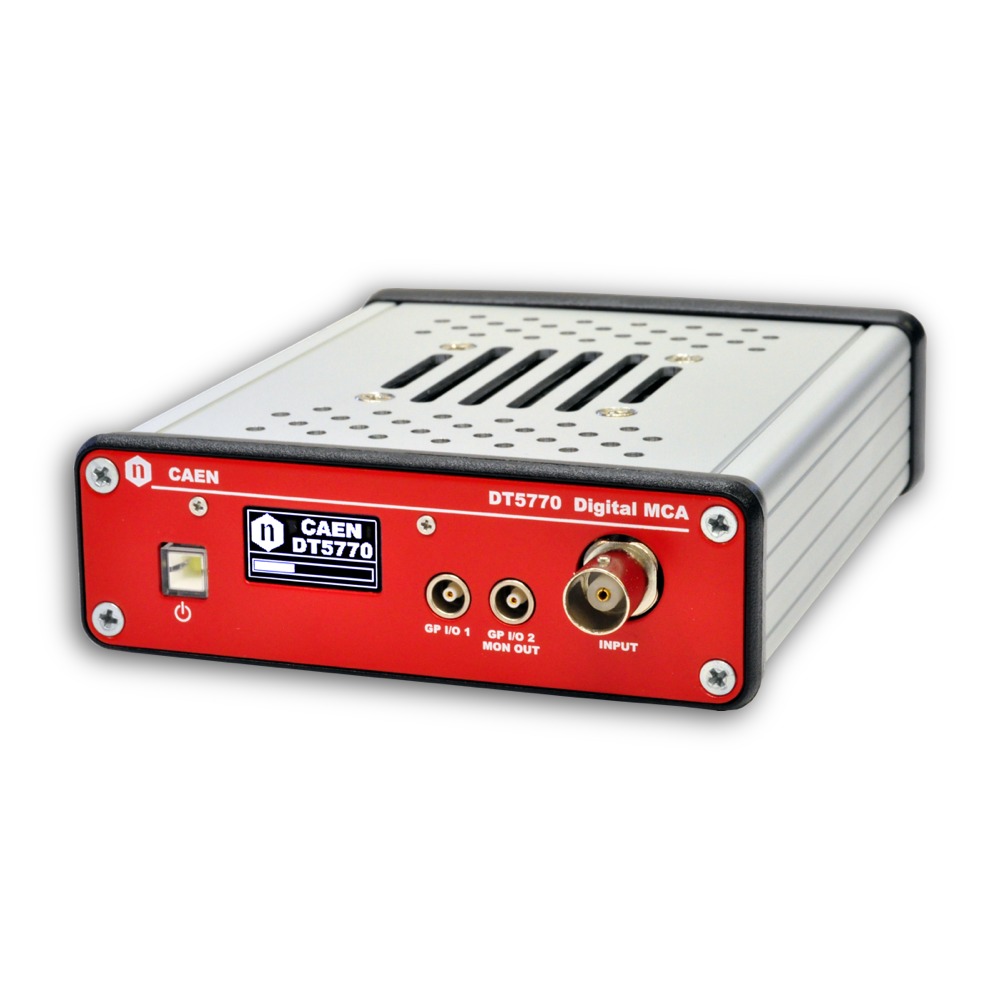

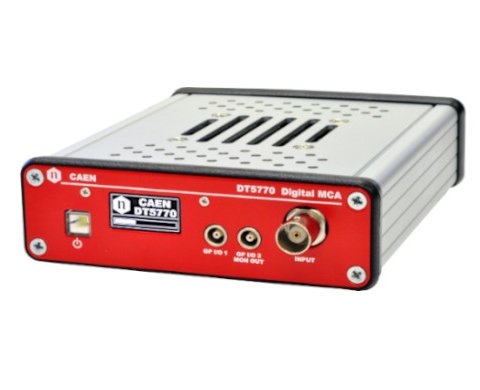

    DT5770 Digital Multi Channel Analyzer - Desktop

    Analog Input:

    • Impedance: 50 Ohm / 1 kOhm (sw selectable)

    • Positive and negative signals accepted

    • Single-ended, DC/AC coupled

    • Programmable 4-step analog coarse gain corresponding to 1.25 Vpp, 2.5 Vpp, 5 Vpp, 10 Vpp ranges –

    • Bandwidth: DC to 30 MHz

    • Single ended, DC/AC coupled

    Digital conversion:

    • Resolution: 14 bit

    • Sampling rate: 150 MS/s Digital Signal Processing

    Digital Signal Processing:

    • Manual and automated trigger threshold adjustment

    • Manual and automated Pole-Zero cancellation; decay time up to 0.65 ms

    • Pile-up rejection and Live Time correction

    • Baseline restorer with programmable averaging
