Based on SiPM detectors and plastic scintillating tiles
Up to 3 scintillating tiles management
Flexible system geometry
No Needs SW interface
Embedded E Ink Display
SD card to download data
Cosmic rays are high-energy particles that constantly reach the Earth’s atmosphere from all directions. When they interact with it, they produce showers of secondary particles, mostly muons, that reach the ground and pass through everything around us, every second.

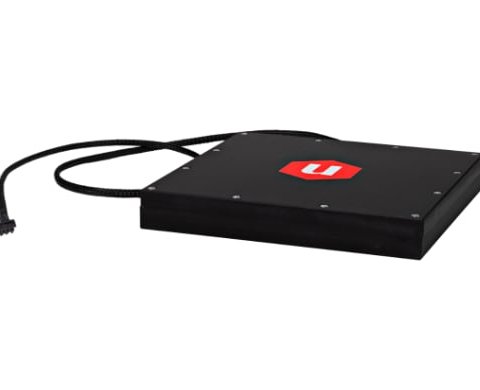

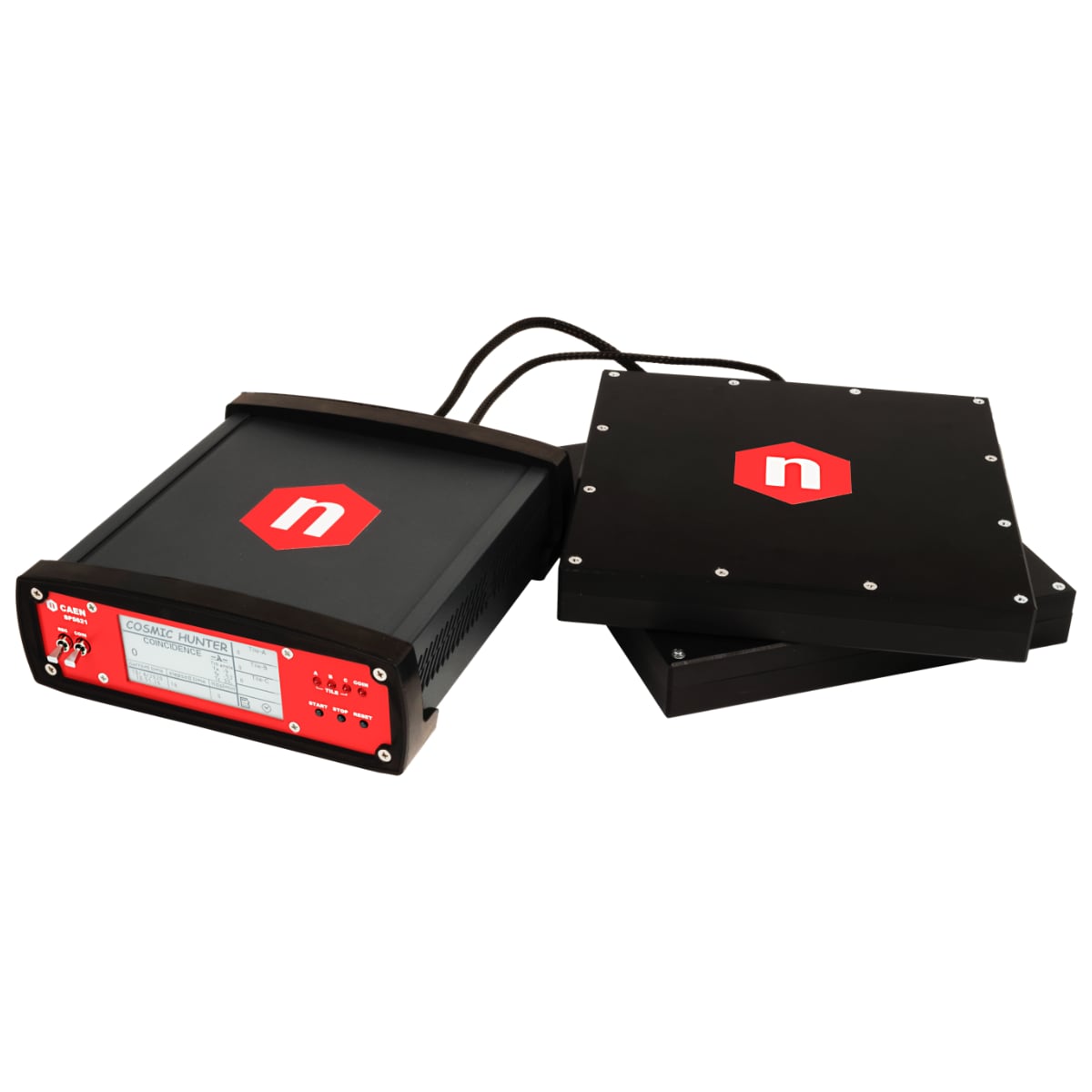

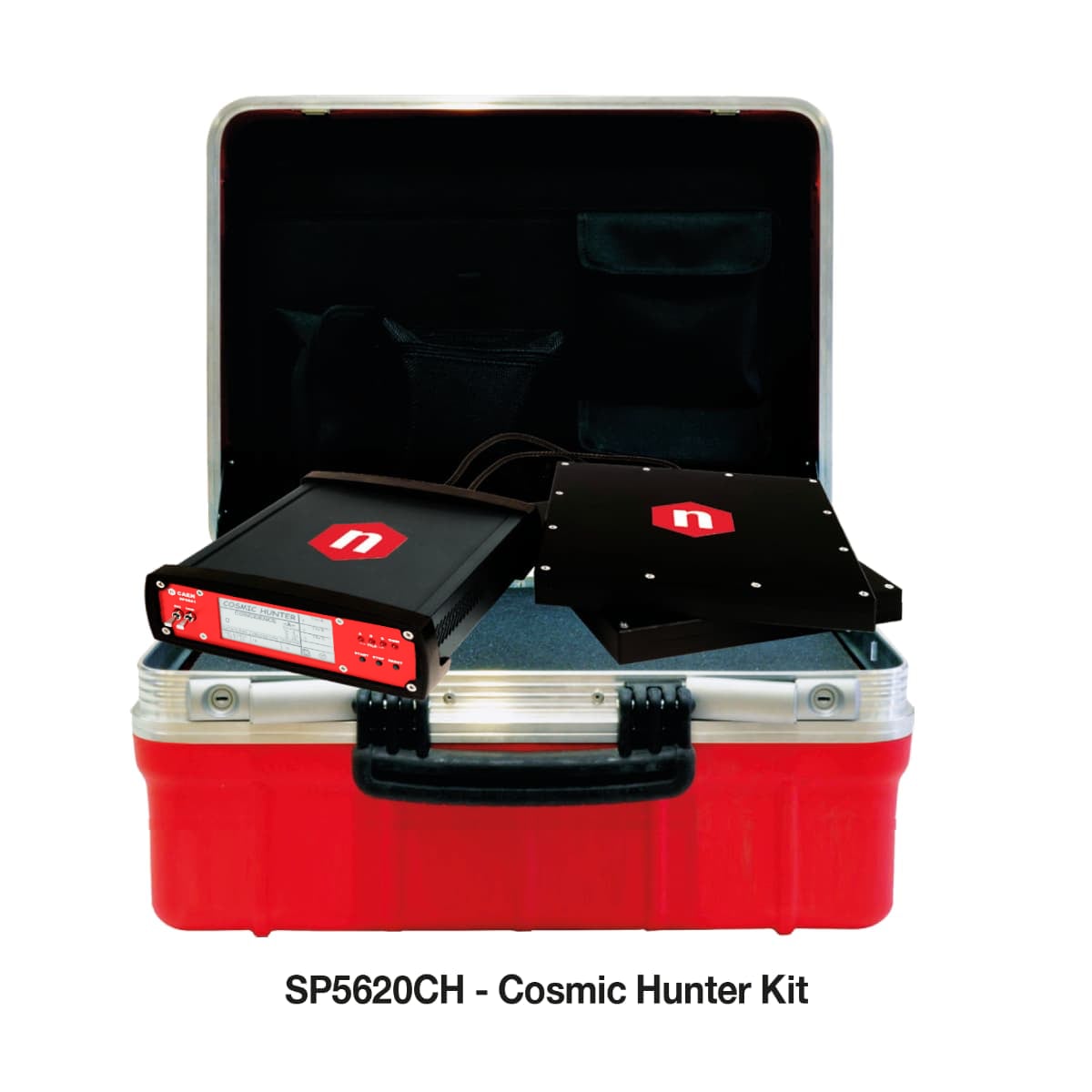

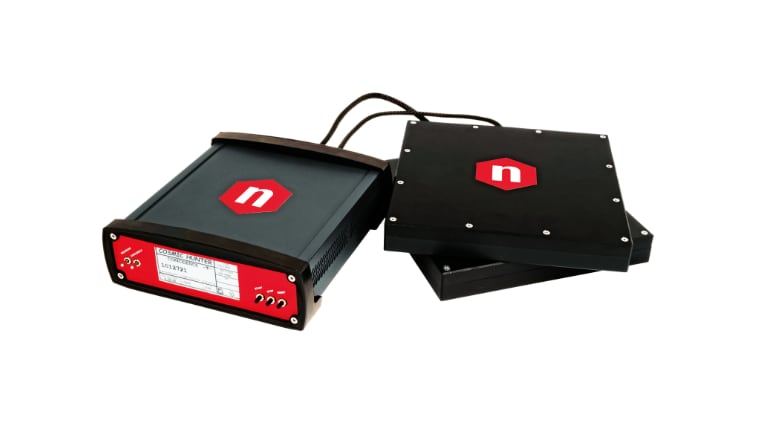

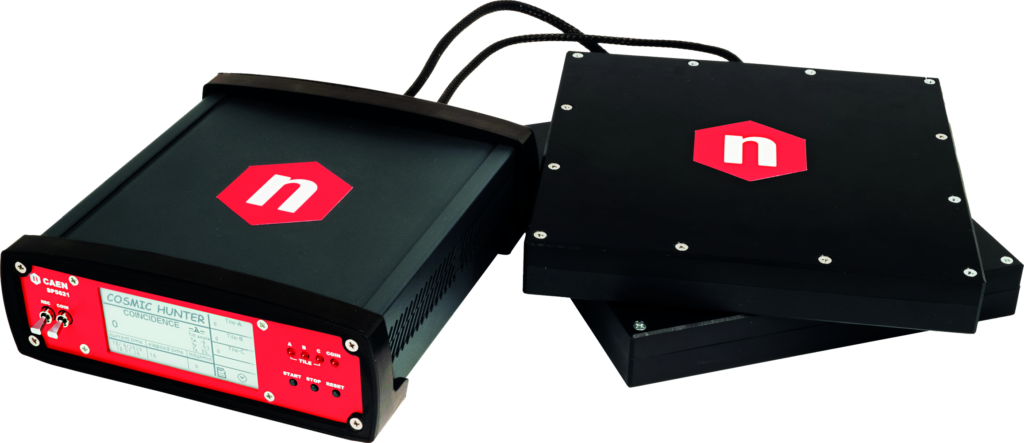

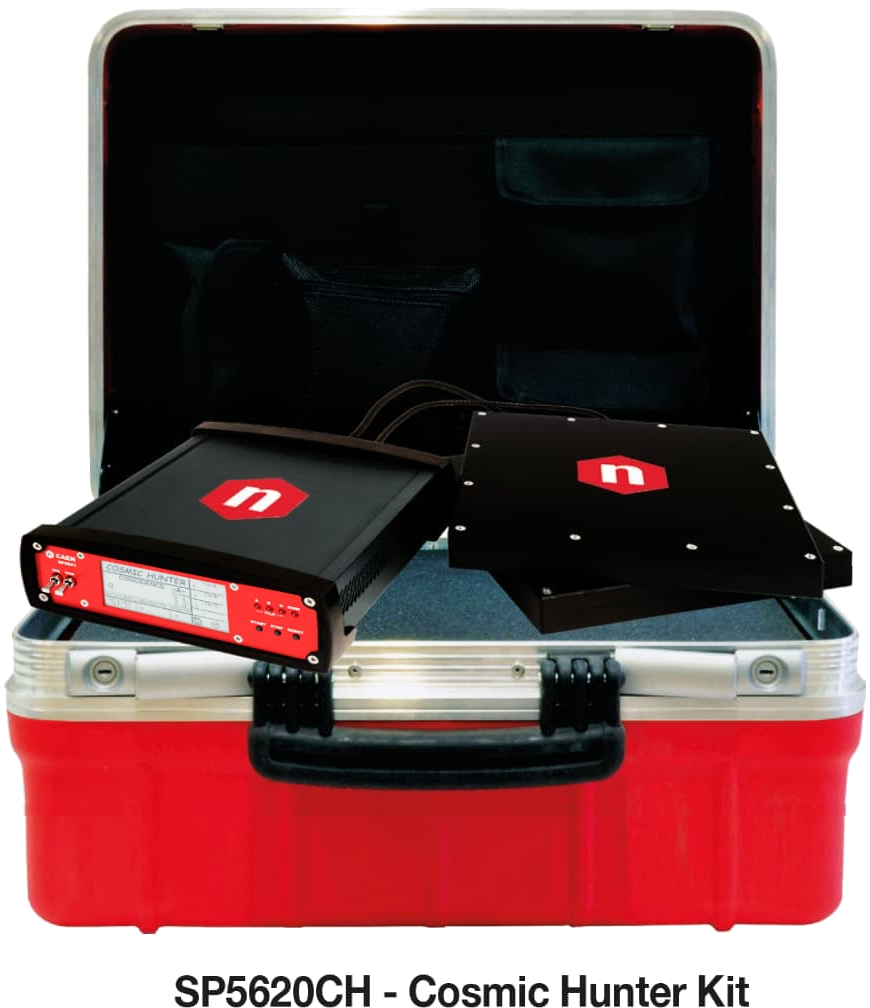

Cosmic Hunter is the CAEN educational kit that brings this phenomenon into the classroom. It is designed to introduce students to the detection and analysis of cosmic rays through hands-on measurements. The system is based on plastic scintillating tiles read out by Silicon Photomultipliers and a coincidence module that manages up to three detection units.

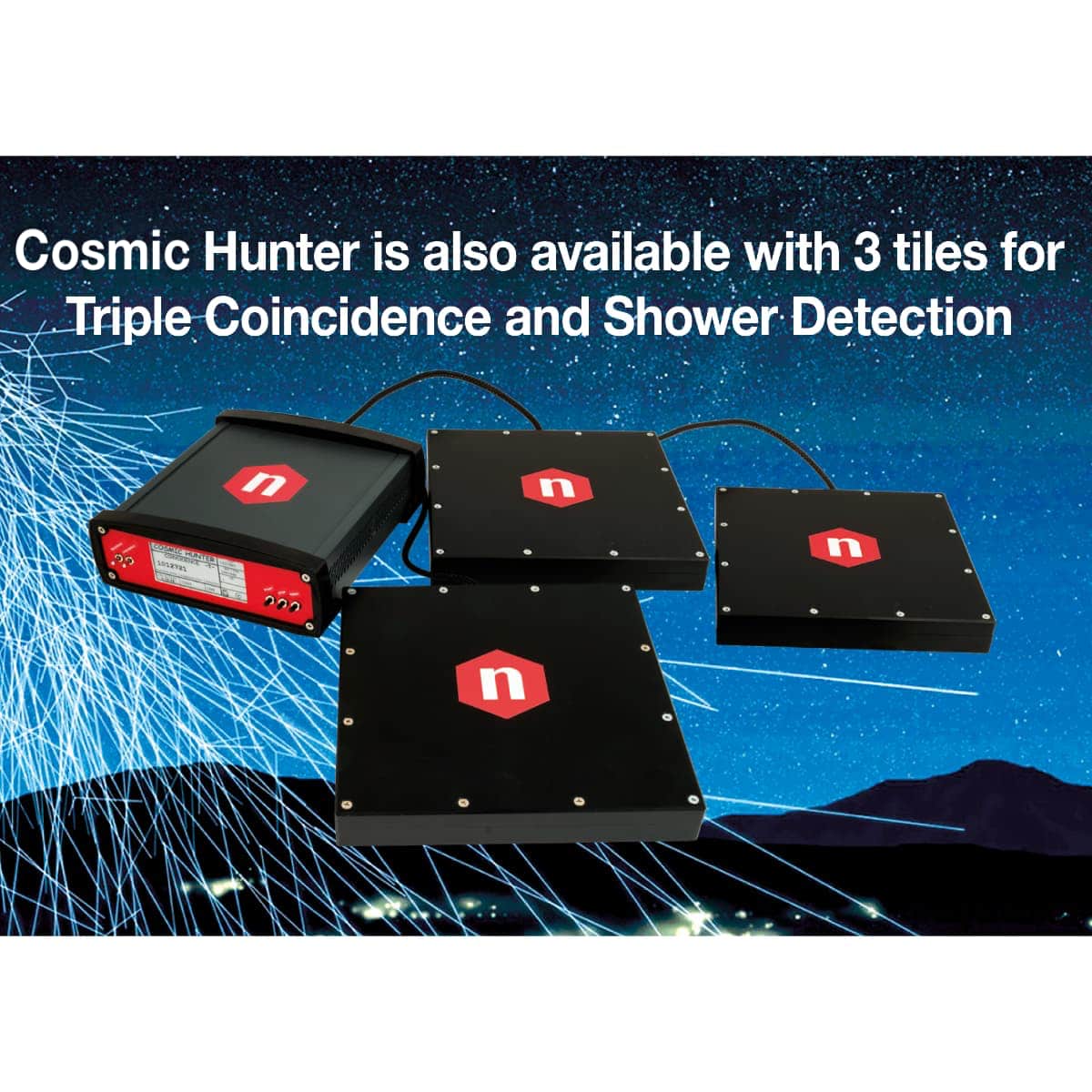

Thanks to its flexible geometry, the tiles can be arranged in different configurations. This allows a wide range of experiments, including muon detection, flux estimation, and cosmic shower detection. The coincidence module offers seven coincidence modes: single, double, and triple tile coincidence.

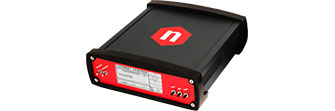

Cosmic Hunter works as a standalone instrument. Counts and measurement information are shown in real time on the embedded E Ink display, and data are stored on an SD card. The kit also integrates sensors for temperature, pressure, and humidity, so students can relate the muon rate to environmental conditions. When connected to a PC via USB, the Cosmic Hunter Software gives full control of the acquisition, real-time charts, and data saving in .csv format for offline analysis.
The SP5620CH is supported by a series of guided experiments on the CAEN Educational website. They take students from the basics of muon detection to the study of cosmic flux, air showers and solar activity. Each guide explains the physics, the setup and the expected results, and can be downloaded as a printable version.
SG6214D – Detection Efficiency (an additional SP5622, a DT1081A logic unit and a cable adapter are required)

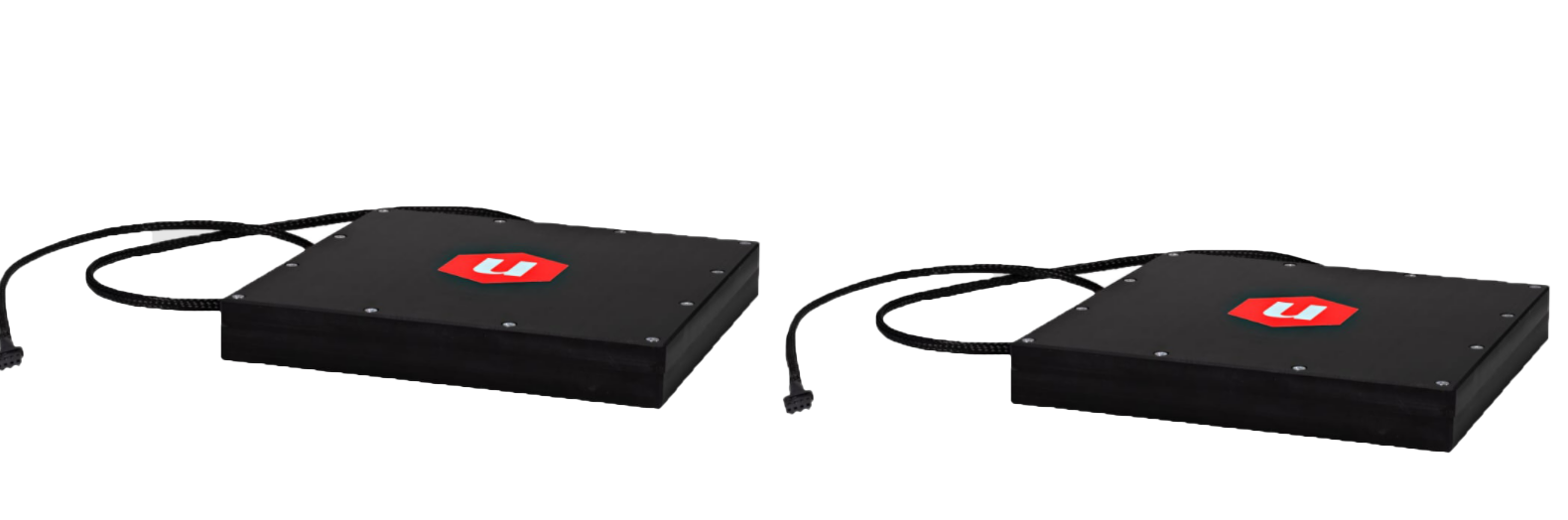

SG6217D – Cosmic Shower Detection (an additional SP5622 is required)
Browse all Cosmic Rays experiments on edu.caen.it.
|
|
