4 Channel up to 6 kV Family with USB & Ethernet

Up to 6 kV - DT55xxE

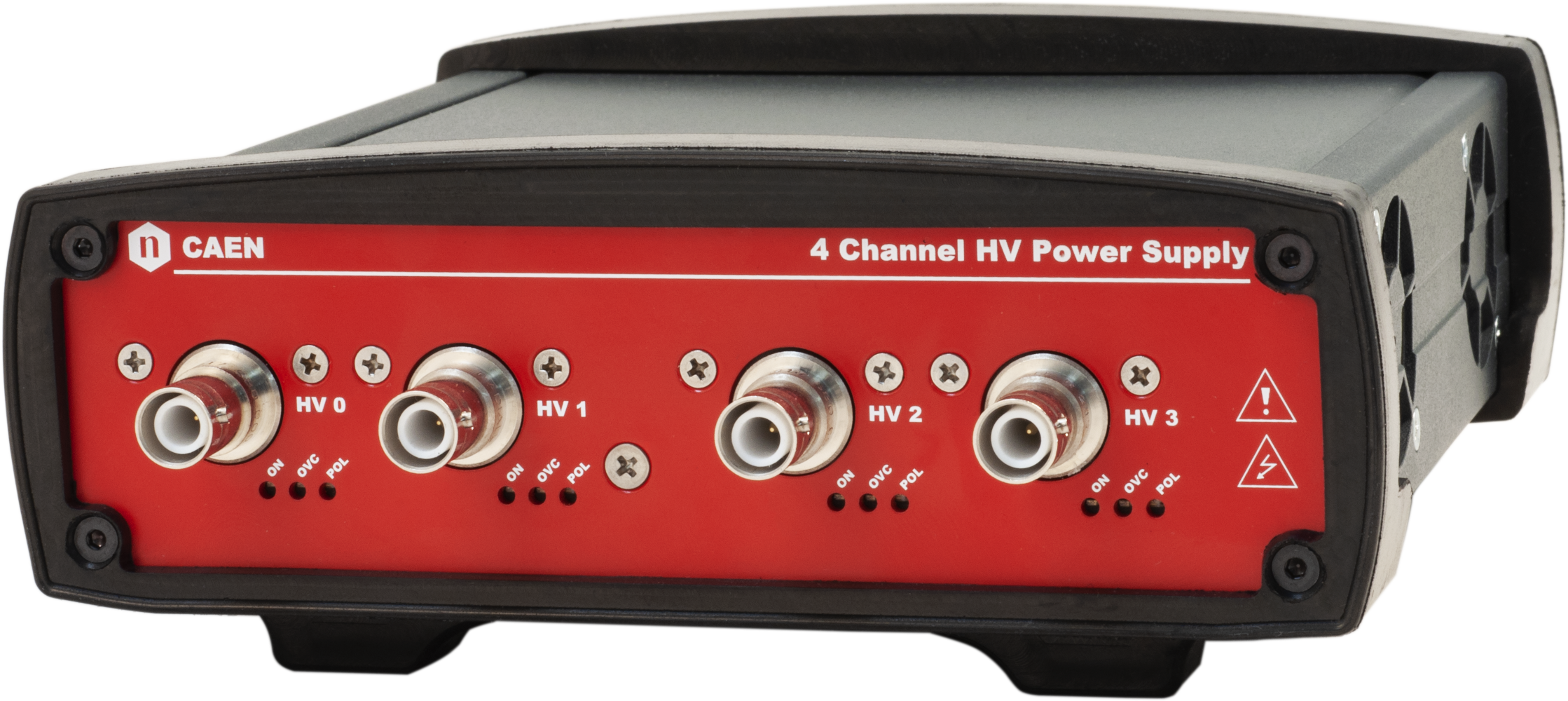

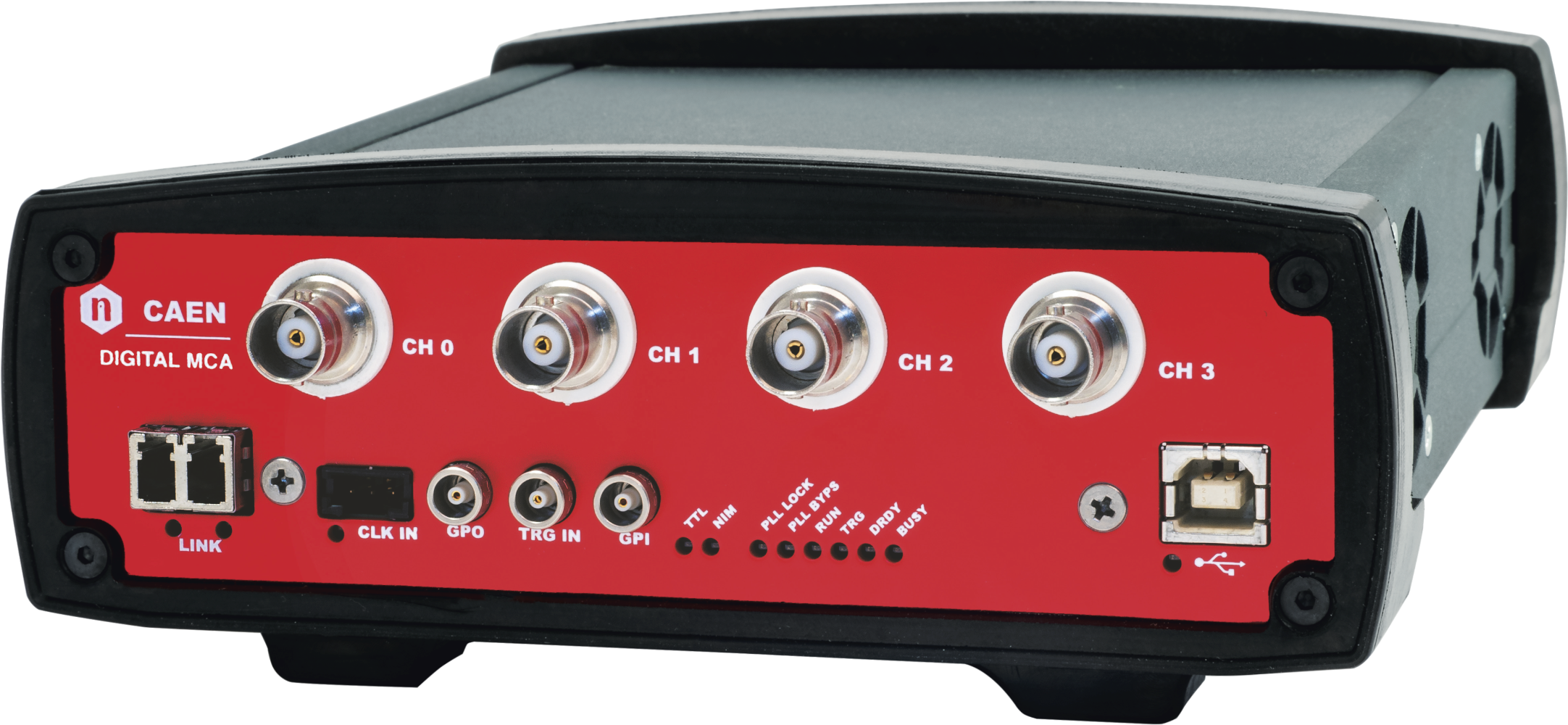

Photo of 4 Channel up to 6 kV Family with USB & Ethernet

The DT55xxE is a CAEN Power Supply Family providing 4 independent High Voltage channels in a compact Desktop form factor. The units are available with either positive, negative or mixed polarity. High Voltage outputs are delivered through SHV connectors. DT55xxE units can be controlled, via USB or Ethernet, taking advantage of the new GECO2020 Control Software.Different versions are available spanning from 500 V to 6 kV and from 20 μA to 3 mA (4 W maximum), meeting the needs of a wide range of applications. A Zoom option is available for Imon. This feature enhances the current monitoring, increasing the resolution of a x10 factor (up to 10 pA). The HV output Ramp-Up and Ramp-Down rates can be independently for each channel in the range 1 ÷ 500 V/s in 1 V/s steps (1 ÷ 100 V/s for DT5519E).Safety features include:

  • Overvoltage and Undervoltage warning when the output voltage differs from the programmed value (±0.5% of the set value, ±3 V)
  • Programmable hardware VMAX, IMAX protection limit
  • Overcurrent detection: when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched of. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
  • Common Interlock logic for channels enable/disable and individual input signal for channel Kill function.

Available Options:

  • x 10 Imon Zoom, increasing Imon resolution to 10 pA (DT5521HE).

  • 4 independent HV channels in a compact desktop module

  • Up to 6 kV / 3 mA with positive, negative, or mixed polarity

  • Very low ripple and high stability

  • Full protections, interlocks, and status monitoring

  • Remote control via USB 2.0 and Ethernet

4 Channel up to 6 kV Family with USB & Ethernet Models

Grid Compare

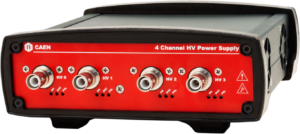

DT5521E

DT5521E

  • 4 independent channels in a compact desktop case

  • 6 kV / 300 µA output range

  • Available with positive, negative or mixed polarity

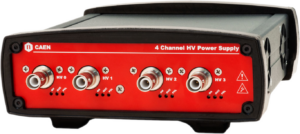

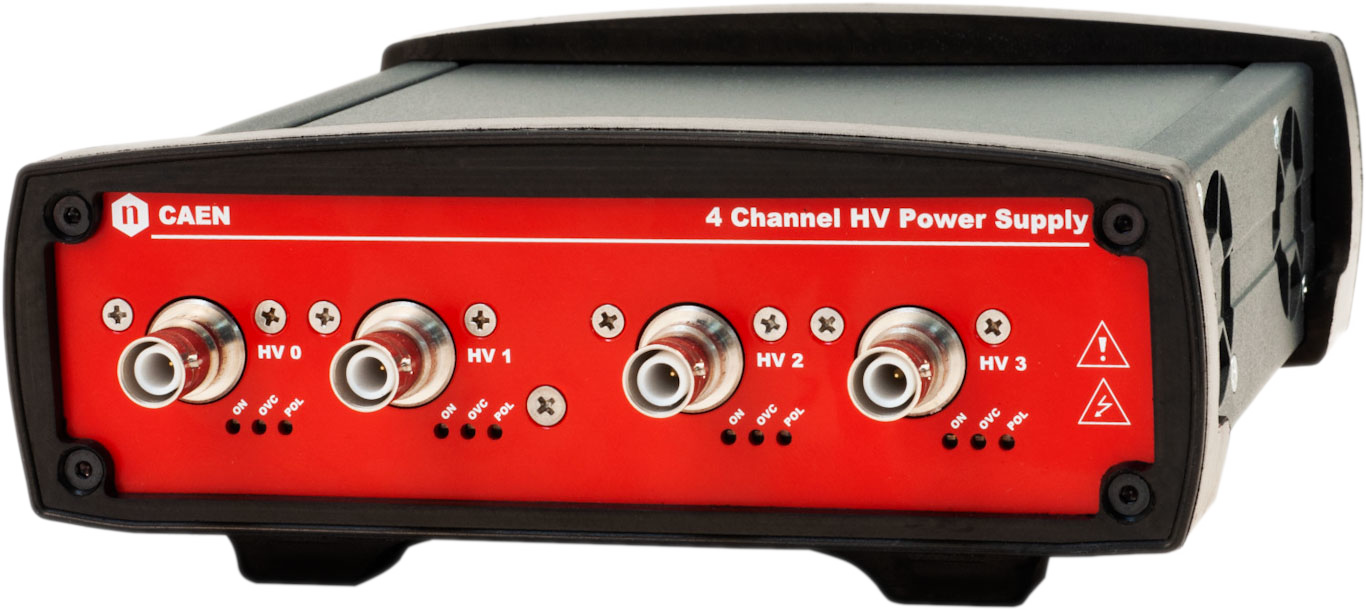

DT5521HE

DT5521HE

  • 4 independent channels in a compact desktop case

  • 6 kV / 20 µA output range

  • Available with positive, negative or mixed polarity

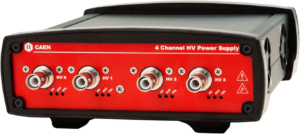

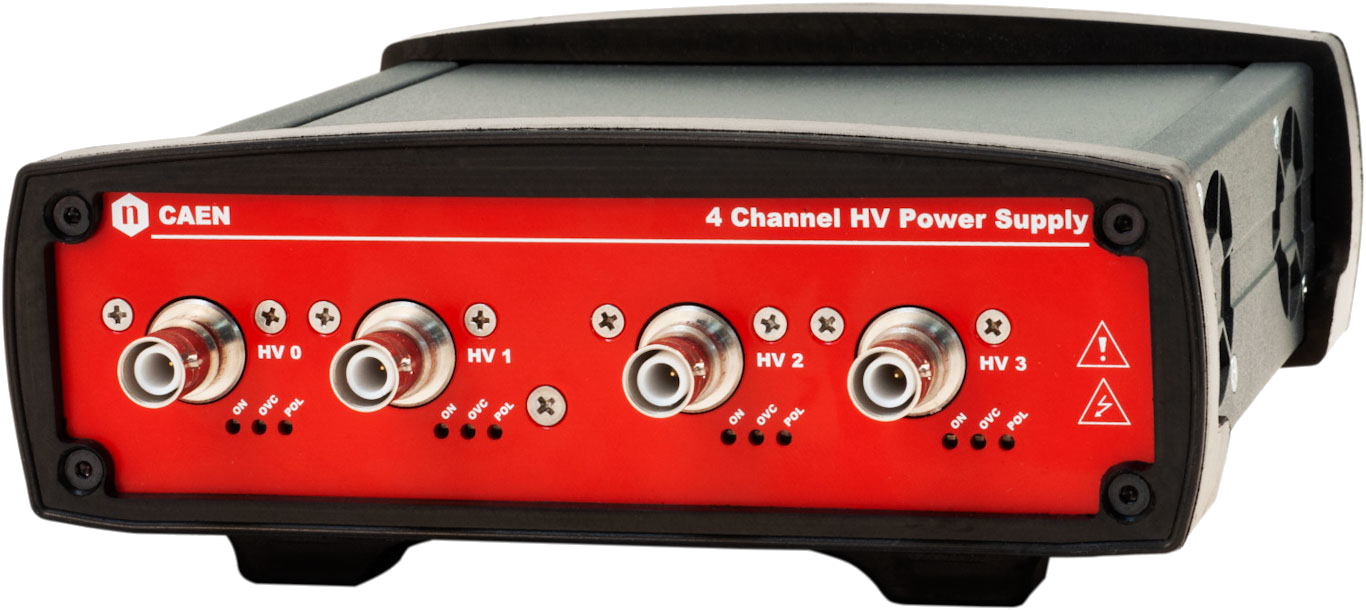

DT5534E

DT5534E

  • 4 channels in a compact desktop case

  • 6 kV / 1  mA output range (4W max)

  • Available with positive, negative or mixed polarity

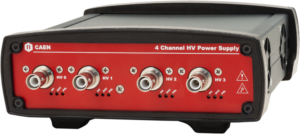

DT5533E

DT5533E

  • 4 independent channels in a compact desktop case

  • 4 kV / 3mA output range (4W max)

  • Available with positive, negative or mixed polarity
DT5519E

DT5519E

  • 4 independent channels in a compact desktop case

  • 500 V / 3mA output range

  • Available with positive, negative or mixed polarity
Name
No. of Channels
Max Output V
Max Output I
Vset/Vmon Resolution
Iset/Imon Resolution
Max. Ramp Up/Down Rate
Ripple Typ. (>1kHz)
Connectors
Max Power per Channel
Features
DT5521E

DT5521E

4

6000 V

300 µA

Vset: 100 mV
Vmon: 50 mV

Iset: 5 nA
Imon: 1 / 0.1 nA

500 V/s

<2 mVpp

SHV

1.8 W

Remote control via USB or Ethernet
DT5521HE

DT5521HE

4

6000 V

20 µA

Vset: 100 mV
Vmon: 50 mV

Iset: 0.5 nA
Imon: 0.1 / 0.01 nA

500 V/s

<2 mVpp

SHV

0.12 W

Remote control via USB or Ethernet
DT5534E

DT5534E

4

6000 V

1 mA

Vset: 100 mV
Vmon: 50 mV

Iset: 20 nA
Imon: 5 / 0.5 nA

500 V/s

<10 mVpp

SHV

4 W

Remote control via USB or Ethernet
DT5533E

DT5533E

4

4000 V

3 mA

Vset: 100 mV
Vmon: 10 mV

Iset: 50 nA
Imon: 10 / 1 nA

500 V/s

<2 mVpp

SHV

4 W

Remote control via USB or Ethernet
DT5519E

DT5519E

4

500 V

3 mA

Vset: 10 mV
Vmon: 1 mV

Iset: 50 nA
Imon: 10 / 1 nA

100 V/s

<2 mVpp

SHV

1.5 W

Remote control via USB or Ethernet

Software Tools available (free download) to control the Up to 6 kV Family – DT55xxE:

CAEN LabVIEW It is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules.
CAEN HV Wrapper Library It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products
GECO2020 CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.
