4 channels in a compact desktop case
-
6 kV / 1 mA output range (4W max)
-
Available with positive, negative or mixed polarity
-
SHV coaxial output connectors
-
Low Ripple
-
5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)
-

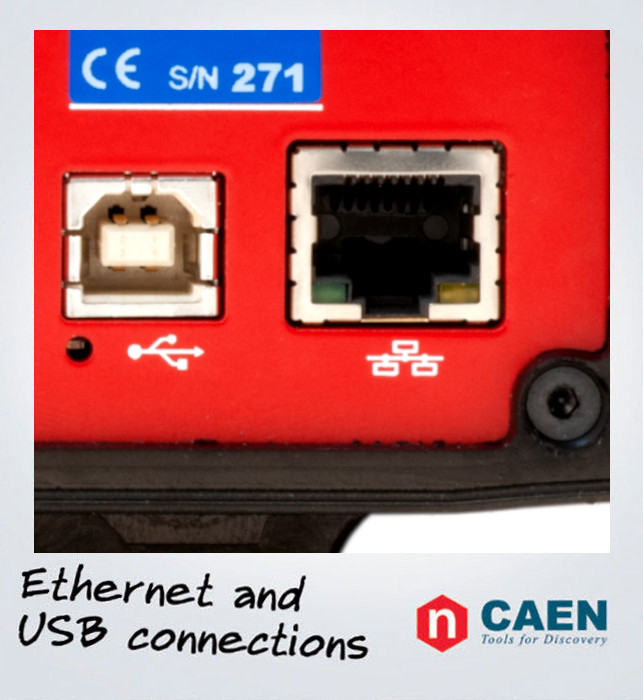

Remote control (USB 2.0 and Ethernet)
-
Software Tools for easy channel management

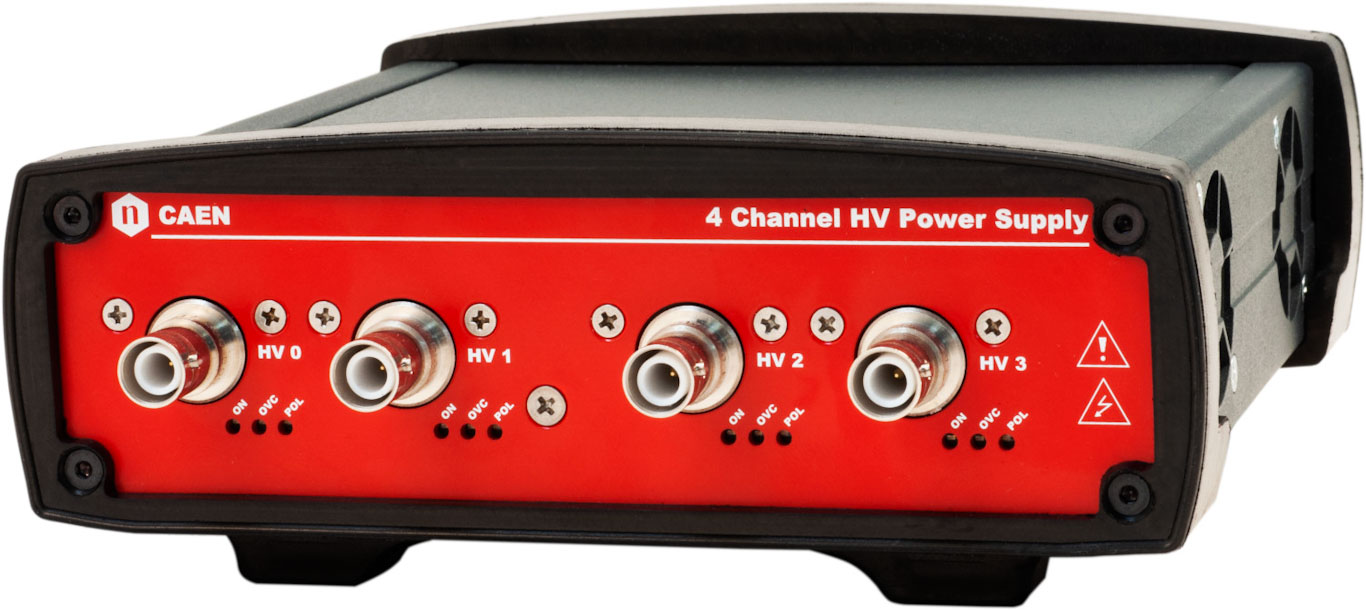

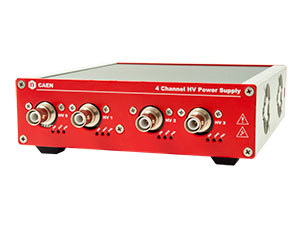

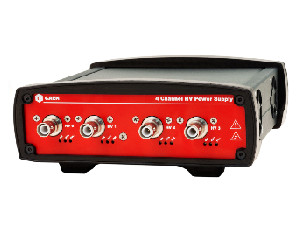

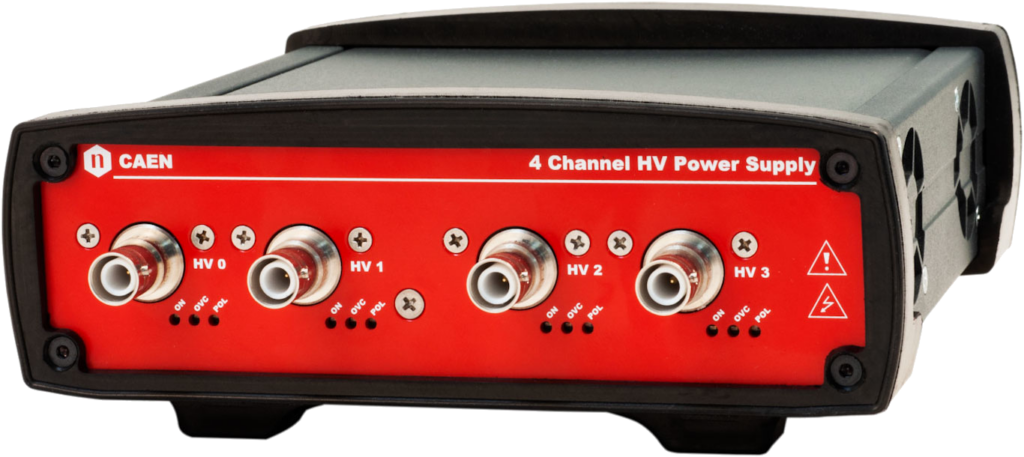

The CAEN Mod. DT5534E is a compact desktop module housing 4 independent High Voltage Power Supply Channels 6 kV, 1 mA (4 W max). The unit is available with either positive or negative output polarity; mixed version with 2 positive and 2 negative channels is also available. HV outputs are delivered through SHV connectors.
|
SHV connector Radiall R317580 HV coaxial connector for Mod.DT5534E |
Consult our connectors reference page for technical information.
The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1 ÷ 500 V/s range with 1 V/s steps. The module features 5 nA Imon resolution. Features include current monitor resolution extended by 10x in a Lower range (selectable via software). Functional parameters can be programmed and monitored via USB 2.0 or Ethernet.
A complete set of software tools is available to control these units, from low level libraries to graphical application software.
Safety features allows the module to perform as a current generator and includes:
|
Channels |
can be enabled or disabled through the Global Interlock logic. |
|
Overvoltage and Undervoltage warning |
when the output voltage differs from the programmed value by more than 2% of set value (minimum 10V). |
|
Overcurrent detection |
if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off. |
|
Hardware VMAX |
Programmable VMAX protection limit. |
|

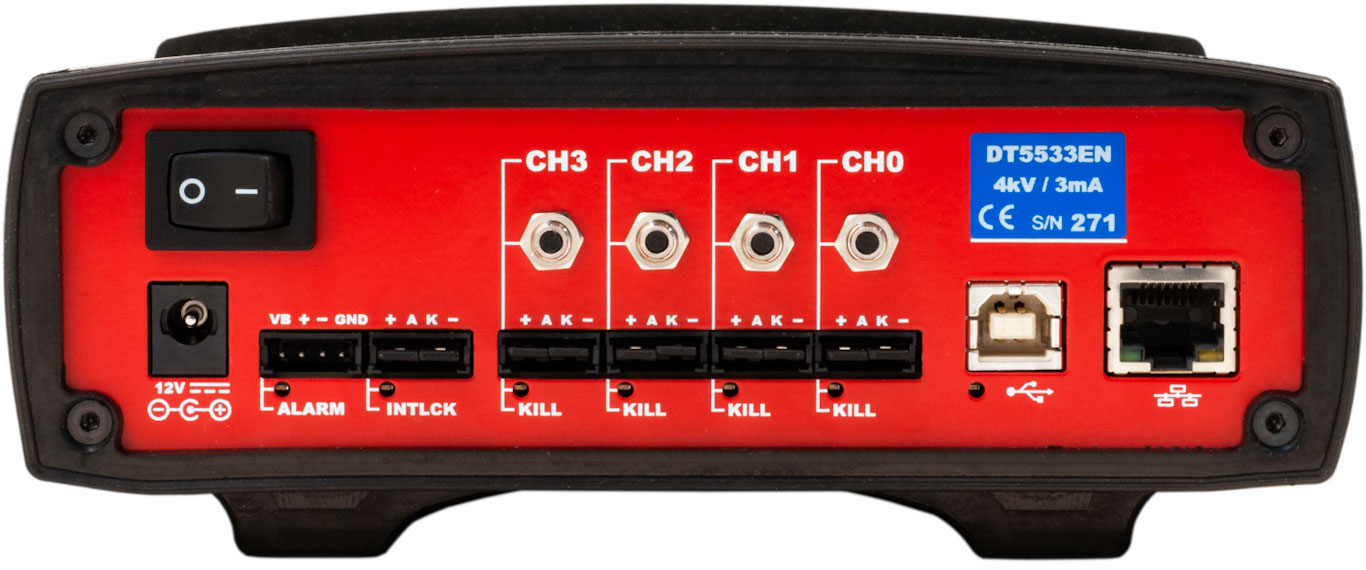

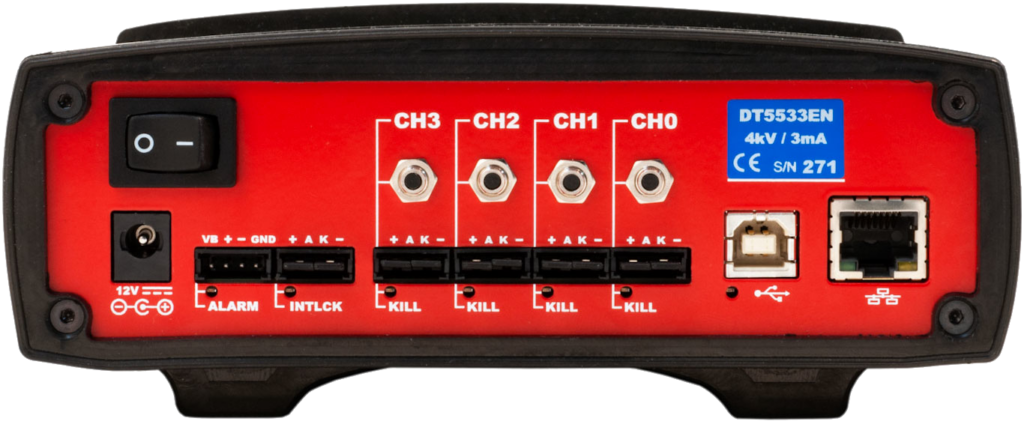

Safety Board Interlock |
common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function. |
Software
CAEN HV Wrapper Library
Library for CAEN Power Supply Control
CAEN Toolbox
GECO2020
LabVIEW Driver (PSM – Power Supply Modules)
Request a Quote
Compare
|
|
Name
|
No. of Channels
|
Max Output V
|
Max Output I
|
Vset/Vmon Resolution
|
Iset/Imon Resolution
|
Max. Ramp Up/Down Rate
|
Ripple Typ. (>1kHz)
|
Connectors
|
Max Power per Channel
|
Features
|
|
|
DT5521E |
4 |
6000 V |
300 µA |
Vset: 100 mV <br>Vmon: 50 mV |
Iset: 5 nA <br>Imon: 1 / 0.1 nA |
500 V/s |
<2 mVpp |
SHV |
1.8 W |
Remote control via USB or Ethernet |
|
|
DT5521HE |
4 |
6000 V |
20 µA |
Vset: 100 mV <br>Vmon: 50 mV |
Iset: 0.5 nA <br>Imon: 0.1 / 0.01 nA |
500 V/s |
<2 mVpp |
SHV |
0.12 W |
Remote control via USB or Ethernet |
|
|
DT5534E |
4 |
6000 V |
1 mA |
Vset: 100 mV <br>Vmon: 50 mV |
Iset: 20 nA <br>Imon: 5 / 0.5 nA |
500 V/s |
<10 mVpp |
SHV |
4 W |
Remote control via USB or Ethernet |
|
|
DT5533E |
4 |
4000 V |
3 mA |
Vset: 100 mV <br>Vmon: 10 mV |
Iset: 50 nA <br>Imon: 10 / 1 nA |
500 V/s |
<2 mVpp |
SHV |
4 W |
Remote control via USB or Ethernet |
|
|
DT5519E |
4 |
500 V |
3 mA |
Vset: 10 mV <br>Vmon: 1 mV |
Iset: 50 nA <br>Imon: 10 / 1 nA |
100 V/s |
<2 mVpp |
SHV |
1.5 W |
Remote control via USB or Ethernet |
Technical Specifications
|
Package |
Desktop module housed in a 154 x 50 x 164 mm3 (WxHxD) alloy box; weight:~800g |
|
No. of Channels |
4 |
|
Output Voltage |
0 ÷ 6 kV |
|
Polarity |
Positive / Negative / Mixed depending on purchased version; common ground |
|
Max. Output Current |
1 mA (4W max) |
|
Voltage Set/Monitor Resolution |
100 mV |
|
Voltage Set/Monitor Resolution |
50 mV |
|
Current Set Resolution |
20 nA |
|
Current Monitor Resolution |
5 nA (high range) / 500 pA (low range) |
|
Current Set Maximun Value |
1050 µA |
|
VMAX hardware |
0 ÷ 6100 V common to all board channels |
|
VMAX hardware resolution |
1 V |
|
VMAX hardware accuracy |
2% of FSR |
|
Ramp Up/Down |
1 ÷ 500 Volt/sec, 1 Volt/sec step |
|
Trip |
Max. time an “overcurrent” is allowed to last (seconds). A channel in “overcurrent” works as a current generator; output voltage varies to keep the output current lower than the programmed value. “Overcurrent” lasting more than set value (1 to 9999) causes the channel to “trip”. Output voltage will drop to zero either at the Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the off state. If trip= INFINITE, “overcurrent” lasts indefinitely. TRIP range: 0 ÷ 999.9 s; 1000 s = Infinite. Step = 0.1 s |
|
Voltage Ripple |
20 ÷ 1000 Hz: <10 mVpp typical; < 15 mVpp maximum |
|
Vset vs. Vout accuracy |
±0.05% of read ±1 V |
|
Vmon vs. Vout accuracy |
±0.05% of read ±1V |
|
Imon vs. Iout accuracy |
high range: ±2% of read ±500 nA |
|
Iset vs. Imon Accuracy |
high range: ±2% of read ±500 nA |
|
Maximum output power |
4 W per channel (software safety limit) |
