8 Channel 1kV/1mA Floating Stackable Power Supply with USB, Ethernet & Touchscreen

Up to 5 kV - DT1415ET (HiVolta)

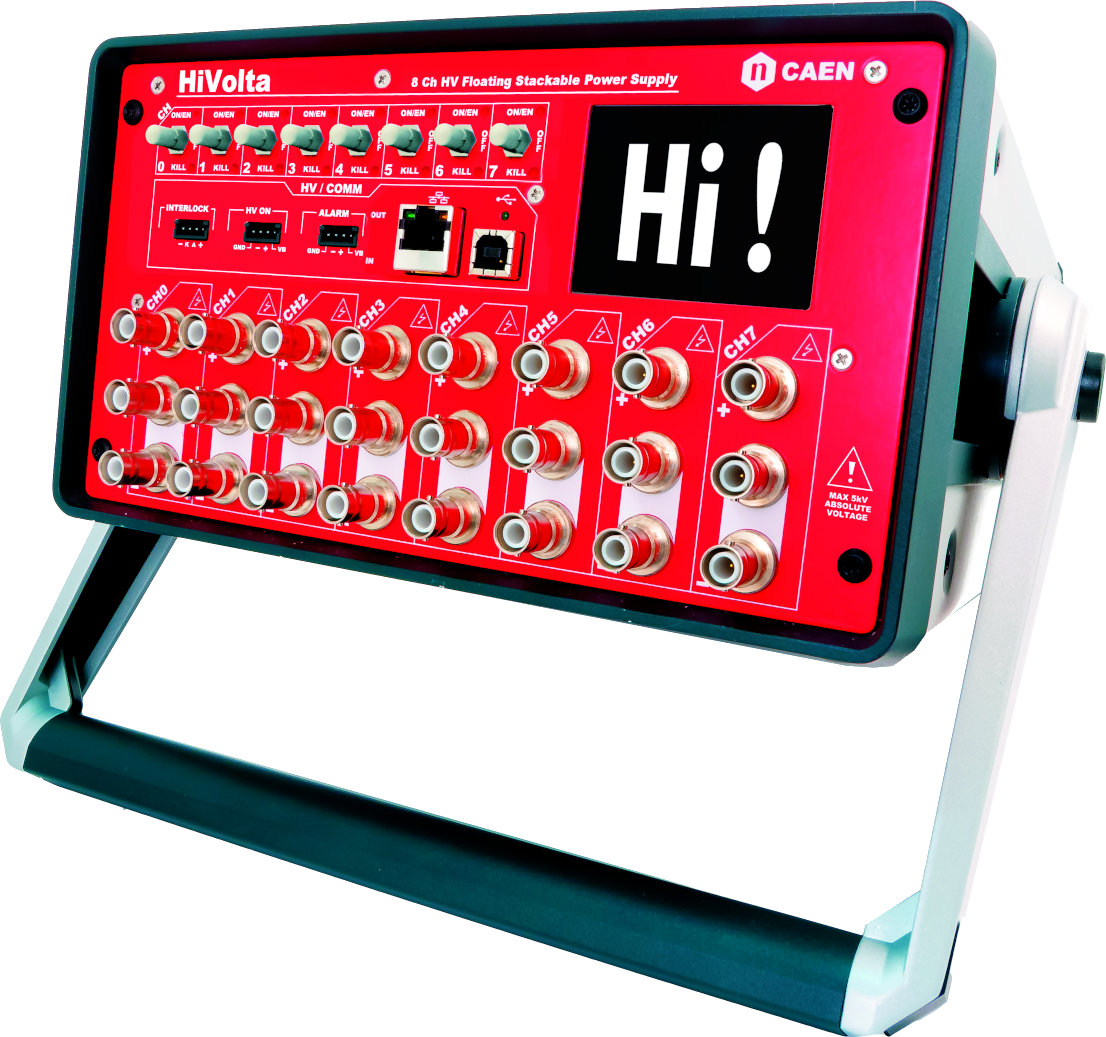

Photo of 8 Channel 1kV/1mA Floating Stackable Power Supply with USB, Ethernet & Touchscreen

The DT1415ET (HiVolta) is a compact desktop HV power supply with 8 fully floating, independently controllable channels up to 1 kV / 1 mA. Channels support positive or negative polarity, stacking up to 5 kV, and provide low ripple, high stability, and high-resolution current monitoring. The unit offers touchscreen local control, USB/Ethernet remote operation, and comprehensive protections with interlock logic, making it ideal for precise and flexible laboratory HV biasing.

  • 8 independent, reversible HV channels, fully floating up to 5 kV and stackable

  • SHV connectors for easy channel interconnection and flexible grouping

  • Very low ripple (< 5 mVpp) with high-resolution current monitoring (down to 100 pA)

  • Programmable ramps, protections, and interlock logic with synchronous channel control

  • Local touchscreen and remote control via USB 2.0 or Ethernet

8 Channel 1kV/1mA Floating Stackable Power Supply with USB, Ethernet & Touchscreen Models

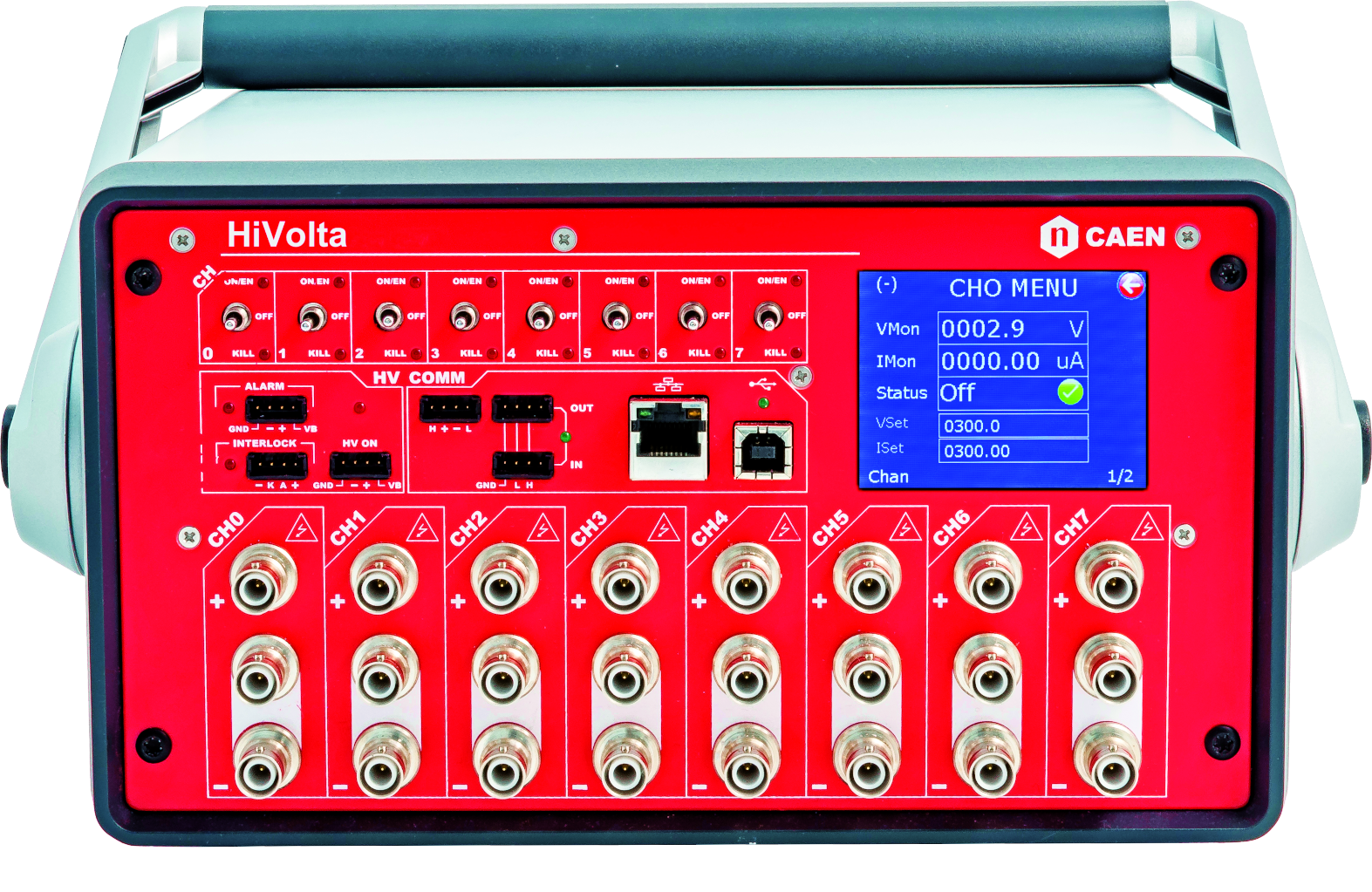

HIVOLTA (DT1415ET)

HIVOLTA (DT1415ET)

8 Ch Reversible 1 kV/1 mA Desktop HV Power Supply High Accuracy Module (USB/Ethernet/T.screen)
