EASY3000 Remote Crates bring power delivery directly into the experimental area, combining modularity, proximity to detectors and full remote control within the unified EASY power architecture. Developed from CAEN’s long experience with the LHC experiments, they are engineered to operate reliably in harsh environments with significant radiation levels and magnetic fields, while also delivering excellent performance in standard laboratory conditions.
The crates host EASY3000 HV, LV, ADC and DAC boards, providing their mechanical support and distributing power, control and monitoring signals through the backplane. Each crate holds up to 10 boards, with up to 3 kW output power, and is remotely managed through the A1676A Branch Controller, fully integrated with SYx527 systems. Installing the crates close to the load reduces cable losses and improves overall system efficiency.

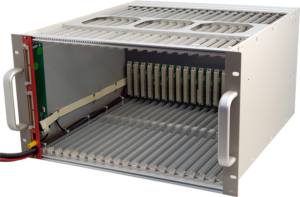

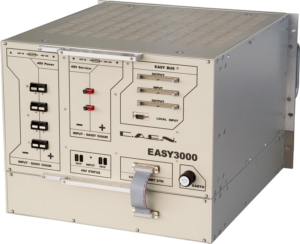

Power comes from external 48 V supplies, with separate lines for channel power and service logic. Three mechanical variants are available: the standard EASY3000 and the EASY3000B, with power and link connections on the rear panel (APP PC5933T or bolt connectors respectively), and the EASY3000S, with front-panel access. Cooling is provided via air or water intercoolers, with an optional fan unit for stand-alone operation outside magnetic fields.
Radiation and magnetic-field tolerant crates for harsh experimental environments (up to 2 kGauss)
Distributed power architecture with remote control and full SYx527 integration
Up to 10 boards per crate and up to 3 kW output power
Dual 48 V supply architecture for channel power and control logic
Three crate variants (rear, rear-bolt and front access) and flexible cooling options
