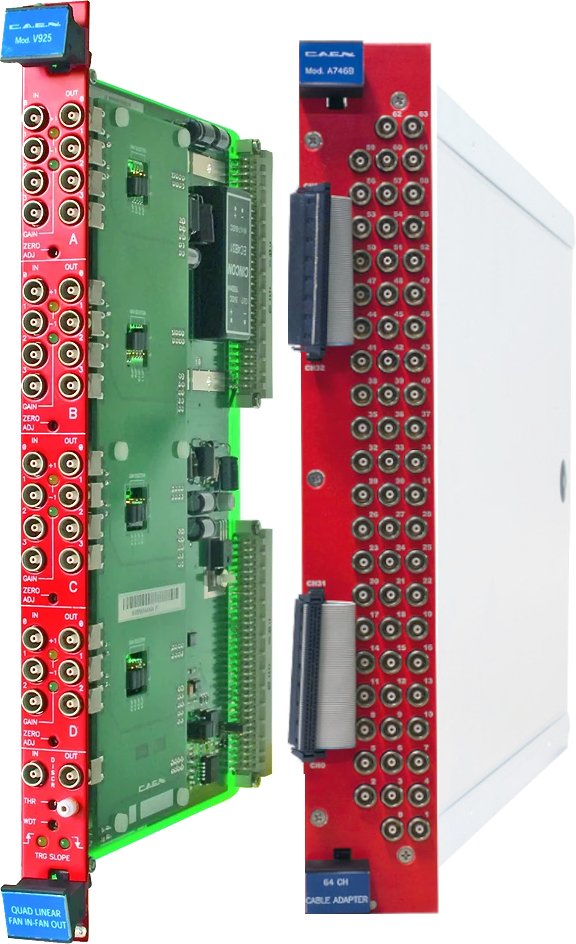

Linear Fan In – Fan Out Units

The Linear Fan In – Fan Out Units family provides flexible analog signal summing and distribution for detector and trigger systems. Designed for both NIM and VME environments, these modules combine multi-channel fan-in/fan-out sections with integrated discriminator functionality to support signal shaping, duplication, and routing in complex analog front-end setups. Each section sums bipolar input signals and reproduces them on multiple outputs with selectable polarity and adjustable DC offset, ensuring precise control of signal levels and timing. With DC-coupled paths, high bandwidth, and configurable gain and polarity, these units are well suited for trigger logic, detector signal conditioning, and laboratory test systems requiring reliable analog signal replication and summation.
