19″ x 4U enclosure
-
8 slot for 6U x 160mm VME modules
-
450W Power Supply

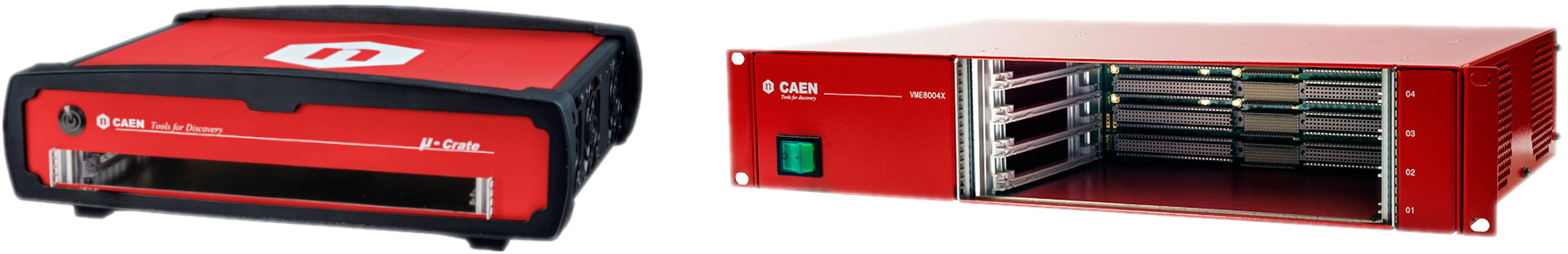

Mini Crate VME
VME Powered Crates
The Mini Crate VME family provides compact, low-power infrastructure for standalone operation, laboratory setups, and small-scale VME data acquisition systems. These crates are designed to host a limited number of 6U × 160 mm VME modules while ensuring full electrical compliance with VME64/VME64X power specifications, stable thermal management, and simplified deployment in desktop or rack environments.
From single-slot desktop units to multi-slot rack-mountable crates, the Mini Crate range enables flexible integration of digitizers, controllers, or custom electronics in space-constrained setups. Despite the reduced form factor, the crates maintain essential features such as protected power distribution, low-noise cooling, and compatibility with standard VME backplanes, making them suitable for prototyping, test benches, portable systems, and distributed DAQ nodes.
-
Compact single- to four-slot VME64/VME64X-compliant crates for 6U × 160 mm modules
-
Desktop and rack-mount configurations with low-noise, forced-air cooling
-
Integrated protected power supplies with optimized multi-rail distribution
-
Ideal for laboratory setups, portable systems, prototyping and small DAQ infrastructures
Mini Crate VME Models
Grid
Compare
VME8008X
VME8004B
-
19″ x 2U enclosure
-
4 slot for 6U x 160mm VME modules
-
365W Power Supply
VME8001
-
19″ x 1U enclosure
-
2 slot for 6U x 160mm VME modules
-
200W Power Supply
VME8008B
-
19″ x 4U enclosure
-
8 slot for 6U x 160mm VME modules
-
490W Output Power
VME8004X
-
19″ x 2U enclosure
-
4 slot for 6U x 160mm VME modules
-
450W Power Supply
µ-crate
-
Desktop form factor
-
Single slot for 1-unit VME 6U x 160mm modules
-
VME64 and VME64X power compliance (VME protocols not supported)
Image |
Name
|
Package | No. of Slots | Width | Height | Backplane connectors | Pluggable power supply | Pluggable fan unit | Remote control | Output power | |
 |
VME8008X |
VME64X | 8 (6U) | 19” | 4U | VME64X J1/J0/J2 | No | No | No | 450 W / 655 W | |
 |
VME8004B |
VME64 | 4 (6U) | 19" | 2U | VME64 J1/J2 | No | No | No | 365 W | |
 |
VME8001 |
VME64 | 2 (6U) | 19” | 1U | VME64 J1/J2 | No | No | No | 170 W | |
 |
VME8008B |
VME64 | 8 (6U) | 19” | 2U | VME64 J1/J2 | No | No | No | 490 W | |
 |
VME8004X |
VME64X | 4 (6U) | 19” | 4U | VME64X J1/J0/J2 | No | No | No | 450 W | |
 |
µ-crate |
VME64X | 1 (6U) | 34 cm | 96 mm | VME64X J1/J2 | No | No | No | 130 W |
