50 MHz, 62.5 MHz clock frequencies available and switch selectable
-
Can be operated as a signal or a clock fan-out from another external source (maximum frequency 300 MHz)
-
10 differential LVDS outputs
Signal Generators
Digital
The Signal Generators family provides versatile tools for timing, synchronization, optical stimulation, and programmable logic generation in nuclear physics and detector test setups. Designed for laboratory and experimental environments, these instruments combine digital logic processing, fast pulse generation, and precision clock distribution to support detector characterization, trigger formation, and system synchronization.
From programmable logic units and clock fan-out generators to fast LED drivers for photodetector testing, the family offers flexible configuration, remote control, and precise timing capabilities. Compact form factors and intuitive interfaces make these generators suitable for both standalone bench operation and integration into complex acquisition systems.
-
Programmable logic, timing, and pulse generation for detector tests and experimental trigger chains
-
Fast optical and electrical signal generation for photodetector characterization and calibration
-
Precision clock generation and distribution for synchronization of multi-module acquisition systems
-
Local and remote configuration via touchscreen, USB, Ethernet, or web-based interfaces
Signal Generators Models

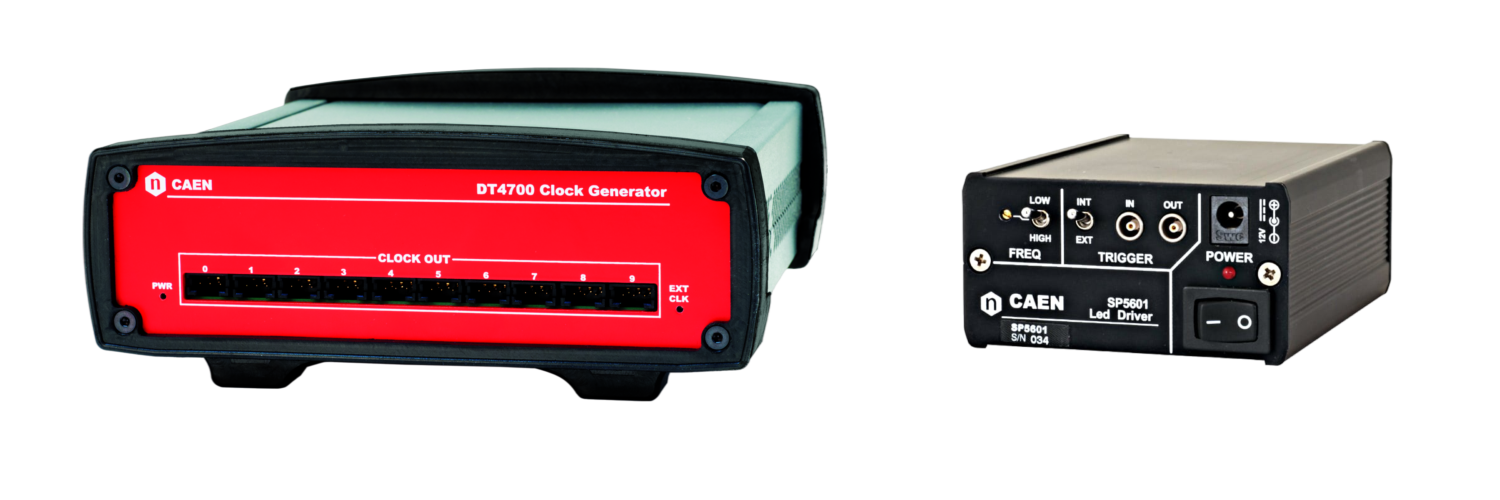

DT4700
SP5601
-
Pulse width: 8 ns
-
LED color: violet (400 nm) 1500 mcd
-
Pulse generator: internal/external
SP5605
-
Pulse width: 4 ns
-
LED color: UV (255 nm), 0-27000 photons
-
Pulse generator: internal/external
N1081B
-
Double-width NIM unit
-
Wide range of user-selectable functionalities: logic functions, counting, timing, digital pulse generator.
-
4 independent sections, each with:
-
6 NIM/TTL/ANALOG input
-
