12 / 24 / 32 independently controllable High Voltage channels
-
Maximum output voltage: 100 V
-
Dual range current:
-
High Power: 1 mA (1 nA monitor resolution)
-
High resolution: 0.1 mA (0.1 nA monitor resolution)
-
-
Available with Negative / Positive / Mixed Polarity
-
SHV / DB25 connectors
-
Floating Type: Common Floating Return
-
Low ripple
-
Under/over-voltage alert, overcurrent and max. voltage protection
-
Interlock logic for unit enable
-
Software Tool for easy channel management
The power supplies of the A1540H Family house 12 / 24 / 32 independent high voltage channels.

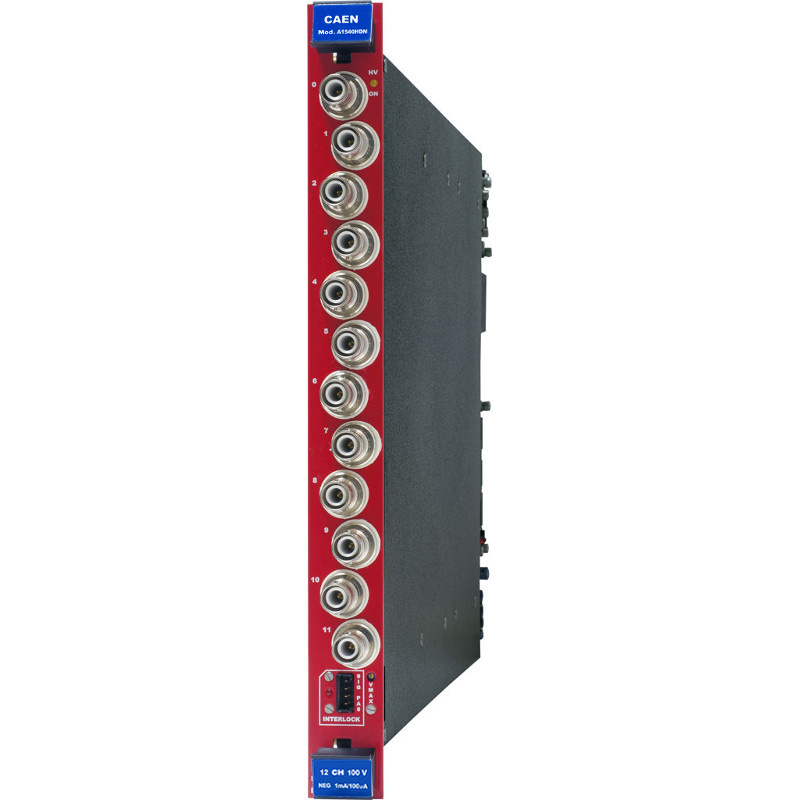

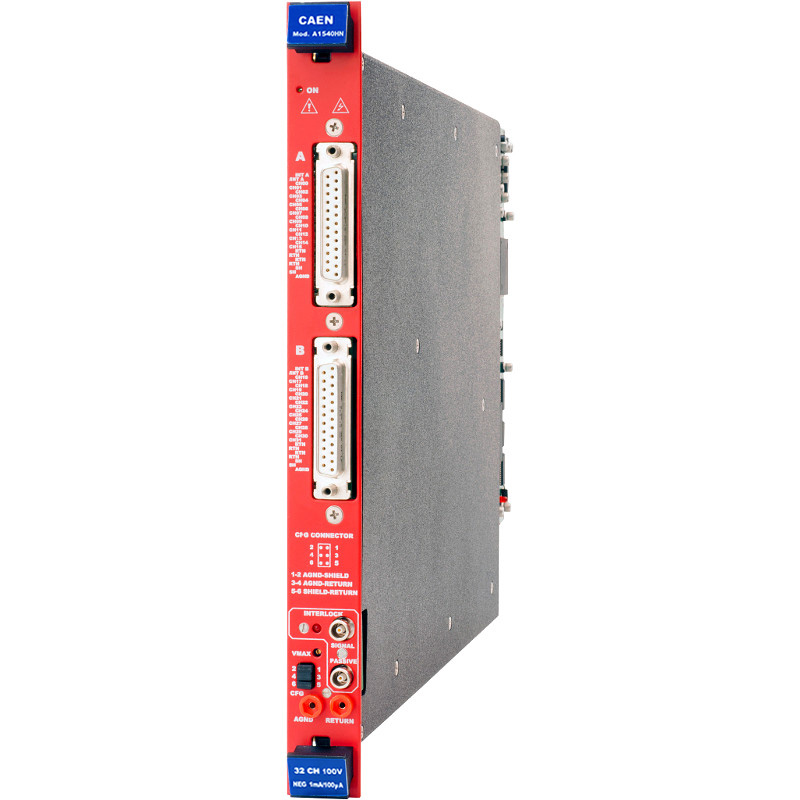

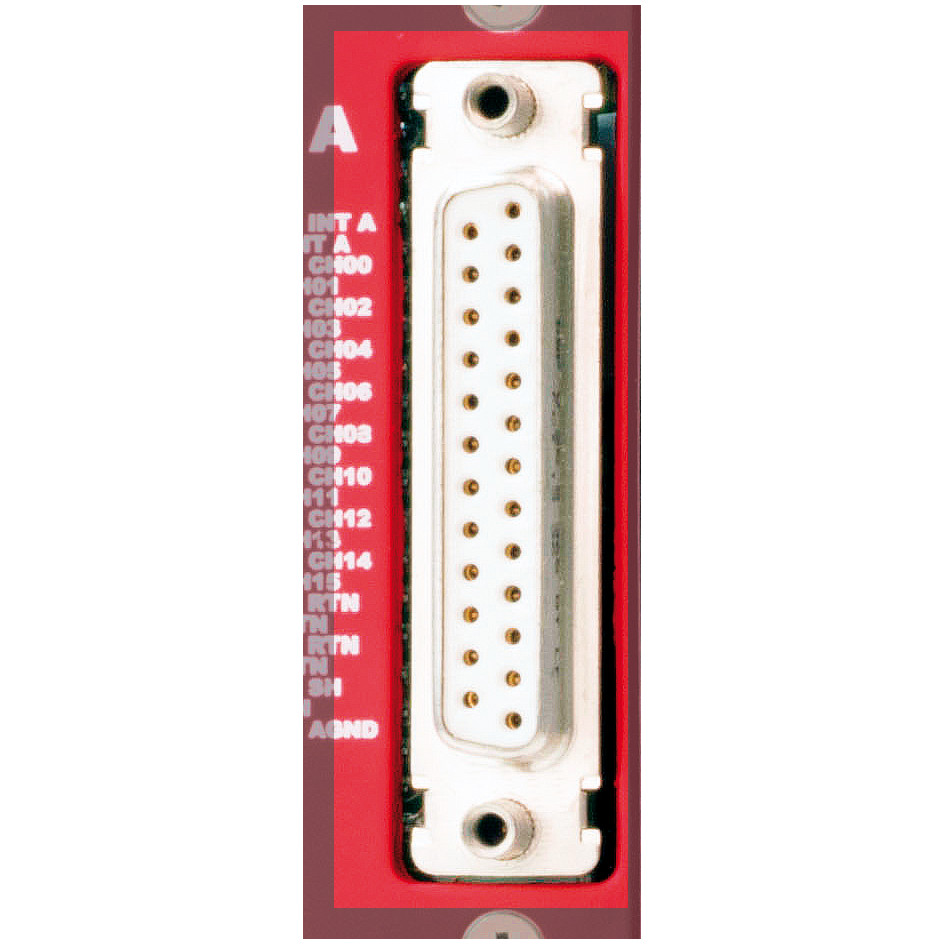

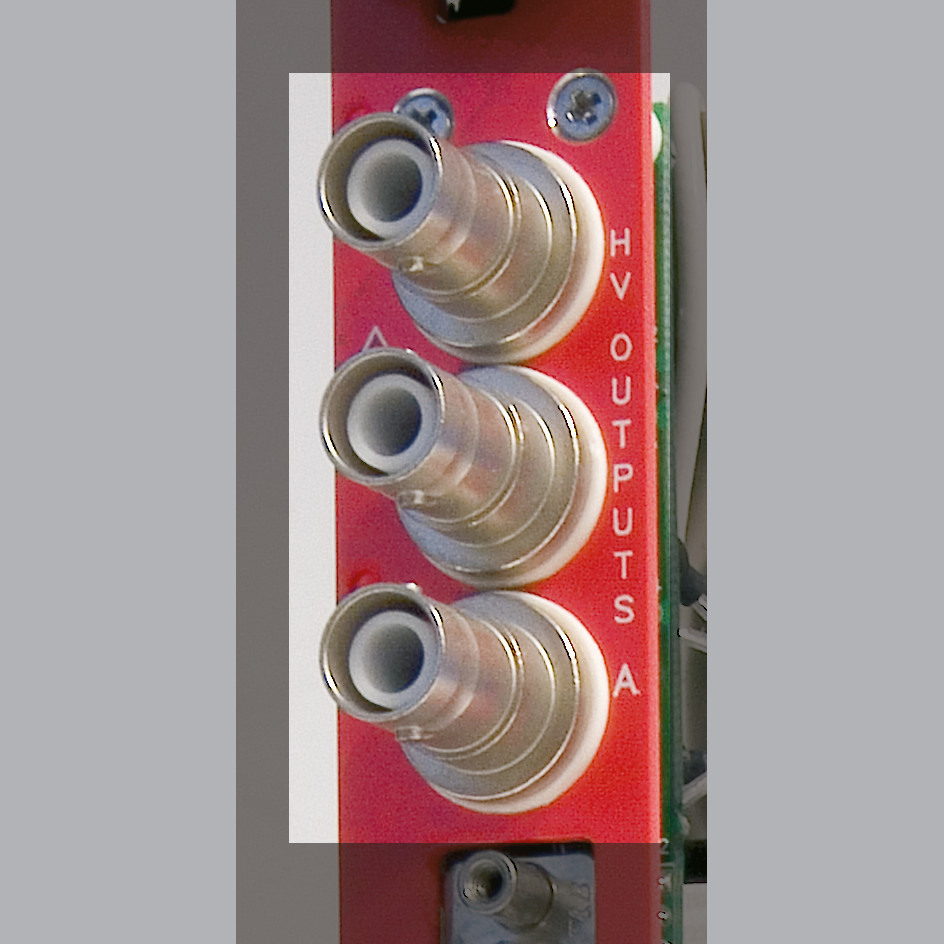

The channels share a Common Floating Return, which is insulated from the chassis/crate ground. This feature may help to minimize problems of ground-loops. The board is available with positive, negative or mixed output polarity. Channels are delivered with SHV / DB25 connectors. Consult our connectors reference page for technical information.
The output voltage range is 0 ÷ 100 V, with 1 mV monitor resolution. The output channels offer dual current ranges (software selectable):
|
|
High Power: 0 ÷ 1 mA |
|
High Resolution: 0 ÷ 0.1 mA |
|
|
I set resolution: 20 nA |
|
I set resolution: 20 nA |
|
|
I mon resolution: 1 nA |
|
I mon resolution: 0.1 nA |
Independently programmable for each channel:
|
|
Output voltage: |
|
0 ÷ 100 V |
|
Step: 10 mV |
|
|
Current limit (Iset): |
|
0 ÷ 1 / 0.1 mA selectable |
|
Step: 20 nA |
|
|
V Ramp up/down: |
|
1 ÷ 50 V/s |
|
Step: 1 V/sec |
|
|
TRIP parameter |
|
0 ÷ 999.9 s; 1000 s = Infinite |
|
Step: 0.1 s |
Safety features include:
-
Channels: can be enabled or disabled through the Global Interlock logic.
-
Overvoltage and Undervoltage warning: when the output voltage differs from the programmed value.
-
Overcurrent detection: When a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
-
Hardware VMAX Maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software.
-
Safety Board Interlock This protection allows to disable the primary HV generation when the HV outputs are not connected to their loads.
CAEN provides a complete software range to control, monitor and configure its Power Supply products.
-
GECO2020 GEneral COntrol Software
-
CAEN HV Wrapper Library,
-
HiVoCS web tool
-
OPC Server for CAEN Power Supplies
-
EPICS Service
These tools, which support the most used operating systems, ranging from low level libraries (CAEN HV Wrapper Library), to be used as a source for customer designed software, to the WEB interface (HIVOCS) available on each mainframe, up to the all-inclusive Control Software (GECO2020) with user friendly graphical interfaces, to meet any application needs.
Advanced control via OPC Server (CAEN OPC Server) and EPICS (EPICS IOC) is supported, to easily include CAEN power supplies within existing setups featuring such standards.
-
All tools are available for free download.
Universal Multichannel Power Supply Systems (Mainframes)
Universal Multichannel Power Supply Systems, or Mainframes, are modular systems designed to house and control High Voltage (HV) and Low Voltage (LV) boards, providing power for particle detectors and their associated electronics in standard 19” racks. CAEN offers four mainframe versions:
-
SY4527: A large experimental system. This 19” wide / 8U high mainframe can house up to 16 HV/LV boards. It offers a power output from 600W up to a maximum of 4200W, depending on installed Power Supply Units and display type. Local control is optionally available via a 10.4” or 5.7” LCD Touchscreen.
-
SY5527: A more compact laboratory version. This 19” wide / 4U high mainframe can house up to 6 HV/LV boards. Its power output ranges from 600W up to a maximum of 1800W, depending on Power Supply Units. Optional local control is available via a 5.7” LCD Touchscreen.
-
SY4527LC: A cost-effective alternative with a shorter depth (~20cm compared to standard SYx527). This 19” wide / 8U high mainframe houses up to 10 boards and includes a 600W power supply. It does not include an LCD display. It is fully compatible with SY4527 and SY5527 boards.
-
SY5527LC: Also a cost-effective, shorter depth alternative (~20cm compared to standard SYx527). This 19” wide / 4U high mainframe houses up to 4 boards and includes a 400W power supply. It does not include an LCD display. It is fully compatible with SY4527 and SY5527 boards.
All systems offer modular design for simplified upgrades and maintenance and can be controlled remotely via Ethernet.
Accessories
You also may be interested in…
SY4527
SY4527LC
SY5527
SY5527LC
Request a Quote
Compare
|
|
Name
|
No. of Channels
|
Max Output <br>V
|
Max Output <br>I
|
Vset/Vmon Resolution
|
Iset/Imon Resolution
|
Max. Ramp Up/Down Rate
|
Ripple Typ.
|
Connectors
|
Max Power per Channel
|
Grounding
|
Polarity
|
|
|
AG539 |
12 / 24 / 32 |
100 V |
10 mA |
10 / 1 mV |
10 / 1 nA |
50 V/s |
< 3 mVpp |
SHV / DB25 |
1 W |
Common Ground |
Neg / Pos / Mixed |
|
|
A1539 |
12 / 24 / 32 |
100 V |
10 mA |
10 / 1 mV |
10 nA / 1 nA |
50 V/s |
< 3 mVpp |
SHV / DB25 |
1 W |
Common Floating Return |
Neg / Pos / Mixed |
|
|
A1540 |
12 / 24 / 32 |
100 V |
1 mA |
10 / 1 mV |
10 nA / 1 nA |
50 V/s |
< 3 mVpp |
SHV / DB25 |
0.1 W |
Common Floating Return |
Neg / Pos / Mixed |
|
|
A1539B |
32 |
100 V |
20 mA |
10 / 1 mV |
20 nA / 1 nA |
50 V/s |
< 10 mVpp |
DB25 |
2 W |
Common Floating Return |
Neg / Pos |
|
|
AG540 |
12 / 24 / 32 |
100 V |
1 mA |
10 / 1 mV |
10 / 1 nA |
50 V/s |
< 3 mVpp |
SHV / DB25 |
0.1 W |
Common Ground |
Neg / Pos / Mixed |
|
|
A7040 |
48 |
100 V |
1 mA |
2 / 0.2 mV |
20 / 2 nA |
50 V/s |
< 5 mVpp |
DB37 |
50 mW |
Common Floating Return |
Neg / Pos |
|
|
|
A1540H |
12 / 24 / 32 |
100 V |
1 / 0.1 mA selectable |
10 / 1 mV |
Iset: 20 nA Imon: 1 / 0.1 nA |
50 V/s |
< 3 mVpp |
SHV / DB25 |
0.1 W |
Common Floating Return |
Neg / Pos / Mixed |
Technical Specifications
|
No. of Channels |
12 / 24 / 32 (Common Floating Return) |
|
Output Voltage |
0÷100 V |
|
Polarity |
Positive / Negative / Mixed depending on purchased version |
|
Max. Output Current |
|
|
Voltage Set Resolution |
10 mV |
|
Voltage Monitor Resolution |
1 mV |
|
Current Set Resolution |
20 nA |
|
Current Monitor Resolution |
|
|
VMAX hardware |
0÷100 V common for all the board channels |
|
VMAX hardware accuracy |
1 V |
|
VMAX software |
0÷100 V settable for each channel |
|
VMAX software resolution |
1 V |
|
Ramp Up/Down |
1÷50 Volt/sec, 1 Volt/sec step |
|
Voltage Ripple |
|
|
Vmon vs. Vout accuracy |
±0.02% ±50 mV |
|
Vset Vs. Vout accuracy |
±0.02% ±50 mV |
|
Imon vs. Iout accuracy |
|
|
Iset vs. Iout accuracy |
|
