High efficiency
-
4 kV/100 µA output ranges
-
Available with positive or negative polarity
-
Stand alone architecture
-
Compact package: 29x54x16 mm3 (WxLxH)

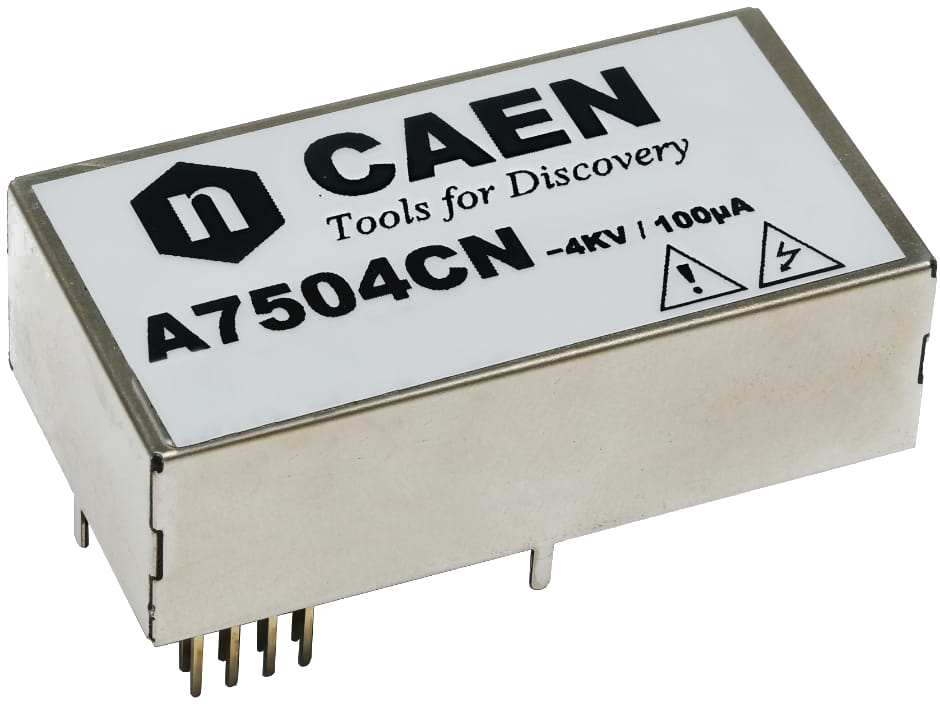

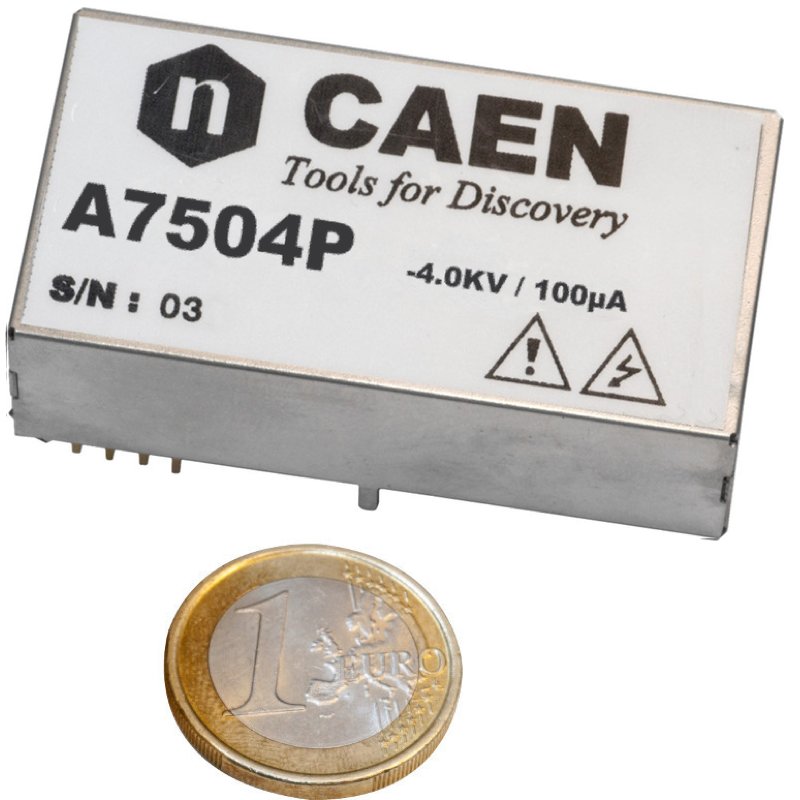

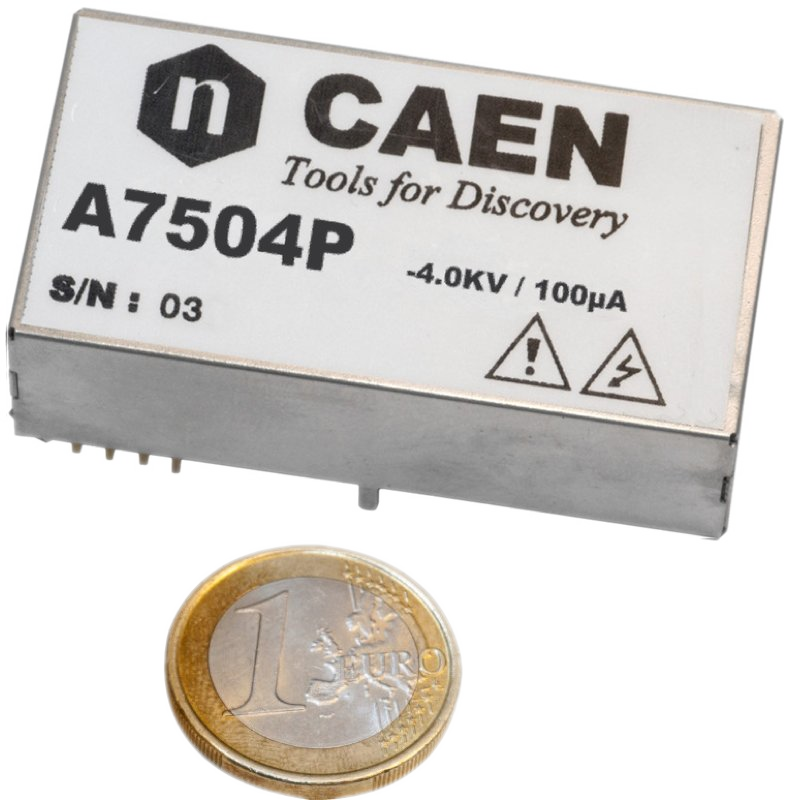

The A7504C is a high efficiency power supply providing a programmable and monitorable output voltage ranging from 0 to 4 kV, when supplied with a +12 V input. It is available with either positive or negative output voltage. The output voltage is regulated by providing a 0 to +2.5 V external voltage (Vset). The board is provided with an over-current protection: if a current larger than the Iout maximum value is drawn, the module is not being damaged.

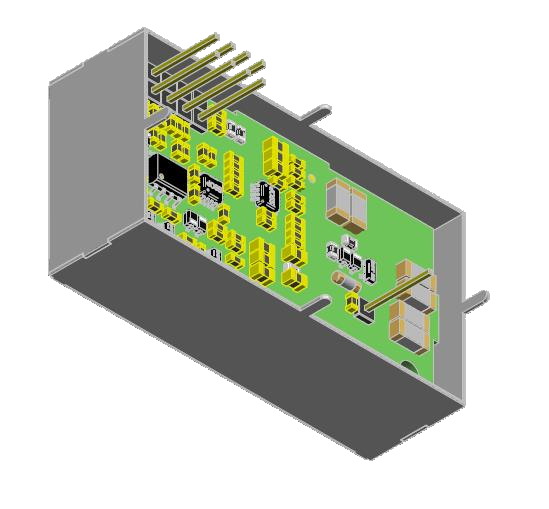

The module is engineered on a FR4 PCB, coated and housed in DC01 steel box. CAD Altium library components and 3D step models are available on request.
Accessories
You also may be interested in…
A7501
A7502
A7505
A7508
A7511
A7526
Request a Quote
Compare
|
|
Name
|
No. of Channels
|
Max Output V
|
Max Output I
|
Vset Input (V)
|
Vmon Output (V)
|
Imon Output (V)
|
Ripple Typ.
|
Power requirement (mW)
|
Operating temperature
|
Voltage Supply (Vin)
|
|
|
A7505 |
1 |
1600 V |
500 µA |
0 ÷ +2.6 |
0 ÷ +2.6 |
0 ÷ +2.6 |
< 5 mVpp |
< 1600 |
-55° C ÷ +80° C |
+12V (±5%) |
|
|
A7502 |
1 |
2100 V |
100 µA |
0 ÷ +2.5 |
0 ÷ +2.5 |
0 ÷ +2.5 |
< 5 mVpp |
< 500 |
-40°C ÷ +70° C |
+5V (±5%) |
|
|
A7504C |
1 |
4000 V |
100 µA |
0 ÷ +2.5 |
0 ÷ +2.5 |
0 ÷ +2.6 |
< 10 mVpp |
< 1200 |
-55° C ÷ +80° C |
+12V (±10%) |
|
|
A7508 |
1 |
800 V |
50 µA |
0 ÷ +2.5 |
0 ÷ +2.5 |
0 ÷ +2.5 |
< 5 mVpp |
< 100 |
-40°C ÷ +70° C |
+5V (±5%) |
|
|
A7520 |
1 |
2000 V |
700 µA |
0 ÷ +2.45 |
0 ÷ +2.45 |
0 ÷ +2.2 |
< 8 mVpp |
< 2500 |
-55° C ÷ +80° C |
+12V (±10%) |
|
|
A7511 |
1 |
1100 V |
1 mA |
0 ÷ +2 |
0 ÷ +2 |
0 ÷ +2 |
< 5 mVpp |
< 1600 |
-55° C ÷ +80° C |
+12V (±5%) |
|
|
A7526 |
1 |
2600 V |
500 µA |
0 ÷ +2.4 |
0 ÷ +2.4 |
0 ÷ +2 |
< 5 mVpp |
< 2000 |
-55° C ÷ +80° C |
+12V (±10%) |
|
|
A7501 |
1 |
2100 V |
100 µA |
0 ÷ +2.5 |
0 ÷ +5 |
0 ÷ +2.5 |
< 5 mVpp |
< 400 |
-40°C ÷ +70° C |
+12V (±5%) |
Technical Specifications
|
Packaging |
Material: DC01; dimension: W=29 mm ; L=54 mm ; H=16 mm |
|
Contact pins |
Male strip header; 2.54mm step; phosphor bronze; UL94V0 insulator |
|
Operating temperature |
-55° C ÷ +80° C |
|
Storage temperature |
-55° C ÷ +85° C |
|
Voltage Supply (Vin) |
+12 V ± 5% |
|
Output Voltage (Vout) |
0 ÷ 4 kV |
|
Enable |
If Enable > 2.8 V Channel active |
|
Output polarity |
Available positive or negative |
|
Vmon Output |
0 ÷ +2.5 V |
|
Vset Input |
0 ÷ +2.5 V |
|
Iset Input |
0 ÷ +2.5 V |
|
Imon Output |
0 ÷ +2.5 V |
|
Status OVC bit |
0÷5 V |
|
Δ Vout/Vout (for ±5% Vin variations) |
<1.5 X 10-3 @ full scale |
|
Maximum Output Current (Iout) |
100 µA at +4 kV |
|
Power requirement |
<1.2 W; @ 4000 V / 100 µA (Rload ~ 40 MOhm) |
|
Protection |
Over current, short circuit, sparks and humidity |
|
Efficiency |
>30% @ Vout >2000 V (0° C ÷ +40° C) |
|
Output Ripple (Full Load) |
Typical 10mVpp; Maximum 15mVpp |
|
Vout / Temperature coefficient |
< 50 ppm / °C (@ Vout > 1000 V) |
|
Vset vs. Vout Integral Non Linearity |
<±0.2% (-20° C ÷ +50° C) |
|
Vmon vs. Vout Integral Non Linearity |
<±0.2% (-20° C ÷ +50° C) |
|
Electromagnetic compatibility |
Weak emission of electromagnetic impulse and RF; one-piece metal shielding with several ground connections |
|
Uniformity of a lot |
< 1 % |
|
Protection |
Over current short circuit, sparks and humidity |
|
Packaging |
|
|
Contact pins |
<± 0.05% (0 ÷ ± 10 V 1 kΩ termination) |
|
Operating temperature |
200 mV/MeV (Si) |
|
Storage temperature |
Model
A1422E (2ch) A1422F (4ch) +12 V
60 mA 120 mA -12 V
20 mA 40 mA |
|
Number of Channels |
Material: DC01; dimension: W=29 mm ; L=54 mm ; H=16 mm |
|
Maximum Output Current (Iout) |
Male strip header; 2.54mm step; phosphor bronze; UL94V0 insulator |
|
Output Voltage (Vout) |
-55° C ÷ +80° C |
|
Output Ripple (Full Load) |
-55° C ÷ +85° C |
|
Vout / Temperature coefficient |
1 |
|
ΔVout/Vout (for ±5% Vin variations) |
100 µA at +4 kV |
|
Vout vs. Vset Integral Non Linearity |
0 ÷ 4 kV |
|
Vmon vs. Vout Integral Non Linearity |
Typical 10mVpp; Maximum 15mVpp |
|
Iset input (positive analog command) |
< 50 ppm / °C (@ Vout > 1000 V) |
|
Vmon Output (positive analog command) |
<1.5 X 10-3 @ full scale |
|
Iset input (positive analog command) |
<±0.2% (-20° C ÷ +50° C) |
|
Imon Output (positive analog command) |
<±0.2% (-20° C ÷ +50° C) |
|
Status OVC bit |
0 ÷ +2.5 V |
|
Power requirement |
<±0.2% (-20° C ÷ +50° C) |
|
Thermal stability (Δ Vout/Vout) |
0 ÷ +2.5 V |
|
Electromagnetic compatibility |
0 ÷ +2.5 V |
|
Protection |
0÷5 V (low= OVC) |
