2 independent OR sections, 12 inputs each
-
1 GATE signal per section
-
Cascadeable sections
-
Less than 10 ns input/output delay

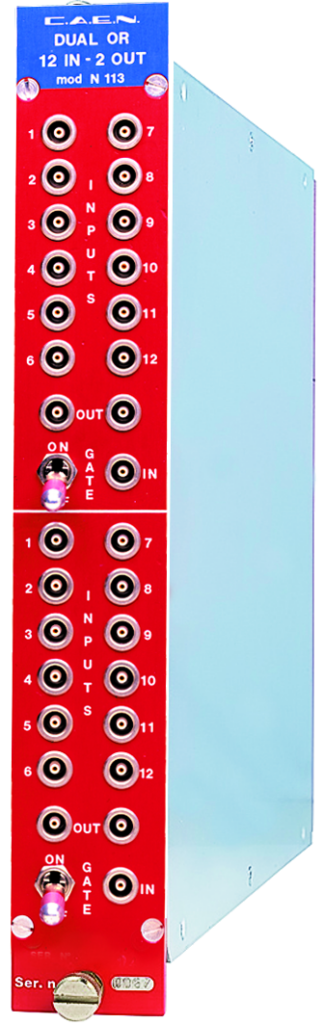

The Mod. N113 is a one unit wide NIM Module, with two 12 input – 2 output OR sections.
Via 4 internal jumpers the module can be converted to a single 24 OR imputs with separate or common gate control. All input/output signals are std. NIM.
The outputs can be “gated” via two front panel GATE inputs with relevant switches.
You also may be interested in…
NIM8301
NIM8302
NIM8305
NV8020A
NIM8302P
NIM8303
NIM8306
NIM8304
Request a Quote
Compare
|
|
Name
|
Package
|
Function
|
Inputs per Section
|
Outputs per Section
|
I/O Delay (ns)
|
Input Bandwidth (MHz)
|
Majority
|
Strobe/ Veto
|
Connectors
|
No. of Sections
|
|
|
N405 |
NIM |
Logic Unit |
4 NIM |
2+/1 NIM, NIM Linear |
< 14 |
100 |
Yes |
yes |
LEMO |
3 |
|
|
New DT1081B |
Desktop |
Programmable Logic Unit |
6 NIM/TTL |
4 NIM/TTL |
20 |
n.a. |
Yes |
Yes |
LEMO |
4 |
|
|
Coming Soon DT1082 |
Desktop |
Open FPGA |
6 NIM/TTL |
4 NIM/TTL |
20 |
n.a. |
Yes |
Yes |
LEMO |
4 |
|
|
DT5495 |
Desktop |
Programmable Trigger Unit FPGA: Cyclone V 5CGXC4 (50 K LEs) |
64 ECL/ PECL/ LVDS+2 bidirectional NIM/TTL (expandable up to 162) |
32 LVDS+2 bidirectional NIM/TTL (expandable up to 130) |
n/a |
Section A/B: 200, Section C/D: 250 |
Yes |
Yes |
Robinson Nugent Flat/LEMO |
1 |
|
|
Coming Soon N1082 |
NIM |
Open FPGA |
6 NIM/TTL |
4 NIM/TTL |
20 |
n.a. |
Yes |
Yes |
LEMO |
4 |
|
|
N455 |
NIM |
OR / AND |
2 NIM |
3+/1 NIM, 1 NIM Overlap |
< 16 |
130 |
No |
Yes |
LEMO |
4 |
|
|
V976 |
VME |
Logic Unit |
4 NIM/TTL |
4 NIM/TTL |
< 9 |
150 |
Yes |
No |
LEMO |
4 |
|
|
N1081B |
NIM |
Programmable Logic Unit |
6 NIM/TTL |
4 NIM/TTL |
20 |
n.a. |
Yes |
Yes |
LEMO |
4 |
|
|
V2495 |
VME |
Programmable Trigger Unit FPGA: Cyclone V 5CGXC4 (50 K LEs) |
64 ECL/ PECL/ LVDS+2 bidirectional NIM/TTL (expandable up to 162) |
32 LVDS+2 bidirectional NIM/TTL (expandable up to 130) |
n/a |
Section A/B: 200, Section C/D: 250 |
Yes |
Yes |
Robinson Nugent Flat/LEMO |
1 |
|
|
N113 |
NIM |
OR |
12 NIM |
2 NIM |
< 10 |
130 |
No |
Yes |
LEMO |
2 |
Technical Specifications
|
Packaging |
One unit wide NIM module |
|
Inputs |
12 inputs per section, 50 Ω impedance, std. NIM level, DC coupled LEMO 00 type connectors |
|
Minimum Pulse Width |
7 ns |
|
GATE Input |
1 per section, 50 Ω impedance, std NIM level, DC coupled, LEMO 00 type |
|
Min. GATE Width |
7 ns |
|
Outputs |
1 per section, std. NIM level, LEMO 00 type connectors |
|
Rise-Fall Time |
< 3 ns |
|
Input - output delay |
< 10 ns |
