4 x 4 ch. with different Fixed Gain: x2, x4, x8, x10.
-
Input bandwidth up to 250 Mhz
-
50 Ohm input impedance
-
±2 V output dynamics
-
50 Ohm loads driven
-
Cascadeable channels
-
Rise/fall time smaller than 1.5 ns
-
I/O delay smaller than 3 ns

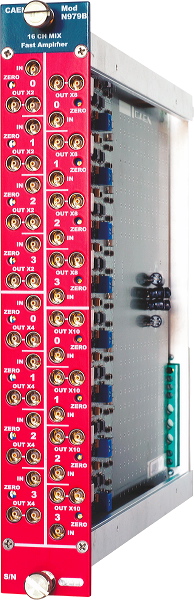

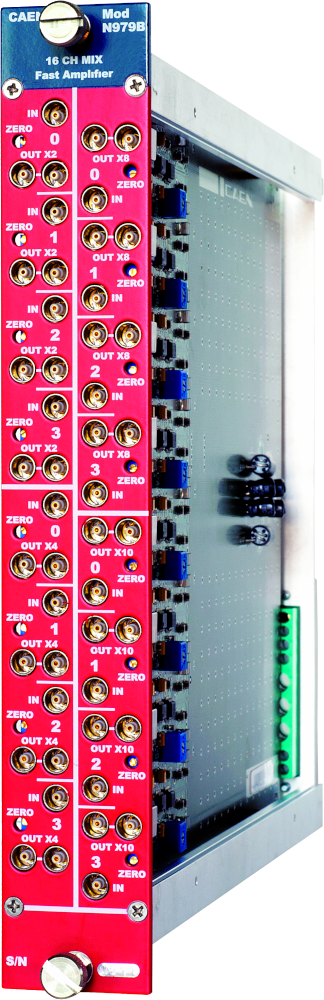

The Model N979B is a 16 channel fast rise time amplifier housed in a 1-unit NIM module; N979B channels are divided into 4 groups with different fixed gain: x2, x4, x8, x10.
Channels are bipolar, non-inverting. Channels can be cascaded in order to obtain larger gain values. Input bandwitdth is 250 MHz for signals up to 50 mVpp and decreases for larger ones (up to 130 MHz @ 300 mVpp).
Each channel is provided with three LEMO 00 connectors, one for the input and two bridged for the output. The board features a ±2 V output dynamics. 16 screw-trimmers (one per channel) allow the offset calibration which operates over a ±30 mV range. The features include an input overvoltage protection.
You also may be interested in…
NIM8301
NIM8302
NIM8305
NV8020A
NIM8302P
NIM8303
NIM8306
NIM8304
Request a Quote
Compare
|
|
Name
|
Package
|
No. of Channels
|
Gain
|
Bandwidth (MHz)(1)
|
Coupling
|
Input Impedance (Ω)
|
Output Rise Time (ns)
|
Output Range (V)
|
Equivalent Input Noise (µV RMS)
|
In Conn.
|
Out Conn.
|
|
|
V975 |
VME |
8 |
10 |
250 (gain: 10x) |
DC |
50 |
< 1.5 |
± 2 |
< 50 (gain: 10x) |
LEMO |
LEMO |
|
|
V974 |
VME |
4 |
1 ÷ 10 |
170 (gain: 10x) |
DC |
50 |
< 3 |
± 2 |
< 70 (gain: 10x) |
LEMO |
LEMO |
|
|
N978 |
NIM |
4 |
1 ÷ 10 |
250 (gain: 10x) |
DC |
50 |
< 1.5 |
± 2 |
< 50 (gain: 10x) |
LEMO |
LEMO |
|
|
N979 |
NIM |
16 |
10 (Optional in 2 ÷ 9 range) |
250 (gain: 10x) |
DC |
50 |
< 1.5 |
± 2 |
< 50 (gain: 10x) |
LEMO |
LEMO |
|
|
N979B |
NIM |
16 |
2, 4, 8, 10 |
250 (gain: 10x) |
DC |
50 |
< 1.5 |
± 2 |
< 50 (gain: 10x) |
LEMO |
LEMO |
Technical Specifications
|
Packaging |
1U-wide NIM unit |
|
Voltage gain |
2 ± 6%; 4 ± 6%; 8 ± 6%; 10 ± 6%; |
|
Rise time |
≤ 1.5 ns(with unipolar input, ±25 mV amplitude) |
|
Band width (gain: 10x) |
±25 mV input signal: 0÷250 MHz |
|
Output dynamics |
±2 V |
|
Offset uniformity |
±4 mV (typical) |
|
Offset nulling range |
±30 mV (measured with 0 Ohm termination on input) |
|
Total Gain / Max input amplitude (mV) |
2x -1000 ÷+1000 |
|
Inputs channels |
16, DC coupled, 50 W ± 2% impedance |
|
Output channels |
16 with Fan-Out of two, drive 50 Ohm load |
|
Noise (gain: 10x) |
≤ 50 µV RMS (referred to the input) |
|
Interchannel insulation |
50 dB |
|
Input reflections |
≤ 10% |
|
I/O Delay |
≤ 3 ns |
